Summary of Contents for Victor Mist Pro 360

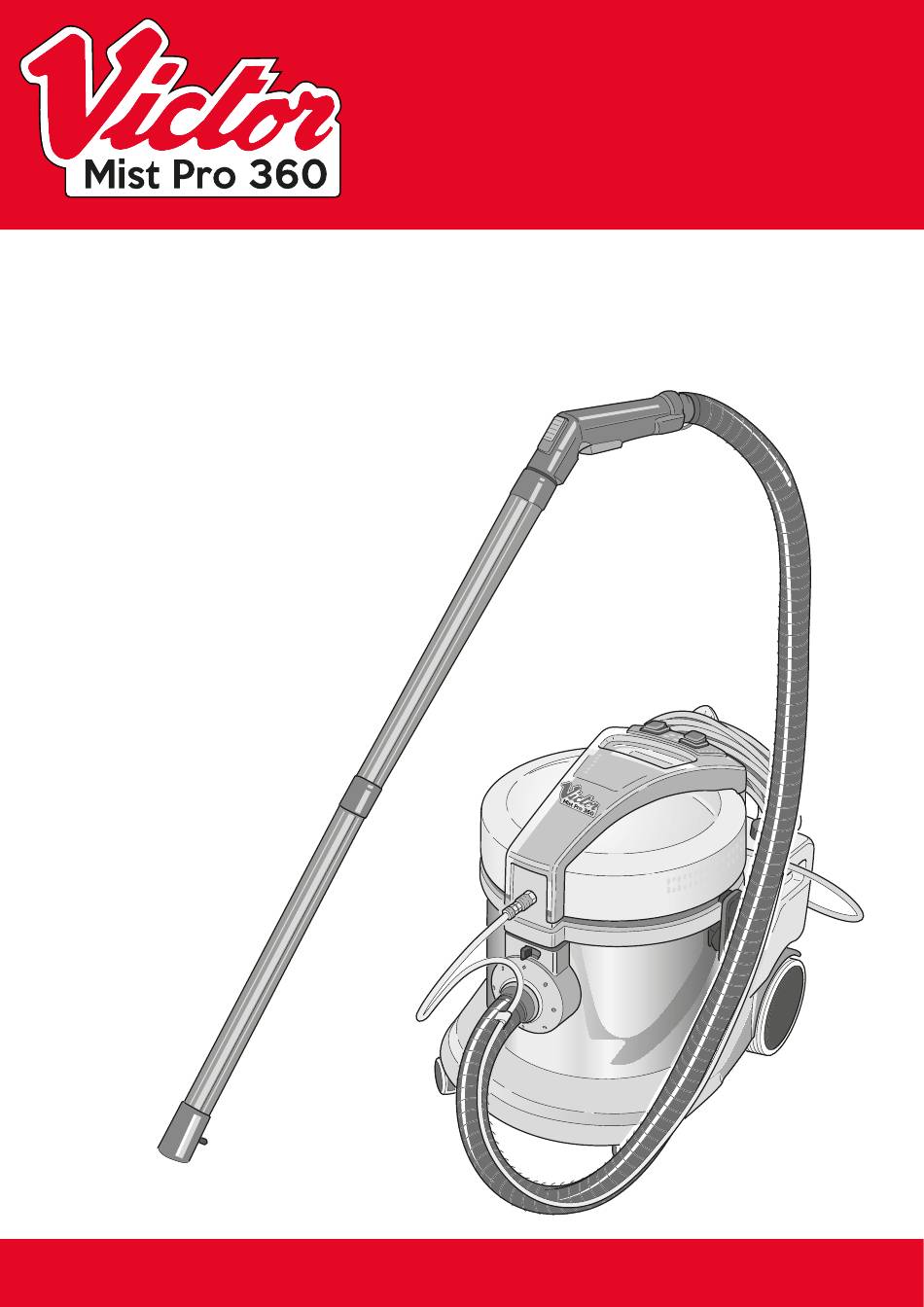

- Page 1 Surface Sanitising System Instruction Manual CAUTION Read instructions before using the Mist Pro 360 This machine is not suitable for spraying / sanitising electrical items. KEEP FOR FUTURE REFERENCE www.VictorFloorcare.com...
-
Page 2: Type Of Use
Contents - Mist Pro 360 Unit, Hose, Nozzle, Extension Lance. DANGER: TECHNICAL CHARACTERISTICS This manual forms an integral part of the machine itself. It must therefore be kept in a safe place where it is accessible to all Voltage ......220 - 240 v 50/60 Hz users (operators and maintenance personnel) throughout the life of the machine. - Page 3 Assembly - Connecting the solution tube to the unit Fig. 1 Fig. 2 Fig. 3 Fig. 4 Assembling the hoses - Insert, as far as possible, the sleeve (1 Fig. 1) of the air hose into the nozzle (2 Fig. 1) on the drum. - To release the sleeve (1 Fig.
-
Page 4: Filling The Tank
Solution Refills available from www.VictorFloorcare.com * 99.9999% effective in inactivating and destroying pathogens when using complete Mist Pro 360 System. System comprises Mist pro 360 unit applying V-SMS5 Victor Sanitiser Mist Solution. V-SMS5 Victor Sanitiser Mist Solution Meets the requirements of: EN1276, EN1650, EN13697 and EN14476. - Page 5 - To remove the fluid tank for maintenance purposes, disconnect the fluid line and lift from the base. (20 Fig 11) Country Specific Power supply - As standard, your Mist Pro 360 device has been fitted with a UK power cable. On request this can be changed to a country specific power cable prior to purchase. (21 Fig 12) Carry Handle - The appliance is fitted with wheels and can therefore be pulled along using the flexible hose.
-
Page 6: Using The Appliance
Operation Guide - Mist Pro 360 Fig. 14 Fig. 15 Fig. 16 USING THE APPLIANCE Starting up the appliance Creating Mist Flow - Insert the plug (21 Fig. 12) into the electrical socket. - Ensure both pump and motor switches are on “I”. -
Page 7: Troubleshooting Guide
Use handle provided for moving the machine. - Only use the hose to move the Mist Pro 360 whilst on This machine has been designed for, and is intended for use in smooth, even surfaces. -
Page 8: Personal Protective Equipment (Ppe)
Victor for recycling, qualifying products are marked with the WEEE symbol shown. Delivery cost of any authorised product returned to Victor will be at the expense of the sender. Only applies to EU countries Personal Protective Equipment (PPE) Following a full risk assessment, Personal Protective Equipment (PPE) may be required for certain applications. -
Page 9: Rating Label
Rating Label IPX4 ICC Products ltd. Unit 15 & 16 Ace Business Park, Mackadown Lane, Birmingham B33 0LD (UK) www.VictorFloorcare.com Sales@VictorFloorcare.com Tel: 0121 706 5771 Mod: V-MP360 Misting / Fogging Device Cap.ty: 7 I 220 - 240 v 50/60 Hz Air flow 55 l/s 1200w Pmax 1300W 5,5A Year: 2020... - Page 10 Schematic Datagram - Mist Pro 360 220 - 240 v 50/60 Hz 01/12/2020 Technical Spec. - Mist Pro 360 Protection Model Voltage Tank Capacity Coverage Spray Distance Droplet Size Class 220 - 240 v 12m² Mist Pro 360 7 LTR...
-
Page 12: Contact Information
Contact Information Victor Floorcare Unit 15 & 16 Ace Business Park Mackadown Lane Birmingham B33 0LD 0121 706 5771 sales@victorfloorcare.com www.VictorFloorcare.com...
