Zonet ZSR4134WE User Manual

Wireless broadband router
Hide thumbs Also See for ZSR4134WE:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

Table of Contents
loading

Related Manuals for Zonet ZSR4134WE

Summary of Contents for Zonet ZSR4134WE

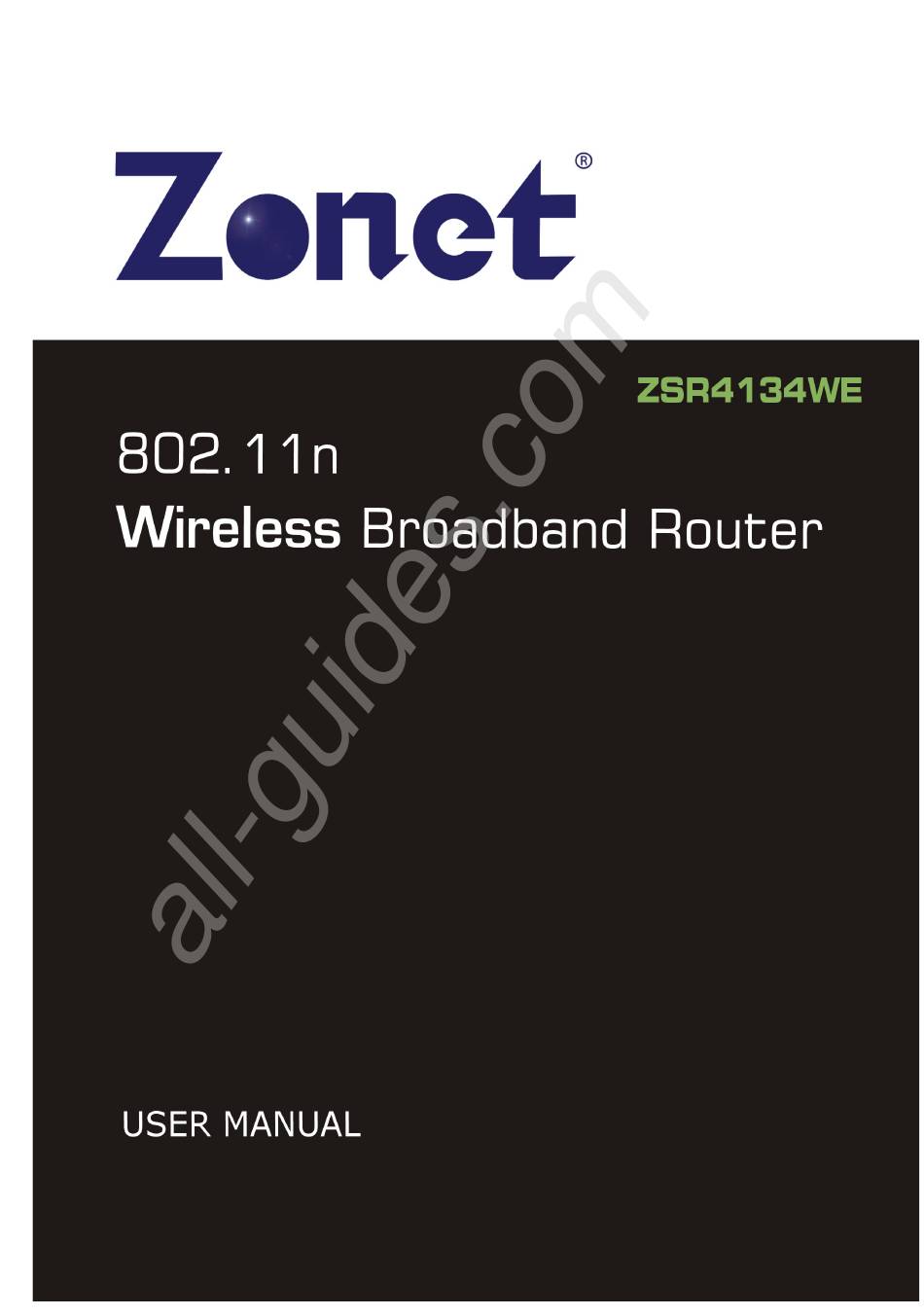

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to Zonet Technology Inc. Without the permission of Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages.

  • Page 3: Table Of Contents

    Chapter 1 Introduction................. 1 Welcome ....................1 Contents of Package ................1 System Requirement ................1 Getting to Know Your ZSR4134WE ............2 Chapter 2 Hardware Installation............4 Chapter 3 Connect Your ZSR4134WE ........... 6 How to Check the Network Connection............. 9 Chapter 4 Basic Configurations ............10...
  • Page 4 All manuals and user guides at all-guides.com Chapter 9 Traffic Control ..............39 Chapter 10 Security Settings...............40 Client Filter ..................40 URL Filter ....................41 MAC Filter ...................42 Prevent Network Attack ................42 Remote Web Management..............43 Local Web Management ................43 Wan Ping ....................44 Chapter 11 Routing Settings ...............45 Routing Table ..................45 Static Routing ..................45 Chapter 12 System Tools..............46...

  • Page 5: Chapter 1 Introduction

    Moreover, the user-friendly Setup Wizard on the installation CD can assist you to set up ZSR4134WE easily. It also can be managed or configured through Local/Remote easy-to-use Web-based utility.

  • Page 6: Getting To Know Your Zsr4134We

    All manuals and user guides at all-guides.com Getting to Know Your ZSR4134WE Top Panel LED Indicator Status Description POWER ZSR4134WE is switched on and correctly powered Flashing Indicates the system works normally. Indicates WAN port is connected Indicates WAN activity (transferring or receiving Flashing...
  • Page 7 Wide Area Network (WAN / Internet) port. 1-4 (LAN Ports) Local Area Network (LAN) ports 1 to 4 Reset ZSR4134WE to factory default settings (clear all settings) or start WPS function. Press this button and hold RESET/WPS for 7 seconds to restore all settings to factory defaults,...

  • Page 8: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Please follow the following instruction to build the network connection between your ZSR4134WE and your computers, network devices: 1. Connect all your computers, network devices (network-enabled consumer devices other than computers, like game console, or switch / hub) to the LAN port of ZSR4134WE.
  • Page 9 All manuals and user guides at all-guides.com 3. Connect your xDSL / cable modem to the WAN port of ZSR4134WE by Ethernet cable. 4. Please check all LEDs on the top panel. POWER LED should be steadily on, WAN and LAN LEDs should be on if the computer / network device connected to the respective port of ZSR4134WE is powered on and correctly connected.

  • Page 10: Chapter 3 Connect Your Zsr4134We

    All manuals and user guides at all-guides.com Chapter 3 Connect Your ZSR4134WE How to Set the Network Configurations for My Computer 1. Right click My Network Places and select Properties 2. Right click Local Area Network Connection and select Properties.
  • Page 11 All manuals and user guides at all-guides.com 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to save the configurations.
  • Page 12 5. Or select Use the following IP address and enter the IP address, Subnet mask, Default gateway. Of course, you need to input the DNS server address provided by your ISP. Otherwise, you can use the ZSR4134WE’s default gateway as the DNS proxy server. Click OK to save the configurations.

  • Page 13: How To Check The Network Connection

    All manuals and user guides at all-guides.com How to Check the Network Connection 1. Select Start → → → → Programs → → → → Accessories → → → → Command Prompt. 2. Input ping 192.168.0.1 and press Enter. If the screen displays as below, it means your PC is connected to your router successfully.

  • Page 14: Chapter 4 Basic Configurations

    All manuals and user guides at all-guides.com Chapter 4 Basic Configurations This section is to show you how to configure your new ZSR4134WE through the Web-based Configuration Utility. How to Access the Web-based Configuration Utility 1. After your computer obtained an IP address from ZSR4134WE, please start your web browser, and input the default IP address of ZSR4134WE http://192.168.0.1...

  • Page 15: Setup Wizard

    All manuals and user guides at all-guides.com Setup Wizard 1. When Welcome to Setup Wizard pop out, Click Next to continue. 2. Select one Internet connection type you’re using. If you’re not sure, click Detect or contact your Internet Service Provider. Click Next.
  • Page 16 All manuals and user guides at all-guides.com b. Dynamic IP (Via DHCP) If your connection type is Dynamic IP, it means your IP address keeps changing every time you connect. You do not need to enter the information. c. Static IP Fill the network address information from your ISP in the IP Address, Subnet Mask, Gateway and Primary DNS server fields and click Next.
  • Page 17 All manuals and user guides at all-guides.com e. PPTP Enter the Server IP Address, User Name, and Password provided by your ISP PPTP(PP Tunneling Protocol) provides two address modes. Dynamic IP: If the PPTP offered by your ISP is Dynamic IP, please select Dynamic IP.
  • Page 18 All manuals and user guides at all-guides.com 3. Click Apply and reboot ZSR4134WE, or select Reboot in System Tools of the left menu and click Reboot the router button. 4. While rebooting, please wait for few minutes and DO NOT power off.

  • Page 19: Chapter 5 Advanced Settings

    MAC Address: ZSR4134WE’s physical MAC address on your local network is unchangeable. IP Address: ZSR4134WE’s LAN IP address (not your PC’s IP address). Once you modify the IP address, you need to remember it for the Web-based Utility login next time. Default value is 192.168.0.1 Subnet Mask: ZSR4134WE’s subnet mask for measurement of the...

  • Page 20: Wan Settings

    All manuals and user guides at all-guides.com WAN Settings a. PPPoE Connection Mode: Show your current connection mode. Account: Provided by your ISP. Password: Provided by your ISP. MTU: Maximum Transmission Unit. It is the size of largest datagram that can be sent over a network.
  • Page 21 All manuals and user guides at all-guides.com b. Static IP IP Address: Enter the WAN IP address provided by your ISP. Subnet Mask: Enter the WAN Subnet Mask. Gateway: Enter the WAN Gateway. Primary DNS Server: Enter the Primary DNS server provided by your ISP.
  • Page 22 All manuals and user guides at all-guides.com L2TP Server IP: Enter the Server IP provided by your ISP. User Name: Enter L2TP username. Password: Enter L2TP password. MTU: Maximum Transmission Unit, you may need to change it for optimal performance with your specific ISP. 1400 is the default MTU. Address Mode: Select Static if your ISP supplies you with the IP address, subnet mask, and gateway.

  • Page 23: Mac Address Clone

    All manuals and user guides at all-guides.com MAC Address Clone MAC Address: The MAC address registered with your Internet service provider. Clone MAC address: Register your PC's MAC address. Restore default MAC address: Restore the default hardware MAC address. DNS Settings DNS: Choose the checkbox to enable the DNS server.

  • Page 24: Chapter 6 Wireless Settings

    Wireless Mode a. AP Mode AP Mode: ZSR4134WE serves as an access point to be connected. The work stations around will be connected with ZSR4134WE by SSID to share the Internet resources. To configure the AP mode, open the Basic Setting and Security Setting windows in the Wireless Setting folder.
  • Page 25 All manuals and user guides at all-guides.com b. Station Mode Station Mode: ZSR4134WE is used as a work station to be connected with an AP by scanning the AP's SSID and provides the security authentication. SSID: SSID is the unique ID name of access point. The wireless work station must keep the same SSID name with the AP's for connections.

  • Page 26: Basic Settings

    Main SSID: Main Service Set Identifier. It’s the name of your wireless network. Minor SSID: Minor Service Set Identifier. It is optional. Broadcast (SSID): Decide if ZSR4134WE will broadcast its own ESSID or not. BSSID: It is a 48bit identity used to identify a particular BSS (Basic Service Set) within an area.

  • Page 27: Wireless Security Settings

    SSID Choice: ZSR4134WE supports to configure different security classes between the main SSID and the subordinate SSID. Default Key: You can set up to four sets of WEP key, and you can decide which key is being used by default here.
  • Page 28 All manuals and user guides at all-guides.com b. WPA-Personal Wi-Fi Protected Access (WPA) is an advanced security standard. It uses TKIP and AES to change the encryption key frequently. WPA Algorithms: Select one encryption type, AES, TKIP or TKIP&AES. Pass Phrase: Enter the key which must have 8-63 ASCII characters. Key Renewal Interval: Specifies the timer the WPA key must changes.
  • Page 29 The change is done automatically between the server and the client. d. WPA-Enterprise This security mode is used when a RADIUS server is connected to ZSR4134WE. Radius IP Address: Please input the IP address of Radius server here. Radius Port: Please input the port number of the Radius server here.
  • Page 30 Radius server. The default value is 3600. f. 802.1X This security mode is used when a RADIUS server is connected to ZSR4134WE. IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to ZSR4134WE before accessing the wireless LAN. The authentication is processed by a RADIUS server.
  • Page 31 Radius IP Address: Please input the IP address of Radius server here. Radius Port: Please input the port number of the Radius server here. Default setting is 1812. Shared key:The encryption key that ZSR4134WE is authenticated through RADIUS server Session Timeout: The recertification time interval between ZSR4134WE and the Radius server.

  • Page 32: Wps Settings

    ZSR4134WE, or click PBC button in the web configuration interface to enable WPS Note: Press WPS button of ZSR4134WE for one second and WPS indicator will blinking for 2 minutes. During the blinking time, you can enable another Router to implement the WPS/PBC negotiation between them.

  • Page 33: Wds Settings

    Repeater Mode: You can select the mode to extend the distance between the two WLAN devices. Functioning as a WDS repeater, ZSR4134WE connects to both a client card as an AP and to another AP. In typical repeater applications, APs connecting to other APs equipped with WDS functionality must also support WDS.

  • Page 34: Advanced Wireless Settings

    2347. TX Power: You can set the output power of wireless radio. Unless you’re using ZSR4134WE in a really big space, you may not have to set output power to 100%. This will enhance security (malicious / unknown users in distance will not be able to reach your ZSR4134WE).

  • Page 35: Wireless Access Control

    This function will help you to prevent unauthorized users from connecting to ZSR4134WE; only those wireless devices who have the MAC address you assigned here can gain access to your ZSR4134WE. You can use this function with other security measures described in previous section, to create a safer wireless environment.

  • Page 36: Chapter 7 Dhcp Server

    IP Address Start/End: Enter the range of IP address for DHCP server distribution. Lease Time: choose a lease time (the duration that every computer can keep a specific IP address) of every IP address assigned by ZSR4134WE from dropdown menu.

  • Page 37: Dhcp Server List

    All manuals and user guides at all-guides.com DHCP Server List IP Address: Input the IP address for the computer on the LAN network. MAC Address: Enter the MAC address of the computer you want to assign. And then click Add to add to the list. Hostname: The name of the computer.

  • Page 38: Chapter 8 Virtual Server

    Chapter 8 Virtual Server Single Port Forwarding ZSR4134WE can be configured as a virtual server on behalf of local services behind the LAN port. The given remote requests will be re-directed to the local servers via the virtual server. This section deals with the single port forwarding mainly.

  • Page 39: Port Range Forwarding

    All manuals and user guides at all-guides.com Well-Known Service Port: Select the well-known services as DNS, FTP from the drop-down menu to add to the configured one above. Delete/Enable: Click to check it for corresponding operation. NOTE: If you set the virtual server of the service port as 80, you must set the Web management port on.

  • Page 40: Port Trigger Settings

    When internal clients have access to external server in the Internet for some applications, the clients request to connect with severs, and the server will also ask to connect with client. But in the default setting, ZSR4134WE will refuse to accept any request from WAN, which will bring communication halt. The port triggering is used to define triggering rules.

  • Page 41: Alg Service Settings

    All manuals and user guides at all-guides.com ALG Service Settings Application Layer Gateway (ALG) is a special function of ZSR4134WE. In the context of computer networking, an ALG or application layer gateway consists of a security component that augments a firewall or NAT employed in a computer network.

  • Page 42: Dmz Settings

    All manuals and user guides at all-guides.com DMZ Settings The DMZ(Demilitarized Zone) function is to allow one computer in LAN to be exposed to the Internet for a special-purpose service as Internet gaming or videoconferencing. DMZ Host IP Address: The IP address of the computer you want to expose.

  • Page 43: Chapter 9 Traffic Control

    All manuals and user guides at all-guides.com Chapter 9 Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration. Traffic Control: Select the checkbox to enable the internal IP bandwidth control.

  • Page 44: Chapter 10 Security Settings

    All manuals and user guides at all-guides.com Chapter 10 Security Settings Client Filter To benefit your further management to the computers in the LAN, you can control some ports access to Internet by data packet filter function. Client Filtering Settings: Select the checkbox to enable client filter. Access Policy: Select one number from the drop-down menu.

  • Page 45: Url Filter

    All manuals and user guides at all-guides.com URL Filter If you want to prevent computers in local network from accessing certain website (like pornography, violence, or anything you want to block), you can use this function to stop computers in local network from accessing the site you defined here.

  • Page 46: Mac Filter

    This function is to protect the internal network from exotic attack such as SYN Flooding attack, Smurf attack, LAND attack, etc. Once detecting the unknown attack, ZSR4134WE will restrict its bandwidth automatically. Prevent Network Attack: Select the checkbox to enable it.

  • Page 47: Remote Web Management

    All manuals and user guides at all-guides.com Remote Web Management This function is to allow the network administrator to manage ZSR4134WE remotely. If you want to access ZSR4134WE from outside the local network, please select the Enable. Enable: Select the checkbox to enable remote web management.

  • Page 48: Wan Ping

    All manuals and user guides at all-guides.com WAN Ping The ping test is to check the status of your internet connection. When disabling the test, the system will ignore the ping test from WAN. Disable the Ping for WAN: Select the checkbox to enable it.

  • Page 49: Chapter 11 Routing Settings

    Chapter 11 Routing Settings Routing Table The main duty for ZSR4134WE is to look for a best path for every data frame, and transfer this data frame to destination. So, it’s essential for ZSR4134WE to choose the best path. In order to finish this function, many transferring paths are saved in ZSR4134WE for choosing when needed.

  • Page 50: Chapter 12 System Tools

    DDNS (Dynamic Domain Name System) is to assign a fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind ZSR4134WE. If you want to activate this function, please select Enable and a DDNS service provider to sign up.

  • Page 51: Backup/Restore

    Restore: Click to restore ZSR4134WE’s configurations. Firmware Upgrade Browse: Click to browse the path to the upgraded firmware files. Upgrade: Click to start upgrade. IMPORTANT: Do not power off the system during the firmware upgrade to avoid damaging. ZSR4134WE will reboot automatically after the upgrade.

  • Page 52: Restore To Factory Default Settings

    Restore to Factory Default Settings: Click to restore to default settings. Factory Default Settings: User Name: admin Password: admin IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 NOTE: After restoring to default settings, please reboot ZSR4134WE so the settings will take effect. Reboot Reboot the router: Click to reboot ZSR4134WE.

  • Page 53: Change Password

    New Password: Enter a new password. Re-enter to Confirm: Re-enter to confirm the new password. NOTE: It is highly recommended to change the password to secure your network and ZSR4134WE. System Log If the log is over 150 records, it will clear them automatically.

  • Page 54: Appendix 1 Product Features & Specifications

    All manuals and user guides at all-guides.com Appendix 1: Product Features & Specifications Features: Integrates router, wireless access point, four-port switch and firewall in one Complies with IEEE802.11n, IEEE802.11b and IEEE802.11g standards MIMO technology utilizes reflection signal to increase 8 times transmission distance of original 802.11g standard and reduces the "dead spots"...
  • Page 55 All manuals and user guides at all-guides.com Specifications: General Features Standards IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b Windows 2000, XP, Vista; Firefox User interface Easy to use user configuration software Transmit distance Indoor up to 100M, Outdoor up to 300M Support multipoint auto roaming and configuration;...

  • Page 56: Appendix 2 Troubleshooting

    IP address in the address field？ ？ ？ ？ Step 1: check ZSR4134WE if it works well. Once the device is powered on for a few seconds, the SYS indicator on the panel will be turned on. If it is not, please contact us.
  • Page 57 MAC address and click “Apply” to activate it. Q6. How to share my computer’s source with other users in Internet? If you want Internet users to access the internal server via ZSR4134WE such as e-mail server, Web, FTP, you can configure the “Virtual Server” to come true.
