23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637
Thank you for purchasing our VIPER winch mount. You now own a premium custom
winch mount which allows you to use your winch with your UTV / SxS. Please note the
following instructions and heed all warnings:
Please use common sense when operating your UTV / SxS
Read your Winch Operator Manual and all other operator manuals, including
warning labels, before operating your UTV / SxS
Be observant of moving parts causing entanglement; use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
866.527.7637
www.motoalliance.com

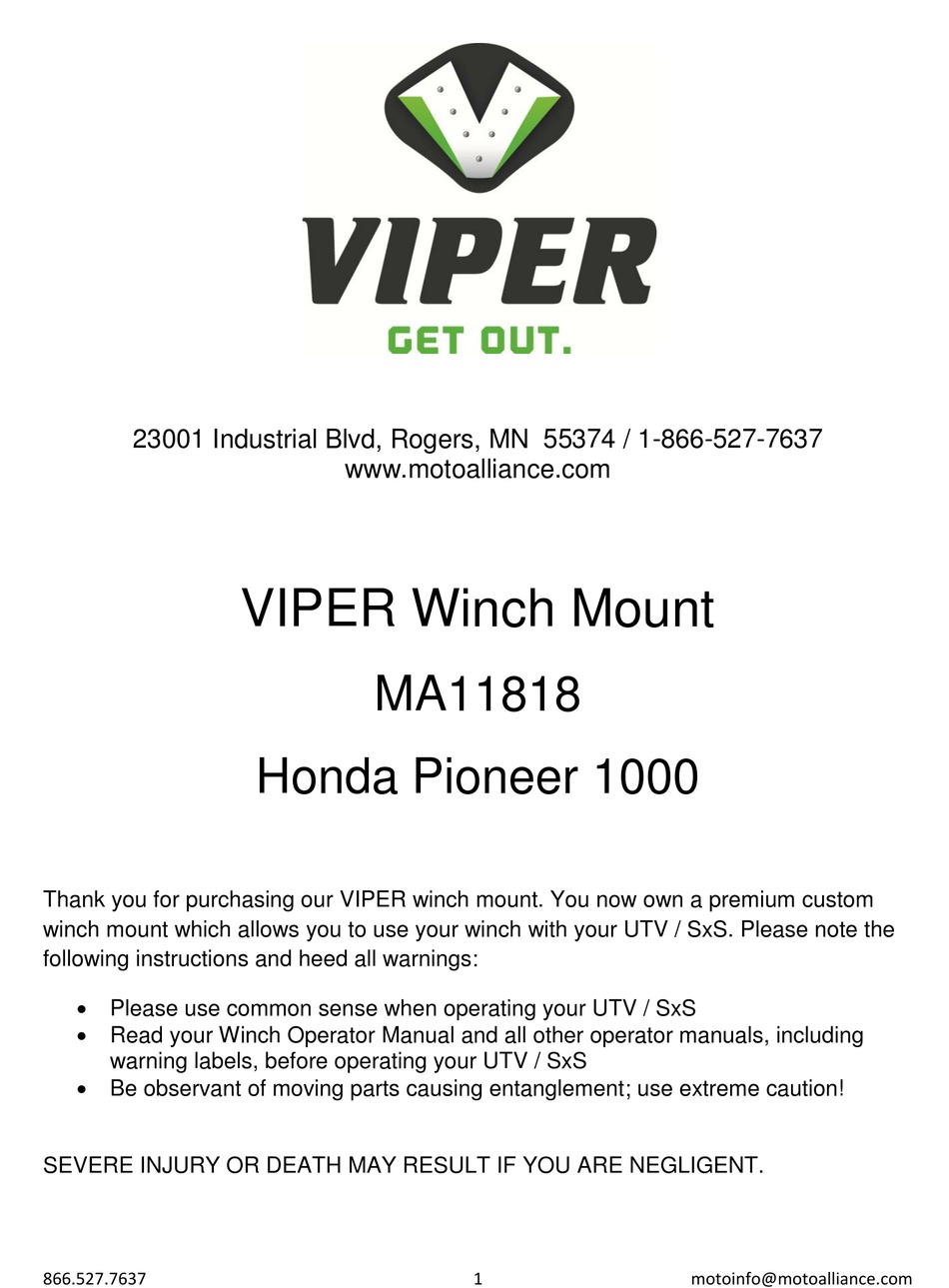

VIPER Winch Mount
MA11818
Honda Pioneer 1000
1
motoinfo@motoalliance.com
Advertisement
Summary of Contents for Viper MA11818
- Page 1 MA11818 Honda Pioneer 1000 Thank you for purchasing our VIPER winch mount. You now own a premium custom winch mount which allows you to use your winch with your UTV / SxS. Please note the following instructions and heed all warnings: ...
- Page 2 MA11818-1 Mount Plate MA11818-2 Mounting Strap 3/8” x 1.5” ID U-Bolt (1” PIPE Mcmaster: 3043T632) 3/8” Serrated Flange Nut MA11225 Wide-to-Narrow Spool Converter Kit (not shown) MA11818 Winch Mount Assembly View 1) Completely remove the front bumper from the machine. 866.527.7637 Motoinfo@motoalliance.com...
- Page 3 Leave the cable unwound as it will be wound under load to properly set the cable. See Figure 1. Figure 1 5) Using the hardware in your winch kit, mount the winch directly to the MA11818 Mount Plate (part #1). Make sure that the winch motor is on the right side of the 866.527.7637...
- Page 4 Figure 2 Figure 3 6) Insert the four (4) 3/8” x 1.5” ID U-Bolts (part #3) into the MA11818 Mount Plate (part #1) from the front (winch side) of the plate with the open ends of the U-Bolts hanging out the back.
- Page 5 MA11818 Honda Pioneer 1000 Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Figure 4 8) Place the Mounting Straps (Part #2) around the back of the frame tubing, over the open ends of the U-Bolts and secure with the eight (8) 3/8” Serrated Flange Nuts as shown in Figure 5 and the Winch Mount Assembly View.
- Page 6 MA11818 Honda Pioneer 1000 Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 10) Reattach the winch cable to the winch. Make sure that it is running over the top of the spool and between the tie rods as shown in Figure 6.
