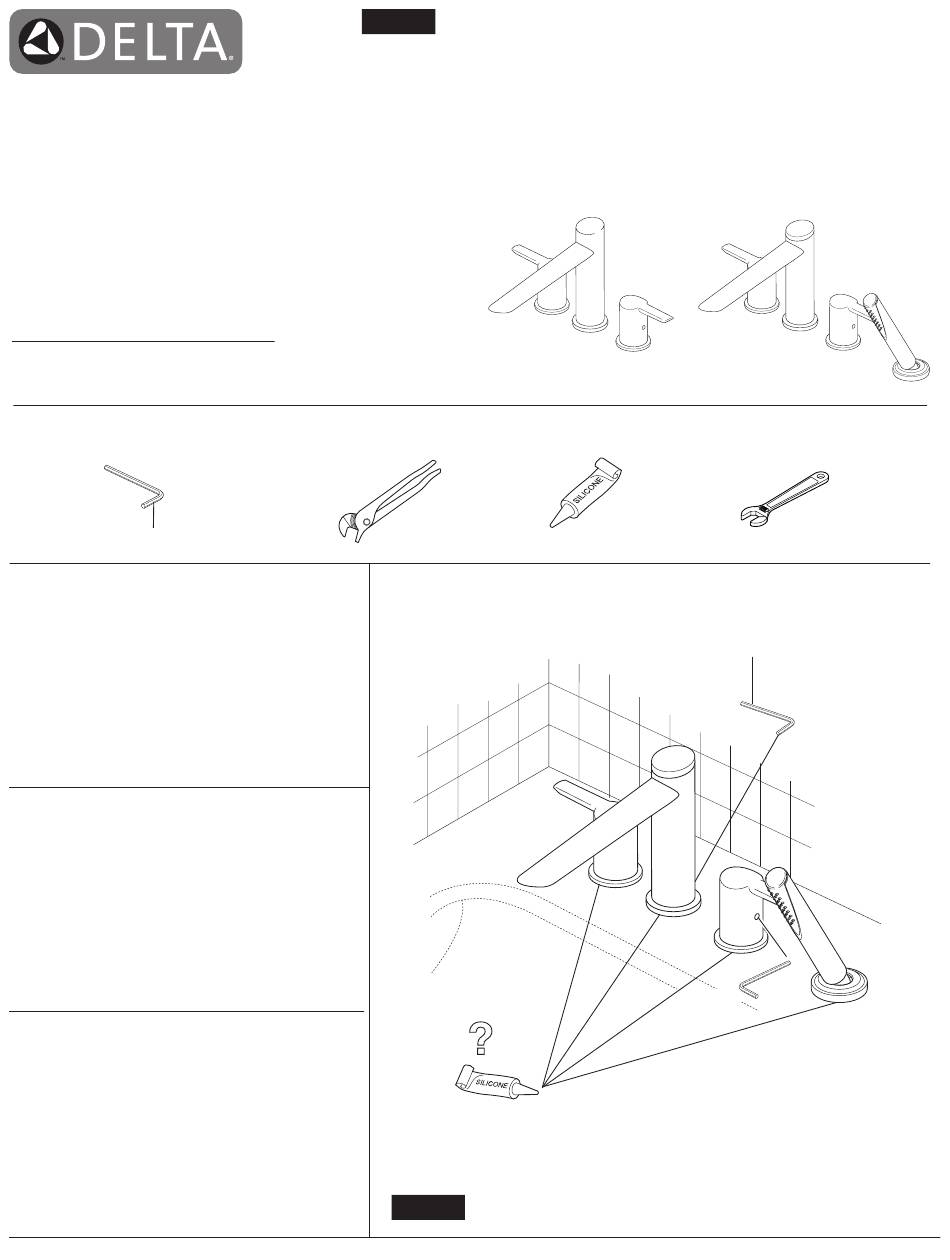

ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1
Model/Modelo/Modéle
T2761 & T4761
Series/Series/Seria
Compel™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
1/8" (3.17mm)
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Para completar el borde y la instalación de
válvulas dentro de las paredes previa a la
instalación de la llave y sus accesorios.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.
www.deltafaucet.com
TWO HANDLE ROMAN TUB TRIM
72520
LLAVE Y SUS ACCESORIOS
PARA BAÑERA ROMANA DE DOS
MANIJAS (MANERALES)
ACCESSOIRES DE FINITION DE
ROBINET À DEUX POIGNÉES POUR
BAIN ROMAIN
?
72520
1
1/8" (3.17mm)
3/32"
(2.38mm)
4/2/12 Rev. A
Advertisement
Related Manuals for Delta Compel T2761
Summary of Contents for Delta Compel T2761
- Page 1 • To READ ALL warnings, care, and maintenance information. • To complete the deck and valve rough-in prior to installing this trim kit. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar.
- Page 2 MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement This warranty excludes all industrial, commercial &...
- Page 3 Model / Modelo / Modèle T2761 ▲Specify Finish ▲ Especifíque el Acabado ▲ Précisez le Fini RP73162▲ Set Screw & Button Tornillo de Presión y Botón Vis de Calage et Bouton RP73386 Set Screw & Button Tornillo de Ajuste y Botón Vis de Calage et Bouton RP20368 Gasket...
-
Page 4: Maintenance
T4761 RP40668 Diverter Assembly Ensamble del Desviador Dérivation Maintenance If faucet leaks from spout outlet–Shut off water supplies– Model T4761 Replace Seats and Springs (1). * If faucet does not divert water from the spout to the hand shower, check that If leak persists–Shut off water supplies–... - Page 5 T2761 T2761 T4761 T4761 3/32" (2.38 mm) 3/32 po Model T2761 NOTE: The deck and valve rough-in must be finished before Screw bases (1) with gaskets (2) over end valves (3). Option: Use installing the trim kit. silicone under the gasket if deck is uneven. Install gasket (4) and spout (5) on the spout adapter (6).
- Page 6 T4761 T4761 T4761 T4761 For Model T4761 Only Remove and discard the test cap and gasket (1) from hose (2). Install lift rod (1). Screw diverter (2) onto lift rod until it rotates freely. NOTE: This is an extra gasket, one is supplied with the hose. Slide hose (3) through conical nut (4).
- Page 7 T2761 T4761 Model T2761 Install handles. Be sure glide ring (1) is properly seated in Turn faucet handles (1) all the way on. Turn on hot and cold water supplies bottom of handle before installing. If either handle does not and flush water lines for one minute.
- Page 8 T4761 T4761 For Model T4761 Only Pull hose (1) to its farthest extension and point it down into the Attach hand piece (1) to hose (2) with gasket (3) between tub. Pull the lift rod (2) up to the full on position and flush water connection.
