HAMPTON BAY COMFORT BREEZE 68131 Use And Care Manual

Item #1001 309 463
Model #68131
USE AND CARE GUIDE
COMFORT BREEZE REMOTE CONTROL
TM
Questions, problems, missing parts? Before returning to the store, call Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-855-HD HAMPTON
HAMPTONBAY.COM
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this remote
control. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Installation (continued)
2
Installing the receiver
WARNING: To reduce the risk of fire or
electric shock, remember to disconnect
power. The electrical wiring must meet
all local and national electrical code
requirements. The electrical source and fan
must be 110/120 volt, 60Hz. Do not use this
product in conjunction with any variable AAA
BBB
wall control. Incorrect wire connection can
damage this receiver.
CAUTION: If other fan wires are a different
color, have this unit installed by a licensed
electrician.
CAUTION: Do not install in a damp location
or immerse in water (For indoor use only).
Do not pull on or cut leads shorter. Do not
drop or bump the unit.
NOTE: The ceiling fan must be set at HIGH
speed and light kit (if installed) should be
set to the ON position.
B
NOTE: The battery will weaken with age and
should be replaced before leaking takes
place as this will damage the transmitter.
Dispose of used battery properly. Keep the
remote out of the reach of children.
□ Position the house supply wires (AAA)
Receiver (B) correctly
to one side of the slide-on mounting
positioned in the
bracket (A); position the fan wires (BBB)
to the opposite side.
mounting bracket.
□
Insert the narrow end of the receiver
(as shown, flat side towards the ceiling)
into the slide-on mounting bracket
until it rests on top of the ball/downrod
assembly.
Safety Information
6. This unit is to be used for the control of the ceiling fan
WARNING: To reduce the risk of fire or injury,
and in a AC110/120V 60Hz power supply only.
do not use this product in conjunction with any
7. Acceptable for installation in damp locations. Do not
variable (rheostat) wall control.
immerse in water.
CAUTION: Incorrect wire connections will damage
8. The remote must be stored in a dry location when
this receiver.
not in use.
1. Read and save these instructions. 9. Electrical diagrams are for reference only.
2. All wiring must be in accordance with the National 10. Do not pull on or cut leads shorter.
Electrical Code ANSI/NFPA 70-1999 and local electrical
11. Do not drop or bump the unit.
codes. Electrical installation should be performed by a
12. After making the electrical connections, secure each
qualified licensed electrician.
with electrical tape; spliced conductors should be
3. The supply to the remote control receiver should be
turned upward and pushed carefully up into the
connected through a mains switch, i.e. existing wall
outlet box. The wires should be spread apart with the
switch.
grounded conductor and the equipment-grounding
4. Disconnect from the power supply at the wall switch conductor on one side of the outlet box.
before working on the remote control receiver or ceiling
13. Do not mix old and new batteries.
fan.
14. Do not mix alkaline, standard (carbon-zinc), or
5. Install the receiver into the ceiling fan canopy of the fan to
rechargeable (ni-cad, ni-mh, etc) batteries.
ensure proper protection.
Warranty
The supplier warrants the remote control and receiver to be free from defects in workmanship and
material present at time of shipment from the factory for a period of one year after the date of purchase
by the original purchaser. We agree to correct such defects without charge or at our option replace with
a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper installation or by affixing
any accessories, is not covered by this warranty. Servicing performed by unauthorized persons shall
render the warranty invalid. There is no other express warranty. Home Depot hereby disclaims any and
all warranties, including but not limited to those of merchantability and fitness for a particular purpose to
the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited
to the time period as specified in the express warranty. Some states do not allow a limitation on how
long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with product use
or performance except as may otherwise be accorded by law. Some states do not allow the exclusion
of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim
on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD HAMPTON or visit www.HAMPTONBAY.COM
Installation (continued)
3
Wiring the receiver to the household wiring
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
B feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (AA) supplied with
your fan. Secure the connectors with electrical tape and
ensure there are no loose strands or connections.
□ Spread the wires apart so that the green and white wires are on one
side of the outlet box and the black wire is on the other side.
□ Connect the green fan wires to the household ground wire (this may
be a green or bare wire) using a wire connecting nut (AA).
□ Connect the receiver black (or red) wire to the household black (hot)
wire using a wire connecting nut (AA).
□ Connect the receiver white wire to the household white wire (neutral)
wire using a wire connecting nut (AA).
□ Secure each wire connecting nut using electrical tape.
4
Wiring the fan to the receiver
IMPORTANT: Use the wire connecting nuts (AA)
supplied with your fan. Secure the connectors
with electrical tape and ensure there are no loose
strands or connections.
□ Connect the fan motor white wire to the receiver white wire
using a wire connecting nut (AA).
B
□ Connect the fan motor black wire to the receiver black wire
using a wire connecting nut (AA).
□ Connect the fan motor blue wire to the receiver blue wire
using a wire connecting nut (AA).
□ Secure each wire connecting nut using electrical tape.
□ Turn the wire connecting nut (AA) upward and push the wiring
into the outlet box (MM).
Blue
Pre-Installation
TOOLS REQUIRED
Flathead
Phillips
screw- screw-
driver
driver
Step ladder
PACKAGE CONTENTS
A
IMPORTANT: This product and/or
components are governed by one or more
of the following U.S. Patents: 5,947,436;
5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Operation
1

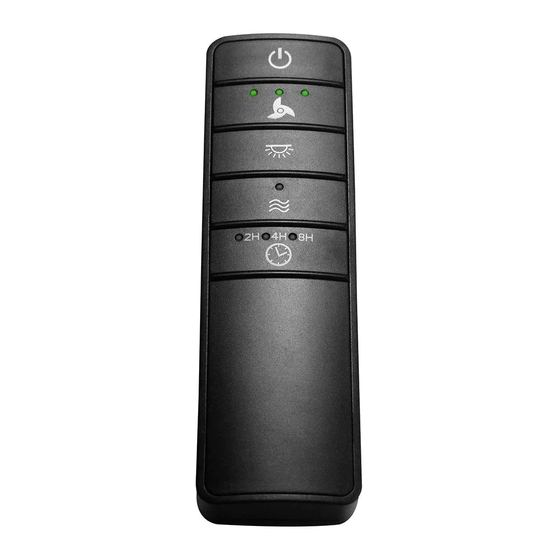

Operating the remote control
C (x3)
Outlet Box
- Press and release the button to turn the fan and the lights on or off.
in the ceiling
(MM) □ Press and hold the button for 3 seconds to use the "walk away
time delay"; this will activate the light for 30 seconds (if you are using
Black
Green
dimmable bulbs the light will be activated at 50% brightness).
(or Bare)
Black
White
(or Red)
Green
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
Antenna
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and hold this button for 3 seconds to enable Comfort Breeze
will change your fan speed randomly, simulating a relaxing breeze. To cancel
B
this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
Outlet box
C (x3)
- While the fan is on press 2 times - turns on a 4 hour run timer.
in the ceiling
- While the fan is on press 3 times - turns on an 8 hour run timer.
(MM)
Green
- Press and release the button to turn the light on or off.
Antenna
If you are using dimmable bulbs and you have previously set O/D dip switch
in your remote to the "D" position, press and hold the
the dimmer function.
Black White
Installation
1
Setting the codes on the
remote control and receiver
Adjustable Electrical Wire NOTE: The frequencies on your receiver
and hand unit have been preset at the
wrench tape cutter
factory. Before installing the receiver,
make sure the dip switches on the
receiver and hand unit are set to the
same frequency. The dip switches on the
hand unit are located inside the battery
compartment.
NOTE: The battery will weaken with age
and should be replaced before leaking
takes place as this will damage the hand
unit. Dispose of the used battery properly
and keep the battery out of the reach of
children.
B
C
D
E
Part Description Quantity
A Transmitter 1
B Receiver 1
B
C Plastic wire connector 5
Antenna
D AAA battery (1.5 V) 2
E Silicone rubber plug 1
Troubleshooting
Problem Solution
□ Check the main and branch circuit fuses or breakers.
The fan will
not start. □ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 ft (3-6m).
□ Ensure the dip switch settings are the same on the transmitter and receiver.
□ Remember to turn off the power supply before checking the dip switches settings.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
; this
TM against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
button to activate
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
FCC ID: KUJCE10319
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: It is imperative that the code used
for both transmitter and receiver is exactly
the same, otherwise remote controller will
not work.
Setting the Code on the Remote
□ Remove the battery cover on the back of the
remote control (A) by pressing firmly on the
arrow and sliding the cover off.
□ Slide the code switches to your choice of
either up or down. The factory setting is up.
□ For fans with incandescent bulbs, slide the
dip switch O/D to the position marked "D", if
you are not using incandescent bulbs slide
the dip switch to the "O" position.
□ Install 2 AAA batteries (included).
□ Replace the battery cover on the remote
control (A).
Setting the Code on the Receiver
□ Slide the code switches on the receiver (B)
to the same positions as set on the remote
control (A).
□ Insert the silicone rubber plug (E) into the
hole in the receiver (B) to cover the dip
switches.

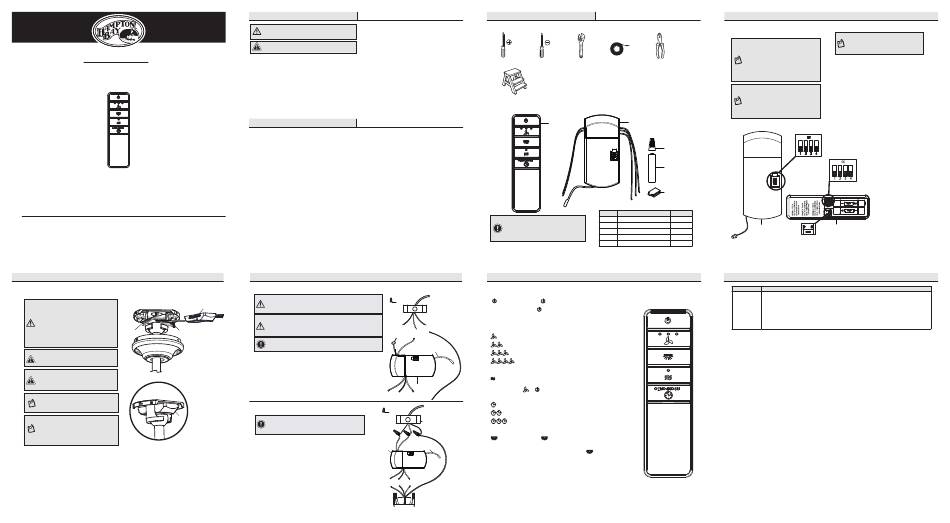

Controller Model: TR221A
A
housing.
