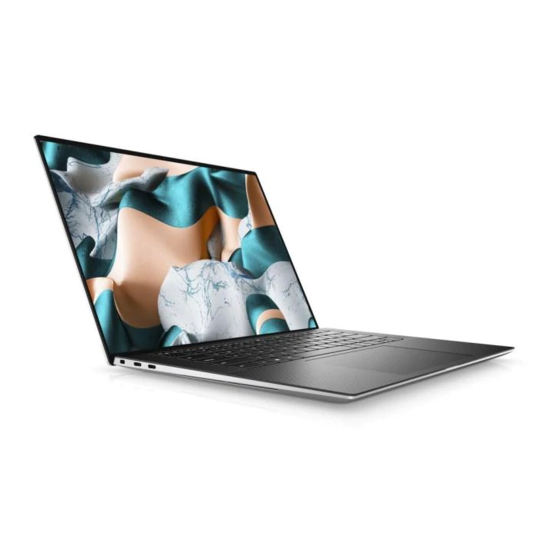

- Page 1 XPS 15 9500 Setup and Specifications Regulatory Model: P91F Regulatory Type: P91F001 June 2021 Rev. A04...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020-2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your XPS 15 9500....................4 Chapter 2: Views of XPS 15 9500....................6 Left......................................6 Right....................................... 6 Top......................................7 Display....................................8 Bottom....................................9 Chapter 3: Specifications of XPS 15 9500..................10 Dimensions and weight..............................10 Processor..................................... 10 Chipset.................................... -
Page 4: Chapter 1: Set Up Your Xps 15 9500
NOTE: You can charge your XPS 15 9500 by connecting the power adapter to one of the Thunderbolt 3 (USB Type-C) ports that are located on the left side of your computer or to the USB 3.2 Gen 2 (Type-C) port located on the right side of your computer. - Page 5 Table 1. Locate Dell apps Resources Description My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available. SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support.
-
Page 6: Chapter 2: Views Of Xps 15 9500
Views of XPS 15 9500 Left 1. Security-cable slot (wedge-shaped) Connect a security cable to prevent unauthorized movement of your computer. 2. Thunderbolt 3 (USB Type-C) port with Power Delivery (2) Supports USB 3.2 Gen 2, DisplayPort, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. -
Page 7: Top
10 seconds to force shut-down the computer. Place your finger on the power button to log-in with the fingerprint reader. NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals. Views of XPS 15 9500... -
Page 8: Display
Detects the ambient light and automatically adjusts the keyboard backlight and display brightness. 3. RGB-infrared camera This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos. 4. Camera-status light Turns on when the camera is in use. Views of XPS 15 9500... -
Page 9: Bottom
1. Left woofer Enhances low-frequency audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right woofer Enhances low-frequency audio output. -
Page 10: Chapter 3: Specifications Of Xps 15 9500
Specifications of XPS 15 9500 Dimensions and weight The following table lists the height, width, depth, and weight of your XPS 15 9500. Table 2. Dimensions and weight Description Values Height: Front height 7.70 mm (0.30 in.) Rear height 18 mm (0.71 in.) Width 344.40 mm (13.56 in.) -
Page 11: Chipset
Chipset The following table lists the details of the chipset supported by your XPS 15 9500. Table 4. Chipset Description Values Chipset Intel WM 490 Processor 10th Generation Intel Core i5/i7/i9 DRAM bus width 128 bit Flash EPROM 32 MB PCIe bus Up to PCIe Gen 3.0... -
Page 12: Internal Slots
DC-IN through one of the three USB Type-C ports Security Security-cable slot (wedge-shaped) Wireless module The following table lists the Wireless Local Area Network (WLAN) module specifications of your XPS 15 9500. NOTE: The wireless module is integrated on the system board. Table 8. Wireless module specifications... -
Page 13: Audio
● AES-CCMP ● AES-CCMP ● TKIP ● TKIP Bluetooth Bluetooth 5 Bluetooth 5.2 Audio The following table lists the audio specifications of your XPS 15 9500. Table 9. Audio specifications Description Values Audio controller Realtek ALC3281-CG Stereo conversion Supported Internal audio interface... -
Page 14: Media-Card Reader
Media-card reader The following table lists the media cards supported by your XPS 15 9500. Table 11. Media-card reader specifications Description Values Media-card type One SD-card slot Media-cards supported ● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC) -
Page 15: Touchpad
For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your XPS 15 9500. Table 15. Power adapter specifications Description Option one Option two... -
Page 16: Battery
0°C to 40°C (32 °F to 104°F) Storage -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) Battery The following table lists the battery specifications of your XPS 15 9500. Table 16. Battery specifications Description Option one Option two Battery type 56 WHr, 3-cell "smart"... -
Page 17: Display
Dell Power Manager see, Me and My Dell on www.dell.com/ Coin-cell battery Not supported Not supported Display The following table lists the display specifications of your XPS 15 9500. Table 17. Display specifications Description Option one Option two Display type Full High Definition (FHD) -
Page 18: Fingerprint Reader
Fingerprint-reader sensor resolution 500 dpi Fingerprint-reader sensor pixel size 108 x 88 GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 15 9500. Table 19. GPU—Integrated Controller External display support Memory size... - Page 19 -15.2 m to 10668 m (-49.87 ft to 35000 * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse when the hard drive is in use. Specifications of XPS 15 9500...
-
Page 20: Chapter 4: Dell Low Blue Light Display
Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. The ComfortView feature on Dell laptops and displays is designed to minimize blue light emitted from the display for better eye comfort. -
Page 21: Chapter 5: Keyboard Shortcuts Of Xps 15 9500
Keyboard shortcuts of XPS 15 9500 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 22 The Fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 23. List of keyboard shortcuts Function key Behavior Pause/Break Toggle scroll lock System request Open application menu Toggle Fn-key lock Keyboard shortcuts of XPS 15 9500...
-
Page 23: Chapter 6: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 24. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
