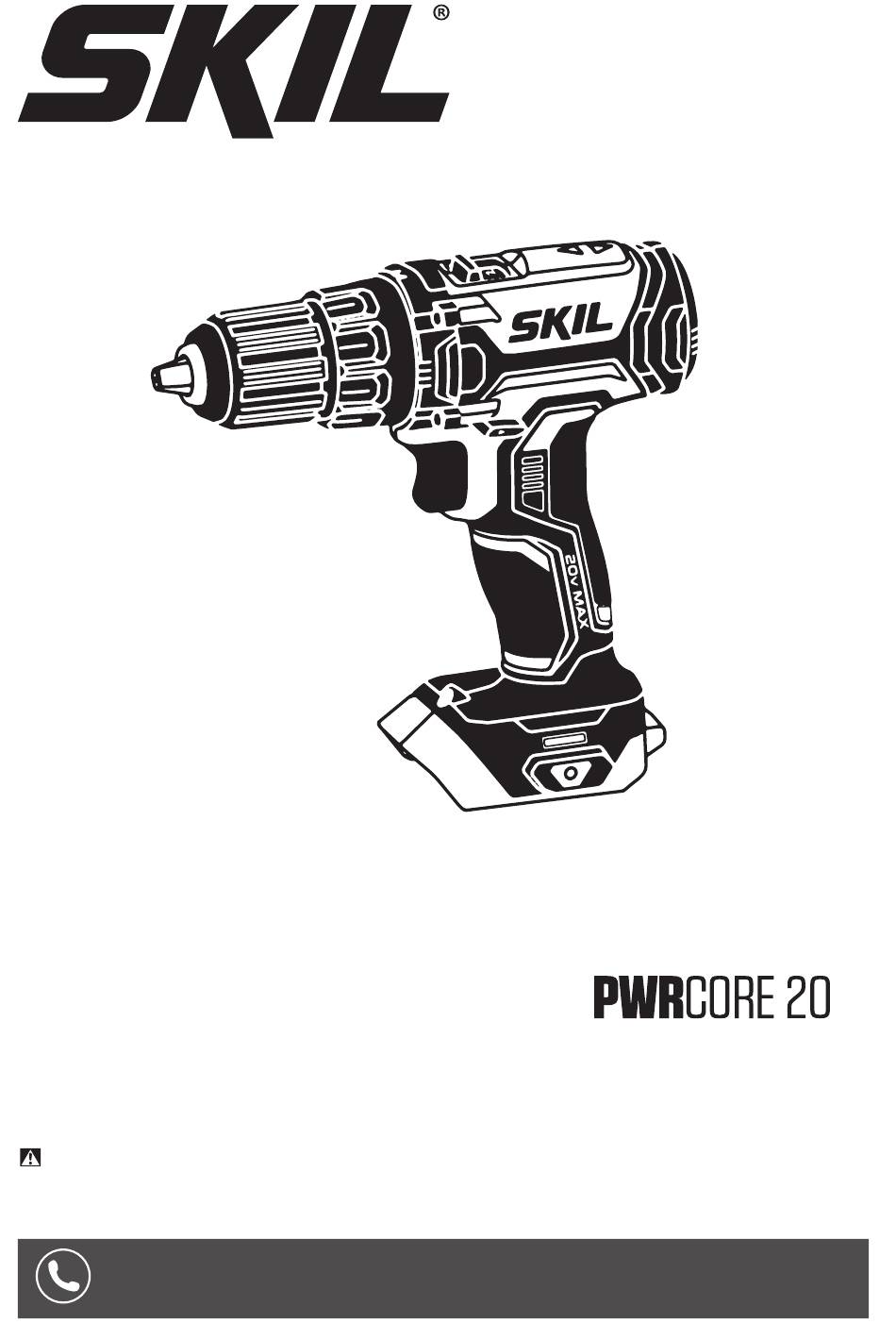

- Page 1 Model: DL527501E Cordless Drill Driver WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. 1300-017-545 www.skil.com.au For Customer Service...
-
Page 2: Specifications
Two-Speed Gearbox Direction-Rotation Indicator Switch Torque- Adjustment Ring Direction-of- Keyless Rotation(forward/ Chuck center-lock/reverse) Selector Variable-Speed Trigger Switch Soft Grip LED Worklight Removable Belt Clip SPECIFICATIONS Rated Voltage 18V d.c. (20V max) Chunk Size 1-13mm No-load Speed 0-420/0-1450 /min Clutch 17 Positions +Drill Mode... - Page 3 Battery- Attach Release Button Detach...
- Page 4 PHILLIPS PHILLIPS POZIDRIV POZIDRIV SLOTTED SLOTTED...
-
Page 6: Electrical Safety
INTRODUCTION of inattention while operating power tools may result in serious personal injury. • This tool is intended for drilling in wood, metal, brick, b) Use personal protective equipment. Always wear stone, ceramic and plastic; tools with electronic speed eye protection. Protective equipment such as a dust control and left/right rotation are also suitable for mask, non-skid safety shoes, hard hat, or hearing screwdriving and thread cutting... - Page 7 ACCESSORIES ejected from the battery may cause irritation or burns. • SKIL can assure flawless functioning of the tool only e) Do not use a battery pack or tool that is damaged when original accessories are used or modified. Damaged or modified batteries may exhibit •...
-
Page 8: Application Advice
APPLICATION ADVICE ! read the safety warnings and instructions provided with the charger • Use the appropriate bits r • Removing/installing the battery 6 ! only use sharp bits • Attaching belt clip 5 • When drilling ferrous metals - attach the belt clip to the drill with the supplied screw. - pre-drill a smaller hole, when a large hole is required Changing direction of rotation 7 •... -
Page 9: Warranty
WARRANTY SKIL WARRANTY POLICY For all SKIL warranty & enquiries, please contact 1300 01 SKIL (1300 01 7545) Monday to Friday 9:00am to 5:00pm Chervon Australia Pty Ltd ABN 36 165 077 501 (“Chervon”) warrants to the original domestic purchaser that this product...
