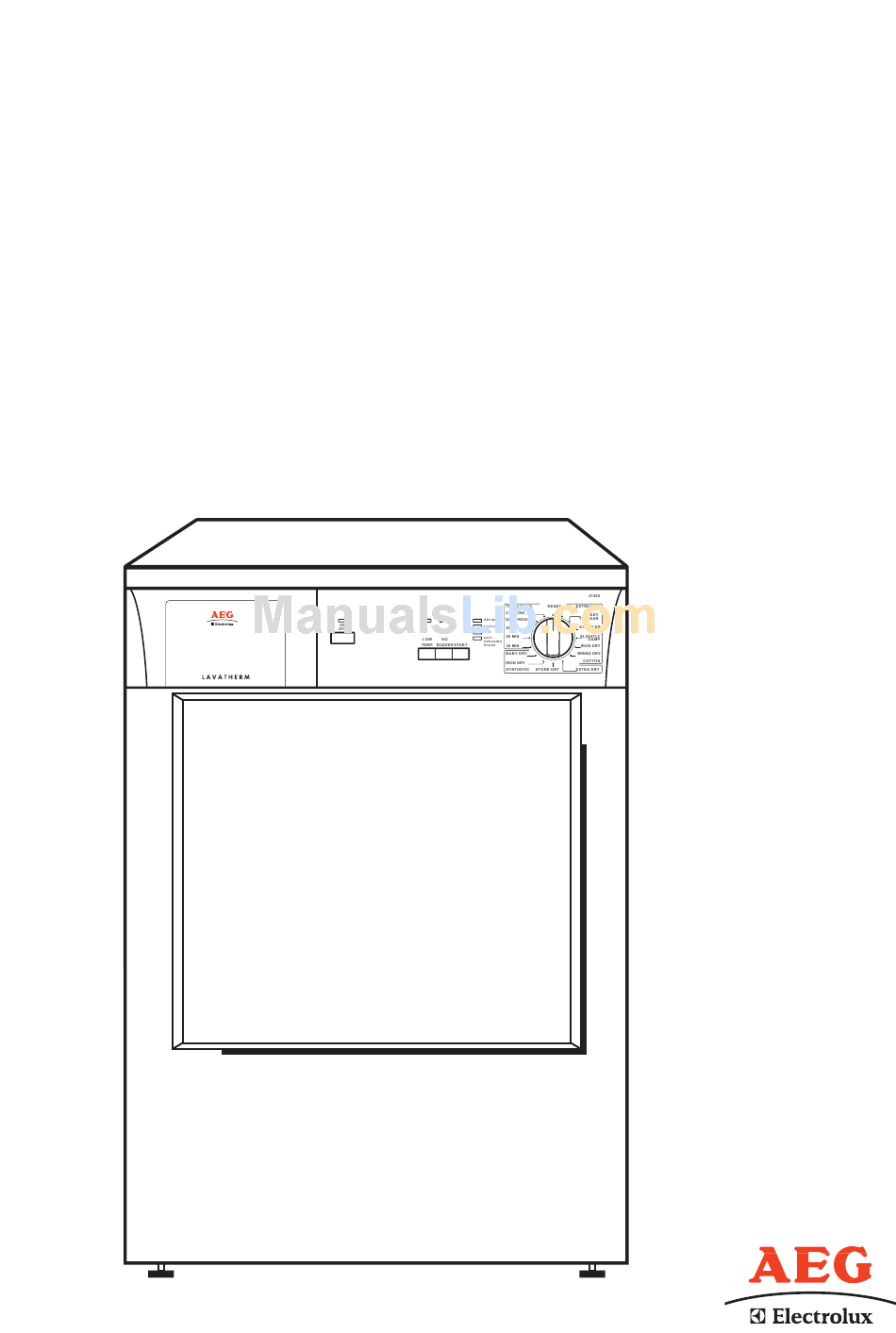

- Page 1 LAVATHERM T37400 Vented Tumble Dryer Operating instructions PERFEKT IN FORM UND FUNKTION...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recom- mend that you keep this instruction booklet for future reference and pass it on to any future owners. The warning triangle and/or the key words (Warning!, Caution!) empha- size information that is particularly important for your safety or correct functioning of the appliance. -
Page 3: Table Of Contents
Contents Safety instructions ..........5-6 General instructions . - Page 4 Technical specifications ......... . 24 Electrical connection .
-
Page 5: Safety Instructions
The safety of AEG appliances complies with the industry standards and with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes. -
Page 6: Safety Instructions
Safety instructions Child safety • Children are often not aware of how dangerous electrical appliances can be. When the machine is working, they should be carefully supervised and not be allowed to play with the appliance - there is a risk that they could become trapped inside. -
Page 7: General Instructions
Proper use • For safety reasons, the appliance must not be modified. • This appliance is designed for domestic use only. If the dryer is used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur. •... -
Page 8: Discarding
Discarding Packaging materials Dispose of your tumble dryer’s packaging materials correctly. All materials are environmentally friendly and can be disposed of without any danger. The plastic parts can be reused: • The external plastic cover and the bags inside are made of polyethylene (>PE<). -
Page 9: Tips For Environmental Protection
Tips for environmental protection • During washing, try not to use fabric softeners! If the laundry is machine dried, it will remain soft even without using fabric softeners. • Shake out your laundry! Shake out the laundry before putting it into the dryer in order to reduce the drying time and creasing. - Page 10 • Select the correct drying programme! Select the drying programme suited to the type and quantity of laundry, so that your dryer will work more economically. Some consumption values: Type of laundry Cotton Cotton Mixed fabrics 1) previously spun at 1000 rpm 2) previously spun at 1200 rpm.
-
Page 11: Structure Of The Appliance
Structure of the appliance Structure of the appliance Front view Rear view... -
Page 12: Control Panel
Structure of the appliance Control panel 1 Programme chart/Selector dial This will help you to select the correct programme for drying: electronically or time controlled. Turn the dial to the required programme or time. 2 ON/OFF button This button is used to switch the dryer on. At the end of the pro gramme, release this button by pressing it again to switch the dryer off. - Page 13 Structure of the appliance In both cases light DRYING or COOLING (depending on the phase in progress) flashes to remind you that the start button needs to be pressed again. 7 LIGHTS DRYING -this light indicates that the machine is performing the drying phase.
-
Page 14: Before The First Drying Cycle
Before the first drying cycle Wipe the drum of the dryer with a damp cloth before performing the first drying cycle. Brief operating instructions • Spin the laundry as much as possible. • Sort out the laundry. • Put the laundry into the tumble dryer. •... -
Page 15: Drying
Drying Sort out the laundry • To prevent bundling of laundry: close zips, button up pillow cases and duvet covers; tie any strings, such as apron strings. • Empty pockets. • Remove any metal parts (paper clips, safety pins, etc..). •... -
Page 16: Switch The Machine On
Drying Switch the machine on • Press the ON/OFF button the mains-on light comes on. Select the drying programme/time • Turn the selector dial to the desired programme or time Select the required options • Depress NO BUZZER and/or LOW TEMP. button, if you have to dry par- ticulary delicate items. -
Page 17: Remove Or Add Laundry
To change a programme already in progress, turn the selector dial to RESET position, select the new programme and then depress START button. Important! If the drying programme has to be stopped before it reaches the end, we recommend that you turn the programme selector dial to position COOLING and wait until the end of this phase before removing the laundry. -
Page 18: Programme Charts
Programme charts Automatic drying (electronic programmes) Type of laundry Cotton Synthetics Jumpers Jackets, trousers, dresses, skirts. (*) According to CEI 1121 Standards. • Baby dry is a special programme for jumpers to be dried “ready to wear”. • Dry fresh is designed to clean and freshen garments labelled “dry clean only” and “hand wash”... -
Page 19: Brief Summary Of Fabric Information
Brief summary of fabric information Care symbols Check whether fabrics are suitable for tumble drying. One of the fol- lowing symbols should appear on the care label: Basically, this fabric can be tumble dried; however the manufacturer does not specify whether it can be dried with normal or low temper- ature. -
Page 20: Cleaning And Care
Cleaning and care Cleaning and care Warning! You must disconnect the appliance from the electricity sup- ply, before you can carry out any cleaning or maintenance work. External cleaning Use only soap and water and then dry thoroughly. Important: do not use methylated spirit, diluents or similar products. Cleaning the door Clean periodically the interior part of the door to remove any fluff from the seals around the filter. -
Page 21: Cleaning The Drum
Do not be alarmed by the amount of fluff. It is not due to excessive wear caused by the dryer. All fabric looses fluff when drying but it goes un-noticed in the air. In a tumble dryer it simply collects in the filter. -
Page 22: Something Not Working
Smoething not working? Something not working? If a problem occurs, you can try to solve it yourself following the instructions below. If you call out an engineer when one of the following problems occurs, or to repair a fault due to incorrect use, the call-out will be charged even if requested within the guarantee period. - Page 23 Problem The drying cycle Vented air transport disrupted exceptionally takes a long time Lint filter blocked The loading door Lint filter not installed and/or fil- cannot be closed ter lid not locked in position The drier ends the dry- Too little or too dry laun- ing cycle automatically: dry loaded for selected END indicatoris illumi-...
-
Page 24: Technical Specifications
Technical specifications Height x Width x Depth Depth with the door open Height adjustment Empty weight Load (according to the programme) (Different load sizes in some countries are due to different measuring Permissible ambient temperature This appliance complies with the following EC directives: 73/23/EEC of 19/2/1973 “Low voltage directive”... -
Page 25: Permanent Connection
Blue Brown The wire coloured green and yellow must be connected to the termi- nal marked with the letter «E» or by the earth symbol green and yellow. The wire coloured blue must be connected to the terminal «N» or coloured black. -
Page 26: Unpacking
Please contact the nearest Service Force Centre. This is a chargeable option. Special accessory You can obtain the following special accessory through the AEG customer service organisation or from your dealer. Kit Washing/drying column With this kit you can combine your dryer with any LAVAMAT automatic washing machine to a washing and drying column. -
Page 27: Service
Service In the chapter “Something not working?” some problems that can be solved by yourself are listed. Read this section in the event of problems. If you are not able to find a solution, contact the Service centre. It is close by and, if necessary, an engineer will soon be with you. - Page 28 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 125981082...
