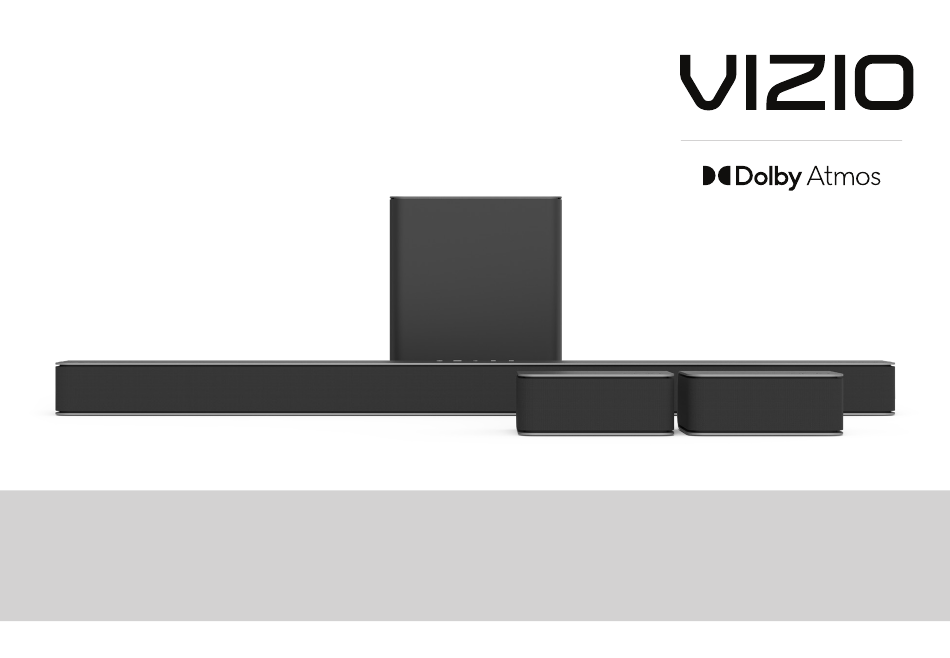

- Page 1 USER MANUAL Model: M51a-H6 VIZIO 5.1 Sound Bar with Dolby Atmos® Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS • The wall socket should be located near your Unit and be easily accessible Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance.
-
Page 3: Table Of Contents
TV. HDMI OUT (eARC) More questions? Phone: Text Message: Website: Mount Brackets Mount Brackets Contact our VIZIO (844) 254-8087 (205) 301-3729 support.vizio.com Specifications ............................43 Customer Service team: (Message and data rates may apply. U.S. only.) (Surround Speakers) (Sound Bar) -
Page 4: Controls & Connections
Controls & Connections Controls & Connections Back of Sound Bar HDMI In Digital Optical AUX In Power Port Audio In Analog Audio In (Stereo 3.5mm) HDMI Out (eARC) to TV AUX VA Analog Audio In (Stereo 3.5mm) Only use this port to connect a Voice Assistant device. See Connecting to a Voice Assistant on page 27 for more information. Supports .WAV and .MP3 file format playback only. - Page 5 Controls & Connections Controls & Connections Back of Subwoofer Top of Sound Bar Back of Surround Speaker Power LED Indicator Press to turn on or off. AC IN Surrounds ON / OFF Power Port Power Button Input Volume Press to change the audio source. Surround Speaker Port Increase or decrease the Connects to subwoofer...
-
Page 6: First-Time Setup
First-time Setup First-time Setup Choose the best possible connection cable type and connect it to your TV. Back of Sound Bar BEST BETTER GOOD Do not use HDMI In for first-time setup. See “Advanced Setup” on page 30 to connect other devices to your sound bar. HDMI ARC Digital Optical 3.5mm to... - Page 7 First-time Setup First-time Setup Connect the power cable to the sound bar AC IN as shown. Connect the surround speakers to the subwoofer using the included surround speaker audio cables. Cable ties are included to wrap unused cable length. Plug the power cable into an electrical outlet. Back of Sound Bar AC IN Surrounds...
- Page 8 Connect the power cable to the subwoofer. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. After turning on both your TV and sound bar, it will automatically begin searching for an active input.
-
Page 9: Using The Remote
Using the Remote Proper Placement Display Displays Sound Bar Settings For the best surround sound experience, position the sound bar, subwoofer, and surround sound speakers as shown. The sound bar should be close to ear level. Input Change the input source. Power (Long press for Auto Input Search.) Turn on or off... -
Page 10: Mode & Level Settings
Mode & Level Settings Proper Placement —Front Surround Mode Press each setting button and use the Up/Down buttons to access the In rooms where ideal placement of the surround sound speakers is not practical, you can also place the sound different settings. - Page 11 Mode & Level Settings Mode & Level Settings Function LED Behavior Description Function LED Behavior Description LEVEL > Surr Lvl > Use the Next/Previous buttons to increase/decrease the surround Waiting to learn: SETUP > PrgRemote > Use the Next/Previous buttons and OK button to toggle and Program Remote Surround Level Two center LEDs indicate...
-
Page 12: Using Button Combinations
SETUP > VZtvRmt > Use the Next/Previous buttons to enable/disable VIZIO TV VIZIO Remote Remotes. When enabled (On), you can use a VIZIO TV remote control to turn on the sound VZtvRmt bar (using the TV Volume Up button) and control volume. -
Page 13: Programming The Sound Bar
• Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. Search for the sound bar (VIZIO M51a) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 14: Using Bluetooth Mode
Using Bluetooth Mode Connecting to a Voice Assistant Your sound bar supports music streaming from devices with Bluetooth capability. Your sound bar can connect to a Voice Assistant (VA) device through an AUX VA or Bluetooth connection. (Device compatibility will vary, see your device’s documentation for more information.) Once connected, your sound bar will now act as the VA speaker. -
Page 15: Advanced Setup
Using Bluetooth to Connect Press and hold the Bluetooth button on the sound bar or remote for five (5) seconds. Search for the sound bar (VIZIO M51a) using your VA device app. For more information, refer to the user documentation that came with the device. -
Page 16: Connecting With Hdmi Arc
If you want to use the TV remote to control the sound bar volume: Enable System Audio Control from the CEC menu. The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your TV’s user manual for more information. †... -
Page 17: Connecting A Subwoofer
940±2mm WALL MOUNTING TEMPLATE LEAVE THIS SPACE BETWEEN THE SOUND BAR AND YOUR TV The subwoofer has already been paired with the sound bar by VIZIO. However, the subwoofer may need to be Bracket Screw NOT INCLUDED WITH SOUND BAR re-linked to the sound bar if there is no sound coming from the subwoofer. - Page 18 Wall-mounting Wall-mounting Place sound bar onto the L-shaped bracket and use the included bracket screws to attach. Wall-mounting the Surround Speakers Bracket Screw To wall-mount the surround speakers: Wall-mount Screw Holes (Not included with sound bar) Attach the wall mount screw to the back of the surround Suggested screw size: 3.5 mm diameter, speaker.
-
Page 19: Register Your Product
Get assistance quickly with your information on hand. News and Offers Phone Text Message Live Chat Available Take advantage of the latest news and special offers from VIZIO. (877) 698-4946 (205) 301-3729 Online Safety and Satisfaction Stay up-to-date with important product updates and notifications. -
Page 20: Help & Troubleshooting
VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no charge for • Replace the remote batteries with new ones. -
Page 21: Limited Warranty
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE procedures described below, unless an exception applies. - Page 22 102 dB the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at vizio.com/terms and vizio.com/privacy, respectively.
-
Page 23: Legal & Compliance
Bluetooth SIG, Inc. and any use of such marks by ® VIZIO Inc. is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation For DTS patents, see http:/ /patents.dts.com.
