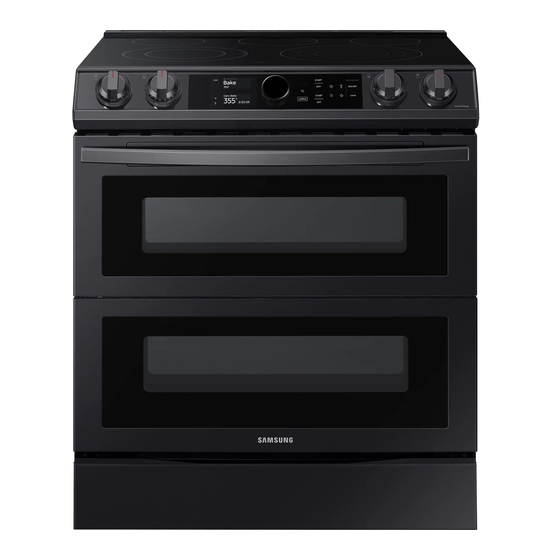

Electric Range
User manual
NE63*875*S*
NE63T8751_AA_DG68-01208A-00_EN+MES+CFR.indb 1
2020-03-27
2:47:37

Advertisement

Table of Contents
loading

Related Manuals for Samsung NE63 875 S Series

Summary of Contents for Samsung NE63 875 S Series

  • Page 1 Electric Range User manual NE63*875*S* NE63T8751_AA_DG68-01208A-00_EN+MES+CFR.indb 1 2020-03-27 2:47:37...
  • Page 2 Anti-tip device WARNING WARNING To reduce the risk of tipping the range, the range must be secured by a properly installed Anti-Tip device. AFTER THE RANGE HAS Do not step, lean, or sit on the doors of the range. You can cause the BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP DEVICE HAS BEEN range to tip, resulting in burns or serious injuries.
  • Page 3 Regulatory Notice 1. FCC Notice FCC STATEMENT: This equipment has been tested and found to comply within the CAUTION limits for a Class B digital device, pursuant to part 15 of the FCC FCC CAUTION: Any changes or modifications not expressly approved Rules.
  • Page 4 Regulatory Notice FCC RADIATION EXPOSURE STATEMENT: IC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set This equipment complies with IC RSS-102 radiation exposure limits forth for an uncontrolled environment. This equipment should be set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between installed and operated so there is at least 8 inches (20 cm) between the radiator and your body.

  • Page 5: Table Of Contents

    Contents Important safety instructions Cooking options Special features Introducing your new range More functions System Settings Overview Smart control What’s included with your range Maintaining your appliance Before you begin Self-cleaning Energy saving tips Steam-cleaning Surface cooking Care and cleaning of the oven Care and cleaning of the glass cooktop About surface cooking Removing and reinstalling the oven door...

  • Page 6: Important Safety Instructions

    Make sure the machine is grounded to prevent electric shock. installing, maintaining, and operating your oven. Call a Samsung service center for help. Important safety symbols and precautions Note What the icons and signs in this user manual mean: These warning signs are here to prevent injury to you and others.
  • Page 7 FOR YOUR SAFETY • Do not enter the oven. • Do not store items of interest to children in cabinets above When using electrical appliances, you should follow basic safety the range or on the back guard of the range. Children precautions, including the following: climbing on the range to reach items could be seriously CAUTION...
  • Page 8 Important safety instructions Important safety instructions • If there is a fire in the oven during self-cleaning, turn the • Use only dry potholders. Placing moist or damp potholders oven off and wait for the fire to go out. Do not force the on hot surfaces may result in burns from steam.
  • Page 9 SURFACE COOKING UNITS • Be careful when placing spoons or other stirring utensils on the glass cooktop surface when it is in use. They may • Never leave surface units unattended at high heat settings. become hot and could cause burns. Boilovers cause smoking and greasy spillovers that may •...
  • Page 10 If your appliance The range should not be placed on a base. • is in need of repair, contact a Samsung authorized service center. Failure to follow these instructions may result in damage and void the warranty.
  • Page 11 CHILD SAFETY OVEN • DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR WARNING SURFACES OF THE OVEN. Heating elements may be hot even • This appliance is not intended for use by young children or infirm though they are dark in color. Interior surfaces of an oven persons without the adequate supervision of a responsible adult.
  • Page 12 Important safety instructions Important safety instructions CAUTION • Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven. Do not attempt to operate the oven during a power failure. If the •...
  • Page 13 SELF-CLEANING OVENS • Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive amounts of grease may Do not clean the door gasket. The door gasket is essential for ignite, leading to smoke damage to your home. a good seal.
  • Page 14 Important safety instructions Important safety instructions GLASS/CERAMIC COOKING SURFACES CRITICAL INSTALLATION WARNINGS • DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. WARNING Surface units may be hot even though they are dark in color. • This appliance must be installed by a qualified technician or Areas near surface units may become hot enough to cause service company.
  • Page 15 • If the appliance is flooded by any liquid, please contact your problems with the product. nearest Samsung service center. Failing to do so may result • Do not cut or remove the ground prong from the power in electric shock or fire.
  • Page 16 • If materials inside the oven should ignite, keep the oven When a repair is needed, contact your nearest Samsung door closed, turn the oven off and disconnect the power service center.
  • Page 17 Do not open the door when the food in the oven is burning. • foreign substances are inserted into any of these holes, If you open the door, it causes an inflow of oxygen and contact your product provider or nearest Samsung service may cause the food to ignite. center. •...
  • Page 18 Failing to do so may result in electric shock. If the door is damaged, do not use the appliance. Contact Dishes and containers can become hot. Handle with care. • a Samsung service center. • Hot foods and steam can cause burns. Carefully remove •...
  • Page 19 • Take care when heating liquids, such as water or other • Do not put your face or body close to the appliance while beverages. cooking or when opening the door just after cooking. Make sure to stir during or after cooking. Take care that children do not come too close to the Avoid using a slippery container with a narrow neck.
  • Page 20 Important safety instructions Important safety instructions CRITICAL CLEANING WARNINGS • Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the build up CAUTION of pressure even after the oven has been turned off. •...

  • Page 21: Introducing Your New Range

    Gliding rack (1)* Air fry tray (1)* Divider (1)* Temperature probe (1)* NOTE If you need an accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-726-7864). 01 Control panel 02 Surface control 03 Dial knob (See...

  • Page 22: Before You Begin

    Before you begin Before you begin Surface cooking Clean the oven thoroughly before using it for the first time. Then, remove the About surface cooking accessories, set the oven to bake, and then run the oven at 400 °F for 1 hour. There will be a distinctive odor.
  • Page 23 Location of the radiant surface elements and controls CAUTION The radiant control knobs operate the radiant surface elements on the cooktop as AFTER COOKING shown below. • Do not touch the surface units until they have cooled down. • The surface may still be hot and burns may occur if you touch the glass surface before it has cooled down sufficiently.

  • Page 24: How To Set The Appliance For Surface Cooking

    Surface cooking How to set the appliance for surface cooking Hot surface indicator • Comes on when the unit is turned on or hot to the touch. CAUTION • Stays on even after the unit is turned off. • Glows until the unit is cooled to approximately 150 °F. •...
  • Page 25 Triple surface unit control knob (Right Front) Recommended settings The triple surface unit has 3 cooking sizes SETTING TYPE OF COOKING to select from so you can match the size of HIGH Starting most foods, bringing water to a boil, pan broiling the cooking area to the size of the cookware you are using.

  • Page 26: Using The Proper Cookware

    Surface cooking Using the proper cookware To turn the warming center on, press the Warming Center On/Off pad. Select the power setting you want. Press the Warming Center Level pad once Using the right cookware can prevent many problems, such as uneven cooking or for Low, twice for Medium, or three times for High.

  • Page 27: Choosing The Proper Cookware

    Choosing the proper cookware Protecting the cooktop What your cookware is made of determines how evenly and quickly heat is Cleaning transferred from the surface element to the pan bottom. • ALUMINUM - Excellent heat conductor. Some types of food will cause the •...

  • Page 28: Operating The Oven

    Operating the oven Operating the oven How to use dial knob The oven control panel The dial knob can be used in the following ways: Turning 1. Turning Pushing • Turning the dial knob clockwise or counterclockwise will show next or previous mode when selecting the cooking mode.

  • Page 29: Display Mode

    Display mode Clock You must set the clock correctly to ensure the automatic features work properly. Sleep mode This product supports two time formats: 12-hour (default) and 24-hour. The control panel enters Sleep mode if the oven is not used for a while. To set the clock time In Sleep mode, the control panel is inactive, displaying only the time, until it is Set time...

  • Page 30: Dual Door

    Operating the oven Dual Door™ How to use the full door Hold the lever-less area of the handle, This oven has a unique Dual Door™ that is hinged in the middle. If you have and then pull. inserted the divider and divided the oven in two (so it is in Twin Mode), you only need to open the top half to access the upper oven.

  • Page 31: Single Mode

    Single mode Twin mode STEP 1 STEP 1 Put all ingredients in a heat-safe container. Put all ingredients in a heat-safe container. STEP 2 STEP 2 Select a cooking mode, and then start Insert the divider into the 4th rack position preheating.
  • Page 32 Operating the oven STEP 4 NOTE • To use Twin mode operation, insert the divider. Place a wire rack into the oven, arrange The cooling fan automatically runs for a certain amount of time after cooking • food containers on the racks. is complete.

  • Page 33: Cooking Mode

    Cooking mode Default Temperature Temp. Set Cook Mode temperature Delay Start • Make sure to close the door before you range (°F) Probe Time (°F) start cooking. • If you leave the door open for about Bake 175-550 2 minutes while the oven is in Broil Hi-Lo convection baking/roasting, baking, or...
  • Page 34 Operating the oven Twin mode Default Temperature Temp. Set Cook Mode temperature Delay Start range (°F) Probe Time (°F) Upper Broil Hi / Lo Convection 175-480 Bake Convection Insert the divider into the cavity. 175-480 Roast Tap Upper or Lower to select the cooking zone. Select a mode using the dial knob.

  • Page 35: Twin Mode Temperature Setting Ranges

    Twin Mode Temperature setting ranges (O - Available, X - Not available) Upper Oven Your oven has different temperature setting ranges when you use the upper oven Lower Oven Available Setting Function and Temp. and lower oven simultaneously. The range for each oven changes, depending on the function and temperature setting of the other oven.

  • Page 36: Using The Oven Racks

    Operating the oven Using the oven racks Twin Mode - Two Ovens In Twin mode, the divider separates the oven into an upper oven and lower oven. The upper oven and lower oven each have 3 rack positions. Single Mode - Full Oven Rack position Your oven range comes with 2 racks and 7 rack positions.
  • Page 37 Inserting and removing an oven rack Before using the racks The oven has two racks. To insert an oven rack Each rack has stops that need to be placed correctly on the supports. These stops Place the rear end of the rack on a rack will keep the rack from coming completely out.

  • Page 38: Using The Gliding Rack

    Operating the oven Using the gliding rack Removing the Gliding rack • With the Gliding rack in the "Closed" The fully extendable Gliding rack makes food preparation easier, especially when position and the oven off and cool, you are preparing heavier dishes. The Gliding rack has 2 glide tracks that allow grasp the rack and frame and pull both you to extend the rack well out of the oven without touching the sides of the oven forward to remove.

  • Page 39: Using The Divider

    Using the divider Recipe guide • To use twin mode operation, insert the divider. CAUTION • You cannot use the Self-Clean or Steam-Clean functions when the divider is Always use this cooking mode with the installed in the oven cavity. oven door closed.
  • Page 40 Operating the oven Convection cooking Convection baking • Cookies bake best when cooked on flat cookie sheets. The convection fan at the back of the oven circulates hot air evenly throughout the • When convection baking using a single rack, place the oven cavities so that food is evenly cooked and browned in less time than with rack in rack position 3 or 4.
  • Page 41 Broiling guide Air fry This feature uses hot air for crispier and healthier frozen or fresh foods without or NOTE less oil than normal convection modes. For best results, use this mode on a single • This is for reference only. oven rack and place the Air fry tray on the position 3.
  • Page 42 Operating the oven Air fry cooking guide Item Amount Temperature Time Poultry Item Amount Temperature Time Fresh Drumsticks 40-45 oz 425 °F-450 °F 30-35 min Potatoes Fresh Chicken Wings 30-35 oz 425 °F-450 °F 27-32 min Frozen French Fries 30-35 oz 425 °F-450 °F 25-30 min Chicken Breasts, Breaded...

  • Page 43: Temperature Probe (Single Mode Only)

    Temperature probe (Single Mode Only) Dehydrate Dehydrate dries food or removes moisture from food via heat circulation. After The temperature probe lets you cook roasts and poultry to the exact internal drying the food, keep it in a cool and dry place. For fruit, adding lemon (or temperature you want, taking the guess work out of determining whether a piece pineapple) juice or sprinkling sugar on the fruit helps the fruit retain sweetness.
  • Page 44 Operating the oven Insert the temperature probe plug into Temperature table the socket on the top side wall of the Type of Food Internal temperature (°F) oven. Select the cooking operation Rare 140-150 (Convection Bake, Convection Roast, or Beef / Lamb Medium 160-170 Bake) and the temperature.

  • Page 45: Cooking Options

    Cooking options Delay Start The Delay Start function lets you use the kitchen timer to automatically start CAUTION and stop another cooking program. You can set Delay Start so that it delays the automatic start of a cooking operation you select by up to 12 hours. Food that can easily spoil, such as milk, eggs, fish, poultry, and meat, should be Mode: Bake / Convection Bake / Convection Roast / Air Fry / Dehydrate / Self-clean chilled in a refrigerator before they are placed in the oven.

  • Page 46: Special Features

    Operating the oven Special features Start a Bake Mode. (Single mode only.) , and select the Sabbath feature. Turn the dial knob to select On/Off. The Sabbath feature (Single mode only) Push the dial knob to save the changes. (For use on the Jewish Sabbath and Holidays) NOTE Use this option only for baking on the Jewish Sabbath and Holidays.

  • Page 47: More Functions

    More functions Setting Description Tap the button on the control panel, and then turn the dial knob to change Screen Timeout Adjust the display timeout. various settings for your oven. Please refer to the following table for detailed Set the clock to display the current time. Set time descriptions.
  • Page 48 Operating the oven Timer Deleting the favorite cook settings The timer gives you an extra timer you can use to time cooking tasks, such as , and select Favorite using the dial knob. boiling eggs. It does not, however, start or stop any cooking operation. You can set Select Delete.

  • Page 49: System Settings

    System Settings Screen Timeout You can set the length of time before the screen saver turns on. Tap and hold for 3 sec, on the control panel, and then Turn the dial knob to , and select Screen Timeout using the dial knob. change various settings for your oven.
  • Page 50 Operating the oven Temp. Unit (°F / °C) Default Cavity Change the temperature format of the oven to Fahrenheit or Centigrade. The One cavity will be selected as a default in twin mode when oven turns on. default is Fahrenheit. Tap and hold for 3 sec.

  • Page 51: Smart Control

    Smart control To control the oven remotely Press Smart Control appears in the display. The oven can now be controlled remotely with a connected remote device. How to connect the oven Select the oven icon on the SmartThings app to open the Oven Control app. Download and open the SmartThings app on your smart device.

  • Page 52: Maintaining Your Appliance

    Maintaining your appliance Operating the oven Maintaining your appliance WI-FI On/Off Self-cleaning If you set the WI-FI mode to Off, mobile devices cannot connect to the range. This self-cleaning oven uses high temperatures (well above cooking temperatures) Tap and hold for 3 sec.
  • Page 53 Before a self-cleaning cycle How to run a self-cleaning cycle Make sure the oven door is closed completely and unlocked. And turn off all • We recommend venting your kitchen oven and cooktop function. with an open window or using a , and select Cleaning >...

  • Page 54: Steam-Cleaning

    Maintaining your appliance After a self-cleaning cycle NOTE • You may notice some white ash in the oven. Wipe it up with a damp cloth When steam-cleaning, use exactly 10 oz. of water since this produces the best after the oven cools. (If white spots remain, remove them with a soap-filled results.

  • Page 55: Care And Cleaning Of The Oven

    For more difficult residue and built-up grease, apply a liquid detergent directly • To order graphite lubricant., call Samsung customer care at 1-800-SAMSUNG onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry.
  • Page 56 Maintaining your appliance Air fry tray Shake the graphite lubricant before opening it. Starting with the left (front To keep the Air fry tray clean, remove them from the cavity, and soak them in and back) slide mechanism of the rack, Lukewarm soapy water.

  • Page 57: Care And Cleaning Of The Glass Cooktop

    Care and cleaning of the glass cooktop Oven door • Use soap and water to thoroughly Don’t hand clean the top, sides, and front of the Normal daily use cleaning clean the oven door. Rinse well. You may use a Use only a ceramic cooktop cleaner.
  • Page 58 Maintaining your appliance Removing heavy, burned-on residue Cleaning the cooktop seal Allow the cooktop to cool. To clean the seal around the edges of Use a single-edge razor-blade scraper the glass, lay a wet cloth on it for a few at approximately a 45°...

  • Page 59: Removing And Reinstalling The Oven Door

    Removing and reinstalling the oven door How to reinstall the door You can replace the upper door the same way you replace the full door. Firmly grasp both sides of the door at the top. How to remove the door With the door at the same angle as the removal position, slide the indentation You can remove the upper door the same way you remove the full door.

  • Page 60: Removing And Reinstalling The Storage Drawer

    Maintaining your appliance Removing and reinstalling the storage drawer Changing the oven light The oven light is a standard 40-watt appliance bulb. It will come on when the oven Slide open the drawer until it stops. door is open. When the oven door is closed, press the pad to turn it on or off.

  • Page 61: Troubleshooting

    Troubleshooting Troubleshooting CONTROL DISPLAY Samsung works hard to ensure that you don’t have problems with your new Problem Possible cause Solution electric range. If you run into unexpected trouble, look first for a solution in the The display goes A fuse in your home may Replace the fuse or reset tables below.
  • Page 62 Troubleshooting Problem Possible cause Solution Problem Possible cause Solution The surface unit The element will cycle on This is normal operation, Brown streaks or Boilovers have been cooked • Wait until the surface frequently cycles and off to maintain the and not a system failure.
  • Page 63 OVEN Problem Possible cause Solution The oven The oven controls have not Refer to the section on using Problem Possible cause Solution smokes been set properly. the broiler starting on page The oven will The range is not completely Make sure the electrical excessively not turn on.
  • Page 64 Troubleshooting Problem Possible cause Solution Problem Possible cause Solution Food does not The serving size may not be Refer to the cooking guide for Excessive There is excessive soiling in Press OFF. Open the windows broil properly. appropriate. serving sizes on page 41, and smoking during the oven.

  • Page 65: Information Codes

    Information codes Problem Possible cause Solution Strong odor. An odor coming from the Operate the oven empty on OVEN insulation around the inside the bake setting at 400 °F for of the oven is normal for the 1 hour. Displayed first few times the oven is Possible cause Solution...
  • Page 66 Troubleshooting Displayed Displayed Possible cause Solution Possible cause Solution code code The sub PCB sensor is open Bad line This error message appears If the power connection is when the oven is operating. if the power cord is installed plugged in improperly, that C-22 improperly.

  • Page 67: Warranty (U.s.a)

    SAMSUNG authorized service center. The original dated and surges; damage caused by failure to operate and maintain the product bill of sale must be presented upon request as proof of purchase to SAMSUNG or according to instructions; in-home instruction on how to use your product; and SAMSUNG’s authorized service center to receive warranty service.

  • Page 68: Warranty (Canada)

    To receive in home service product must be unobstructed and accessible No warranty or guarantee given by any other person, firm, or corporation with to the service agent. If service is not available Samsung may elect to provide respect to this product shall be binding on SAMSUNG.
  • Page 69 SAMSUNG will repair or replace this product, at our option and at no charge EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS as stipulated herein, with new or reconditioned parts or products if found to PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL be defective during the limited warranty period specified above.

  • Page 70: Appendix

    It is also possible to obtain the complete corresponding source code in a physical medium, such as a CD-ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/SMART_AT_051/ seq/0 leads to the download page of the source code made available and open source license information as related to this product.
  • Page 71 Memo NE63T8751_AA_DG68-01208A-00_EN+MES+CFR.indb 71 2020-03-27 2:47:52...
  • Page 72 How-to Videos and Live Shows * Requires reader to be installed on your smartphone Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS?
