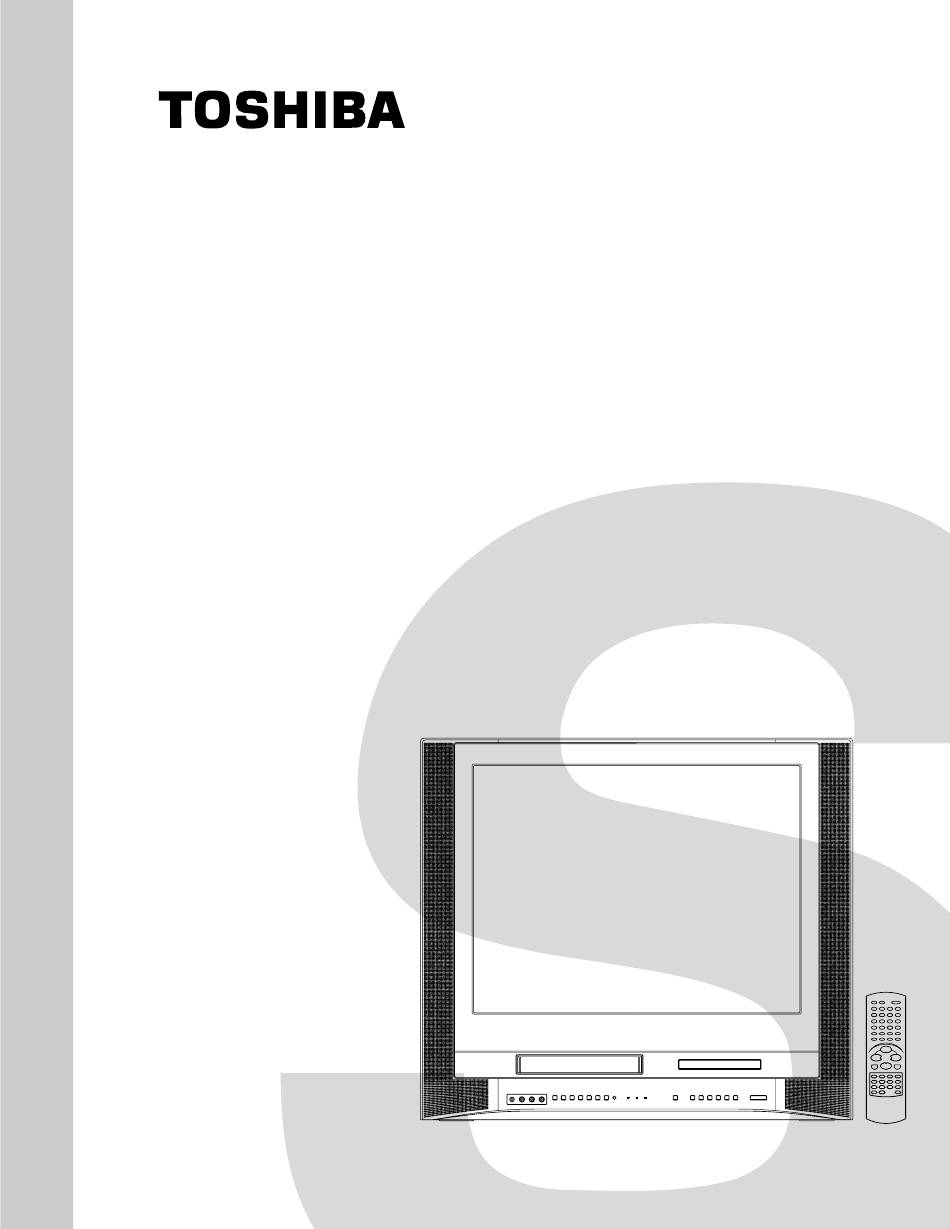

FILE NO. 140-200323
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER/
DVD VIDEO PLAYER
MW24FN1R
DOCUMENT CREATED IN JAPAN, Jun., 2003

Advertisement

Table of Contents
loading

Related Manuals for Toshiba MW24FN1R

Summary of Contents for Toshiba MW24FN1R

  • Page 1 FILE NO. 140-200323 SERVICE MANUAL COLOR TELEVISION/ VIDEO CASSETTE RECORDER/ DVD VIDEO PLAYER MW24FN1R DOCUMENT CREATED IN JAPAN, Jun., 2003...
  • Page 2 CAUTION THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

  • Page 3: Servicing Notices On Checking

    SERVICING NOTICES ON CHECKING 1. KEEP THE NOTICES 6. AVOID AN X-RAY As for the places which need special attentions, Safety is secured against an X-ray by consider- they are indicated with the labels or seals on the ing about the cathode-ray tube and the high cabinet, chassis and parts.
  • Page 4 IMPORTANT SAFEGUARDS READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS All operating and use instructions should be followed.
  • Page 5 IMPORTANT SAFEGUARDS (CONTINUED) DAMAGE REQUIRING SERVICE Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the unit. If the unit has been exposed to rain or water.

  • Page 6: Tape Removal Methodatno Power Supply

    TAPE REMOVAL METHOD AT NO POWER SUPPLY Remove the TV/DVD/VCR block from the main unit and the Fig. 1 below can be seen. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.) Remove one screw of the Loading Motor from the insert hole for screw driver and remove the Loading Motor.

  • Page 7: Parental Control - Rating Level

    PARENTAL CONTROL - RATING LEVEL 4 DIGIT PASSWORD CANCELLATION If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. Turn Unit ON. Press and hold the 'STOP' key on the front panel. Simultaneously press and hold the '7' key on the remote control unit.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS A1-1 CAUTION ..........................A1-2 SERVICING NOTICES ON CHECKING .................. A1-2 HOW TO ORDER PARTS ....................... A1-3, A1-4 IMPORTANT WARNING ......................A1-5 TAPE REMOVAL METHODATNO POWER SUPPLY ............A1-5 DISC REMOVAL METHODATNO POWER SUPPLY ............A1-6 PARENTAL CONTROL - RATING LEVEL ................A1-6 TRAY LOCK ..........................

  • Page 9: General Specifications

    GENERAL SPECIFICATIONS CRT Size / Visual Size 24 inch / 600mmV System CRT Type Flat Deflection degree Magnetic Field BV/BH + 0.45 G / 0.18 G Color System NTSC Speaker 2 Speaker Position Front Size 1.8 x 3.9 Inch Impedance Sound Output 1.5W + 1.5W 10%(Typical)
  • Page 10 GENERAL SPECIFICATIONS Signal Video Signal Input Level 1 V p-p/75 ohm Output Level 1 V p-p/75 ohm S/N Ratio (Weighted) at DVD Mode 65dB S/N Ratio (Weighted) at VCR Mode 50dB Horizontal Resolution at DVD Mode 400 Lines Horizontal Resolution at VCR(SP)Mode 220 Lines RGB Signal Output Level...
  • Page 11 GENERAL SPECIFICATIONS G-10 On Screen Menu Display Menu Type Character (TV/VCR) Timer Rec Set Channel Setup TV/CATV Auto CH Memory Add/ Delete Guide CH Set TV Setup V-chip Set On/Off Timer Set Picture Audio Surround Stable Sound Sap On/Off Auto Repeat On/Off System Setup Clock Set Yes (Calendar 12h)
  • Page 12 GENERAL SPECIFICATIONS G-11 On Screen Menu Display Menu Type Character (DVD) Language OSD Language Menu SubTitle Audio Picture TV Screen Size OSD Display On/Off Sound DRC (Dynamic Range Control) dts Decode Output(5.1ch/ 2ch) Surround On/Off Center On/Off Sub Woofer On/Off Parental Password Lock/ Un Lock Rating Level...
  • Page 13 GENERAL SPECIFICATIONS G-14 Remote Unit(for TOSHIBA) RC-FG Control Glow in Dark Remocon Unit Format Custom Code 40-BFh,44-BBh Power Source Voltage(D.C) UM size x pcs UM-4 x 2 pcs Total Keys Keys TV/VCR Power Channel- Channel+ Volume- Volume+ Display Sleep Audio Select...
  • Page 14 GENERAL SPECIFICATIONS G-15 Features Auto Head Cleaning Auto Tracking HQ (VHS Standard High Quality) Auto Power On, Auto Play, Auto Rewind, Auto Eject VIDEO PLUS+(SHOWVIEW,G-CODE) Auto Clock Forward / Reverse Picture Search Auto CH Memory Surround Stable Sound Closed Caption TV Auto Shut off Function End Call Index Search...
  • Page 15 GENERAL SPECIFICATIONS G-16 Accessories Owner's Manual Language English w/Guarantee Card Buyer Model No. MW24FN1R Remote Control Unit Battery UM size x pcs UM-4 x 2 pcs OEM Brand Rod Antenna Poles Terminal Loop Antenna Terminal U/V Mixer 300 ohm to 75 ohm Antenna Adapter...
  • Page 16 GENERAL SPECIFICATIONS G-20 Carton Master Carton Content Material Dimensions W x D x H(mm) Description of Origin Gift Box Material Double/White Dimensions W x D x H(mm) 766 x 579.5 x 711 Design As per Buyer's Description of Origin Buyer Model No. MW24FN1 Drop Test Natural Dropping At...

  • Page 17: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS 1. REMOVAL OF MECHANICAL PARTS 1-3: TV/DVD/VCR BLOCK (Refer to Fig. 1-3) Remove the 2 screws 1. AND P.C. BOARDS Disconnect the following connectors: 1-1: BACK CABINET (Refer to Fig. 1-1) (CP303, CP404 and CP1704). Remove the 6 screws 1. Remove the TV/DVD/VCR Block in the direction of arrow.
  • Page 18 DISASSEMBLY INSTRUCTIONS 1-5: VCR PCB (Refer to Fig. 1-5) 1-7: DVD PCB/DVD DECK (Refer to Fig. 1-7) Remove the 6 screws 1. Make the short circuit on the position as shown Fig. 1-7 Remove the screw 2. using a soldering. If you remove the DVD Deck with no Remove the AV Jack Shield.

  • Page 19: Removal Of Vcr Deck Parts

    DISASSEMBLY INSTRUCTIONS NOTE 2. REMOVAL OF VCR DECK PARTS In case of the Locker R installation, check if the one 2-1: TOP BRACKET (Refer to Fig. 2-1) position of Fig. 2-3-B are correctly locked. Extend the 2 supports 1. When you install the Cassette Side R, be sure to move Slide the 2 supports 2 and remove the Top Bracket.
  • Page 20 DISASSEMBLY INSTRUCTIONS 2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A) 2-7: TENSION ASS’Y (Refer to Fig. 2-7-B) Remove the screw 1. Turn the Pinch Roller Cam clockwise so that the Tension Remove the Loading Motor. Holder hook is set to the position of Fig. 2-7-A to move Remove the Worm.
  • Page 21 DISASSEMBLY INSTRUCTIONS NOTE [OK] Tension Connect Take care not to damage the gears of the S Reel and T Reel. Tension Band The Polyslider Washer may be remained on the back of the reel. [NG] Tension Connect Tension Band Take care not to damage the shaft. Do not touch the section “A”...
  • Page 22 DISASSEMBLY INSTRUCTIONS 2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/P5 ARM ASS’Y (Refer to Fig. 2-10-A) Unlock the support 1 and remove the Cassette Opener. Remove the Pinch Roller Block and P5 Arm Ass’y. Cassette Opener Spring Position Fig. 2-11-B Pinch Roller Block 2-12: FE HEAD (RECORDER ONLY) (Refer to Fig.
  • Page 23 DISASSEMBLY INSTRUCTIONS 2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14-A) 2-15: MAIN CAM/PINCH ROLLER CAM/JOINT GEAR (Refer to Fig. 2-15-A) Remove the Capstan Belt. Remove the 3 screws 1. Remove the E-Ring 1, then remove the Main Cam. Remove the E-Ring 2, then remove the Pinch Roller Remove the Capstan DD Unit.
  • Page 24 DISASSEMBLY INSTRUCTIONS NOTE 2-18: CASSETTE GUIDE POST/INCLINED BASE S/T UNIT/P4 CAP (Refer to Fig. 2-18-A) 1. When you install the Loading Arm S Unit, Loading Arm T Unit and Main Loading Gear, align each marker. (Refer Remove the P4 Cap. Unlock the support 1 and remove the Cassette Guide to Fig.

  • Page 25: Removal Of Dvd Deck Parts

    DISASSEMBLY INSTRUCTIONS 3. REMOVAL OF DVD DECK PARTS Main Chassis Ass’y NOTE 1. Do not disassemble the DVD DECK PARTS except listed Rack Loading parts here. Minute adjustments are needed if the disas- semble is done. If the repair is needed except listed parts, replace the DVD MECHA ASS’Y.
  • Page 26 DISASSEMBLY INSTRUCTIONS NOTE Main Chassis Ass’y When installing the Clamper Magnet, install it with the green face up. When installing the wire of the Lever Switch, install it correctly as Fig. 3-4-B. When installing the Lever Switch, install it correctly as Traverse Holder Fig.
  • Page 27 DISASSEMBLY INSTRUCTIONS NOTE 3-9: GEAR (Refer to Fig. 3-9-A) Unlock the support 1. After the assembly of the Rack Feed, check if the Rack Feed 1/2 is moving smoothly. (Refer to Fig. 3-7-B) Remove the Middle Gear 1/2/3, Idler Gear and Feed Gear. In case of the Rack Feed Ass’y installation, install cor- rectly as Fig.
  • Page 28 DISASSEMBLY INSTRUCTIONS NOTE In case of the Idler Arm installation, install as the circled section of Fig. 3-10-B. In case of the Idler Arm Spring installation, install as the circled section of Fig. 3-10-C. In case of the Chassis Spring installation, install as the circled section of Fig.

  • Page 29: Removal Of Anode Cap

    DISASSEMBLY INSTRUCTIONS 4. REMOVAL OF ANODE CAP 3. After one side is removed, pull in the opposite direction to remove the other. Read the following NOTED items before starting work. NOTE After turning the power off there might still be a potential Take care not to damage the Rubber Cap.

  • Page 30: Removal And Installation Of Flat Package Ic

    DISASSEMBLY INSTRUCTIONS REMOVAL AND INSTALLATION OF FLAT When IC starts moving back and forth easily after desoldering completely, pickup the corner of the IC using a PACKAGE IC tweezers and remove the IC by moving with the IC desoldering machine. (Refer to Fig. 5-3.) REMOVAL NOTE Put the Masking Tape (cotton tape) around the Flat...
  • Page 31 DISASSEMBLY INSTRUCTIONS INSTALLATION When bridge-soldering between terminals and/or the soldering amount are not enough, resolder using a Thin-tip Take care of the polarity of new IC and then install the new Soldering Iron. (Refer to Fig. 5-8.) IC fitting on the printed circuit pattern. Then solder each lead on the diagonal positions of IC temporarily.

  • Page 32: Key To Abbreviations

    KEY TO ABBREVIATIONS Audio/Control H.P.F High Pass Filter Automatic Color Control H.SW Head Switch Audio Erase Hertz Automatic Frequency Control Integrated Circuit Automatic Fine Tuning Intermediate Frequency AFT DET Automatic Fine Tuning Detect Indicator Automatic Gain Control Inverter Amplifier Killer Antenna Left A.PB...
  • Page 33 KEY TO ABBREVIATIONS Serial Strobe Switch SYNC Synchronization SYNC SEP Sync Separator, Separation Transistor TRAC Tracking TRICK PB Trick Playback Test Point UNREG Unregulated Volt Voltage Controlled Oscillator Video Intermediate Frequency Vertical Pulse, Voltage Display V.PB Video Playback Variable Resistor V.REC Video Recording Visual Search Fast Forward...

  • Page 34: Service Mode List

    SERVICE MODE LIST This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and remocon key simultaneously.

  • Page 35: Preventive Checks And Service Intervals

    PREVENTIVE CHECKS AND SERVICE INTERVALS The following standard table depends on environmental conditions and usage. Parts replacing time does not mean the life span for individual parts. Also, long term storage or misuse may cause transformation and aging of rubber parts. The following list means standard hours, so the checking hours depends on the conditions.
  • Page 36 PREVENTIVE CHECKS AND SERVICE INTERVALS CLEANING NOTE 2. TAPE RUNNING SYSTEM After cleaning the heads with isopropyl alcohol, do not When cleaning the tape transport system, use the run a tape until the heads dry completely. If the heads gauze moistened with isopropyl alcohol. are not completely dry and alcohol gets on the tape, 3.

  • Page 37: When Replacing Eeprom (Memory) Ic

    WHEN REPLACING EEPROM (MEMORY) IC If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1. NOTE: Initial Data setting will not be possible if clock has been set. To reset clock, either unplug AC cord and allow at least 5 seconds before Power On.

  • Page 38: Servicing Fixtures And Tools

    SERVICING FIXTURES AND TOOLS Alignment Tape Back tension cassette gauge Torque cassette gauge Taper nut driver (KT-300NR) ST-N5 ST-NF 70909103 70909199 70909228 VTR cleaning kit VTR lubrication kit Grease JG002B Adapter JG002E Dial Torque Gauge (10~90gf•cm) JG002F (60~600gf•cm) JG022 Master Plane JG024A Reel Disk Height JG153 X Value Adjustment Tentelometer...

  • Page 39: Mechanical Adjustments

    MECHANICAL ADJUSTMENTS 1-2: CONFIRMATION AND ADJUSTMENT OF TENSION 1. CONFIRMATION AND ADJUSTMENT POST POSITION Read the following NOTES before starting work. Set to the PLAY mode. • Place an object which weighs between 450g~500g on the Adjust the adjusting section for the Tension Arm position Cassette Tape to keep it steady when you want to make so that the Tension Arm top is within the standard line of the tape run without the Cassette Holder.
  • Page 40 MECHANICAL ADJUSTMENTS 1-4: CONFIRMATION OF VSR TORQUE NOTE Install the Torque Gauge (JG002F) and Adapter (JG002B) If the torque is out of the range, replace the following parts. on the S Reel. Set to the Picture Search (Rewind) mode. Check item Replacement Part (Refer to Fig.1-4-B) Then, confirm that it indicates 120~180gf•cm.
  • Page 41 MECHANICAL ADJUSTMENTS 2-2: CONFIRMATION AND ADJUSTMENT OF AUDIO/ 2-3: TAPE RUNNING ADJUSTMENT CONTROL HEAD (X VALUE ADJUSTMENT) When the Tape Running Mechanism does not work well, Confirm and adjust the height of the Reel Disk. adjust the following items. (Refer to item 1-1) Confirm and adjust the position of the Tension Post.
  • Page 42 MECHANICAL ADJUSTMENTS 3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE 1. Tension Connect P4 Post 2. Tension Arm T Brake Spring 3. Guide Roller T Reel 4. Audio/Control Head S Reel 5. X value adjustment driver hole Adjusting section for the Tension Arm position D2-4...

  • Page 43: Electrical Adjustments

    ELECTRICAL ADJUSTMENTS BEFORE MAKING ELECTRICAL FUNCTION FUNCTION OSD H BRI MAX ADJUSTMENTS OSD C BRI MIN CUT OFF CONT CENT Read and perform these adjustments when repairing the H.POSI CONT MAX circuits or replacing electrical parts or PCB assemblies. H.BLK L CONT MIN H.BLK R COL CENT...
  • Page 44 ELECTRICAL ADJUSTMENTS (TV SECTION) 2-7: HORIZONTAL SIZE Receive the monoscope pattern. 2-2: CONSTANT VOLTAGE Using the remote control, set the brightness and contrast Set condition is AV MODE without signal. to normal position. Using the remote control, set the brightness and contrast Activate the adjustment mode display of Fig.
  • Page 45 ELECTRICAL ADJUSTMENTS 2-12: PARABOLA 2-16: BRIGHT CENTER Receive the crosshatch signal from the Pattern Generator. Receive the monoscope pattern. (RF Input) Using the remote control, set the brightness and contrast Using the remote control, set the brightness and contrast to normal position. to normal position.
  • Page 46 ELECTRICAL ADJUSTMENTS 2-18: COLOR CENTER 2-19: SUB CONTRAST MAX Receive the color bar pattern. (RF Input) Activate the adjustment mode display of Fig. 1-1 and Using the remote control, set the brightness, contrast, press the channel button (21) on the remote control to color and tint to normal position.
  • Page 47 ELECTRICAL ADJUSTMENTS PURITY AND CONVERGENCE 3-3: STATIC CONVERGENCE ADJUSTMENTS NOTE Adjust after performing adjustments in section 3-2. NOTE Receive the crosshatch pattern from the color bar Turn the unit on and let it warm up for at least 30 generator. minutes before performing the following adjustments.
  • Page 48 ELECTRICAL ADJUSTMENTS 2. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION) CD002 AC IN CD1702 DEFLECTION PCB CD1704 CP601 TP401 VCR DECK CP802A CP1704 FB401 CD1703 DVD DECK CD604 CP8001 DVD DECK VR404 CP404 CP1702 CP303 VR1701 CP001 CP4502 SPEAKER CP4503 CRT PCB CP802B CP805...
  • Page 49 DVD BLOCK DIAGRAM 8M FLASH 64M SDRAM IC4012 IC4007 IS42S16400-7T M29W160E90N6 AD0-13 ADDR1~20, VCR BLOCK SMI_DQMU/CLK/ F_OE/CE/WE/DQM0/RESET DQML/WE/CAS/ RAS/CS0 MECHA BB_V4/IRQ0 VR-DVD/CD CVBS AFEC_EVALID/AFEC_SCTST LD-DVD/CD XPCLK/XBCLK/XDATA/XERROR LMD1/2 SLIDER_OUT/SLIDER_IN TR+/–, FO+/– Pick A, B, C, D, E, F PCM_DATA0/LRCLK/ RF_AMP/DSP MCLK/PCM_SCLK/ AUDIO L FE_RESET MPEG...

  • Page 50: Micon

    Y/C/AUDIO/HEAD AMP BLOCK DIAGRAM X4501 3.579545MHz Q4507 Q4509 BUFFER Y/C/AUDIO/HEAD AMP IC BUFFER IC4501 LA71205M-MPB PULL VX01 Y/C_CS SERIAL MICON Y/C_DATA TIMMING DRIVER CLAMP DECODER Y/C_CLK H.SW DETAL FM-EQ EMPHA CLAMP CP4501 CONV C-LPF EP/LP-CH2 (L) Y-LPF EP/LP_COM EP/LP-CH1 (R) H.AMP YNR/ B-UP...
  • Page 51 MICON BLOCK DIAGRAM SYSCON/TIMER/SERVO IC TV_POWER_H IN/OUT IC101 OEC8074A VCR_A_MUTE REGULATOR VCR_POWER_H VCR_POWER_ON-H V.REC_ST_H Q114 VCR_A_MUTE TV_POWER_ON-H 56 POWER FAIL POWER_FAIL BUFFER CVIN HI-FI/ Q116 DEMODULATOR AV_SW1 AV_SW AV_SW1 HIFI ENV 88 HIFI_ENV COMB FILTER HIFI H.SW 26 HIFI_H.SW AV_SW2 AV_SW2 ST SELECT 87 ST_SELECT...
  • Page 52 IN/OUT BLOCK DIAGRAM Q4202 Q4201 EXT_A_MUTE OPEN/CLOSE MUTE SW MUTE SW VCR_A_MUTE MICON EXT_MUTE STOP/EJECT VOL DOWN REAR OUT JACK J4202 Q4203 PLAY VOL UP MUTE SW SW_AUDIO_OUT_R SKIP Q4211 HEADPHONE JACK CH MUTE SW_AUDIO_OUT_L REC/OTR STOP J2201 SOUND AMP/ CH.DOWN PLAY SURROUND...
  • Page 53 CHROMA/IF BLOCK DIAGRAM CHROMA/IF_ IC IC601 PROTECT MICON LA76324M Y/C/AUDIO/ P.CON+5V V_SYNC HEAD AMP X601 Q602 OSD_ R 3.579545MHz PROTECT OSD_G OSD_B AT+5.7V REG REGULATOR OSD_Y 10V_REG. IC602 KIA78L10F-RTF MICON V_SYNC MOTOR+12V 8.5V REG P.CON+8V H.SYNC FROM TO CRT CP603 SW_C CUT OFF DIGITAL...
  • Page 54 SOUND AMP/SURROUND BLOCK DIAGRAM SOUND AMP IC IC352 AN7522N 12 4 SOUND +B SOUND_R+ SOUND_L+ IN/OUT SP_OUT_L SP_OUT_R SPEAKER SP351 SPEAKER SP352 TV_POWER_H TV_A_MUTE MICON 18 17 SURROUND-IC IC302 SW_AUDIO_OUT_R AN5891SA-E1V IN/OUT SW_AUDIO_OUT_L SW_AUDIO_OUT_L REGULATOR P.CON+8V DVD IN/OUT SW_AUDIO_OUT_R E-11 E-12...
  • Page 55 Hi-Fi/DEMODULATOR BLOCK DIAGRAM HI-FI/AUDIO/H.AMP/DEM IC IC5501 AN3663FBP AUDIO_OUT_R AUDIO_OUT_L DVD IN/OUT DVD_A_OUT_R DVD_A_OUT_L INPUT SW FRONT_A_IN_R FRONT_A_IN_L IN/OUT REAR_A_IN_R REAR_A_IN_L HF_COM OUTPUT Y/C/AUDIO/ HEAD AMP VCO-FO LOGIC DIGITAL TUNER_AUDIO COMB FILTER FM LIM Y/C_AUDIO NORMAL_A NOISE BLOCK REDUCTION V. REC_ST-H HIFI_ENV HIFI_H.SW MICON...
  • Page 56 DIGITAL COMB FILTER BLOCK DIAGRAM P.CON+5V P.CON+12V REGULATOR COMB_FSC Q1502 P.CON+8V BUFFER Y/C_VIDEO_Y CHROMA/IF AT+30V DIGITAL COMB FILTER IC SW_C IC1501 TC90A45F DVD_Y/C-C AV SW IC DVD IN/OUT IC1502 MM1501XNRE DVD_VIDEO Q1501 BUFFER Q1503 BUFFER AV SW IC IC1504 MM1501XNRE Y/C_VIDEO Y/C/AUDIO/ Y/C/AUDIO/...
  • Page 57 DVD IN/OUT BLOCK DIAGRAM AV SW1 DVD_RESET MICON CP8001 P.CON+9V_D P.CON+9V P.CON+D5V P.CON+5V_D REGULATOR P.CON+3.3V P.CON+3.3V P.CON+3.3V P.CON+12V SPDIF-134 ZERO IN/OUT SPDIF-134 AUDIO SW IC IC8001 MM1501XNRE AUDIO_OUT_L Q8006, Q8007 AUDIO_OUT_R HI-FI/ ZERO MUTE DVD_A_OUT_L DEMODULATOR DVD_A_OUT_R CP8002 AUDIO SW IC DVD_RESET MIXER IC IC8002 MM1501XNRE...
  • Page 58 REGULATOR BLOCK DIAGRAM Q3003 AT+5V OUT AT+5V Q3014 BACKUP+5V BACKUP+5V DVD_H MICON AT+12V VCR_POWER_H P.CON+5V_A P.CON+5V_A OUT IC P.CON+5V OUT IC P.CON+5V_D OUT IC P.CON+9V_D OUT IC P.CON+5V_C IC3003 IC3004 IC3002 IC3001 KIA278R05PI KIA278R05PI KIA278R05PI KIA278R09PI P.CON+5V IN/OUT AT+5V P.CON+8V Q3001 UNREG+8V BUFFER...
  • Page 59 TV BLOCK DIAGRAM MOTOR+12V Q1702 RELAY REGULATOR DRIVER UNREG+8V UNREG+5V DEGAUSS RELAY RY1701 DEGAUSS_H MICON L1703 DEGAUSS COIL D1705, D1706 D1710, D1711 Q406 AC IN CURRENT TRANSFORMER F1701 SWITCHING T1701 FEED BACK SWITCHING FEED BACK IC1702 IC1701 KIA431A-AT PS2561L1-1-V(W) Q1705, Q1706 SWITCHING SOUND AMP...

  • Page 60: Printed Circuit Boards

    PRINTED CIRCUIT BOARDS DVD (BOTTOM SIDE) DVD (TOP SIDE) W861 R4128 R4119 IC4007 R4124 Q4001 Q4002 W818 W838 W837 R4118 R4144 R4123 Q8503 X4001 R8506 R4146 R4125 R4017 Q8502 IC4003 R4073 R4117 R4135 Q8501 L4003 R4131 R4069 R4067 R4129 R4065 R4063 C4038 R4127...

  • Page 61: Vcr

    PRINTED CIRCUIT BOARDS VCR (INSERTED PARTS) SOLDER SIDE S810 CP2201 R353 S801Y D106 R8012 R359 R356 W058 HS351 W844 S809X W816 L301 IC352 CP8002 W820 W843 R311 W006 W105 L1505 W173 R635 CP601 R1726 W050 R2224 W284 D1732 R622 W049 R2223 R173 W056...
  • Page 62 PRINTED CIRCUIT BOARDS VCR (CHIP MOUNTED PARTS) SOLDER SIDE W858 IC8001 IC1504 W872 R5508 R5502 IC8002 W346 IC8004 W347 R8051 R8023 R8056 R8027 R123 R4504 R4513 R176 R139 Q4507 Q4509 Q112 Q116 R4526 R4529 Q102 Q106 R4527 R4550 R4553 Q4511 R103 R4531 R1708...

  • Page 63: Deflection/Crt/Operation/Relay/Sw

    PRINTED CIRCUIT BOARDS DEFLECTION/CRT/OPERATION SOLDER SIDE HS401 W818 D415 W804 R414 W017 B403 C408 C418_2 D406 D405 C417_1 R412 W837 R807 W833 Q805 L401 W832 R2256 L402 R808 D801 R810 Q803 W834 L403 C449 R806 R2255 Q807 Q804 R815 R805 R452 TP801 R821...

  • Page 64: Rf_Amp/Dsp

    RF_AMP/DSP SCHEMATIC DIAGRAM (DVD PCB) VCC5 JG2001 JG2002 JG2004 R2064 R2069 R2043 R2065 FFC(P=0.5mm) DVD_LD CTL CD_LD_CTL R2010 R2028 Q2001 Q2006 FROM/TO MPEG 2SA1036K 2SA1036K CD2001 6.8K 6.8K LCD_CTL Q2008 2H0O1901 Q2003 LD_CTL FE_RESET R2031 KTC3875S_Y_RTK KTC3875S_Y_RTK FROM/TO LODER JG2009 W832 W855 JG2010...

  • Page 65: Motor Drive

    MOTOR DRIVE SCHEMATIC DIAGRAM (DVD PCB) P.CON+A5V D_GND HS2301 C2307_1 763WSA0023 FROM/TO RF_AMP/DSP MOTOR DRIVE IC IC2301 LA6560 OPN_SW CLS_SW S-GND DMUTE VCONT SPD_FG C2308 DMUTE VCC2 MUTE R2319 C2322 REFDAC VLD- VIN4 R2328 VLD+ VIN4- VD4+ VIN4+ C2314 W836 VD4- VREF-IN FROM/TO LODER...
  • Page 66 MPEG SCHEMATIC DIAGRAM (DVD PCB) L4003 22uH 0305 JG4050 R4138 TRST CLOCK GENERATOR IC JG4051 R4139 FROM/TO MEMORY IC4003 R4140 JG4052 SN74AHCU04PWR JG4053 R4141 F_CE JG4054 R4142 F_WE/DQM0 JG4036 JG4055 F_OE JG4035 JG4056 JG4037 DATA0 JG4034 JG4026 DATA1 R4125 JG4020 DATA2 DATA3 C4003...

  • Page 67: Memory

    MEMORY SCHEMATIC DIAGRAM (DVD PCB) 64M SDRAM IC IC4007 IS42S16400-7T FLASH IC C4056 IC4012 M29W160ET90N6 ADDR17 ADDR16 DQ15 DQ15 C4061 FROM/TO MPEG ADDR15 BYTE VSSQ VDDQ ADDR14 DQ14 DQ14 F_CE F_WE/DQM0 DATA15 ADDR13 DQ13 DQ15/A-1 F_OE DQ13 DATA0 C4052 DATA7 ADDR12 DATA1 VDDQ...
  • Page 68 AUDIO/VIDEO SCHEMATIC DIAGRAM (DVD PCB) FROM REGULATOR2 D_GND B8501 VCC+9V FCM2012H-102T04 P.CON+5V P.CON+3.3V W839 Y_V_OUT C8504 22P CH BUFFER L8501 R8505 Q8501 Y_VIDEO KTA1504S_Y_RTK 2.2uH 0305 C8515 W844 C_V_OUT 22P CH L8502 R8520 BUFFER C_VIDEO Q8502 2.2uH 0305 KTA1504S_Y_RTK FROM/TO MPEG Y_VIDEO C_VIDEO CVBS_VIDEO...
  • Page 69 REGULATOR2 SCHEMATIC DIAGRAM (DVD PCB) W825 D8510 MCL4148 LEVEL CONVERT Q8505 KTC3875S_Y_RTK FROM/TO DVD IN/OUT 200/330mm CD8505 (CP8001) CU2B3301 TO MOTOR DRV M_GND GND(M) L8509 P.CON+9V P.CON+9V L8507 2.2uH 0305 P.CON+A5V 2.2uH 0305 P.CON+5V B8505 P.CON+3.3V W871 W4BRH3.5X6X1.0X2 P.CON+3.3V W870 D_GND SPDIF SPDIF...
  • Page 70 Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM (VCR PCB) BUFFER Q4507 2SC2412K R4537 FROM REGULATOR1 1.8K 1/4W W864 S808X S808Y W880 P.CON+8V P.CON+5V_A FROM/TO HI-FI/DEMODULATOR NORMAL_A C4558 FROM/TO MICON Y/C_AUDIO C4555 6.3V Y/C_CLK R4544 C4561 0.1 B Y/C_DATA HF_COM Y/C_CS 680K 0.01 Y/C/AUDIO/HEAD AMP IC H.SW C4559 IC4501...

  • Page 71: Micon

    MICON SCHEMATIC DIAGRAM (VCR PCB) BACKUP+5V FROM/TO REGULATOR1 C133 C148 C151 BACKUP+5V 0.1 B AT+5V 68P CH 0.1 F DVD_H VCR_POWER_H AT+12V P.CON+5V_C S101X P.CON+5V_A R177 Q112 5.6K 2SC2412K MOTOR_GND C126 C125 R129 FROM/TO DVD IN/OUT FROM/TO Y/C/AUDIO/HEAD AMP NC NC 3.6 3.6 AT+5V Y/C_VIDEO...
  • Page 72 IN/OUT SCHEMATIC DIAGRAM (VCR PCB) FROM OPERATION CP2201 (CD2251) A2001WV2-2P KEY_B KEY-B FROM/TO SOUND AMP/SURROUND POWER_LED_SW SW_AUDIO_OUT_L Q2202 SW_AUDIO_OUT_R T-REC LED SW KRC102SRTK Q2203 SOUND_R+ KRC102SRTK SOUND_L+ SP_OUT_R SP_OUT_L B8001 C8010 R8004 REC LED SW Q2201 W4BRH3.5X6X1.0X2 KRC102SRTK REC_LED COAXIAL J8007 D AUDIO DRIVER FROM REGULATOR1...
  • Page 73 CHROMA/IF SCHEMATIC DIAGRAM (VCR PCB) FROM/TO REGULATOR1 P.CON+5V P.CON+8V AT5.7VREG 8.5VREG P.CON+5V_C FROM/TO DIGITAL COMB FILTER Y/C_VIDEO-Y COMB_FSC R625 SW_C FROM DVD IN/OUT R620 DVD_Y/C-Y 4.7M TO Y/C/AUDIO/HEAD AMP C628 CHROMA/IF_IC V.SYNC IC601 LA76324M 0.47 R602 FROM/TO DEFLECTION 1K 1/4W CP602 (CP602B) W810...
  • Page 74 SOUND AMP/SURROUND SCHEMATIC DIAGRAM (VCR PCB) SOUND AMP IC IC352 AN7522N R357 HS351 763WAA0254 C358 FROM/TO IN/OUT C302 0.0056 B C331 SW_AUDIO_OUT_L 0.0056 B SW_AUDIO_OUT_R W843 SOUND_R+ FROM TV POWER SOUND_L+ R356 SP_OUT_R SOUND+B C321 SP_OUT_L 100K 1/4W 2200 SOUND_GND R301 C324 5.6K...
  • Page 75 Hi-Fi/DEMODULATOR SCHEMATIC DIAGRAM (VCR PCB) C5511 C5507 R5504 0.22 3.3K FROM IN/OUT FRONT_A_IN_R R5523 FRONT_A_IN_L HI-FI/AUDIO/HEAD AMP/DEM IC C5504 REAR_A_IN_R IC5501 REAR_A_IN_L R5503 AN3663FBP 3.9M C5505_1 FROM DIGITAL COMB FILTER C5509 C5550 0.015 B DEM_BLK ZZ-PROM LOGIC C5551 C5513 TUNER_AUDIO 4.5M 95HMz MUTE VCO-F0...
  • Page 76 DIGITAL COMB FILTER SCHEMATIC DIAGRAM (VCR PCB) C1511 W820 0.47 P.CON+5V C1518 6.3V TO HI-FI/DEMODULATOR TUNER_AUDIO C1519 0.1 B FROM/TO CHROMA/IF SW_C BUFFER C1521 R1513 COMB_FSC Q1503 Y/C_VIDEO KTC3875S_Y_RTK Y/C_VIDEO-Y KANP C1504 0.01 B COMB_FSC FROM/TO Y/C/AUDIO/HEAD AMP Y/C_VIDEO AUX_V[F/R] L1504 TUNER_VIDEO P.CON+8V_B...
  • Page 77 DVD IN/OUT SCHEMATIC DIAGRAM (VCR PCB) TO SOUND AMP/SURROUND FROM/TO REGULATOR2 SW_AUDIO_OUT_L CP8001 (CD8505) A2001WV2-11P AV_SW1 SW_AUDIO_OUT_R W844 C8001 AUDIO_OUT_L W816 C8019 56P CH P.CON+9V_DH S801X S801Y P.CON+9V P.CON+5V_D P.CON+D5V AUDIO SW IC P.CON+3.3V P.CON+3.3V IC8001 MM1501XNRE P.CON+3.3V C8017 TO IN/OUT Vin1 0.01 B SPDIF-134...

  • Page 78: Regulator1

    REGULATOR1 SCHEMATIC DIAGRAM FROM/TO TV POWER (VCR PCB) P.CON+12V MOTOR+12V UNREG+8V UNREG+5V R3001 D3005 AT5.7VREG AT+5V OUT Q3003 1/4W 11EQS04N KTC3209_Y P.CON+5V_A OUT IC TO DIGITAL COMB FILTER IC3003 KIA278R05PI P.CON+5V P.CON+12V BACKUP+5V C3005 BUFFER Q3014 P.CON+8V Q3015 VCR_POWER_H KTC3209_Y R3015 2SC2412K AT+30V...
  • Page 79 TV POWER SCHEMATIC DIAGRAM (VCR PCB) FROM/TO MICON POWER_FAIL DEGAUSS_H MOTOR_GND D1719 B1703_1 D1702 SB340L-6737 W4BRH3.5X6X1.0X2 RELAY DRIVE 1SS133 Q1702 10.9 KTC3198 TO SOUND AMP/SURROUND R1708 SOUND+B SOUND_GND (S811) RY1701 C1729 ALKS321 390P TO CHROMA/IF DEGAUSS COIL L1703 MOTOR_GND 8R250014 CP1704 A1561WV2-2P MOTOR+12V...

  • Page 80: Deflection

    DEFLECTION SCHEMATIC DIAGRAM (DEFLECTION PCB) V.OUTPUT IC IC401 LA78041 THERMAL PROTECTION PUMP UP 25.0 12.0 25.0 R418 1K 1/4W R413 6.8K 1/4W R424 FROM/TO DY R432 18K +-1% 18K 1/4W S804 CP404_1 V801 B06B-DVS A60LVY196X11(O) TO DVD DECK L402 HS402 W812 763WAA0181 ELH5L4113...
  • Page 81 CRT/OPERATION SCHEMATIC DIAGRAM (CRT PCB) CRT BLOCK TP802 R814 12K 2W R822 2.7K 1/4W RED AMP 123.5 Q802 R805 KTC4217 560 1/4W D802 1SS133 RED AMP Q803 W832 KTC3199_Y R806 FROM CROMA/IF 1K 1/4W CP603B (CP603) D805 C815 A2001WV2-8P W831 CUT OFF 1SS133 680P CH...
  • Page 82 SW/RELAY/FG SCHEMATIC DIAGRAM M2002 M2001 BCD3B02 JCL9B61 PCB640 VEBA17 SW1AB-271-10A IMSA-9615S-08C-PP SLD.MTR(-) SLD.MTR(+) SP.MTR(-) SP.MTR(+) S1005X S1005Y S1005 L.SW S1004X S1004Y S1004 S1001X S1001Y S1001 S1003X S1003Y S1003 PCB68A S1002X S1002Y S1002 VEBA12 SG-107F6 NOTE:THE DC VOLTAGE EACH PART WAS NOTE: THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME MEASURED WITH THE DIGITAL TESTER OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 83 INTERCONNECTION DIAGRAM DVD PCB CD2001 CP2001 PCB130 VMC297 CD8505 CP8001 MON(DVD) MON(DVD) NC(SW) NC(SW) DRIVE DM-2 VOL(DVD) VOL(DVD) GND(DVD) GND(DVD) OPERATION PCB P.CON+9V P.CON+9V PCB270 LD(DVD) LD(DVD) TECB10 P.CON+D5V P.CON+D5V FULL ERASE HEAD ASS’Y LD(CD) LD(CD) H5002 P.CON+3.3V P.CON+3.3V VOL(CD) VOL(CD) P.CON+3.3V P.CON+3.3V...
  • Page 84 WAVEFORMS RF_AMP/DSP Y/C/AUDIO/HEAD AMP 20µs 100ns 10µs 1.0V 100mV 100mV REC/PB 2µs 20ns 10µs 1.0V 200mV 200mV REC/PB MOTOTR DRIVE 500µs 1.0V 1.0V 500mV MPEG 20ns 500µs 2.0V 500mV 500mV REC/PB AUDIO/VIDEO REGULATOR 2 20µs 100ns 10µs 500mV 200mV NOTE: The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram.
  • Page 85 WAVEFORMS MICON DEFLECTION DEFLECTION 20µs 20ms 10ms 200V 2.0V POWER ON POWER ON MICON 10ms 2.0V 50µs POWER ON 2.0V POWER ON SOUND AMP/ SURROUND 10ms 50µs 2.0V 200mV POWER ON POWER ON POWER ON DVD IN/OUT DEFLECTION 10ms 50µs 2.0V 0.5V 5.0V...
  • Page 86 WAVEFORMS DIGITAL COMB FILTER 20µs 20µs 20µs 0.5V 1.0V POWER ON POWER ON POWER ON 20µs 0.5ms 20µs 0.5V 1.0V POWER ON POWER ON POWER ON CHROMA/IF 20µs 20µs 10ms 0.5V 1.0V POWER ON POWER ON POWER ON 0.5µs 50µs 100mV 0.5V POWER ON...

  • Page 87: Mechanical Exploded Views

    MECHANICAL EXPLODED VIEW 102B 102B 102A 102B PCB110 (CRT PCB ASS'Y) 101I 101B 101I 101I 101F 101H 101C 101D 101G 101E 101A I1-1...
  • Page 88 MECHANICAL EXPLODED VIEW PCB010 (VCR PCB ASS'Y) PCB130 (DVD PCB ASS'Y) PCB270 (OPERATION PCB ASS'Y) PCB080 (DEFLECTION PCB ASS'Y) I1-2...

  • Page 89: Chassis Exploded Views

    CHASSIS EXPLODED VIEW (TOP VIEW) CD1501 M2003 UN4001 H5002 H5001 CD1502 M101 NOTE: Applying positions AA for the grease are CLASS MARK displayed for this section. GREASE Check if the correct grease is applied for each position. I2-1...
  • Page 90 CHASSIS EXPLODED VIEW (BOTTOM VIEW) M2001 CD1501 CD1502 NOTE: Applying positions AA for the grease are CLASS MARK displayed for this section. GREASE Check if the correct grease is applied for each position. I2-2...

  • Page 91: Dvd Deck Exploded Views

    DVD DECK EXPLODED VIEW CD2302 Do not replace the parts. Because, minute adjustments are needed if CD2001 this condition is disassembled further more. PCB640 If the repair is needed, replace the (SW PCB ASS'Y) DVD MECHA ASS'Y. M2002 PCB68A (RELAY PCB ASS'Y) CD2301 NOTE: Applying positions AA for the grease are...

  • Page 92: Mechanical Replacement Parts List

    MECHANICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description AE000741 A5I602Z720 CABINET,FRONT ASSY 101A AE000172 701WPJ1218 CABINET,FRONT 101B AE000173 712WPJ0829 FLAP 101C BZ710665 713WPA0160 GUIDE,REMOCON 101D BZ710666 713WPA0195 GLASS,LED 101E AE000155 7235490021 BADGE,BRAND 101F BZ710667 735WPB0216 BUTTON,FRAME1 101G BZ710668 735WPB0217 BUTTON,FRAME2...
  • Page 93 MECHANICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description BZ710018 8107630804 SCREW,TAP TITE(S) BRAZIER AD301968 8107230404 SCREW,TAP TITE(S) BIND BZ710030 8110630804 SCREW,TAP TITE(P) BRAZIER BZ710240 8107230804 SCREW,TAP TITE(S) BIND BZ710337 8107930604 SCREW,CUP(S) AE000734 7230007711 SHEET,BAR CODE AD300432 791WHA0092 LAMIFILM,BAG BZ710687 792WHA0350...

  • Page 94: Chassis Replacement Parts List

    CHASSIS REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description AE000689 A5I501A420A DECK ASS'Y A5I501A420A BZ710564 85OA400234 PINCH ROLLER BLOCK BZ710682 85OA500026 AHC ASS'Y BZ710193 85OP200290 BELT,CAPSTAN (S) BZ710515 85OP600581 WORM BZ710094 85OP500083 BASE,AC HEAD BZ710112 85OP800324 SPRING,AC HEAD BZ710516 85OA000459 MAIN CHASSIS ASS'Y...

  • Page 95: Dvd Deck Replacement Parts List

    DVD DECK REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description AE000167 A5F101H650 DVD MECHA ASS'Y A5F101H650 AD301822 92P100022A TRAVERSE HOLDER AD301823 92P100032A RACK,FEED 1 AD301824 92P100033A RACK,FEED 2 AD301825 92P100035A LEVER,RACK FEED AD301826 92P200006A INSULATOR(F) AD301827 92P200007A INSULATOR(R) AD301850 92P300008A SPRING,CHASSIS...

  • Page 96: Electrical Replacement Parts List

    ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description RESISTORS ! R401 AD301014 R4X5T6472F R,METAL 4.7K OHM 1/6W ! R403 BZ210105 R4X5T6183F R,METAL 18K OHM 1/6W ! R405 AD300037 R4X5T6153F R,METAL 15K OHM 1/6W ! R406 BZ210280 R3X28A391J R,METAL OXIDE 390 OHM 2W ! R412...
  • Page 97 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description DIODES D414 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77 ! D415 BZ410063 D2WTAU02A0 DIODE,SILICON AU02A-EIC D416 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC D417 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 D418 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77 D419 BZ410006 D1VT001330...
  • Page 98 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description IC101 AD301923 I51F58074A OEC8074A IC103 AD301641 I9UF032310 PST3231NR IC199 AE000692 A5I502A015 S-24C04BDP-LA IC302 AD301983 I01FF58910 AN5891SA-E1V ! IC352 AD302184 I0FSP7522N AN7522N ! IC401 BZ611025 I03TD80400 LA78040 IC601 AD301765 I03FC63190 LA76319M-MPB-E IC602 AE000143...
  • Page 99 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description TRANSISTORS ! Q1705 BZ510098 T220033260 2SK3326(2) ! Q1706 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT Q2001 BZ510112 T67J1036K0 TRANSISTOR,SILICON 2SA1036KT146 Q2002 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S Q2003 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK Q2004 BZ510113 T27T030180 2SK3018 Q2005...
  • Page 100 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description COILS &TRANSFORMERS L601 BZ310041 02167F101J COIL 100 UH L602 BZ310005 02167D101K COIL 100 UH L603 BZ310118 02AHB9A972 CORE,FERRITE W5T29X7.5X19 L804 BZ310005 02167D101K COIL 100 UH L1501 AD300612 02167F100J COIL L1502 BZ310161 0216A6150K...
  • Page 101 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description P.C.BOARD ASSEMBLIES PCB010 AE000691 A5I502A010 PCB ASS'Y VMC293B PCB080 AE000693 A5I502A080 PCB ASS'Y TMC564B PCB110 AE000694 A5I502A110 PCB ASS'Y TCC426B PCB130 AE000695 A5I502A130 PCB ASS'Y VMC297A PCB270 AE000696 A5I502A270 PCB ASS'Y TECB10B MISCELLANEOUS...
  • Page 102 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description MISCELLANEOUS EL004 BZ614043 124116281A EYE LET XRY16X28BD ! F1701 AD301046 081PC6R305 FUSE 51MS063L ! FB401 AD302038 043220058F TRANSFORMER,FLYBACK FJN20A003 FH1701 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC FH1702 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC OS2201 AD301949 0773071003...
  • Page 103 TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
