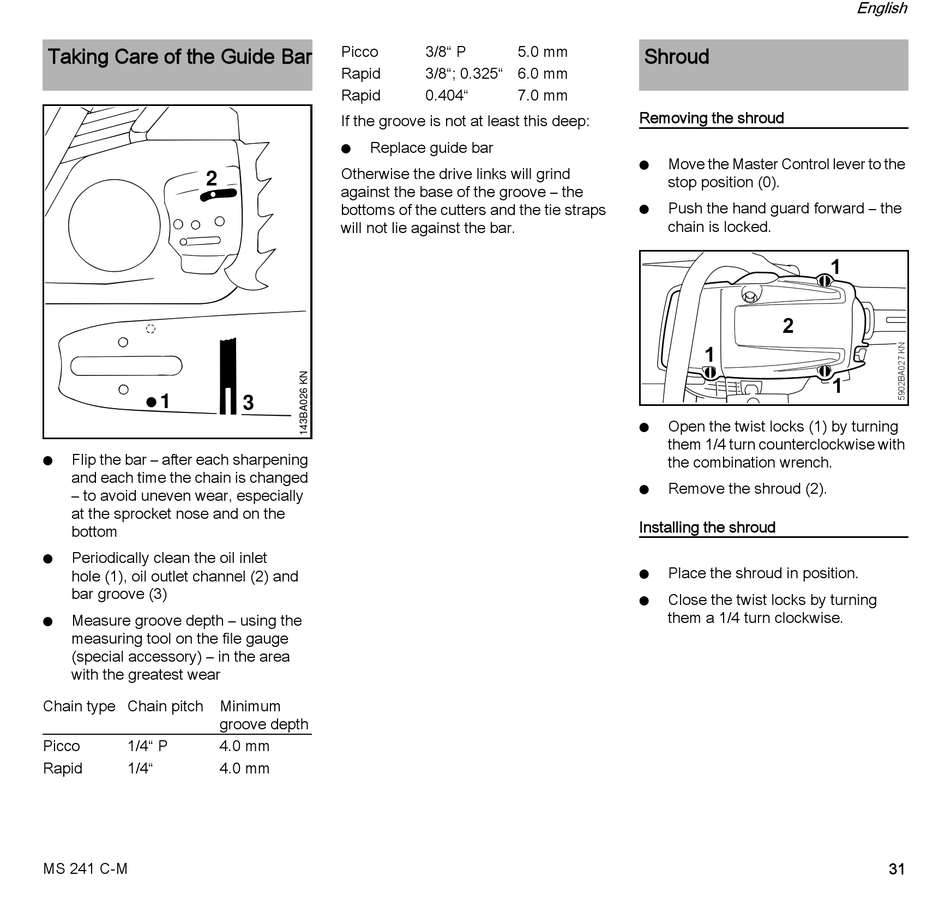

Taking Care of the Guide Bar

2
1
Flip the bar – after each sharpening
N
and each time the chain is changed
– to avoid uneven wear, especially
at the sprocket nose and on the
bottom
Periodically clean the oil inlet
N
hole (1), oil outlet channel (2) and
bar groove (3)
Measure groove depth – using the
N
measuring tool on the file gauge
(special accessory) – in the area
with the greatest wear
Chain type Chain pitch Minimum
groove depth
Picco 1/4" P 4.0 mm
Rapid 1/4" 4.0 mm
MS 241 C-M
Picco
Rapid
Rapid
If the groove is not at least this deep:
Replace guide bar
N
Otherwise the drive links will grind
against the base of the groove – the
bottoms of the cutters and the tie straps
will not lie against the bar.
3
3/8" P 5.0 mm
3/8"; 0.325" 6.0 mm
0.404" 7.0 mm

Shroud

Removing the shroud
Move the Master Control lever to the
N
stop position (0).
Push the hand guard forward – the
N
chain is locked.
2
1
Open the twist locks (1) by turning
N
them 1/4 turn counterclockwise with
the combination wrench.
Remove the shroud (2).
N
Installing the shroud
Place the shroud in position.
N
Close the twist locks by turning
N
them a 1/4 turn clockwise.
