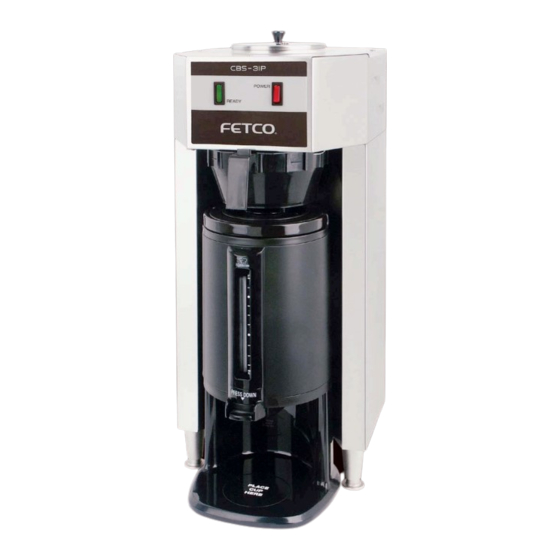

CBS-3000P Series Coffee Brewers
Pour-Over Models:
CBS-31P
CBS-31Pap
Contact Information ................................................ 2
Product Description/Features ................................. 2
Technical Data........................................................ 2
Brewing Specifications........................................ 2
Weights and Capacities ...................................... 2
Dimensional Drawings & Utilities............................ 3
Installation............................................................... 4
FETCO® and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company.
© 2006 Food Equipment Technologies Company
User's Guide
Table of Contents
Operating Procedures ............................................ 5
Service.................................................................... 6
Warranty.............................................................. 6
Adjustments ........................................................ 6
Troubleshooting .................................................. 7
Parts ....................................................................... 8
Part # P003
August 2, 2006
Advertisement
Table of Contents
Related Manuals for Fetco CBS-31P
Summary of Contents for Fetco CBS-31P
-
Page 1: Table Of Contents
Electrical Configuration and Brewing Efficiency . 2 Dimensional Drawings & Utilities... 3 Installation... 4 FETCO® and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company. © 2006 Food Equipment Technologies Company User’s Guide Table of Contents Operating Procedures ... -
Page 2: Contact Information
Coffee Filters: Plastic Brew Basket: 9¾” X 4½” FETCO # F003 Stainless Steel Brew Basket: 13” X 5” FETCO # F002 *FETCO currently supplies 2.2 and 3.0 liter airpots. Pap brewers can also utilize the other available sizes, 1.9 and 2.5 liters. Weights and Capacities... -
Page 3: Dimensional Drawings & Utilities
Dimensional Drawings & Utilities CBS-31P CBS-31Pap... -
Page 4: Installation
Keys Points Electrical: •The electronic controls require at least 105 volts. Less than 105 volts will cause erratic behavior from the brewer. •The electrical drawing for the brewer is located on the inside of the upper cover. General: •Do not adjust the thermostat setting unless absolutely necessary. It is set at the factory for optimum performance. -
Page 5: Operating Procedures
1. Turn the power switch • The power switch will illuminate to indicate that the brewer has power. • When the ready light time required to gain full operating temperature will vary depending on the electrical configuration that was ordered, and the temperature of the cold water. 2. -
Page 6: Service
Warranty All FETCO brewers come with a limited warranty. All warranty service must be authorized by calling FETCO Technical Support at (800) 338-2699. Adjustments Thermostat Adjustment: For equipment manufactured before April 1, 2004 The brewer’s water tank temperature is factory set at 205°F (slightly lower for high altitudes, to prevent boiling). -
Page 7: Troubleshooting
Dispenser not empty -Empty the dispenser completely and try again -Call FETCO Service Dept. to discuss. (800) 338-2699 Half batch used incorrectly -Use smaller brew basket Water Softener in use -Obtain water from a non-softened source. -
Page 8: Parts
CBS-31P ITEM PART NO. DESCRIPTION 72006 KNOB, WATER INLET COVER 01180 WATER INLET LID 82041 CHAIN, #10, ROUND BEAD 01160 COVER TOP 23174 LID, UPPER TANK 23200 BODY, UPPER TANK 53015 thermostat temp probe 14" (use with K045 digital thermostat or 53012 thermostat) 102198 Digital temp probe assy., 14”... - Page 9 31101 FITTING, BARB, 90 ELBOW, 1/2 HOSE ID X 3/8 MPT 31118 LOCKNUT, 3/8 STRAIGHT PIPE THREAD 21038 HOUSING, ELECTRODE 002034 WELDMENT, WATER LEVEL PROBE 102047 TANK COVER ASSY 25094 VENT,SILICONE TUBE, 32047 TUBE, FITTING, TANK 32045 TUBE, FITTING, BREW 25095 TUBE, SILICONE 03098 BRACKET, SPRAY HEAD HOLDING 83065 WASHER, 1.0"OD X .412"ID, FLAT...
