COLOUR CHORUS 72™
user manual



Advertisement

Table of Contents
loading

Related Manuals for Elation COLOUR CHORUS 72

Summary of Contents for Elation COLOUR CHORUS 72

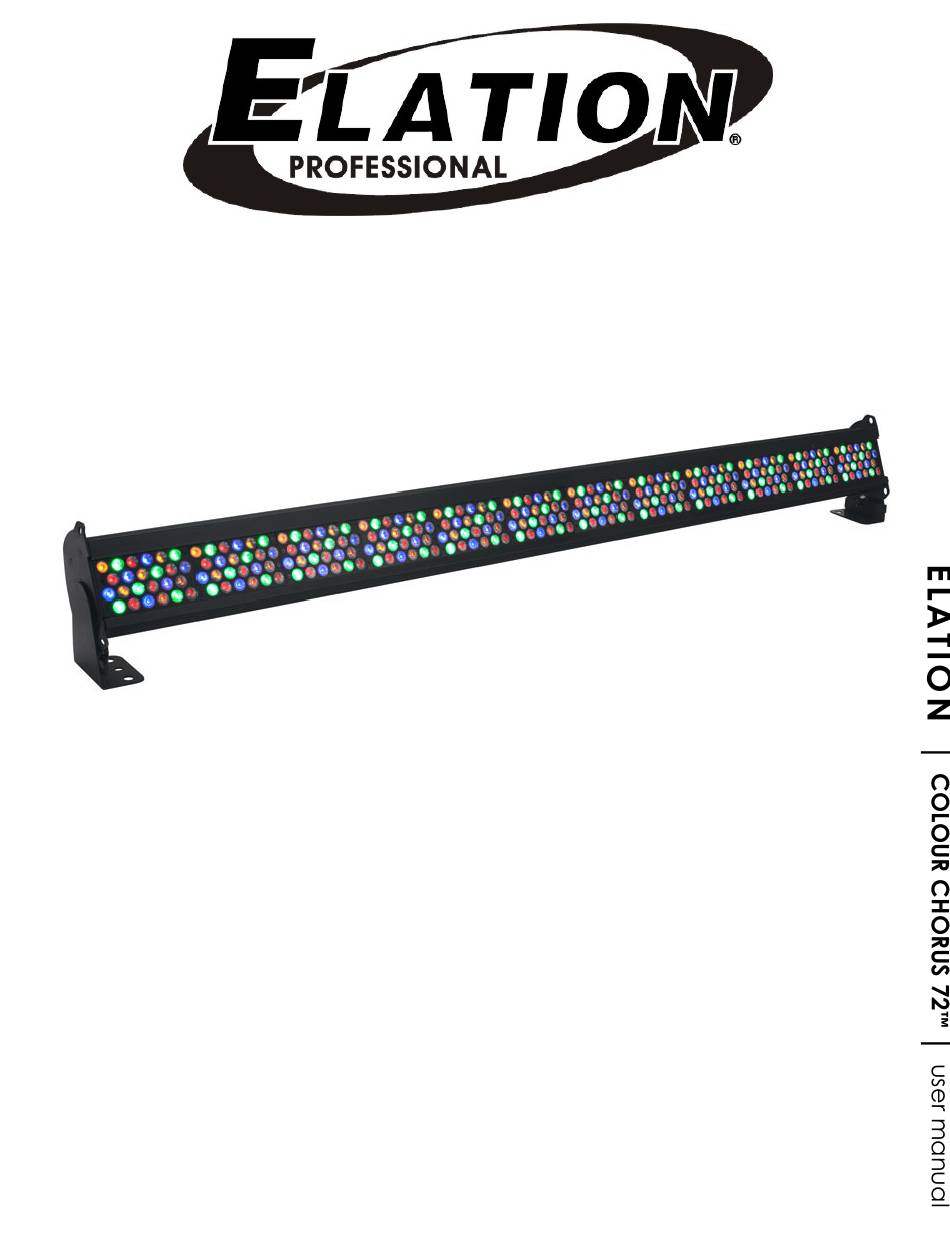

  • Page 1 COLOUR CHORUS 72™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories COLOUR CHORUS 72™ User Manual Version 1...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) powerCON Cable Manual & Warranty Card COLOUR CHORUS 72™ User Manual Version 1...
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions

    Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. COLOUR CHORUS 72™ User Manual Version 1...

  • Page 8: General Guidelines

    Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. COLOUR CHORUS 72™ User Manual Version 1...

  • Page 9: Fixture Overview

    3pin DMX IN 5pin DMX IN powerCON IN LCD Menu Control Display RJ45 NET IN RJ45 NET OUT powerCON OUT 3pin DMX OUT 5pin DMX OUT MODE Button UP Button DOWN Button ENTER Button COLOUR CHORUS 72™ User Manual Version 1...

  • Page 10: Fixture Installation

    The fixture provides integrated and adjustable rigging brackets. When mounting this fixture to truss be sure to secure an appropriately rated clamps to the rigging brackets using a M10 screw fitted through the center hole. COLOUR CHORUS 72™ User Manual Version 1...
  • Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. COLOUR CHORUS 72™ User Manual Version 1...

  • Page 12: Fixture Menu

    Press and hold the MODE button for 10 seconds to unlock the LCD display. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Software Update CC72 Please Wait... ADDR:001 MOD:01 COLOUR CHORUS 72™ User Manual Version 1...
  • Page 13 Standard / High Output Reset to Default OFF / ON Current Total Time Time. Info Last Clear Timer PIN Information Clear Last Temp. Info LED Temp. Model. Info Colour Chorus 72 ≥1.10 Software.V COLOUR CHORUS 72™ User Manual Version 1...
  • Page 14 (See diagram below for more details) Dimmer PIXEL FLIP Select the desired starting LED Group direction from one of the following modes below via UP/DOWN buttons and then press ENTER to confirm. STANDARD FLIP COLOUR CHORUS 72™ User Manual Version 1...

  • Page 15: Dmx Channel Functions And Values

            MOD   #   DMX   C H   sRGBI+ fxHSI+ fxHSI fxHSI+ RGBA sRGBI sRGBI+ MODE   10CH 11CH 36CH 36CH 38CH 43CH 45CH 48CH 49CH 53CH COLOUR CHORUS 72™ User Manual Version 1...
  • Page 16 Interval GROUP 4 218-219 Interval GROUP 5 220-223 Interval GROUP 6 224-225 Interval GROUP 7 226-227 Interval GROUP 8 228-229 Interval GROUP 9 230-231 Interval GROUP 10 232-233 Interval GROUP 11 234-255 NO Function COLOUR CHORUS 72™ User Manual Version 1...
  • Page 17 0 to 100% INTENSITY 0-255 0 to 100% 0-255 0 to 100% GREEN 0-255 0 to 100% BLUE 0-255 0 to 100% AMBER 0-255 0 to 100% MASTER DIMMER 0-255 Intensity 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 18 Color Macro 12 49-52 Color Macro 13 53-56 Color Macro 14 57-60 Color Macro 15 61-64 Color Macro 16 65-68 Color Macro 17 69-72 Color Macro 18 73-76 Color Macro 19 77-80 Color Macro 20 COLOUR CHORUS 72™ User Manual Version 1...
  • Page 19 Color Macro 56 225-228 Color Macro 57 229-232 Color Macro 58 233-236 Color Macro 59 237-240 Color Macro 60 241-244 Color Macro 61 245-248 Color Macro 62 249-252 Color Macro 63 253-255 Color Macro 64 COLOUR CHORUS 72™ User Manual Version 1...
  • Page 20 GREEN - LED GROUP 4* 0-255 0 to 100% BLUE - LED GROUP 4* 0-255 0 to 100% AMBER - LED GROUP 4* 0-255 0 to 100% INTENSITY - LED GROUP 4* 0-255 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 21 GREEN - LED GROUP 8* 0-255 0 to 100% BLUE - LED GROUP 8* 0-255 0 to 100% AMBER - LED GROUP 8* 0-255 0 to 100% INTENSITY - LED GROUP 8* 0-255 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 22 GREEN - LED GROUP 12* 0-255 0 to 100% BLUE - LED GROUP 12* 0-255 0 to 100% AMBER - LED GROUP 12* 0-255 0 to 100% INTENSITY - LED GROUP 12* 0-255 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 23 INTENSITY - LED GROUP 3* 0-255 0 to 100% HUE - LED GROUP 4* 0-255 0 to 100% SATURATION - LED GROUP 4* 0-255 0 to 100% INTENSITY - LED GROUP 4* 0-255 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 24 INTENSITY - LED GROUP 10* 0-255 0 to 100% HUE - LED GROUP 11* 0-255 0 to 100% SATURATION - LED GROUP 11* 0-255 0 to 100% INTENSITY - LED GROUP 11* 0-255 0 to 100% COLOUR CHORUS 72™ User Manual Version 1...
  • Page 25 INTENSITY - LED GROUP 12* 0-255 0 to 100% MASTER DIMMER 0-255 Intensity 0 to 100% DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting COLOUR CHORUS 72™ User Manual Version 1...

  • Page 26: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 27: Technical Specifications

    Width: 7.5” (194.1mm) Vertical Height: 7.6” (192.5mm) Weight: 53.0 lbs. (24.0kg) ELECTRICAL / THERMAL AC 110-250V - 50/60Hz 630W Max Power Consumption 5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP30 COLOUR CHORUS 72™ User Manual Version 1...
  • Page 28 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS COLOUR CHORUS 72™ User Manual Version 1...

  • Page 29: Optional Accessories

    PLC3 3' (1m) powerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT005 5’ (1.5m) CAT6 EtherCON Cable Additional Cable Lengths Available COLOUR CHORUS 72™ User Manual Version 1...
