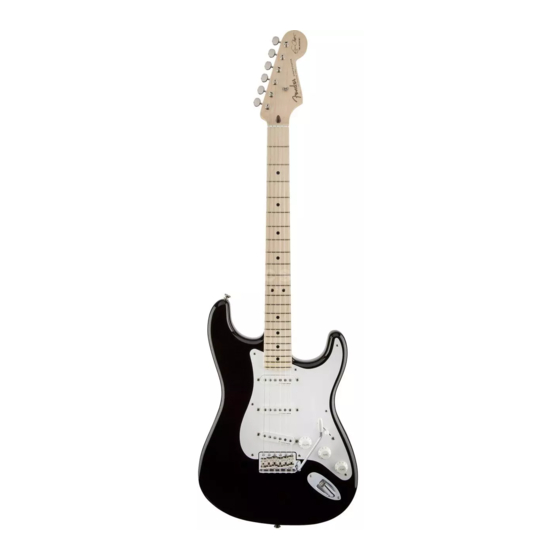

ERIC CLAPTON STRATOCASTER UPGRADE 0117602
REF.#
P/N
1
0029685000
Neck, Clapton Stratocaster, M/N
2
0019309000
Tuning Key, (1) Set
0011357000
0019312000
3
0083675000
Bone Nut
4
0010389000
String Retainer
0011358000
0020423000
5
0020810000
Truss Rod Adjustment Nut
0023811000
6
0028451xxx
Body, Clapton Strat, Solid Paint
7
0054038000
Neck Mounting Plate (Tilt)
0015636000
0031571000
0023811000
8
0012344000
Strap Buttom
0016188000
9
0019490000
Pickguard, Vintage Strat, White
0015578000
10
0058018000
Pickup, Neck/Middle (2), Noise Free
11
0058019000
Pickup, Bridge, Noise Free
0015776000
0036878000
12
0021682000
Control, 50k, Audio
0016352000
0022384000
13
0021686000
Control, Mid Tone, 250K, 1 Meg Dual
0016352000
0022384000
14
0028531000
Control, Mid Boost, 250K,Taper
0016352000
0022384000
15
0056149000
Knob, Volume, Aged White
16
0056148000
Knob, Tone, Aged White, (2)
17
0053291000
Switch, Lever, 5 Position
0015776000
0019554000
18
0024832000
Capacitor, .022uf
19
0024996001
Resistor, 82K
20
0012869000
Solder Lug
0015116000
21
0039432000
Output Jack
0016352000
0016436000
22
0010280090
Jack Ferrule
0015578000
23
0019642000
Bridge Assembly, Vintage Strat
0016170000
0019473000
Bridge Block
0019656000
0010272100
Claw, Tremolo
0015636000
0031643000
0019652040
Arm, Tremolo
0019463000
24
0019470000
Bridge Plate
25
0019280000
Bridge Section, (6)
26
0015693000
Intonation Screw, (6)
DESCRIPTION
Mounting Screw
Bushing
Mounting Screw
Spacer
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Mounting Screw
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer , Intl
Mounting Screw
Knob, Aged White
Mounting Screw
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Mounting Screw
Mounting Screw
Mounting Screw
Spring, Claw
Knob, Tremolo
REF.#
P/N
0019273000
0019281000
27
0032782000
Height Adjustment Screw, 1&6
0016071000
Height Adjustment Screw, 2-5
0018531000
28
0012180000
Spring, Tremolo
29
0019649000
Back Plate, Tremolo, White
0015578000
Body Part Number
0028451505
0028451506
0028451543
0028451558
0028451571
DESCRIPTION
Intonation Spring, 5&6
Intonation Spring, 1-4
Height Adjusting Wrench
Mounting Screw
Olympic White
Black
Pewter
Torino Red
Candy Green
Pg. 3 of 4
