Daewoo DWF-200M Service Manual

Hide thumbs Also See for DWF-200M:
Table of Contents

Advertisement

Quick Links

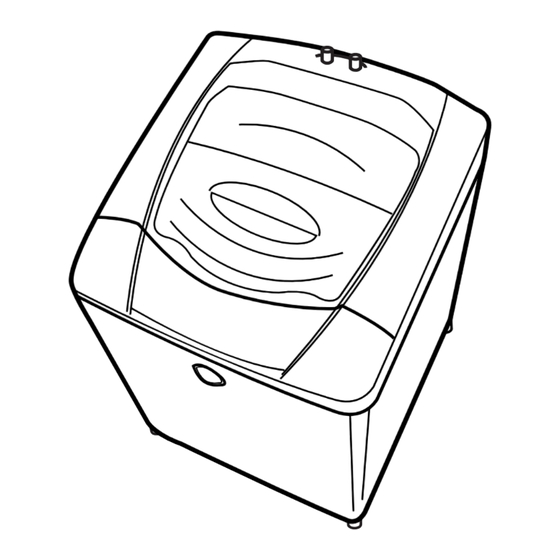

S/M No.:WF200M0001
Service Manual
Auto Washer
: DWF-200M
Model
DWF-200MT
• Caution:
In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
Mar.2000
