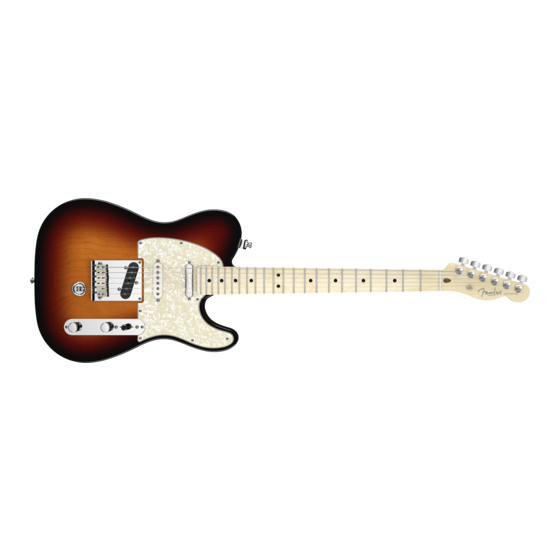

Fender American Telecaster Specifications

P/N
REF.#
1 0056220000 Neck, American Telecaster, M/N
0056219000 Neck, American Telecaster, R/W
2 0056260000 Tuning Key, (1) Set, E,B,G,D,
3 0021374000 Tuning Key, (1) Set
4 0083675000 Bone Nut
5 0021537000 String Retainer
0021405000
6 0020810000 Truss Rod Adjustment Nut
0023811000
7 0056186xxx Body, Am. Tele., Solid Paint
0038417xxx Body, Am. Tele., Natural Ash
0055221xxx Body, Am. Tele., Sunburst
8 0054038000 Neck Mounting Plate
0021424000
0031571000
0023811000
9 0021453000 Strap Button
0021422000
0019056000
0020491000
10 0056200000 Pickguard, Am. Tele., Parch/Black/Parch
0021407000
11 0050890000 Pickup, Neck, Hot, Am. Tele.
0021409000
0039409000
12 0050888000 Pickup, Bridge, Hot, Am. Tele.
0048631000
0036878000
13 0019064000 Control, 250K, Audio
0016352000
0016436000
14 0050886000 Control, 250K, No Load
0016352000
0016436000
15 0013359000 Knob, Knurled (2)
0028897001
16 0033134060 Control Plate
0021407000
17 0053290000 Switch, Lever 3-Position
0021413000
0018359000
18 0024832000 Capacitor, .022uf
19 0012869000 Solder Lug
0015116000
20 0021956000 Output Jack
0016352000
0016436000
21 0021452000 Jack Ferrule
22 0028182000 Bridge Assembly, Telecaster
0021373000
23 0028184000 Bridge Plate
24 0026099000 Bridge Section, (6)
25 0031913000 Intonation Screw, 5&6
0029095000
0017031000 Intonation Screw, 1- 4
0029094000
AMERICAN TELECASTER 0118400/8402
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Tubing, Latex Cut
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer, Intl
Screw Set
Mounting Screw
Mounting Screw
Knob, Black
Mounting Screw
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Intonation Spring, 5&6
Intonation Spring, 1- 4
REF.# P/N
26 0026780000 Height Adjustment Screw, 1&6
0018027000 Height Adjustment Screw, 2-5
0018531000
27 0021429000 Ferrule, String Retainer
0055221500
0038417501
0038417503
0038417521
0056186506
0056186515
0056186574
DESCRIPTION
Adjusting Wrench, Saddle Wrench
Body Part Number
3 Color Sunburst
White Blond
2 Color Sunburst
Natural Ash
Black
Hot Rod Red
Aqua Marine Metallic
Pg. 3 of 4
08-01-2000
