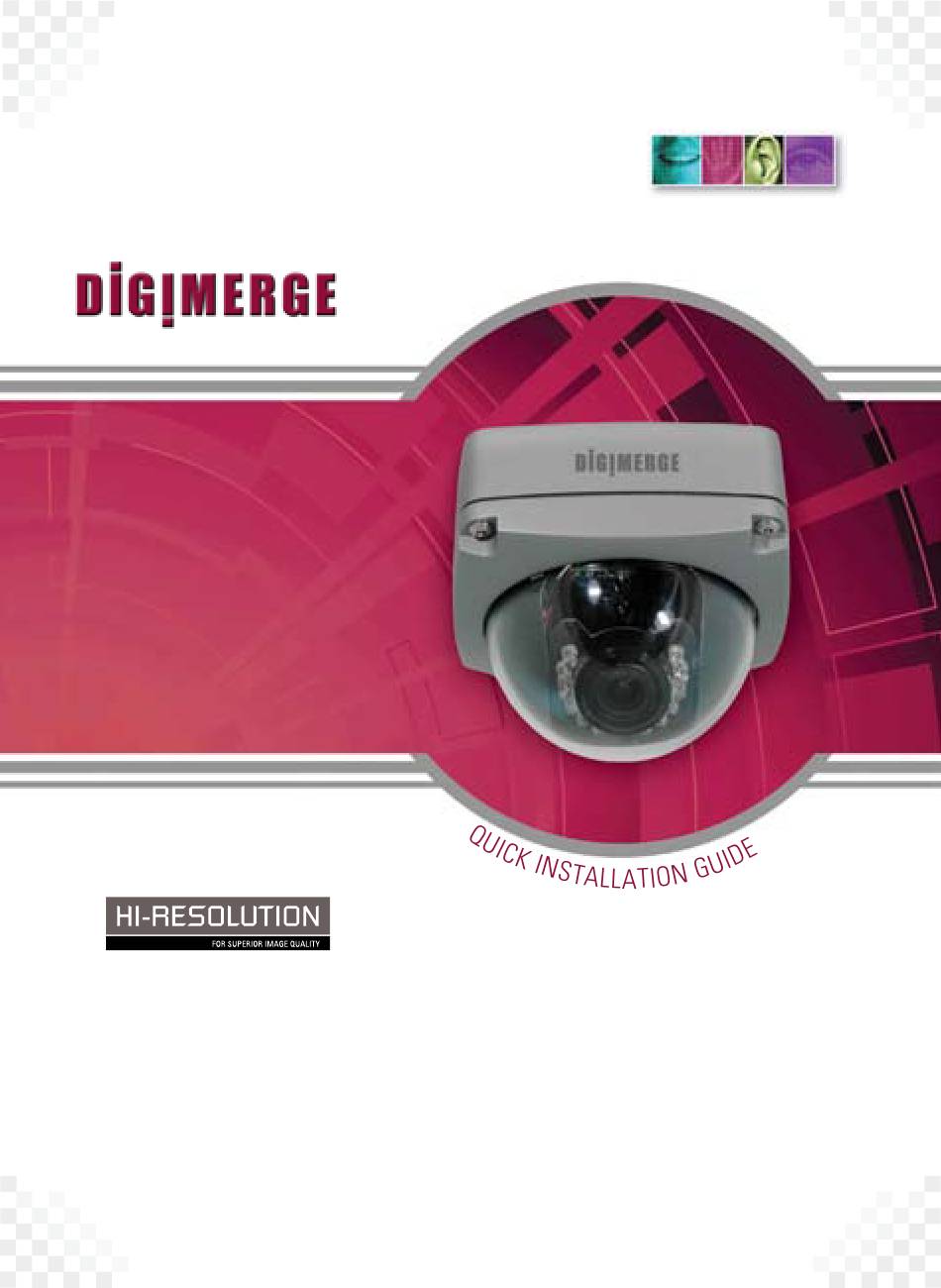

- Page 1 DND7220 series HIGH RESOLUTION DUAL-CODEC VANDAL RESISTANT DAY/NIGHT DOME NETWORK CAMERA...
-
Page 2: Package Contents
DND7220V High Resolution Dual-Codec Vandal Resistant Day/Night Dome Network Camera on your network. For all other aspects of using the product, please refer to the user manual available at www.digimerge.com or on the Installation CD included with this product. Package Contents:... -
Page 3: Hardware Connections
HARDWARE CONNECTIONS • Hardware installation: A. Installing the Base B. Adjusting the Lens C. Connecting the Cables • Software installation • Network configuration Hardware Installation - Installing the Base NOTES: • If you wish to change the Cable Location (Cable Conduit), please refer to User Manual Appendix #2 prior to installation. - Page 4 HARDWARE CONNECTIONS Continued Hardware Installation - Adjusting the Lens NOTE: The lens should be adjusted prior to reattaching the camera cover. If you are adjust- ing the Camera using a direct connection to a PC, you will need to use a Crossover Ethernet Cable, or use the BNC Analog Output.
- Page 5 HARDWARE CONNECTIONS Continued Hardware Installation - Connecting the Cable The Camera has a single cable, which splits into several different connection ports: 1. Ethernet: Connect an Ethernet Cable to the RJ-45 Ethernet port to connect the Camera to the network. •...
-
Page 6: Software Installation
CD included with your package, and provides you with the following: 1. Web links to various resources and documentation 2. Discovery of all the Digimerge IP devices on the network 3. Provides Network configuration of IP Devices 4. Installs DigiConsole and... -
Page 7: Software Setup
3rd party software support links. Find Devices: Locates all available Digimerge IP devices on your network and displays a snapshot of the results. Click on any available device to display image on the right side screen display. - Page 8 SOFTWARE SET-UP Continued OPTIONAL Edit Network Parameters: The Network Parameters are automatically assigned to the Device by the network router (by using DHCP). These settings can be manually changed if desired. 1. Select the IP device you would like to edit by clicking on its icon. 2.
- Page 9 SOFTWARE SET-UP Continued Open Device in Browser: Once user names and passwords are set Opens up the DigiViewer Video Browser up by the administrator, the users (except using your default web browser (e.g. for a VIEWER level user) are required to Internet Explorer).
- Page 10 SOFTWARE SET-UP Continued 3 Levels of User Access: • Administrator (current user) • Operator (general user) Default User Name: guest Password: <leave blank> • Viewer (anonymous guest) Creating Current User Account: 1. Click SETTINGS 2. Select ACCOUNTS 3. Fill in a user name and password in the assigned fields 4.
- Page 11 This page is intentionally left blank. w w w d i g i m e r g e c o m DND70 Series_Quick Installation Guide_En_R1 Page 11...
- Page 12 Opens up a window to search your computer for downloaded firmware (with .bin extension). NOTE: This product will not auto- matically check for firmware updates. Please visit the Digimerge website to download the most current firmware for your product. Register: Provides you with information on the device warranty and/or free DDNS service.
- Page 13 The application is optional as we offer software solution compatibility with some of the premier IP software developers in the industry. Visit the Digimerge website for the most up to date information on compatible software solutions. Application Installation: When you install the Digiconsole...
- Page 14 DDNS SET-UP AND REGISTRATION Port forwarding on your router and the creation of a DDNS account with Digimerge is required in order for you to have remote internet access. Open your Web Browser. Select the Create Account Enter http://ddns.digimerge.net Option http://ddns.digimerge.net...
- Page 15 Router: Refer to your for DDNS, click on the ‘register with DDNS Router’s manual for specific service’ link. This will bring up the Digimerge instructions on port forwarding DDNS Account login screen. Log in using or check DND7220 product...
-
Page 16: Power Over Ethernet (Poe)
