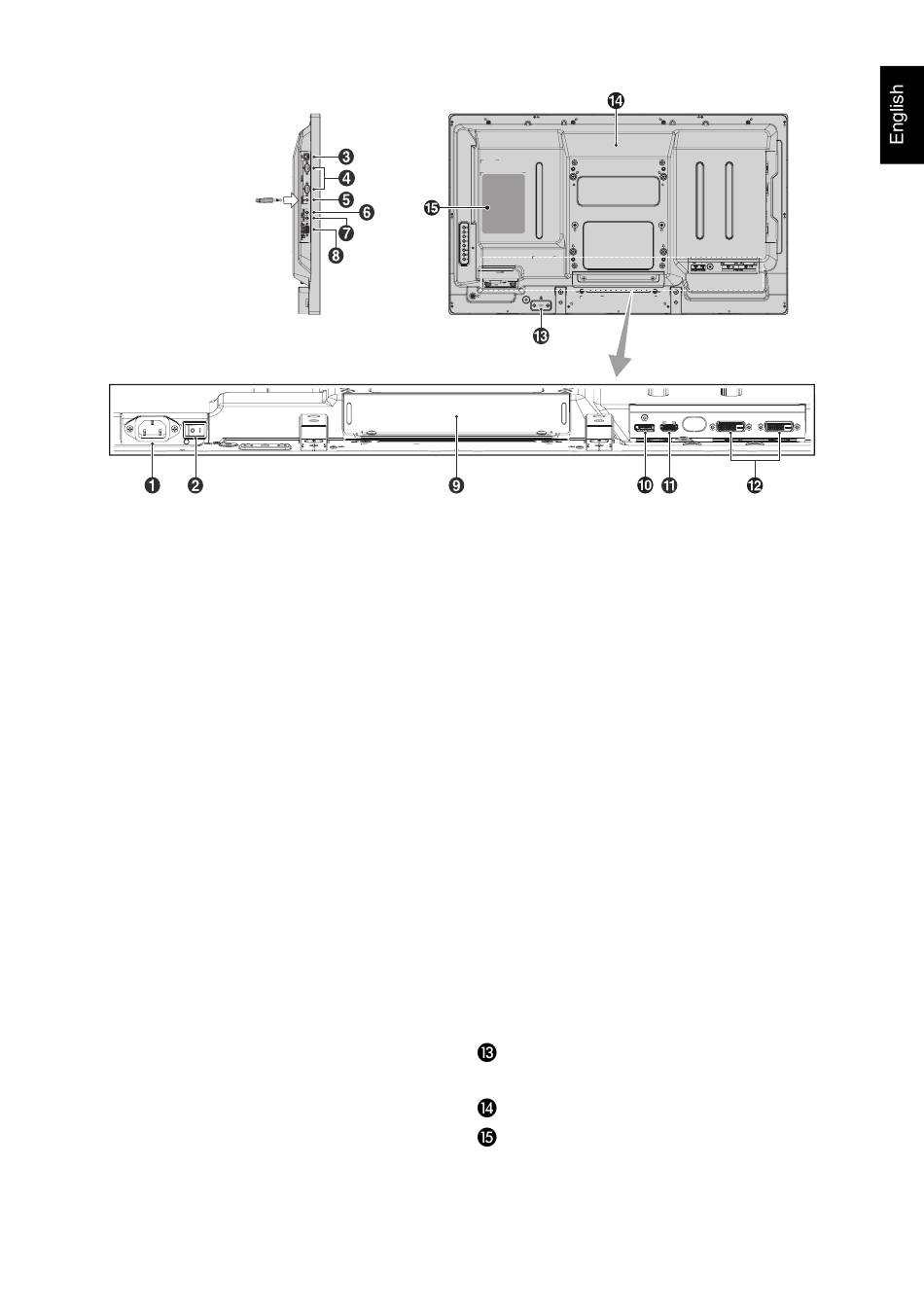

Terminal Panel
From option control unit
³
AC IN connector
Connects with the supplied power cord.
·
Main Power Switch
On/Off switch to turn main power ON/OFF.
»
LAN port (RJ-45)
LAN connection. See page 32.
¿
RS-232C (D-Sub 9 pin)
IN connector: Connect RS-232C input from external
equipment such as a PC in order to control RS-232C
functions.
OUT connector: Connect RS-232C output. To connect
multiple MultiSync monitors via RS-232C daisy Chain.
´
REMOTE IN
Use the optional wired remote control by connecting it to your
monitor.
NOTE: When you use Remote IN, IR CONTROL in OSD
menu should be NORMAL.
NOTE: Do not use this connector unless specifi ed.
²
AUDIO OUT
To output the audio signal from the AUDIO IN 1, DPORT and
HDMI to an external device (stereo receiver, amplifi er, etc.).
This connector does not support headphone terminal.
¶
AUDIO IN 1
To input audio signal from external equipment such as a
computer, VCR or DVD player.
º
VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with an
RGB, COMPONENT, SCART, VIDEO or S-VIDEO source.
Please select signal type in TERMINAL SETTING.
See page 25.
NOTE: When you use this connector for COMPONENT,
SCART, VIDEO or S-VIDEO, please use a suitable signal
cable. If you have any questions, please ask your dealer.
¾
Option board slot
Slot 2 type accessories are available. Please contact your
supplier for detailed information.
NOTE: Please contact your supplier for available option
board.
µ
DISPLAYPORT connector
To input DisplayPort signals.
¸
HDMI connector
To input digital HDMI signals.
¹
DVI connector (DVI-D)
IN connector: To input digital RGB signals from a computer
or HDTV device having a digital RGB output.
* This connector does not support analog input.
OUT connector: To output the DVI signal from DVI IN or
HDMI with DVI signal input. (DVI signal only, HDMI signal is
not thorough out).
Kensington Lock
For security and theft prevention.
Internal speaker
Rating label
English-9
