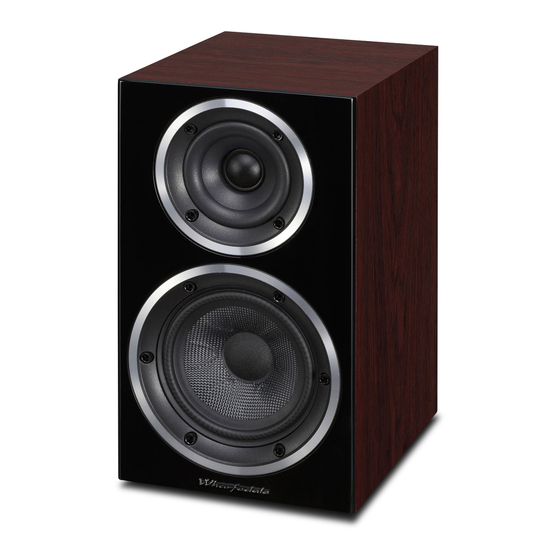

- Page 1 Diamond 200 Series Diamond210 Diamond220 Diamond230 Diamond240 Diamond250 Diamond220C...
-
Page 2: Important Safety Information
Important Safety Information Before installing this product read all these instructions! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system off at the mains. -
Page 3: Cables And Connectors
Preparing the Diamond 200 Loudspeakers Stands and Brackets The bookshelf loudspeakers are intended primarily for stand mounting, though they can be mounted on wall brackets or even on sturdy shelves. The quality of loudspeaker stands greatly influences the performance of your loudspeakers, please do not use flimsy products. Centre Channel Loudspeakers Each centre channel loudspeaker is supplied with two sets of mounting feet. - Page 4 Positioning the Front Loudspeakers The 230, 240 and 250 models are designed to be floor standing. We suggest that they are positioned at least 200mm from the rear walls and 700mm from the side walls, facing slightly inwards. The 210 and 220 models should be stand or wall mounted though they may be placed on a rigid shelf.
- Page 5 Connecting the Front Loudspeakers Standard Connection Choose a suitable length of twin core speaker cable for each channel, and prepare the ends. Unscrew each terminal a few turns. Connect the red, positive (+) terminal of the Left loudspeaker to the corresponding red, positive (+) amplifier terminal. Connect the black, negative (-) terminals similarly.
- Page 6 Connecting Centre Loudspeaker The Centre channel speaker may be connected as shown, or bi-wired. Setting Up a Home Theatre System Placement Front and Effects Channels: The front loudspeakers are placed on either side of the television screen, 2 to 3 metres apart. The speakers should be angled slightly so they car aimed towards the listeners.
-
Page 7: Troubleshooting
Setting Loudspeaker Sizes and Levels If you are not using a subwoofer: Set the Front speakers to ‘Large’. Set the ‘Subwoofer’ option on the processor to ‘Off’ or ‘No’. The Front channels will now receive all the system bass. If you are using a subwoofer: When set to ‘Small’ all the system bass will go into the subwoofer. If you choose ‘Large’ the Front channel bass will be reproduced from the Front speakers. - Page 8 Looking After Your Loudspeaker Your loudspeakers use special hardwearing sealed finish. They should not be waxed or treated with spray polishes which will smear and · dim the finish. Occasionally polish them with a dry or barely moist cloth to remove dust and finger marks, etc. If you play the speakers with the grilles off exercise great care.
-
Page 9: Specifications
Specifications Model General description 2-way bookshelf speaker 2-way bookshelf speaker 2.5-way floorstanding speaker Enclosure type bass reflex bass reflex bass reflex Transducer complement 2-way 2-way 2.5-way Bass driver 100mm Woven Kevlar Cone 130mm Woven Kevlar Cone 165mm Woven Kevlar Cone Midrange driver 165mm Woven Kevlar Cone Treble driver... - Page 10 Specifications Model 220C General description 3-way floorstanding speaker 3-way floorstanding speaker 2-way centre speaker Enclosure type bass reflex bass reflex bass reflex Transducer complement 3-way 3-way 2-way 165mm Woven Kevlar Cone 200mm Woven Kevlar Cone 130mm Woven Kevlar Cone Bass driver Midrange driver 130mm Woven Kevlar Cone 130mm Woven Kevlar Cone...
