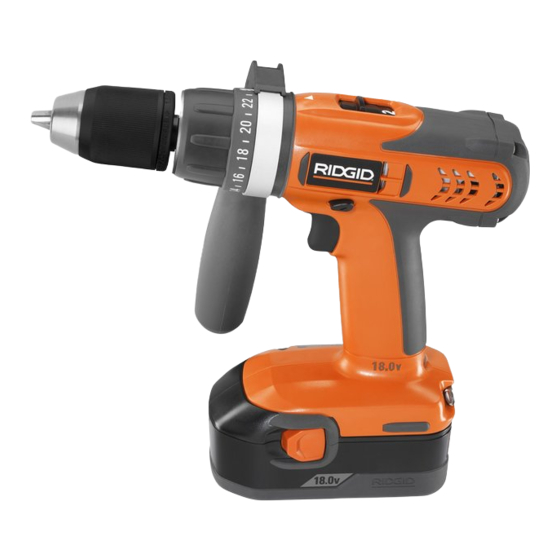

RIDGID R84015 Operator's Manual

1/2 in. 18 volt
Hide thumbs Also See for R84015:
Table of Contents

Advertisement

Quick Links

Download this manual
This new drill has been engineered and manufactured to our high standards for dependability, ease of operation, and opera-
tor safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
1/2 in. 18 VOLT DRILL-DRIVER
R84015
1
X

Advertisement

Table of Contents
loading

Related Manuals for RIDGID R84015

Summary of Contents for RIDGID R84015

  • Page 1 When properly cared for, the drill will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Thank you for buying a RIDGID product. SAVE THIS MANUAL FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction..................................2 General Safety Rules ..............................3-4 Specific Safety Rules ...............................4 Important Safety Instructions for Charger ........................5 Symbols ...................................6 Specifications ..................................7 Unpacking..................................7 Applications ..................................7 Features ..................................8-9 Operation ................................. 10-16 Maintenance ................................17-18 Warranty..................................19 Customer Service Information ............................20 INTRODUCTION This tool has many features for making its use more pleasant and enjoyable.

  • Page 3: General Safety Rules

    Use battery only with charger listed. n Store idle tools out of reach of children and other MODEL BATTERY PACK CHARGER untrained persons. Tools are dangerous in the hands R84015 130254003, 140276002, of untrained users. 130252004 140276001 n When battery pack is not in use, keep it away from n Do not abuse the cord.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES n When servicing a tool, use only identical replace- SERVICE ment parts. Follow instructions in the Maintenance n Tool service must be performed only by qualified section of this manual. Use of unauthorized parts or repair personnel. Service or maintenance performed failure to follow Maintenance Instructions may create a by unqualified personnel may result in a risk of injury.

  • Page 5: Important Safety Instructions For Charger

    IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER An extension cord should not be used unless absolutely WARNING! necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must READ AND UNDERSTAND ALL INSTRUCTIONS. be used, make sure: Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal...

  • Page 6: Symbols

    SYMBOLS Important: Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz...

  • Page 7: Specifications

    SPECIFICATIONS Chuck ..............................1/2 in. (13 mm) Keyless Motor ..................................18 Volt DC Switch................................Variable Speed Gear Train ...................................2 Speed No Load Speed ............................0-400/0-1600/min. Clutch .................................. 24 Positions Charger Input ............................120 V, 60 Hz, AC only Charge Rate ................................30 minutes Torque..............................

  • Page 8: Features

    FEATURES FORWARD/REVERSE SELECTOR Before using this tool, familiarize yourself with all operat- ing features and safety requirements. However, do not let (DIRECTION OF ROTATION SELECTOR) familiarity with the tool make you careless. The drill-driver has a forward/reverse selector located above the switch trigger.
  • Page 9 FEATURES TWO-SPEED TORQUE GEAR TRAIN (HI-LO) AUXILIARY ADJUSTMENT RING HANDLE ASSEMBLY KEYLESS CHUCK DIRECTION OF ROTATION SELECTOR SWITCH (FORWARD/REVERSE/LOCK OFF) STORAGE BATTERY REVERSE PACK FORWARD DUAL PORT CHARGER 4-1/8 in. Fig. 1...

  • Page 10: Operation

    OPERATION WARNING: Do not allow familiarity with the tool to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. CHARGING BATTERY PACK The battery pack for this tool has been shipped in a low charge condition to prevent possible problems.
  • Page 11 POWER INDICATOR EVALUATE INDICATOR Fig. 3...
  • Page 12 OPERATION TO INSTALL BATTERY PACK Lock the switch trigger on the drill by placing the SELECTOR WITH CENTER direction of rotation (forward-reverse) selector in center LOCK POSITION position. See Figure 4. Place battery pack in the drill. Align raised rib on battery pack with the groove inside the drill.
  • Page 13 OPERATION TWO SPEED REVERSIBLE GEAR TRAIN (HI-LO) See Figure 4. This tool has the feature of being reversible. The direction of SPEED rotation is controlled by a selector located above the switch trigger. With the drill held in normal operating position, the direction of rotation selector should be positioned to the left of the switch for drilling.
  • Page 14 OPERATION INSTALLING BITS UNLOCK (RELEASE) See Figure 9-10. Lock the switch trigger by placing the direction of rota- tion selector in center position. See Figure 4. Open or close chuck jaws to a point where the opening is slightly larger than the bit size you intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the chuck jaws.
  • Page 15 OPERATION ADJUSTABLE TORQUE CLUTCH ADJUSTING TO DECREASE RING This drill is equipped with an adjustable torque clutch for TORQUE driving different types of screws into different materials. The proper setting depends on the type of material and the size of screw you are using. TO ADJUST TORQUE n Identify the twenty four torque indicator settings located on the front of the drill.
  • Page 16 OPERATION DRILLING See Figure 13. When drilling hard smooth surfaces use a center punch to mark desired hole location. This will prevent the drill bit from slipping off center as the hole is started. However, the low speed feature allows starting holes without center punching if desired.

  • Page 17: Maintenance

    MAINTENANCE CHUCK REMOVAL MALLET See Figures 14, 15, and 16. The chuck must be removed in order to use some acces- sories. To remove: CHUCK JAWS Lock the switch trigger by placing the direction of ro- tation selector in center position. See Figure 4. Insert a 5/16 in.
  • Page 18 To clean the vents, unplug the charger. Using a fine nylon- RIDGID slide batteries have been designed to provide bristle brush, whisk dust or debris away from the air vents maximum trouble free life.

  • Page 19: Warranty

    RIDGID branded hand held ® directed to One World Technologies, Inc., attn: RIDGID Hand and stationary power tools. Consumable accessories pro- Held and Stationary Power Tool Technical Service at (toll vided with the tool such as, but not limited to, blades, bits free) 1-866-539-1710.

  • Page 20: Customer Service Information

    R84015 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
