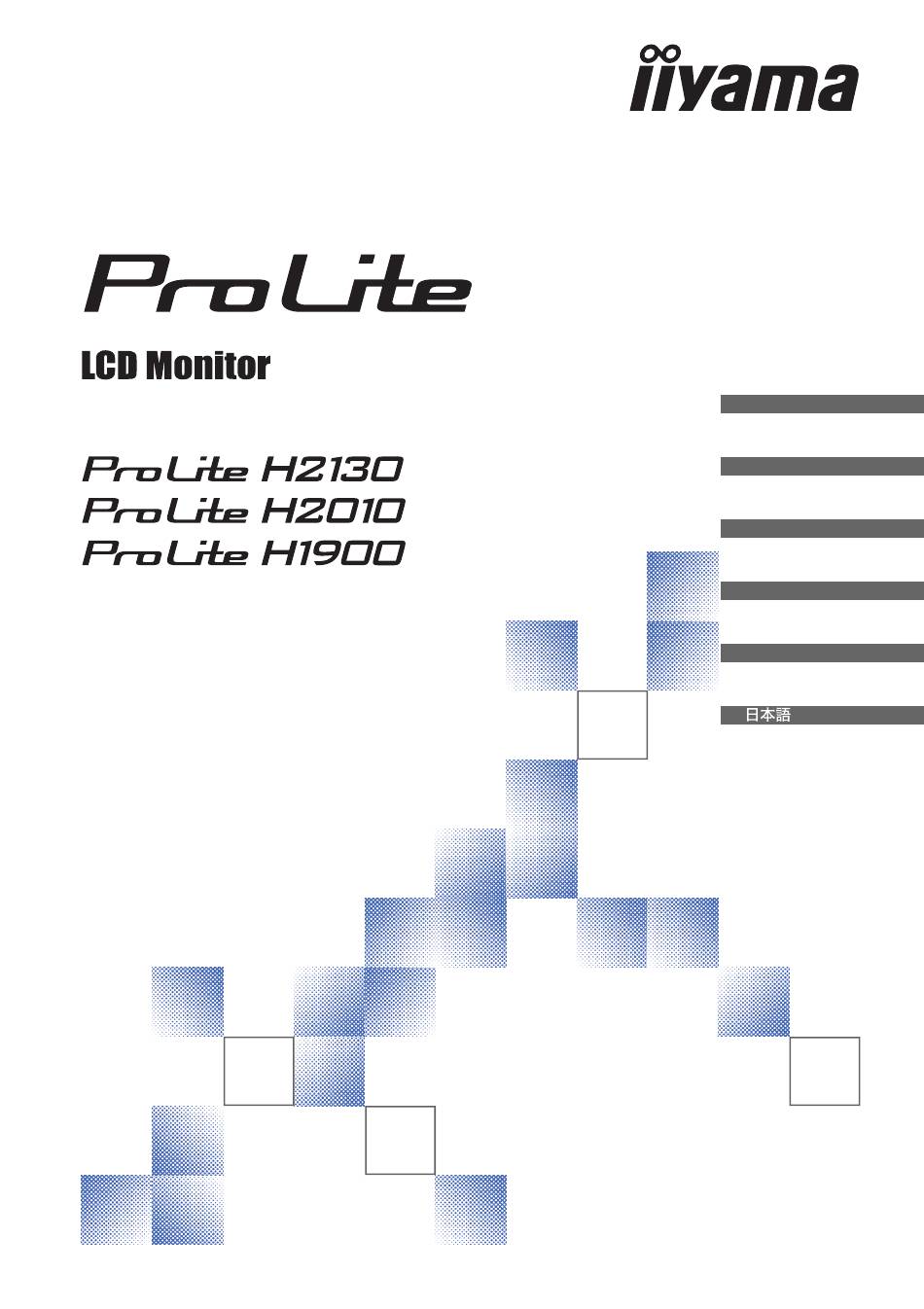

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
ITALIANO
Advertisement
Table of Contents
Related Manuals for Iiyama PROLITE H1900
Summary of Contents for Iiyama PROLITE H1900
- Page 1 USER MANUAL ENGLISH DEUTSCH FRANCAIS NEDERLANDS Thank you very much for choosing the iiyama ITALIANO LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
- Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
- Page 3 Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 4 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
- Page 5 To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE...
-
Page 6: Table Of Contents
CHECKING THE CONTENTS OF THE PACKAGE ......6 OPTIONAL PARTS ................6 CONTROLS AND CONNECTORS: ProLite H2130 ......7 CONTROLS AND CONNECTORS: ProLite H2010 / ProLite H1900 .. 8 CONNECTING YOUR MONITOR ProLite H2130 ......9 CONNECTING YOUR MONITOR ProLite H2010 / ProLite H1900 ..10 PREPARING THE SPEAKER: ProLite H2130 ........ -
Page 7: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 8 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 9: Special Notes On Lcd Monitors
Power Switch for hours. There is the possibility that the previous screen has been fixed. Pay attention sufficiently when you use LCD Monitor. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 10: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR The monitor functions as a hub when connected to a USB compliant computer and USB peripherals. However, with older operating systems and/or BIOS settings in your computer, the USB hub may not operate. In this case, please contact your computer dealer first for advice. Please stand the monitor and then remove the stopper pin on the back of the stand slowly while pushing top face of the stand before you install the... -
Page 11: Features
ProLite H2130: 54cm (21.3") TFT Color LCD Monitor ProLite H2010: 51cm (20.1") TFT Color LCD Monitor ProLite H1900: 48cm (19.0") TFT Color LCD Monitor Supports Resolutions up to 1600 × 1200 (ProLite H1900 supports digital input only.) Super Wide Viewing Angle and High Contrast Economy Mode... -
Page 12: Checking The Contents Of The Package
Optional parts as below are available for your LCD monitor. Please contact your local iiyama dealer or regional iiyama office for them. The Speaker is attached to the monitor to output a sound from the computer or the audio equipment. The Video Adapter enables you to connect the video equipment to the monitor. -
Page 13: Controls And Connectors Prolite H2130
ProLite H2130 CONTROLS AND CONNECTORS <Front> <Back> A Power Indicator Green: Normal operation (ProLite H2130-W) NOTE Blue: Normal operation (ProLite H2130-B) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 4W when receiving no horizontal and/or vertical sync signal. -
Page 14: Controls And Connectors Prolite H2010 / Prolite H1900
ProLite H2010 / ProLite H1900 CONTROLS AND CONNECTORS <Back> <Front> A Power Indicator Green: Normal operation (ProLite H2010-W / ProLite H1900-W) NOTE Blue: Normal operation (ProLite H2010-B / ProLite H1900-B) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 4W when receiving no horizontal and/or vertical sync signal. - Page 15 An incorrect connection may cause serious damage to both the monitor and the computer. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. Make sure you tighten the finger screws at each end of the signal cable.
-
Page 16: Connecting Your Monitor Prolite H2010 / Prolite H1900
An incorrect connection may cause serious damage to both the monitor and the computer. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. Make sure you tighten the finger screws at each end of the signal cable. -
Page 17: Preparing The Speaker: Prolite H2130
Change to the desired signal timings listed on page 30 in COMPLIANT TIMING. Windows 95/98/Me/2000/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/Me/2000/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 18: Adjusting The Height And The Viewing Angle
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s height and angle to your own preference. Hold the panel so that the monitor does not topple when you change the monitor’s height or angle. -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 30. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations. Brightness: Press the Brightness Button when the Menu is not displayed. Contrast: Press the Contrast Button when the Menu is not displayed. Signal Select: Press the Input Button when the Menu is not displayed. - Page 21 Analog / Digital Input Menu : Picture Control (Analog / Digital) Picture Control 'Screen OSD... Function Info... SELECT MENU Adjustment Item Problem / Option Button to Press Brightness * Too dark Direct Too bright Contrast Too dull Direct Too intense 9300K Bluish white (9300K) Color Temp.
- Page 22 Menu : Screen Control (Analog) Screen Control Picture OSD... Function Info... AUTO SELECT MENU Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * AUTO Adjust Clock, Phase, V-Position and H-Position Direct automatically. NOTE The screen becomes dark for approximately five seconds during the adjustment. Clock * To correct flickering text or lines Phase *...
- Page 23 Menu : Screen Control (Digital) Screen Control Picture OSD... Function Info... SELECT MENU Adjustment Item Problem / Option Button to Press DVI Filter * To reduce screen noise This function should be used to reduce screen noise caused by connecting longer cable NOTE than enclosed one.
- Page 24 Menu : OSD & Others (Analog / Digital) OSD & Others Picture Screen... Function Info... RESET SELECT MENU Adjustment Item Problem / Option Button to Press OSD Position 1 2 3 4 5 You can move the OSD display area to any one of the following 5 positions within the overall display: Press the + Button to move the OSD in numerical order.
- Page 25 Menu : Functions (Analog / Digital) Functions Picture Screen... OSD... Info... SELECT MENU Adjustment Item Problem / Option Button to Press Search the input signal automatically in the following rotation: Auto Search INPUT1 Analog INPUT1 Digital INPUT2 Analog Auto Video * S Video * INPUT2 Digital Manual...
- Page 26 The Menu:P in P Control is available only on Analog Input and Digital Input when the Optional Video Adapter (OVA3-1) is installed in the monitor. Menu : P in P Control (Analog / Digital) P in P Control Pict... Screen OSD..
- Page 27 Menu : Information (Analog / Digital) Information Picture Screen... OSD... Function Model Name ProLite H2130 Input Signal Digital Signal Timing 1600 x 1200 60Hz Operating Time 1:00 Model Name, Input Signal, Signal Timing and Operating Time are displayed. OPERATING THE MONITOR...
-
Page 28: Screen Adjustments
It is recommended to operate at resolution of 1600 × 1200 in normal use. ProLite H1900 is designed to provide the best performance at resolution of 1280 × 1024, but can not provide the best at resolutions of less than 1280 × 1024 because the picture is automatically stretched to fit the full screen. - Page 29 C C C C C Press the Auto Set-up Button. D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
-
Page 30: Power Management Feature
H H H H H Select “Brightness” in the Adjustment Program and adjust the Brightness and Contrast so that all 16 levels of gray in the grayscale pattern are visible. Click on “FINISH” to close the Adjustment Program. POWER MANAGEMENT FEATURE The power management feature of this product complies with every power saving requirement of VESA DPMS. -
Page 31: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 32: Specifications: Prolite H2130
APPENDIX A SPECIFICATIONS Model Name ProLite H2130 LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 54cm / 21.3" Pixel pitch 0.27mm H × 0.27mm V Brightness 280cd/m (Typical) Contrast ratio 500 : 1 (Typical) Viewable angle Right / Left / Up / Down: 85 degrees each (Typical) Response time 20ms (Black, white, black) Display Colors... -
Page 33: Specifications: Prolite H2010
Model Name ProLite H2010 LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51cm / 20.1" Pixel pitch 0.255mm H × 0.255mm V Brightness 300cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left / Up / Down: 88 degrees each (Typical) Response time 16ms (Black, white, black), 10ms (Gray, Gray) Display Colors... -
Page 34: Specifications: Prolite H1900
Humidity (50 to 60°C / 122 to 140°F) : 20 to 55% (No condensation) Approvals TCO ’03(ProLite H1900-W),TCO ’99(ProLite H1900-B), CE, TÜV-GS, MPR3(prEN50279) / ISO 13406-2, FCC-B, UL, CSA, VCCI-B NOTE * Condition: USB peripherals, optional speakers or audio equipment are not connected. -
Page 35: Dimensions
DIMENSIONS ProLite H2130 466.0mm/18.3" 79.5mm/3.1" 436.0mm/17.2" 344.0mm/13.5" ( ): Maximum adjustment range ProLite H2010 466.0mm/18.3" 77.0mm/3.0" 410.5mm/16.2" 344.0mm/13.5" ( ): Maximum adjustment range ProLite H1900 430.0mm/16.9" 75.5mm/2.9" 380.0mm/15.0" 344.0mm/13.5" ( ): Maximum adjustment range APPENDIX A... -
Page 36: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.861kHz 72.809Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 48.077kHz 72.188Hz 50.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz VESA 1024 ×... -
Page 37: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT DVI-I 29pin Connector Input Signal Input Signal T.M.D.S Data 2– Hot Plug Detect T.M.D.S Data 2+ T.M.D.S Data 0– T.M.D.S Data 0+ T.M.D.S Data 2/4 Ground DVI-I T.M.D.S Data 0/5 Ground Clock line (SCL) * Data line (SDA) * T.M.D.S Clock Ground Analog V-Sync T.M.D.S Clock +... - Page 38 APPENDIX B Optional Video Input This OSD Menu is available only when the optional video adapter is installed in the monitor. Video input is not switched automatically from Analog or Digital input. Switch to video input by “Signal Select” on the OSD Menu or the Input Button. Under the power management mode, “Signal Select” page is displayed immediately by pressing the Menu Button when the Menu is not displayed.
- Page 39 Menu : Picture Control (Video) Picture Control OSD... Function Info... 'Screen SELECT MENU Adjustment Item Problem / Option Button to Press Brightness * Too dark Direct Too bright Contrast Too dull Direct Too intense 9300K Bluish white (9300K) Color Temp. / Matrix 6500K Reddish white (6500K) R (Red)
- Page 40 Menu : Screen Control (Video) Screen Control Picture OSD... Function Info... SELECT MENU Adjustment Item Problem / Option Button to Press Switch the broadcast system automatically. Select Color System AUTO this in normal use. NTSC Switch the broadcast system to NTSC by force. Switch the broadcast system to PAL by force.
- Page 41 Menu : OSD & Others (Video) OSD & Others Picture Screen... Function Info... RESET SELECT MENU Adjustment Item Problem / Option Button to Press OSD Position 1 2 3 4 5 You can move the OSD display area to any one of the following 5 positions within the overall display: Press the + Button to move the OSD in numerical order.
- Page 42 Menu : Functions (Video) Functions Picture Screen... OSD... Info... SELECT MENU Adjustment Item Problem / Option Button to Press Search the input signal automatically in the following rotation: Auto Search INPUT1 Analog INPUT1 Digital INPUT2 Analog Auto Video S Video INPUT2 Digital Manual Select the input signal by “Signal Select”...
- Page 43 Menu : Information (Video) Information Picture Screen... OSD... Function Model Name ProLite H2130 Input Signal Video Signal Timing NTSC 1:00 Operating Time Model Name, Input Signal, Signal Timming and Operating Time are displayed. APPENDIX B...
- Page 44 POWER MANAGEMENT FEATURE The monitor can provide the POWER MANAGEMENT feature while the video input is available by using the video adapter. When the signal from the video equipment is off, the monitor enters into Power Management Mode which reduces the power consumption to less than 4W and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when the signal is input from the video equipment.
