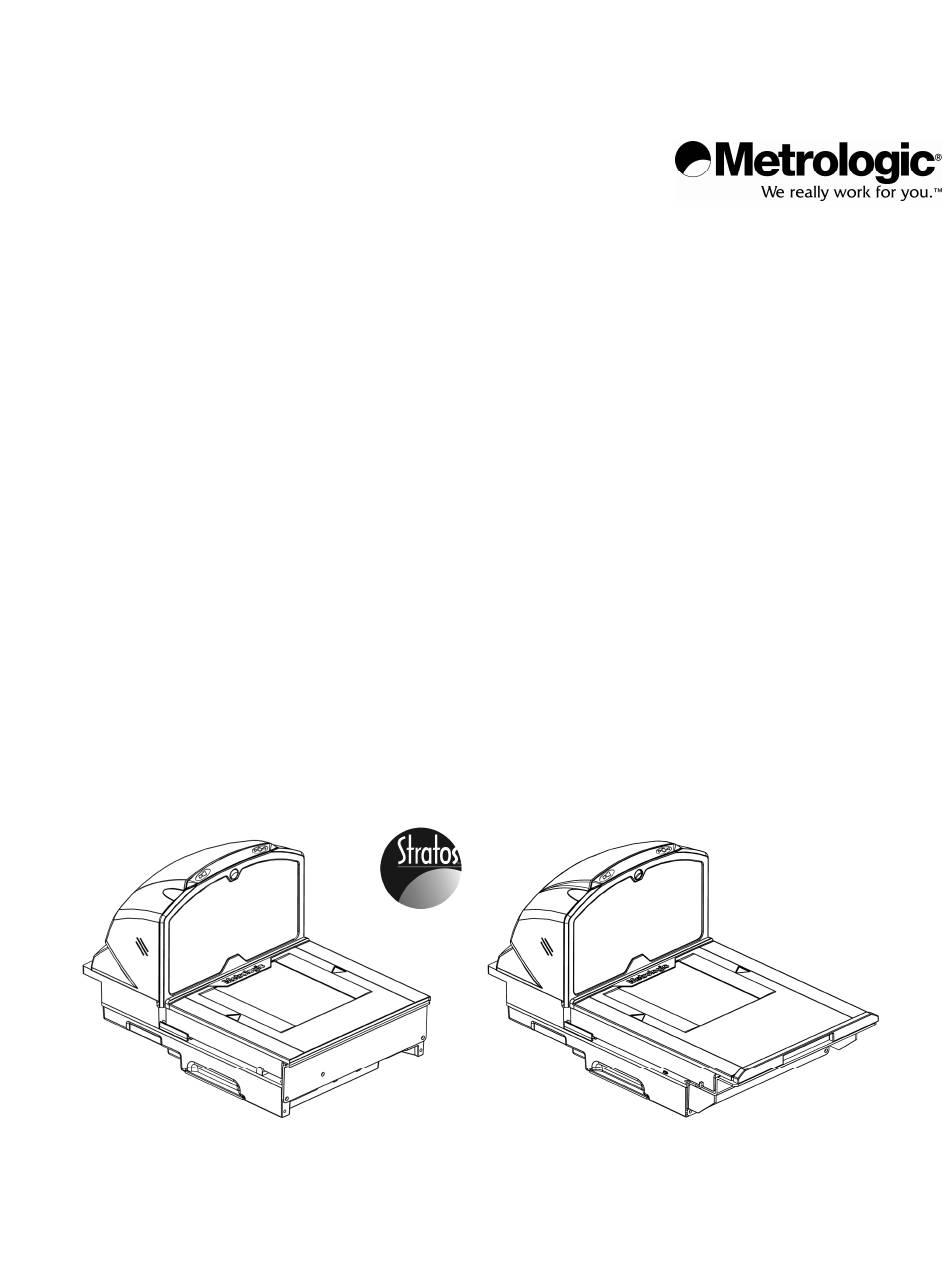

- Page 1 METROLOGIC INSTRUMENTS, INC. MS2321 / MS2322 ™ Stratos H Scanner Installation and User’s Guide...
- Page 2 Copyright © 2006 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
-
Page 3: Table Of Contents
Checkstand Layout Consideration............................12 Unpacking the Unit ................................. 13 Installing the Unit in the Counter ............................14 MS2321 Mounting Diagram (Two Point Support) ....................... 14 MS2321 Mounting Diagram (Three Point Support) ......................15 MS2322 Mounting Diagram (Two Point Support) ....................... 16 MS2322 Mounting Diagram (Three Point Support) ...................... - Page 4 ABLE OF ONTENTS IBM 46xx .................................... 22 OCIA ....................................24 Cable Installation (Secondary Metrologic Scanner)........................ 26 EAS Deactivation ................................... 28 CANNER PERATION Scan Zone....................................29 IR Activation Area (IR LED Output) ............................31 Indicator Descriptions................................32 Audible ....................................32 Visual ....................................32 Failure ....................................
-
Page 5: Introduction
This guide provides information on the installation, setup and operation of the StratosH MS2321 and MS2322 scanner models. If the MS2321 scanner has been integrated with a scale, please refer to the Custom Scale Addendum provided for detailed instructions on the appropriate cable connections, communication specifications and calibration procedures required by the scale manufacturer and local Weights and Measures Authorities. -
Page 6: Model Number Designation
* See model number designation above for detailed information on interface type and window type. ® 00-02407x MetroSelect Configuration Guide 00-02034x MS2xxx Stratos Series Configuration Addendum 00-02270x MS2321 / MS2322 StratosH Scanner Installation and User’s Guide Guides also available for download at www.metrologic.com. PTIONAL CCESSORIES PTIONAL CCESSORIES Part # Description 57-57000x-N-3 RS232 Interface Cable, Straight, 3.7 m (12') Cord... -
Page 7: Replacement Parts
220V – 240V China 46-46928 220V – 240V Australia Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876. EPLACEMENT ARTS... -
Page 8: General Precautions
NTRODUCTION ENERAL RECAUTIONS The following list includes general precautions to remember when handling the StratosH. the unit upside down with the platter in place. Figure 2 on the window in the RESS placement platter or the vertical window frame. Figure 3 LATTER EMOVAL No hardware or tools are required to remove the... -
Page 9: Ms2321/Ms2322 Scanner Design Specifications
Laser ON, Ready to Scan Indicators (LED): White Good Read, Decoding Mechanical MS2321 L x W x H: 508 mm (20") Length 290 mm (11.4") Width 181 mm (7.1") Tower Height MS2322 L x W x H: 420 mm (16.5") Length 292 mm (11.5") Width Counter... -
Page 10: Base Model Characteristics Ms2321 Scanner
ODEL HARACTERISTICS MS2321 Scanner Components Figure 6. MS2321 Components ESCRIPTION OF Blue and White LED Indicators (see page 32) Volume/Tone Multi-Function Button (see page 37) Diamonex or Sapphire Horizontal Window (Laser Aperture) Flow Direction Indicators Replaceable Stainless Steel Platter High Impact Window Frame / Vertical Window (Laser Aperture) -
Page 11: Dimensions
Connector Panel Figure 8. MS2321 Connector Panel Scale ready MS2321 models supply additional connectors for scale and display communication cabling. The use of these connections is dependent on the specific manufacturer of the scale being integrated. Please refer to the Custom Scale Addendum for detailed instructions on the appropriate cable hookups and calibration procedures for local Weights and Measures authorities. -
Page 12: Caution And Serial Number Labels
ODEL HARACTERISTICS MS2321 Scanner Caution and Serial Number Labels Figure 9. MS2321 Label Locations (Top) and Examples (Bottom) -
Page 13: Ms2322 Scanner
ODEL HARACTERISTICS MS2322 Scanner Components Figure 10. MS2322 Components ESCRIPTION OF Blue and White LED Indicators (see page 32) Volume/Tone Multi-Function Button (see page 37) Diamonex or Sapphire Horizontal Window (Laser Aperture) Flow Direction Indicator Replaceable Stainless Steel Platter High Impact Window Frame / Vertical Window (Laser Aperture) Debris Channel Speaker (see page 32) Platter Support Bumpers (see page 39) -
Page 14: Dimensions
ODEL HARACTERISTICS MS2322 Scanner Dimensions Figure 11. MS2322 Dimensions Connector Panel Figure 12. MS2322 Connectors Specifications are subject to change without notice. -
Page 15: Caution And Serial Number Labels
ODEL HARACTERISTICS MS2322 Scanner Caution and Serial Number Labels Figure 13. MS2322 Label Locations (Top) and Examples (Bottom) -
Page 16: Installation
Ventilation and Spacing All StratosH models have a die-cast housing to dissipate heat allowing the unit to operate without a ventilation fan. Metrologic recommends that the temperature surrounding the unit does not exceed 40°C (104°F). There should be adequate convection and minimal heat producing equipment in close proximity of the unit. -
Page 17: Unpacking The Unit
NSTALLATION NPACKING THE Make sure the shipping box is top-side up before opening. Remove the accessories box and check the box’s content for the following items. • Product Manuals • Power Supply Figure 14 • Communication Cables Lift the scanner out of the shipping box by gripping the bottom of the unit on both sides. -
Page 18: Installing The Unit In The Counter
NSTALLATION NSTALLING THE NIT IN THE OUNTER MS2321 Mounting Diagram (Two Point Support) Figure 18. MS2321 Mounting Diagram, Two Point Support Specifications are subject to change without notice. -
Page 19: Ms2321 Mounting Diagram (Three Point Support)
NSTALLATION NSTALLING THE NIT IN THE OUNTER MS2321 Mounting Diagram (Three Point Support) Figure 19. MS2321 Mounting Diagram, Three Point Support Specifications are subject to change without notice. -
Page 20: Ms2322 Mounting Diagram (Two Point Support)
NSTALLATION NSTALLING THE NIT IN THE OUNTER MS2322 Mounting Diagram (Two Point Support) Figure 20. MS2322 Mounting Diagram, Two Point Support... -
Page 21: Ms2322 Mounting Diagram (Three Point Support)
NSTALLATION NSTALLING THE NIT IN THE OUNTER MS2322 Mounting Diagram (Three Point Support) Figure 21. MS2322 Mounting Diagram, Three Point Support Specifications are subject to change without notice. -
Page 22: Cable Installation (Interface Specific)
The outlet should be located near the equipment and be easily accessible. Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the checkstand in close proximity to the StratosH to facilitate calibration and service of the unit. - Page 23 NSTALLATION ABLE NSTALLATION NTERFACE PECIFIC RS232 xxx* Specifies international connection. See Optional Accessories in the Introduction section of this guide for a complete listing. Figure 22. RS232 Interface Cable Installation Schematic Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950.
-
Page 24: Full Speed Usb
To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source. ** For scanner only StratosH models. If a scale has been integrated into a scale ready MS2321, the configuration bar code shown does not apply. - Page 25 NSTALLATION ABLE NSTALLATION NTERFACE PECIFIC PEED Step 8 is for USB Serial Emulation Mode or Keyboard Emulation Mode only. Configure the StratosH for USB Serial Emulation Mode or USB Keyboard Emulation Mode by scanning the appropriate configuration bar codes in the USB section of the MetroSelect Configuration Guide ( 00-02407x) MLPN under Low Speed USB.
-
Page 26: Ibm 46Xx
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the checkstand in close proximity to the StratosH to facilitate calibration and service of the unit. - Page 27 NSTALLATION ABLE NSTALLATION NTERFACE PECIFIC IBM 46 xxx* Specifies international connection. See Optional Accessories in the Introduction section of this guide for a complete listing. Figure 24. IBM Cable Installation Schematic Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950.
-
Page 28: Ocia
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the checkstand in close proximity to the StratosH to facilitate calibration and service of the unit. - Page 29 NSTALLATION ABLE NSTALLATION NTERFACE PECIFIC OCIA xxx* Specifies international connection. See Optional Accessories in the Introduction section of this guide for a complete listing. Figure 25. OCIA Cable Installation Schematic Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950.
-
Page 30: Cable Installation (Secondary Metrologic Scanner)
ETROLOGIC CANNER The following steps describe how to properly install the cables between a secondary Metrologic scanner and the StratosH. The StratosH and the secondary scanner must then be configured to communicate properly. Cable installation alone does not guarantee that the StratosH will communicate properly with the host system and secondary scanner. - Page 31 NSTALLATION ABLE NSTALLATION ECONDARY ETROLOGIC CANNER † See Aux power notes on page 26 Figure 26. Secondary Scanner Cable Installation Schematic Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950.
-
Page 32: Eas Deactivation
SW1 & SW2 switches 1 and 6 set to ON All StratosH models have a connector labeled EAS In on the bottom of the unit. Metrologic has an optional EAS cable 52-52511x) available for purchase for connection between the Checkpoint Device and the StratosH. -
Page 33: Scanner Operation Scan Zone
CANNER PERATION Figure 29. Checker-Side (13 mil) Figure 30. Horizontal Left/Right (13 mil) Specifications are subject to change without notice. - Page 34 CANNER PERATION Figure 31. Horizontal Direct (13 mil) Figure 32. Vertical Direct (13 mil) Specifications are subject to change without notice.
-
Page 35: Ir Activation Area (Ir Led Output)
CANNER PERATION IR A (IR LED O CTIVATION UTPUT Figure 33. IR Activation Area Perpendicular to Package Flow (IR LED Output) Specifications are subject to change without notice... -
Page 36: Indicator Descriptions
CANNER PERATION NDICATOR ESCRIPTIONS Audible When in operation the StratosH provides audible feedback that indicates the status of the unit and the current scan. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone) plus three volume settings. To change the tone or volume, refer to the Changing the Beeper Tone &... -
Page 37: Failure
CANNER PERATION NDICATOR ESCRIPTIONS Visual Steady White and Blue After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s white LED will remain on until the data can be transmitted. -
Page 38: Diagnostic Indicator Display; Error Codes
CANNER PERATION NDICATOR ESCRIPTIONS Diagnostic Indicator Display There is a two-digit error code display located under the platter near the end of the scanner farthest from the vertical window (see figure below). Figure 35. Error Code Display The following is a list of possible error codes and their meanings. Some errors will require immediate scanner maintenance. RROR ESCRIPTION Reserved... - Page 39 CANNER PERATION NDICATOR ESCRIPTIONS Diagnostic Indicator Display RROR ESCRIPTION SWITCH ERROR – The switch used for volume selection or sleep mode is detected in error (always closed). The condition is self-correcting if possible. If the error persists, return the unit for repair at an authorized service center. The scanning operation can continue with this error active.
-
Page 40: Power Save Modes
CANNER PERATION OWER ODES The StratosH has five configurable power save modes. Refer to the MetroSelect Configuration Guide ( 00-02407 MLPN for additional information on Power Save Modes. Blink Power Save Mode: Blinks the laser OFF & ON after a configured period of non-use. When the scanner recognizes a bar code it will exit the Blink mode. -
Page 41: Beeper Options And Button Functions
CANNER PERATION EEPER PTIONS AND UTTON UNCTIONS Changing the Beeper Tone Beeper tones may be configured incrementally using the following bar code. The new tone will be heard followed by a short pause. Two more new tones will be heard signifying the new setting has been stored in memory. The silent (no beep) tone is also selectable. -
Page 42: Startup
ONFIGURATION All StratosH series scanners have been configured at the factory with a set of default communication protocols. Since many host systems have unique formats and protocol requirements, Metrologic provides a wide range of configurable features that ® may be selected with the use of the MetroSelect... -
Page 43: Maintenance
AINTENANCE LATTER ORIZONTAL INDOW EPLACEMENT Figure 40. Platter/Horizontal Scan Window Replacement* * See replacement parts on page 3. -
Page 44: Vertical Scan Window Replacement
AINTENANCE 46-46889) ERTICAL INDOW EPLACEMENT MLPN Figure 41. Vertical Scan Window Replacement AILY AINTENANCE Smudges and dirt can interfere with the proper scanning of a bar code. Therefore, the horizontal and vertical output windows will need occasional cleaning. For the glass window: Spray glass cleaner onto lint free, non-abrasive cleaning cloth. -
Page 45: Troubleshooting
ROUBLESHOOTING The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited warranty terms. Symptom Possible Cause(s) Solution All Interfaces No LEDs, beep or motor No power is being supplied Check the transformer, outlet and the power strip. Make sure spin. - Page 46 ROUBLESHOOTING Symptom Possible Cause(s) Solution All Interfaces The print quality of the bar code is suspect. The type of printer and/or the printer settings could be the Scanner beeps at some problem. bar codes and NOT for Check the character length others of the same bar lock.
-
Page 47: Rs232 Demonstration Program
* Refer to the MS2xxx Stratos Series Configuration Addendum ( 00-02034x) under Scanner Configuration Bar MLPN Codes: Auxiliary Port, Quick Start for a Secondary Metrologic Scanner. RS232 D EMONSTRATION ROGRAM If an RS232 scanner is not communicating with your IBM compatible PC, key in the following BASIC program to test that the communication port and scanner are working. -
Page 48: Default Settings
EFAULT ETTINGS OMMUNICATION ARAMETERS Many functions of the scanner can be "configured" - that is, enabled or disabled. The scanner is shipped from the factory pre- configured to a set of default conditions. The default parameter of the scanner has an asterisk ( * ) in the charts on the following pages. - Page 49 EFAULT ETTINGS OMMUNICATION ARAMETERS OCIA RS232 IBM 46 ARAMETER EFAULT RSS Expanded Enable Expanded ID “]e0” RSS Limited Enable RSS Limited ID “]e0” RSS Limited App ID “01” RSS Limited Check Digit DTS/SIEMENS DTS/NIXDORF NCR F NCR S Beeper Tone Normal Beep Transmit Sequence Before Transmit...
- Page 50 EFAULT ETTINGS OMMUNICATION ARAMETERS OCIA RS232 IBM 46 ARAMETER EFAULT Dual Action Power Save Mode #2 Same Symbol Rescan Timeout: 500 msecs Configurable in 500 msec 50 msec steps (MAX 6.35 seconds) Intercharacter Delay Configurable in 1 msecs 1 msec steps (MAX 255 msecs) 10 msecs in KBW Number of Scan Buffers UPC GTIN-14 Format...
- Page 51 Limit 1 Scan per CTS Activate on DTR Activate on DC2 Character Xmit No Read Message on DC2 Timeout No Transmit LED During No Read Message Configurable “No Read” Message Recv “I” = Transmit “METROLOGIC” Recv “i” = Transmit Scanner ID Byte...
- Page 52 ETTINGS OMMUNICATION ARAMETERS OCIA RS232 IBM 46 ARAMETER EFAULT STX Prefix TAB Prefix Metrologic Prefix UPC Prefix ETX Suffix TAB Suffix Carriage Return Suffix Line Feed Suffix UPC Suffix Transmit LRC Start LRC on 1 Byte Start LRC on 2 Byte ‘c’...
- Page 53 EFAULT ETTINGS OMMUNICATION ARAMETERS OCIA RS232 IBM 46 ARAMETER EFAULT Five Digit Redundancy Enable Coupon Code 128 Transmit Coupon ‘]C1’ Group Separator Coupon Code Can Begin with ’4’ Enable EAN-99 Coupon Code Bookland Supplements French 378/379 Supplements German 434/439 Supplements Convert Bookland to ISBN Bookland 979 Supplements Convert 979 to ISBN...
- Page 54 EFAULT ETTINGS OMMUNICATION ARAMETERS Default settings for “Aux” interface The secondary scanner and the StratosH series always communicates via RS232. Data is relayed to the host via various primary interfaces. OCIA RS232 IBM 46 ARAMETER EFAULT Aux Baud Rate 38400 Aux Parity none Aux Data Bits...
-
Page 55: Scanner And Cable Terminations
CANNER AND ABLE ERMINATIONS CANNER INOUT ONNECTIONS The StratosH scanner terminates to 10-pin modular jacks located on the bottom of the unit. The serial number label indicates the model number and interface of the scanner. Auxiliary RS232 In Function Function EAS In Ground EAS Out... - Page 56 INOUT ONNECTIONS There are four additional 10-pin modular jacks located on the bottom of the of the MS2321 StratosH models that may be used for an integrated scale application and the use of a remote display. Please keep in mind that every application is unique. The use of these connections depends on the specifications of the scale’s manufacturer.
-
Page 57: Cable Connector Configurations
CANNER AND ABLE ERMINATIONS ABLE ONNECTOR ONFIGURATIONS The following cables are examples of some of the standard cables that may be shipped with the StratosH scanner. Please keep in mind that every application is unique and the cables received with the StratosH may be custom cables that are not shown below. - Page 58 CANNER AND ABLE ERMINATIONS ABLE ONNECTOR ONFIGURATIONS Aux Port Configuration Cable*, 57-57008x-N-3 MLPN Function No Connect Output from Scanner Input to Scanner No Connect Ground 9-Pin D-Type Connector No Connect RS232 LSO/AUX Cable, 57-57099x -3 MLPN † Function Signal Ground RS232 from Aux / Secondary Scanner RS232 to Aux / Secondary Scanner RTS from Aux / Secondary Scanner...
-
Page 59: Laser And Product Safety
ASER AND RODUCT AFETY OTICES This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 60: Cautions
ASER AND RODUCT AFETY AUTIONS Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. -
Page 61: Limited Warranty
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain;... -
Page 62: Patents
No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any METROLOGIC or third party intellectual property rights (whether or not such third party rights are licensed to METROLOGIC), including any third party patent listed above, except for an implied license only for the normal intended use of the specific equipment, circuits, and devices represented by or contained in the METROLOGIC products that are physically transferred to the user, and only to the extent of METROLOGIC’S license rights and subject to any conditions, covenants and restrictions therein. -
Page 63: Index
NDEX AC ..............see power handles ..............4, 6, 9 application ..............34, 43 host ..........32, 33, 38, 41–43, 44–50 audible............see indicators AUX...............6, 43, 51 IBM 46xx ..............44–50 indicators................5 beep ..............see indicators audible......32, 37, 38, 41–43, 45, 46, 47 blue LED ............see indicators diagnostic .............34–35 button error codes ............34–35... - Page 64 NDEX scan pattern ..............5 scan speed................5 USB................44–50 scan zone..............29–30 scanner pinouts..............51–54 ventilation ..............5, 12 secondary scanner ............26, 27 visual................33 SELV .................18–25 voltage .............. 2, 5, 18–25 specifications..............5 volume ..............6, 9, 37 storage ................5 switch ................28 warranty ..............41, 57 weight................5 test ..................38 white LED............see indicators tone ..............6, 9, 32, 37 window ............
- Page 68 April 2006 Printed in the USA 0 0 - 0 2 2 7 0 A...
