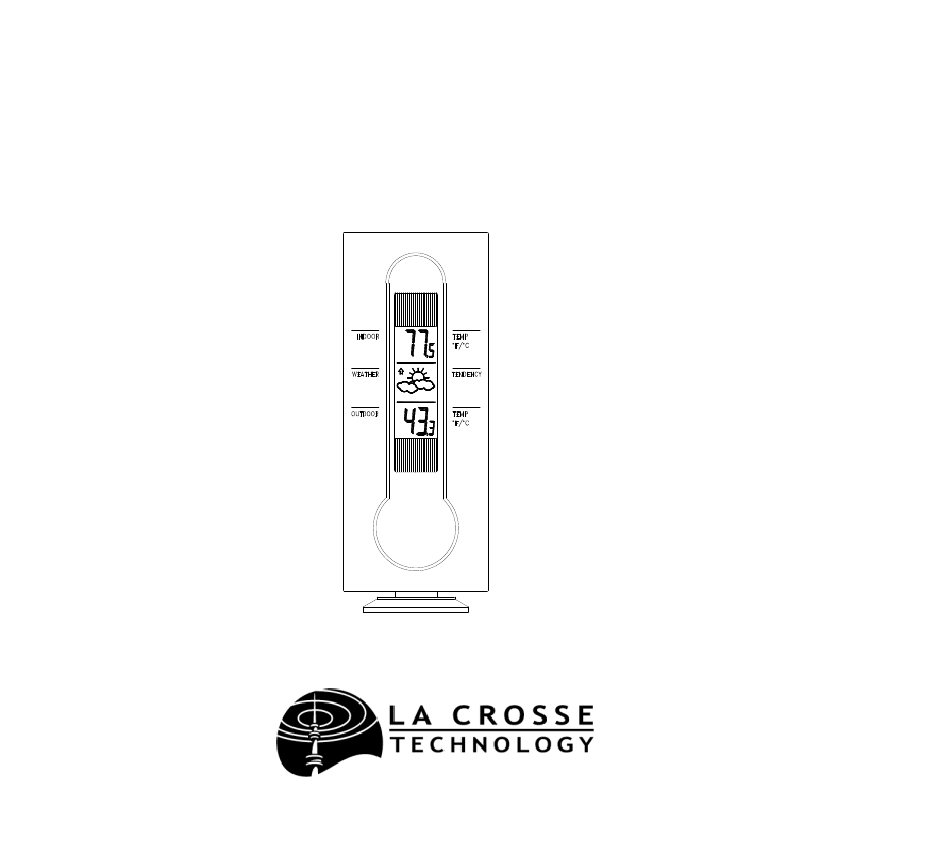

- Page 1 WS-7032U Wireless 433 MHz Miniature Weather Station Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Page Inventory of Contents/Additional Equipment Quick set-up guide Battery installation Features: Indoor temperature Weather Forecast icons & tendency arrows Outdoor temperature Mounting Troubleshooting Maintenance and Care instructions Specifications Warranty... -
Page 3: Inventory Of Contents/Additional
INVENTORY OF CONTENTS WS-7032U—Weather Station. TX6U—Remote Temperature Transmitter. Three each, ½” Philips screws. Instruction manual & Warranty card. ADDITIONAL EQUIPMENT Two fresh AAA 1.5V batteries (for weather station). Two fresh AA 1.5V batteries (for remote transmitter) One Philips screwdriver. QUICK SET-UP GUIDE Insert two AA batteries into sensor. -
Page 4: Battery Installation
DETAILED SET-UP GUIDE BATTERY INSTALLATION REMOTE TEMPERATURE TRANSMITTER Remove battery cover. Place your thumb over the two air-vent Battery slots on the face of the Cover Remote Temperature Transmitter, push down gently, slide battery cover down and off. Observing correct polarity, install batteries. - Page 5 WEATHER TEMPERATURE STATION Remove the battery cover. Pull up and out from the slot located central position of the battery cover. Observing correct polarity, install batteries. The batteries will fit tightly avoid start-up problems make sure that they do not spring free during installation).
-
Page 6: Features
LCD. The temperature is monitored as soon as the batteries are installed. WEATHER FORECAST The weather forecasting feature is estimated to be 75% accurate. The weather forecast is based solely upon the change of air pressure over time. The WS-7032U averages past air-pressure readings to provide an... - Page 7 accurate forecast—causing a necessity to disregard all weather forecasting for 48-60 hours after the unit has been set-up, reset, or moved from one altitude to another (i.e. from one floor of a building to another). In areas where the weather is not affected by the change of air pressure, this feature will be less accurate.
-
Page 8: Outdoor Temperature
rain,” or the reverse. It will not change from “sunny” directly to “rainy,” although it is possible for the change to occur quickly. If the symbols do not change then the weather has not changed, or the change has been too slow and gradual to register. -
Page 9: Mounting
MOUNTING Note: Extreme and sudden changes in temperature will decrease the accuracy of the Weather Temperature Station, and changes in elevation will result with inaccurate weather forecasting for the next 48 hours. These changes will require a 48 hour wait before obtaining reliable data. - Page 10 Where marked, start the screw holes into the mounting surface. Screw mounting bracket onto the mounting surface. Ensure that the screws are flush with the bracket. Snap the Remote Temperature Transmitter onto the mounted bracket. THE WEATHER STATION The Weather Station can be mounted on the wall with the use of a wall hanging screw (not included).
-
Page 11: Troubleshooting
TROUBLESHOOTING Problem: No outdoor temperature is displayed. Solution: 1) Remove all batteries—wait 15 minutes— then reinsert into transmitter first, then into the station. 2) Place transmitter closer to station. 3) Be sure there are no obstructing objects. 4) Be sure all batteries are fresh. Problem: The LCD screens are faint/dim. -
Page 12: Specifications
Opening the casings invalidates the warranty. Do repair unit. Contact La Crosse Technology for repairs. SPECIFICATIONS Temperature measuring range Indoor: 32 F to 104 F with 0.2 F resolution: (0 C to 40 C with 0.1 C resolution). “OFL” displayed if outside this range. -
Page 13: Warranty
Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 14 The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. Your La Crosse Technology, Ltd warranty covers all defects...
- Page 15 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH.
- Page 16 All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue.
- Page 17 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
