- Page 1 Instruction manual HC60 HC65 HC75 HC100 HC135 HC165 Technical specifi cations Installation instructions Operating instructions Maintenance Nieuwstraat 146 - B-8560 Wevelgem (België) Tel. 056/41 20 54 - Fax 056/41 86 74...
-
Page 2: Table Of Contents
Contents 1 General safety instructions ................2 Technical data and dimensions ..............Technical data ....................Dimensions ....................... 3 Installation and connection ................Ground ......................Removal of the transport safety ............... Water connection ..................... Water drain ....................... Main power connection ..................Liquid soap connection .................. -
Page 3: General Safety Instructions
General safety instructions Ignoring any of the safety instructions can cause serious personal injury and can also cause damage to the linen or the machine J Read the installation and instruction manual carefully before connecting the machine. J It is recommended that the machine be installed by qualifi ed technicians. J The machine should be installed according to the installation instructions. -
Page 4: Technical Data And Dimensions
Technical data and dimensions Technical data HC60 Capacity (dry weight) 1/11 5 kg 1/10 5,5 kg 6,1 kg Cylinder Diameter 530 mm Depth 250 mm Volume 55 Lit Cabinet Height 1005 mm Width 660 mm Depth 575 mm Front loading... - Page 5 Technical data and dimensions Technical data HC65 HC75 HC100 Capacity (dry weight) 1/11 5,9 kg 6,9 kg 8,6 kg 1/10 6,5 kg 7,6 kg 9,5 kg 7,2 kg 8,4 kg 10,5 kg Cylinder Diameter 530 mm 530 mm 530 mm Depth 295 mm 345 mm...
- Page 6 Technical data and dimensions Technical data HC135 HC165 Capacity (dry weight) 1/11 12 kg 15 kg 1/10 13,2 kg 16,5 kg 14,5 kg 18,3 kg Cylinder Diameter 650 mm 650 mm Depth 400 mm 500 mm Volume 132 Lit 165 Lit Cabinet Height 1202 mm...
-
Page 7: Dimensions
Dimensions HC60 J A. Ventilation soap dispenser J B. Liquid soap connetions J C. Hard water connections 3/4" J D. Warm water connections 3/4" J F. Connections clamps J G.Electrical connections J H.Emergency button J I. Ventilation tub J J. Bolt pattern for fi xation of the machine J K. - Page 8 Dimensions HC65 - 75 - 100 HC65/75 = 590 - HC100 = 690 HC65/75 = 670 - HC100 = 770 HC65/75 = 727 - HC100 = 827 J A. Ventilation soap dispenser J B. Liquid soap connetions J C. Hard water connections 3/4" J D.
- Page 9 Dimensions HC135 - 165 36.5 HC135 = 665 - HC165 = 765 36.5 HC135 = 760 - HC165 = 860 HC135 = 816 - HC165 = 916 J A. Ventilation soap dispenser J B. Liquid soap connetions J C. Hard water connections 3/4" J D.
-
Page 10: Installation And Connection
30 mm between each machine. Important The bolt pattern for the fi xation of the HC60 machine is foreseen in the back panel of the cabinet. Put this panel on the fl oor and indicate the holes (see page 7). -
Page 11: Main Power Connection
Electrical Connection J Remove the cover plate at the back of the machine. (See dimensions (E). J Connect the power cable to the connectors. Machine without electric heating Connect 230 V single phase (1AC) to the connectors “N” and “L1”. The green/yellow grounding clamp has to be connected to the groun- ding wire “PE”. -
Page 12: Liquid Soap Connection
Liquid soap connection (option) Connection of the liquid soap The liquid soap connection consists of 8 connections for liquid soap hoses (SI….S). The central opening is used for ventilation. Electrical connection of On machines equipped with a liquid soap connection, connect the wires the liquid soap pumps directly on the print board next to the ground wire connection (option). -
Page 13: Connection Of A Central Operating Panel For Coinmachines (Option)
Connection of a central operating panel for coinmachines (option) At the backside above the main connectors, you fi nd a printboard, to which the central operating panel for coinmachines can be connected. The right connectors form a potential free output contact as a result of which the operating panel detects when the machine is activated or not. -
Page 14: Steam Connection
Steam connection Machines with steam heating must have a steam valve between the steam installation and the machine. With direct steam injection into the machine 1. Steam pipe 2. Steam cut-off valve 3/8" 3. Pipe coupling 3/8" 4. Steam fi lter 3/8" 5. -
Page 15: Operating Instructions

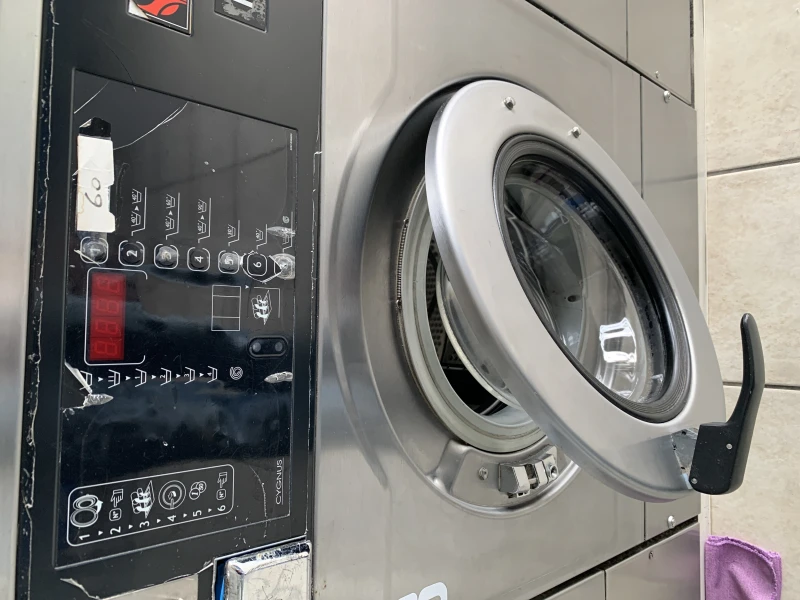

Operating instructions Machine with start button Opening the door Open the door. Fill the drum Sort the linen according to the type and required temperature of the linen. Empty all pockets of the garments so that no garments can be damaged and no left articles can cause damage to the machine. - Page 16 Start the machine Start the wash-cycle by pressing the Start button (S) and releasing it immedi- ately. The door is sealed and the cycle-LED lights up. During the fi rst 2 minutes after starting, the program number is blinking and you can change the program in case of a possibly wrong selection.
- Page 17 During fi nal spin, both the left spin-LED (intermediate spin) will light up together with the right spin-LED (fi nal spin). - Functioning of the spin-LED’s during fi nal spin: drain/distribution low spin high spin coast tumble Interm. spin blinking rapidly continuously slowly continuously...
- Page 18 Description of the functions Function F1 (Time stop) During the wash cycle: The wash time is stopped. The temperature, water level and wash action remain the same as programmed. During the wash cycle, this function remains active until the START button (S) is pressed again.
- Page 19 Function F3 (reduced wash action): By selecting F3, the wash action time and pause time will be reversed; unless the wash action time was programmed to be shorter than the pause time. Example: 12 sec. action/3 sec. pause becomes: 3 sec. action/12 sec. pause 6 sec.
- Page 20 At the end of a program, while the door is being released, the End of a program left display shows End; and the Start-LED is switched off. After that only the right display will continue to show the program number. This is the end of the program.
- Page 21 Remarks: Freely programmable stop-function Before starting a program it is possible to preprogram a time stop in every program segment. This function permits special additional functions like ad- ding bleach or extra detergent to the wash bath. Programming: After selecting the program, press the ECO-button (E) and keep it depres- sed.
- Page 22 Linking 2 programs It is possible to run 2 programs automatically in sequence. This can be handy to perform very special functions (like waterproofi ng outerwear) and add these to the wash program. Programming: First select the program which will be run last. Now, press the START-button (S) and keep it depressed for at least 5 seconds.
-
Page 23: Machine With Coin Or Token Operation
Machine with coin or token operation Opening the door Open the door. Fill the drum Sort the linen according to the type and required temperature of the linen. Empty all pockets of the garments so that no garments can be damaged and no left articles can cause damage to the machine. - Page 24 Indications of program Display information sequence The left display will indicate the temperature of the wash bath - in °C or °F (on machines where this function has been selected). The central display shows the remaining time to the end of the wash cycle. For programs which are being run for the fi...
- Page 25 End of a program At the end of a program, while the door is being released, the left display shows End and the Start-LED is switched off. After that only the right display will continue to show the program number. This is the end of the program. Remarks Rapid advance This function allows to skip the rest or certain segments of the program.
- Page 26 Cool down This function allows to gradually lower the temperature of the wash bath to prevent creasing of the linen. During a cool down, the remaining program time on the central display will be replaced by “cd”. Power Failure Should the power fall out during the program, the water will be drained and the door can be opened after maximum 3 minutes.
- Page 27 Setting the price The price is set according to the specifi cations at the time of ordering the ma- chine. If no prices were specifi ed, some standard amounts have been preset. Every program can be priced differently. These prices can also be modifi ed easily.
- Page 28 After programming the price for the last program, there are still the following parameters : A : Eco - price This is the decrease in value of the price for economical wash. In other words, the amount that the customer is saving by using economic wash. B : Number of coin insertions COIN 1 (up to 60.000) This parameter is only indicated if it has been programmed as such in the program- mation (COIN COUNT).
-
Page 29: Standard Programs
Standard programs The machine is standard equipped with 10 programs (0+9). These have been designed in cooperation with specialized detergent manufacturers to obtain the best possible wash results using the most frequently used detergents. Program 0 (starching) is mostly used in very special applications and is therefore not displayed on the front panel. -
Page 30: Technical Remarks
Technical remarks Internal connections of the electrical 1 AC Heating LC1D0901 3 AC 3x230V 3x400V Heating 4,2kw 3x1,4kw LC1D0901 LC1D0901 3x2kw LC1D0901 LC1D0901 3x3kw LC1D1810 LC1D0901 12kw 3x4kw ------ ------ LC1D0901 12kw 3x2kw LC1D253 LC1D0901 3x2kw 15kw 3x2kw LC1D253 LC1D1810 3x3kw 18kw 3x3kw... -
Page 31: Error Messages
Error messages When one of the following malfunctions occurs during a program, the central display will communicate the appropriate error message at the end of the cycle. E3 (Eprom) The Eprom is wrong, replace it by another. Remark : For coin op machines, it is possible that a program number appears on the right display in combination with E3. - Page 32 E9 (motor protection) The thermo-magnetic protection was activated 5 times. EA (tilt) The tilt switch was activated 15 times during fi nal spin and the fi nal spin was therefore skipped. Eb (tilt switch) The tilt switch is blocked. Mot 2 (rotation sensor) The speed detection is not operating properly.
-
Page 33: Maintenance Of The Machine
