AllTrade Trades Pro 835486 User Manual

Twin stack air compressor 5 gallon / 3 peak hp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model #835486
Reconditioned

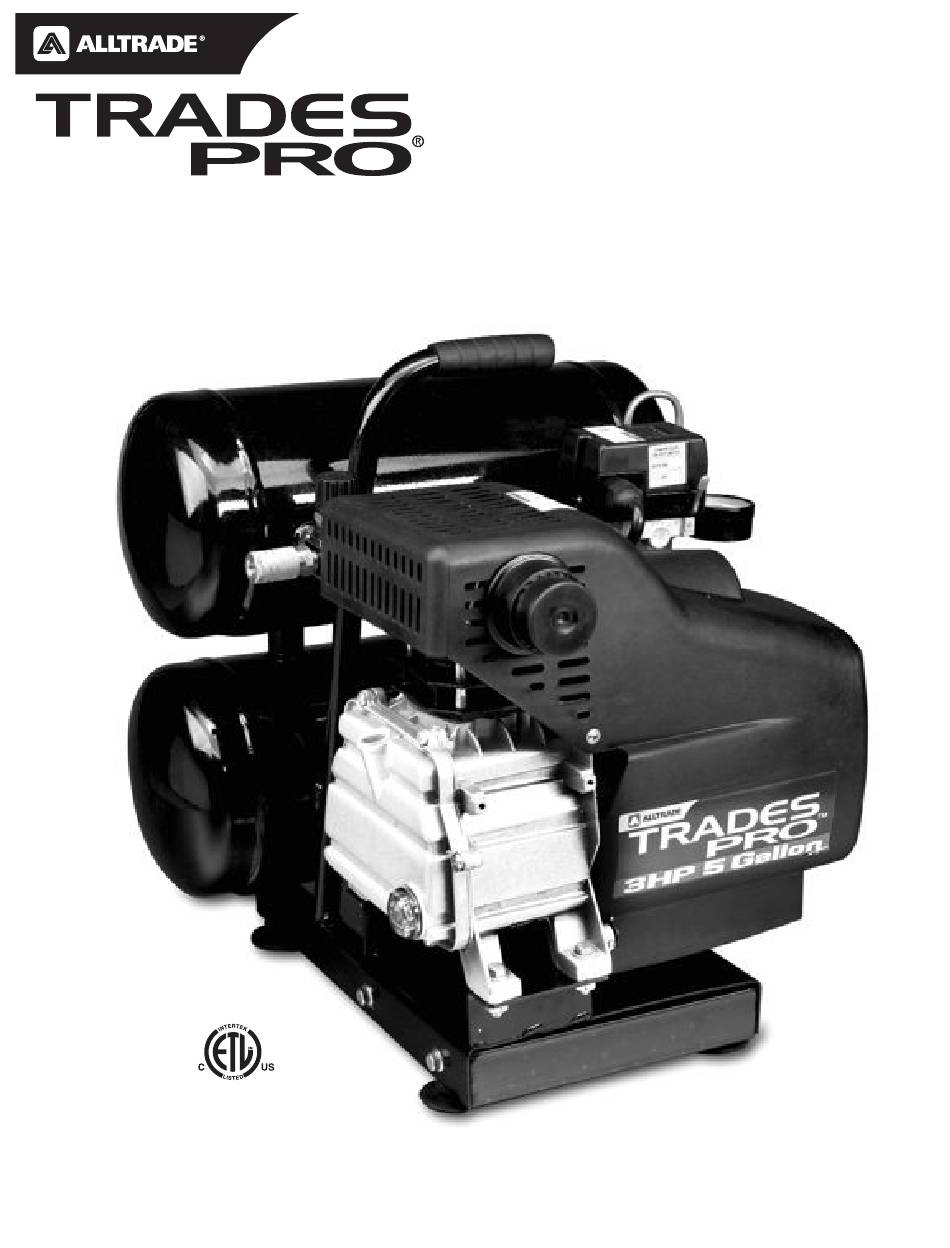

TWIN STACK AIR COMPRESSOR
5 Gallon / 3 Peak HP
3043653
If you encounter any problems or difficulties, Do not return your compressor to the store!
Please contact our toll-free customer service department at:
1-800-423-3598 • 1-310-522-9008 (California Only) • www.alltradetools.com

Advertisement

Table of Contents
loading

Related Manuals for AllTrade Trades Pro 835486

Summary of Contents for AllTrade Trades Pro 835486

  • Page 1 Model #835486 Reconditioned TWIN STACK AIR COMPRESSOR 5 Gallon / 3 Peak HP 3043653 If you encounter any problems or difficulties, Do not return your compressor to the store! Please contact our toll-free customer service department at: 1-800-423-3598 • 1-310-522-9008 (California Only) • www.alltradetools.com...

  • Page 2: Table Of Contents

    It is the owner and/or operator’s responsibility to study all WARNINGS, operating, and maintenance instructions contained on the product label and instruction manual prior to operation of this unit. The owner/operator shall retain product instructions for future reference. The owner and/or operator is responsible for maintenance, maintaining all decals or warning labels and while in use, maintaining the unit in good working order.

  • Page 3: Specifications

    SPECIFICATIONS Two Pole Induction Motor 3450 RPM Power 115V, 60 Hz, 15 Amps 4.3 SCFM output @ 40 PSI Air Delivery 3.3 SCFM output @ 90 PSI Maximum Pressure 115 PSI Duty Cycle 3.0 Peak HP / 1.3 Running HP 5 Gallon Twin Stack Air Tank Oil Lubricated Direct Drive Pump Cast Iron Cylinder...

  • Page 4: Introduction

    INTRODUCTION This oil lubricated air compressor is designed for Household Use Only and is not intended for commercial applications. It is well suited for do-it- yourselfers with a variety of automotive and home uses. This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and troubleshooting steps described within to ensure your safety and satisfaction.

  • Page 5: Safety Warnings

    SAFETY WARNINGS READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR. GENERAL SAFETY WARNINGS: • Keep work area clean. Messy areas and cluttered workbenches invite personal injury and/or property damage. • Keep children and visitors away. All children should be kept away from the work area. DO NOT let children handle the compressor or extension cord.
  • Page 6 DRAIN LIQUID FROM AIR TANK DAILY • Use the drain valve located on the bottom of the lower air tank to drain. Failure to properly drain liquid from the tank will cause rust from moisture buildup, which weakens the tank and could lead to a violent tank explosion. Periodically inspect the tanks for unsafe conditions such as corrosion, cracked welds, and leaks.

  • Page 7: Installation And Location

    RISK OF FALLING Portable air compressors can fall from a table, workbench, or roof causing damage to the compressor and could result in serious injury or death to the operator. Always operate air compressor in a stable and secure position to prevent accidental movement of the unit. Never operate air compressor on a roof or other elevated position.
  • Page 8 DANGER IMPROPER INSTALLATION OF THE GROUNDING PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK. IF REPAIR OR REPLACEMENT OF THE CORD IS NECESSARY, DO NOT CONNECT THE GROUNDING WIRE TO EITHER FLAT BLADE TERMINAL. THE WIRE WITH GREEN INSULATION WITH OR WITHOUT YELLOW STRIPES IS THE GROUNDING WIRE.

  • Page 9: Compressor Features

    COMPRESSOR FEATURES...
  • Page 10 COMPRESSOR FEATURES OIL LUBRICATION: Oil lubricated direct drive pump with cast-iron cylinder for durability. OIL FILL SIGHT GLASS: Located on the face of the crankcase, the oil fill sight glass provides a convenient way to check the oil fill level within the pump.

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS THE COMPRESSOR IS SHIPPED WITHOUT OIL IN THE CRANKCASE. ADD OIL AS INDICATED BELOW. STEP 1 – PUMP LUBRICATION This air compressor features an oil lubricated pump that requires the use of SAE 30 weight non-detergent air compressor oil. Adding Compressor Oil: 1.

  • Page 12: Operation

    OPERATION INITIAL SETUP / BREAK-IN PROCEDURE: Do not attach air hose, air tools or other air accessories to the air outlet until break-in procedure has been successfully completed. 1. Read and understand the entire instruction manual, including all safety warnings before setting up air compressor. 2.
  • Page 13 SHUTDOWN AND STORAGE: NOTE: NEVER stop the air compressor by unplugging it from the power outlet as this may result in damage to the compressor. 1. Turn the switch to the OFF position 2. Disconnect the power cord from the power outlet by grabbing the plug (not the cord). Loop around handle for storage. 3.
  • Page 14 CHECKING SAFETY RELIEF VALVE: SAFETY RELIEF VALVE MUST BE REPLACED IF IT CANNOT BE ACTUATED OR IT LEAKS AIR AFTER THE RING IS RELEASED. 1. The air compressor must be turned OFF. 2. Disconnect compressor from the power source. 3. Open tank drain to bleed off all air pressure before attempting any maintenance or repair. 4.

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Problem Encountered Possible Cause Possible Solution The compressor does not Power cord not plugged in. Plug cord into grounded outlet. start or restart: Motor/Pressure switch in Move switch to AUTO position. OFF position Motor thermal overload switch has Turn air compressor off, wait until the motor is cool, then tripped.
  • Page 16 TROUBLESHOOTING GUIDE Problem Encountered Possible Cause Possible Solution Air continues to leak at Defective motor/pressure switch. Replace. motor/pressure switch release Check valve stuck in open position. Replace check valve. DANGER — Do not disassemble the valve while motor is running: check valve with tank pressurized.

  • Page 17: Parts List

    PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION 830241-1 Air Filter 830241-55 Air Tank Assembly 830241-2 Elbow Connector 830241-56 Pressure Regulator 830241-3 Bolt M8x103 830241-57 Quick Coupler 830241-4 Cylinder Head 830241-58 Handle Grip 830241-5 Cylinder Head Gasket 830241-6 Valve Plate 830241-7 Valve Plate Gasket 830241-8...

  • Page 18: Parts Diagram

    PARTS DIAGRAM...

  • Page 19: Limited Warranty

    Parts returned, freight prepaid and insured, to Alltrade’s facility (see above address) will be inspected and, at Alltrade’s option, repaired and/or replaced free of charge if found to be defective and subject to warranty. Alltrade retains the sole discretion to determine whether any item or part is nonconforming and, if so, whether the item and/or part will be repaired and/or replaced.
  • Page 20 WRITTEN OR ORAL, ARISES BY OPERATION OF LAW AND/OR EQUITY AND/OR BY ANY ACT OR OMISSION OF ALLTRADE AND/OR ITS REPRESENTATIVE(S), OR THE PURCHASER, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED BY ALLTRADE AND/OR ITS REPRESENTATIVES.
  • Page 21 WARNING ALLTRADE TOOLS LLC 1431 VIA PLATA WEAR SAFETY LONG BEACH, CA 90810-1462 GLASSES www.alltradetools.com ©COPYRIGHT 2005, ALLTRADE TOOLS LLC REV.1...
