Broan L400L Quick Start Manual

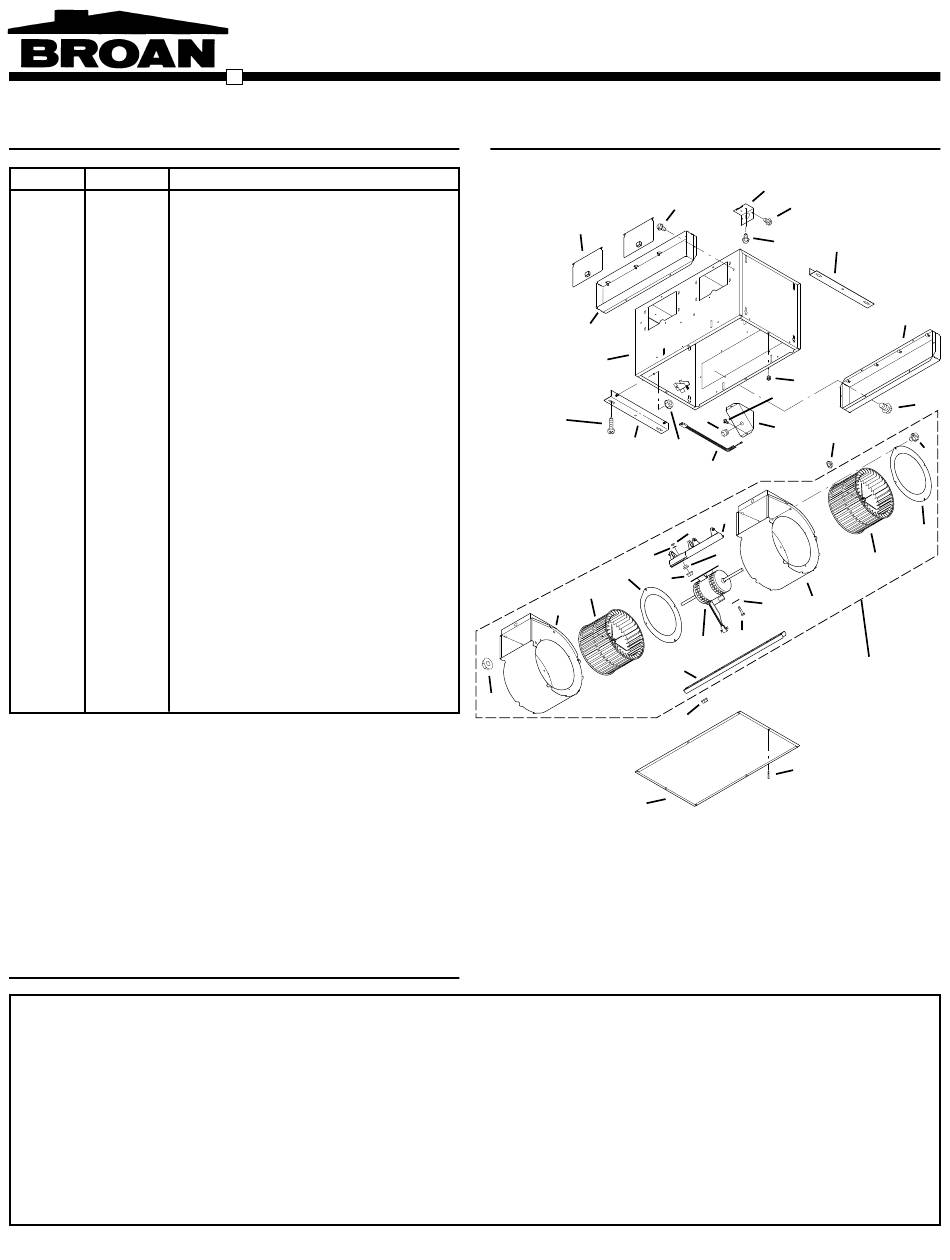

SERVICE PARTS
KEY NO. PART NO.
1 97014744 Housing Assembly
2 97014728 Mounting Bracket (2 req.)
3 98009449 Duct Connector (2 req.)
4 97014822 Damper Flap Assembly (2 req.)
5 99150415 Screw, 8-18 x ¼ (18 req.)*
6 98005512 Wiring Plate
7 99150471 Ground Screw, 10-32 x ½ (2 req.)
8 98005513 Wire Box Cover
9 99400035 Strain Relief Bushing
10 97006039 Wire Harness
11 99260477 Nut, ¼-20 (12 req.)*
12 97014745 Scroll Assembly (2 req.)
13 99110805 Blower Wheel (2 req.)
14 98009399 Inlet Ring (2 req.)
15 99080486 Motor (L400L)
99080487 Motor (L500L)
99080488 Motor (L700L)
16 97014794 Motor Mounting Bracket
17 99100497 Rubber Isolator (4 req.)
18 99160380 Screw, 10-24 x 7/8 (4 req.)*
19 99250399 Washer (4 req.)*
20 99260306 Nut, Hex 10-24 (4 req.)*
21 99250254 Washer (4 req.)*
22 93260456 Nut, Hex Flange 3/8-16
23 98009461 Scroll Mounting Channel
--- ------------- Blower Assembly, Complete
(Includes Key Nos. 5 & 11-23)
97014817 (L400L)
97014819 (L500L)
97014821 (L700L)
24 98009464 Access Panel
25 99420470 Access Panel Nut (4 req.)
26 99150472 Access Panel Mounting Screw (4 req.)
27 99150591 Screw, 10-16 x 7/8 (4 req.)
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
