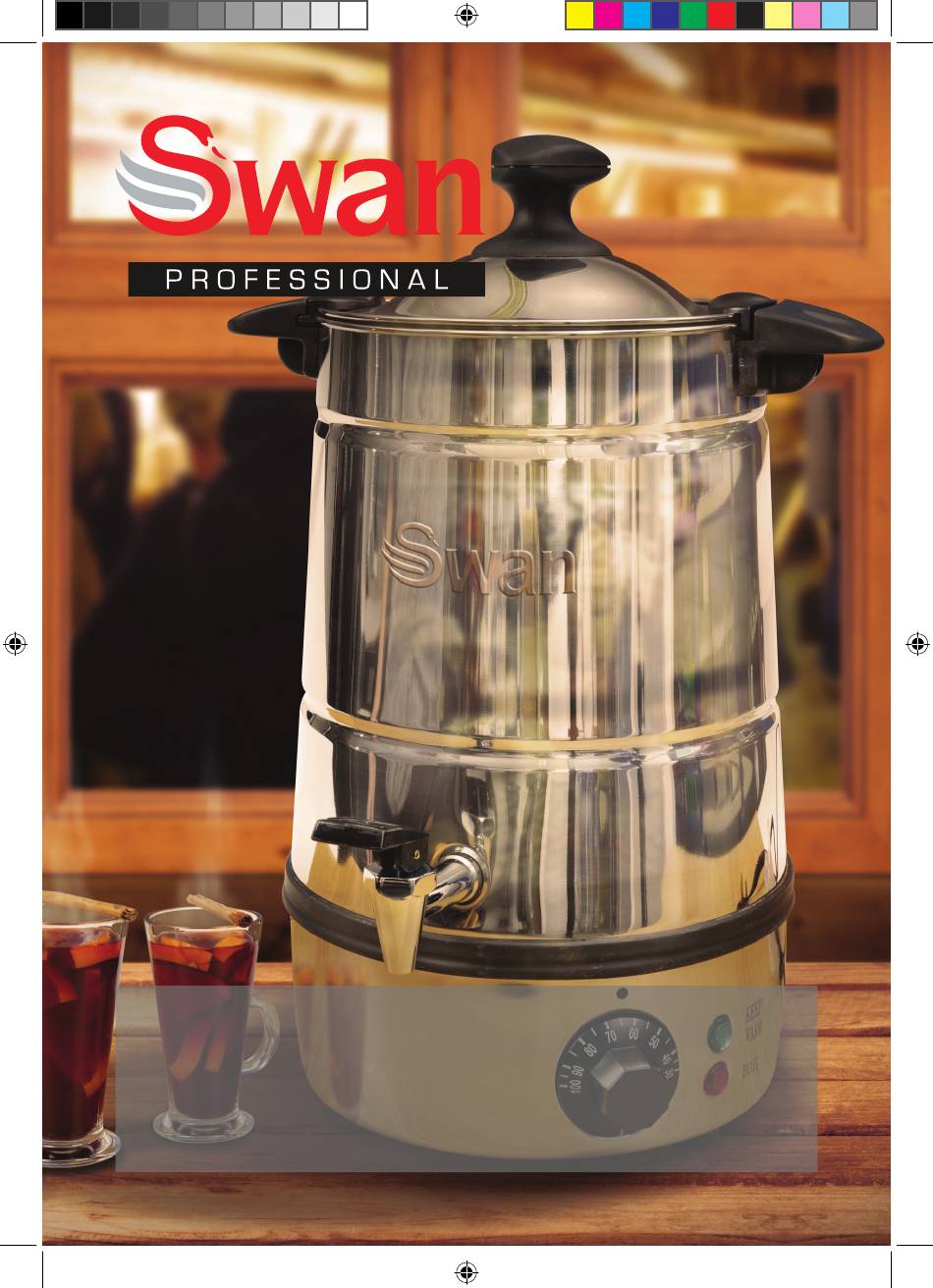

- Page 1 5L Water Urn with Gluvine Function SWU5LS Help line 01384 573999 v1.0 SWU5LS_IM.indd 1 04/06/2014 14:56...
- Page 2 IMPORTANT INFORMATION - RETAIN FOR FUTURE USE When using any electrical appliance, basic safety precautions should always be followed including the following: • Always ensure that the voltage on the rating label corresponds to the mains voltage in your home • Incorrect operation and improper use can damage the appliance and cause injury to the user.
-
Page 3: Technical Data
The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel. • In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product. • Your appliance must never be switched on through an external timer or any kind of separate remote control system TECHNICAL DATA Model: SWU5LS Rating: 220-240V ~ 50Hz 1800 Watts CAUTION: Surfaces become hot during use HOW TO USE SWAN hot water urns are constructed almost entirely of hygienic stainless steel and should give many years of trouble-free service as long as they are used in accordance with these instructions. Before first use, remove all packaging, rinse out the urn with warm water (without detergent). Fill the urn with the desired amount of water/wine taking care not to fill past the MAX level indicator. Avoid under filling the urn as this will cause the overheat protection system to operate and could reduce the life of the element. Connect to suitable mains supply. Set the temperature control to the desired setting. - Page 4 HOW TO USE The urn will heat the liquid. From cold, this will take between 15 mins and 30 mins depending on the size of the urn, the liquid being heated and ambient temperature in the room. Once the selected temperature has been reached the GREEN indicator light will illuminate The temperature dial gives more control over the liquid temperature. The range is printed on the dial from 30 to 100 Centigrade. For hot water ideal for tea-making, a setting around 90 is adequate. For Gluvine (mulled wine) the ideal temperature is around 60-70C. Anything over 70C risks the alcohol evaporating - and we can’t have that can MULLED WINE (GLUVINE - trans; “glow wine”) Here’s a recipe to get you started: Ingredient Min (for 75cl) Max (for 5L) Red wine (cheap wine is OK) 1 x 75cl bottle...
-
Page 5: Tips And Troubleshooting
TIPS & TROUBLESHOOTING Safety first! • NEVER attempt to move the urn when it is full of hot water! • DO NOT site the urn when it can be knocked off the counter top or where someone could lean on the tap accidentally. • ALWAYS sit the urn on a surface that can withstand the weight of the urn and the water in it. For 5L models that’s around 8kg. • DO NOT leave the urn switched on overnight if it is not in use. It wastes energy and the urn could boil dry, which can damage the element. • DO NOT operate the urn without the lid securely fastened. Boil Dry Protection Switch If the urn boils dry, it is equipped with a cut-off switch. This needs to be reset manually before the urn can be used again. The reset switch is underneath the urn. To operate: 1. Switch off the urn and unplug from mains. 2. Allow to cool FULLY. -
Page 6: Warranty
DOCUMENTATION We NLC Services Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s): 2004/108/EC The EMC Directive (the Electromagnetic Compatibility Directive). 2006/95EC. The LVD Directive (Low Voltage Directive). 2011-65-EU. The RoHS directive (Restriction of Hazardous Substances Directive) EC 1935/2004 Food Contact WARRANTY This product is guaranteed for One year from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store. The following conditions apply: • The product must be returned to the retailer with proof of purchase. • The product must be installed and used in accordance with the instructions contained in this instruction guide. • It does not cover wear and tear, damage, misuse or consumable parts or lime scale damage. • Swan Products Ltd has limited liability for incidental or consequential loss or damage. • This guarantee is valid in the UK and Eire Only. BS PLUG The wires in the mains lead are coloured in accordance with the following code: BLUE... -
Page 7: Disposal Of Unit
DISPOSAL OF UNIT Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life. SWAN BRAND HERITAGE Did you know... Swan has been making hot water urns since1933. Swan were the first to develop an electric heating element that could be immersed in water. - Page 8 www.swan-brand.co.uk 2 year Est. 1 931 GUARANTEE Scan this QR code We love we’re proud Find us on Facebook to hear about what we do of our quality our story * on selected products NLC Ltd. Unit 3, Breener Industrial Estate, Station Drive, Brierley Hill, West Midlands DY5 3JZ SWU5LS_IM.indd 8 04/06/2014 14:56...
