swisherinc.com
OWNER'S
MANUAL
MODEL NO.
LS67522BP
STARTING SERIAL #:
L111-283044
ENDING SERIAL #:
L112-181999
LS87528BP
STARTING SERIAL #
L111-236001
ENDING SERIAL #:
L112-181999
IMPORTANT
Read and follow all Safety
Precautions and Instructions
before operating this
equipment.
Rev. 11-283
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
18425
SPLITTER
Safety
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650

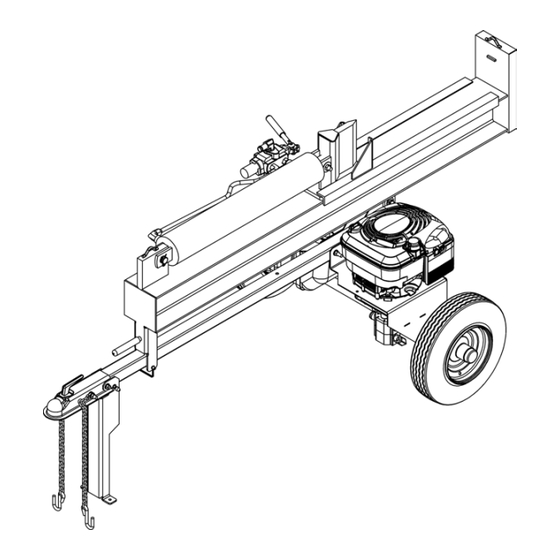

Model LS67522BP shown
LOG
Made In The
USA
Advertisement
Related Manuals for Swisher L111-283044
Summary of Contents for Swisher L111-283044
- Page 1 OWNER’S MANUAL MODEL NO. LS67522BP STARTING SERIAL #: L111-283044 ENDING SERIAL #: L112-181999 LS87528BP STARTING SERIAL # Model LS67522BP shown L111-236001 ENDING SERIAL #: L112-181999 SPLITTER Safety IMPORTANT Assembly Read and follow all Safety Precautions and Instructions Operation before operating this equipment.
-
Page 2: Table Of Contents
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the splitter will be needed before any warranty claim can be processed. -
Page 3: Warranty
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. Failure to observe the following safety instructions could result in serious injury or death. - Page 4 SAFETY PRECAUTIONS • NEVER operate your splitter near a flame or spark. Hydraulic oil and gasoline are flammable and can explode. • NEVER fill gas tank while the engine is hot or running. Allow the engine to cool before refueling. •...
-
Page 5: Safety
TOWING SAFETY • Do not allow persons to ride on splitter. Do not carry any cargo or wood on your splitter. It may fall off and endanger vehicles that are following you. • Be sure support leg is in the travel position and coupling secure. This must also be retracted so not to interfere while towing. -
Page 6: Operation
ASSEMBLY This log splitter has been mostly assembled at the factory. Refer to uncrating and assembly instructions to complete the final assembly step. Refer to the drawings and part lists should it become necessary to disassemble the unit for repair or replacement of parts. - Page 7 OPERATION SPLITTER OPERATION 1. Set up the log splitter in a clear, level area and block the wheels. The suction port on the tank should always be on the lower side of the log splitter. 2. Place a log on the beam, against the foot plate. Make sure the log is securely on the foot plate and up against the beam.
-
Page 8: Maintenance
Your Swisher Log Splitter has been produced with components designed specifically to this machine. Although standard springs, hardware and ect may look similar to parts used on other machinery, they may in some cases be made of a different construction and/or materials. -
Page 9: Decals
SAFETY DECALS Replace decals immediately if damaged. 12532 – DECAL - ADD OD16 – FUEL SHUT OFF DECAL HYDRAULIC OIL 12494 – HYDRAULIC FILL PLUG 12549 – DO NOT EXCEED 45 MPH DECAL DECAL 12492 – OPERATOR INSTRUCTION DECAL 11427 – DANGER DECAL... -
Page 10: Parts Breakdown
PARTS BREAKDOWN ASSEMBLY DETAIL ITEM # QTY. PART # DESCRIPTION 18416TK WELDMENT - LS FRAME, TXT BLK 2203S WHEEL HUB BEAING SEAL FOR WT7002A 7296 WHEEL/TIRE - W/ BEARINGS AND SEAL (4 PLY) 2203DC WHEEL HUB DUST COVER FOR WT7002A 2203B WHEEL HUB BEARING FOR WT7002A 2203CN WHEEL HUB CASTLE NUT FORWT7002A... - Page 11 PARTS BREAKDOWN PUMP DETAIL ITEM # QTY. PART # DESCRIPTION 14926 PUMP - HYDRAULIC, 2 STG 11 GPM CLOCKWISE 11557 ELBOW - 90 DEG. MALE PIPE SWIVEL NB596 BOLT - SERR FLANGE 5/16-18 X 3/4" GR5 NB170 NUT - SERR FLANGE 5/16-18 ZT CASE HRD NB312 SCREW - SET, 5/16-18 X 1/2 W/ LOCKTITE 024002...
- Page 12 PARTS BREAKDOWN ENGINE DETAIL ITEM # QTY. PART # DESCRIPTION 6.75 TORQUE ENGINE (LS67522BP) 8.75 TORQUE ENGINE (LS87528BP) NB170 NUT - SERR FLANGE, 5/16-18 NB622 BOLT - SERR FLANGE 5/16-18 X 2 1/4 NB253 BOLT - SERR FLANGE, 5/16-18 X 1 1/4 16070 COUPLER - 7/8"...
- Page 13 PARTS BREAKDOWN BEAM DETAIL ITEM # QTY. PART # DESCRIPTION 15202TC WELDMENT - LS W6X20 I- BEAM, TXT RED 12352TK WEDGE - SLIDE IN, TXT BLK 7284TK CYLINDER 4" X 24" X 1 3/4" (LS67522BP) 7354TK CYLINDER 4 1/2" X 24" X 1 3/4" (LS87528BP) 7293 PIN - CYLINDER TO BEAM...
- Page 14 PARTS BREAKDOWN TONGUE DETAIL ITEM # QTY . PART # DESCRIPTION 18458TK TONGUE - LOG SPLITTER, TXT BLK NB649 BOLT - 3/8-16 X 3 1/2 GR5 NB272 WASHER - 3/8 FLAT, SAE NB182 NUT - 3/8-16 NY LOC 14924TK STAND - FOLDING, TXT BLK NB606 PIN - 1/2"...
- Page 15 PARTS BREAKDOWN VALVE DETAIL ITEM # QTY. PART # DESCRIPTION 7287TK VALVE - CONTROL, SPLITTTER NB522 1/4 X 1 CLEVIS PIN 7424 LINK - MATER 7423 HANDLE - VALVE 7425 GRIP - HANDLE, VALVE NB597 PIN - COTTER 3/32 X 3/4...
- Page 16 TROUBLESHOOTING Problem Cause Remedy Engine fails to start. 1. Spark plug wire disconnected. 1. Connect wire to spark plug. 2. Fuel tank not full enough or stale fuel. 2. Fill tank full with clean, fresh gasoline. 3. Throttle control lever not in correct 3.
- Page 17 MAINTENANCE LOG NOTE: For repairs beyond those listed here, contact your nearest authorized service center. * Flushing the reservoir tank and hoses with kerosene whenever service is performed on the tank, hydraulic pump or valve is recommended. Contact an authorized service center. Date of Service Service Performed Notes...
-
Page 18: Specifications
SPECIFICATIONS MODEL LS67522BP MODEL LS87528BP Splitting Force 22 Tons Splitting Force 28 Tons 8.75 Torque: 6.75 Torque: Engine Engine 190CC B&S 190CC B&S Splitting Splitting Horizontal and Horizontal and Vertical Positions Vertical Positions Ø4" X 24" Cylinder Size Ø4 1/2" X 24" Cylinder Size 2 Stage Pump... - Page 19 SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
- Page 20 MODEL NO. All Log Splitter parts listed herein may be ordered directly from Swisher, your nearest Swisher dealer, or from our LS67522BP website. All engine parts may be ordered from the nearest dealer of the...
