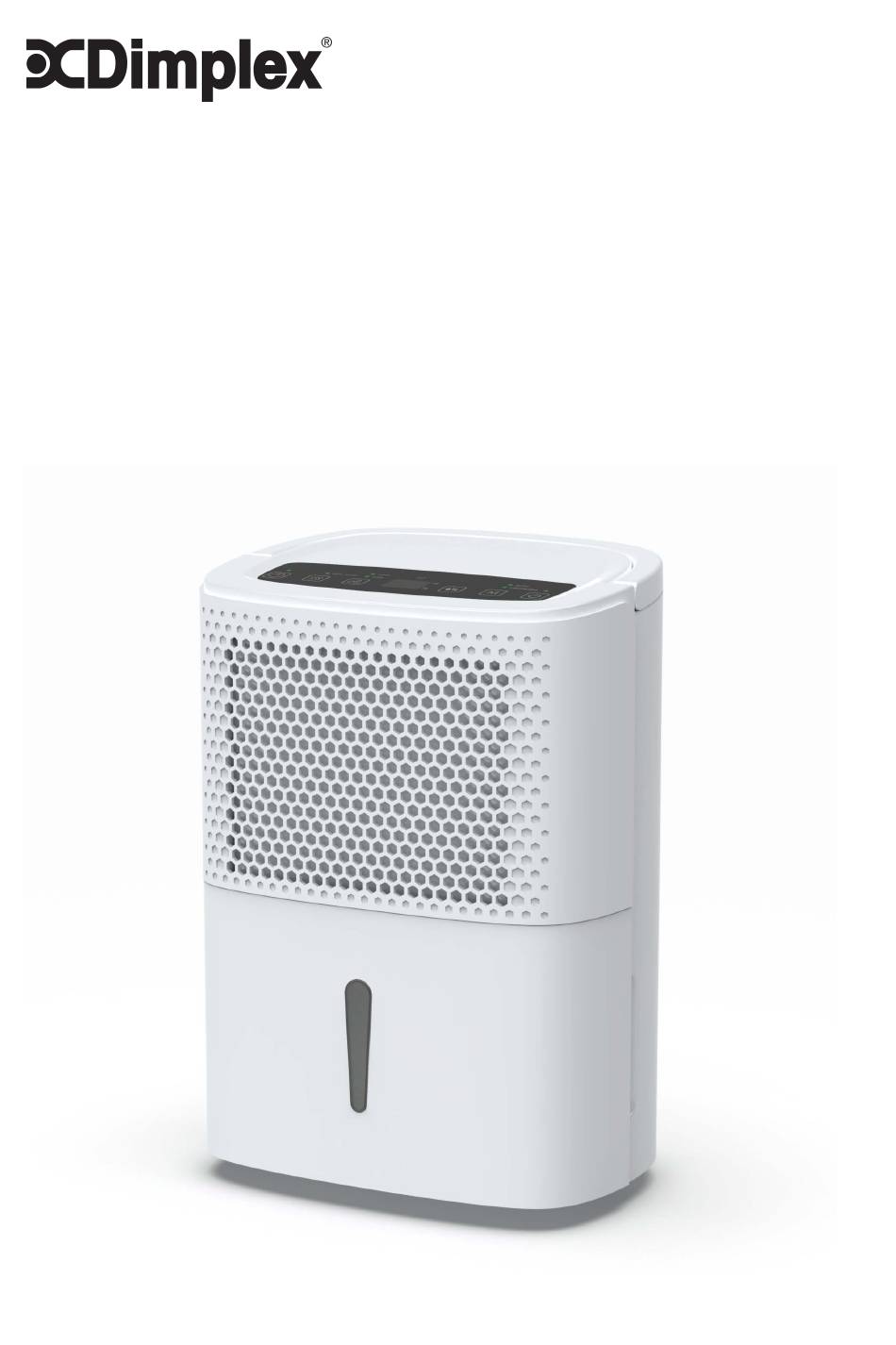

- Page 1 10L DEHUMIDIFIER WITH AIR PURIFICATION INSTRUCTION MANUAL GDDEY10...
-
Page 2: Package Contents
PACKAGE CONTENTS 1 x Dehumidifier 1 x Instruction Manual Confirm all parts before disposing of carton. Safely dispose of all plastic bags and other packaging components. They may be potentially dangerous to children. -
Page 3: Intended Use
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Carefully read this manual before using this appliance. Ensure that you know how the appliance functions and how to operate it. Maintain the appliance in accordance with the instructions to ensure that it functions properly. - Page 4 Earth Safety This appliance must be earthed. Only connect to a suitably earthed 220-240V ~ 50Hz supply socket. Use and Environment Operate the Dehumidifier on a flat and stable surface. The appliance must be operated the right way up. Do not tip over. Do not use outdoors. Do not operate the dehumidifier in a closed area such as inside a closet, as it may cause a fire.
- Page 5 Do not use Dehumidifier in any other orientation other than upright as shown in this manual. The unit should be installed with a minimum distance of 20 cm from all walls or other obstacles. TECHNICAL SPECIFICATIONS Model GDDEY10 Operating Voltage 220V-240V~50Hz Dehumidification Capacity 10L/DAY Rated Power 400W 9.5KG...
-
Page 6: Assembly And Parts
ASSEMBLY AND PARTS Control Panel Water Tank Filter Handle Air Outlet Continuous Drainage Cord Wrap... - Page 7 Control Panel Timer: 24 hour timer, press the button to set the timer. Timer range is from 1 to 24 hours, and will increase by 1 hour with each press. Press the button again to cancel the timer. Inside drying: Press the button to dry within the unit.
-
Page 8: Timer On/Off
INSTRUCTIONS Using Your Dehumidifier Timer on/off: When the Dehumidifier is turned on, press the timer button to program the time you wish the unit to turn off. Pressing the timer button will change the timer by 1 hour increments (up to 24). The unit will automatically switch off after the pre-selected time. - Page 9 Water Tank Full When the drainage tank is full, the tank full indicator light will turn on, the operation will stop automatically and the buzzer will beep 10 times to alert the user that the water needs to be emptied from the drainage tank. Emptying the Drainage Tank Lightly press on the sides of the tank with both hands and pull the tank out gently.
-
Page 10: Cleaning And Maintenance
Continuous Water Drainage The unit features a continuous drainage port. Using a plastic pipe (with an inner diameter of 9mm) insert it into drain hole and arrange the drain pipe accordingly so that gravity pulls the water out (there is no pump mechanism). The water in the drainage tank can be continuously drained out from the port on the unit. - Page 11 To Clean the Air Filter (every two weeks) Open the inlet grill and remove the air filter Clean the air filter Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is exceptionally dirty, wash it with warm water and a mild cleanser and dry thoroughly.
-
Page 12: Troubleshooting
TROUBLESHOOTING If a condition listed below occurs, please check the following items before calling customer service. Problem Possible Cause Solution Has the power cord been Plug the power cord into the disconnected? outlet. Is the tank full indication Empty the water in the lamp blinking? (The tank is drainage tank and then The unit...
