Section 1 - Product Overview
Microphone
Status LED
Camera Lens
Light Sensor
1
Microphone
2
Status LED
3
Camera Lens
4
Light Sensor
D-Link DCS-8600LH User Manual

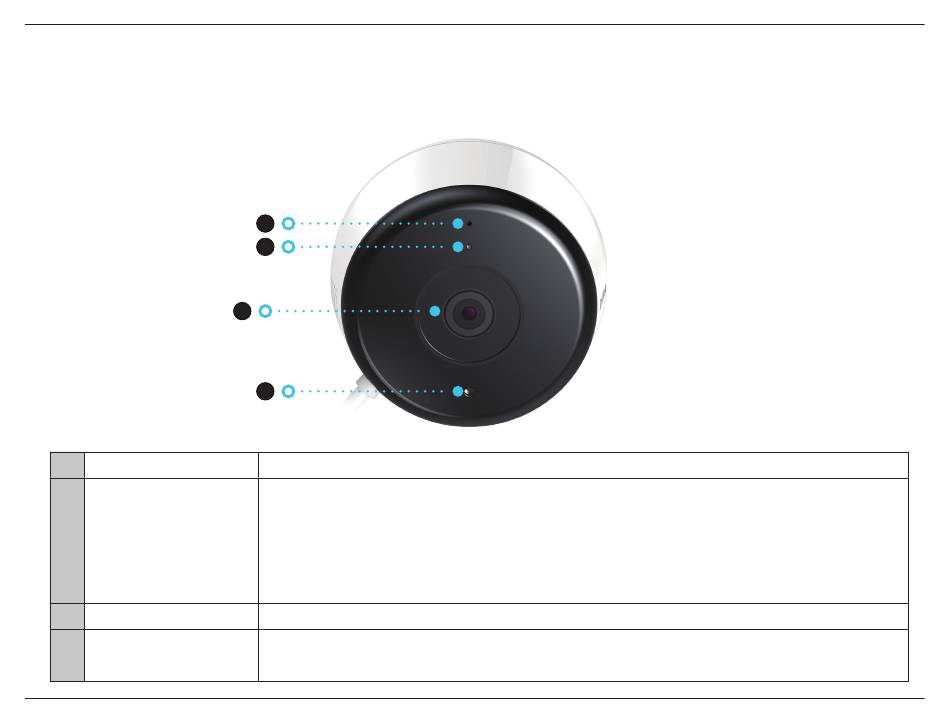

Hardware Overview
1
2
3
4
Records audio of the surrounding area.
Solid Green: Camera has successfully bounded to a Wi-Fi network. Setup is complete.
Flashing Green: Live view active.
Solid Red: Powered on.
Flashing Red: Upgrading firmware. Recovery mode.
Solid Orange: Bluetooth activated.
Flashing Orange: Bluetooth pairing.
Records video of the surrounding area. An IR LED encircles it.
The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
Front
3
