ZUMLINK-SPLTR-RJ45
Zūm® Wired RJ-45 Splitter
The Crestron® Zūm® Wired the
ZUMLINK-SPLTR-RJ45
RJ-45 splitter
enables one
CBL-CAT5E-ZUMLINK-P
cable to output two Zūm Link
ports. It is plenum rated and works with Zūm Link devices. For flexible,
in-room wiring, use with the
ZUMLINK-CONV-CN
to daisy chain Zūm
Link devices with Cresnet® devices.
In the Box
1
ZUMLINK-SPLTR-RJ45 Zūm® Wired RJ-45 Splitter

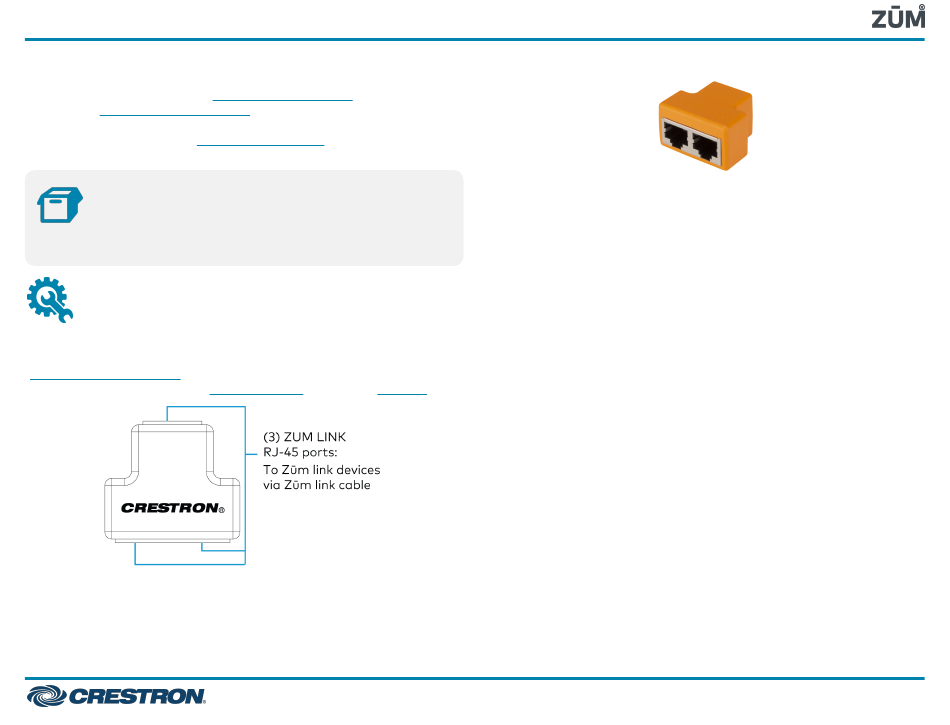

Connections
The ZUMLINK-SPLTR-RJ45 is a pass-through accessory that splits one
Zūm link signal into two ports. Use Zūm link cable
(CBL-CAT5E-ZUMLINK-P) to connect bidirectional RJ-45 ports to Zūm
link devices, including Zūm link
load
controllers, sensors, or keypads.
1
