LG SRFVC2416S Owner's Manual

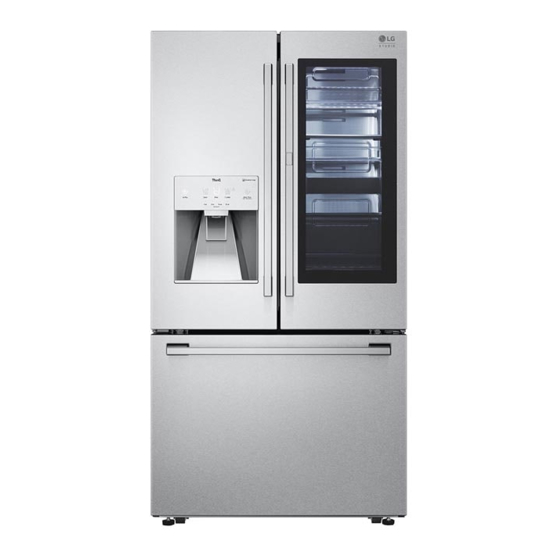

French door refrigerator
Hide thumbs Also See for SRFVC2416S:
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
FRENCH DOOR
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
SRFVC2416S
www.lg.com
MFL69497044
Rev.00_082421
Copyright © 2021 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for LG SRFVC2416S

Summary of Contents for LG SRFVC2416S

  • Page 1 OWNER'S MANUAL FRENCH DOOR REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH SRFVC2416S www.lg.com MFL69497044 Rev.00_082421 Copyright © 2021 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Ice and Water Dispenser Ice Compartment Automatic Icemaker Storing Food Humidity Controlled Crispers Glide‘N’Serve Refrigerator Shelves InstaView Door-in-Door Door Bins Durabase 38 SMART FUNCTIONS LG ThinQ Application Smart Diagnosis™ Feature Smart Grid Function 43 MAINTENANCE Cleaning Air Filter Water Filter 48 TROUBLESHOOTING FAQs...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Do not bend or pinch the power cord excessively or place heavy objects on it. Operation • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Maintenance • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS Risk of Fire and Flammable Materials This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury.

  • Page 7: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Exterior Dispenser Control Panel Displays the icemaker and dispenser modes and the water filter status. Filtered Water and Ice Dispenser Dispenses purified water and ice.
  • Page 8 PRODUCT OVERVIEW Interior InstaView Door-in-Door: SRFVC2416S Control Panel Sets the refrigerator temperature and freezer temperature. LED Interior Lighting Lights up the inside of the refrigerator. In-Door Icemaker (Refrigerator) This is where ice is automatically produced and stored. Door Mullion Prevents the cold air in the refrigerator from escaping when the doors are closed.
  • Page 9 The appearance and specifications listed in this manual may vary due to constant product improvements. Electrical requirements: 115 V, 60 Hz Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa) Model Description Net weight SRFVC2416S Counter-Depth, InstaView Door-in-Door French Door Refrigerator, 326 lb (148 kg) Bottom Freezer, Craft Ice...

  • Page 10: Installation

    10 INSTALLATION INSTALLATION Before Installing Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Unpacking the Refrigerator Choosing the Proper Location Disassembling/Assembling Connecting the Water Line Leveling and Door Alignment WARNING •...

  • Page 11: Choosing The Proper Location

    INSTALLATION Unpacking the Refrigerator install a booster pump to compensate for the low pressure. WARNING • Use two or more people to move and install the refrigerator. Failure to do so can result in back Electricity injury or other injury. Use an individual, grounded outlet:115 Volts, 60 •...
  • Page 12 Allow at least 24 inches (610 mm) in front of the refrigerator to open the doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall. Dimension/Clearance SRFVC2416S Depth without Handle 28 3/8 (718 mm)

  • Page 13: Removing/Assembling Handles

    INSTALLATION Removing/Assembling Assembling Refrigerator Handles Handles If needed, reassemble the mounting fasteners on the door with a 1/4 in. Allen When moving the refrigerator through a narrow wrench. opening, removing the doors is preferred. If you must remove the handles, be very careful not to scratch the doors.

  • Page 14: Removing/Assembling Doors And Drawers

    14 INSTALLATION Removing the Left Refrigerator fasteners and tightening the set screws with a 1/8 in. Allen wrench. Door The water supply is connected to the upper right part of the rear surface of the refrigerator. Remove the clip in the joint area. Hold the water supply connection and gently push the collet to detach the water supply...
  • Page 15 INSTALLATION Rotate the hinge lever clockwise. Lift the top hinge free of the hinge lever latch CAUTION • When lifting the hinge free of the latch, be careful that the door does not fall forward. Lift the door from the middle hinge pin and remove the door.
  • Page 16 16 INSTALLATION WARNING • To prevent accidents, keep children and pets away from the drawer. Do not leave the drawer ® open. If the Durabase storage bin is removed from the freezer drawer, there is sufficient space for a small child or pet to crawl inside. Pull the drawer open to full extension.
  • Page 17 INSTALLATION Assembling the Right Refrigerator Door CAUTION • Do not hold the handle when removing or CAUTION replacing the drawer. The handle may come off, • Install the right-side door first. causing personal injury. Make sure that the plastic sleeve is inserted in the bottom of the door.
  • Page 18 18 INSTALLATION Push the water supply lines into the hole on NOTE the top case and pull them through the backplate. • The number of wire harnesses may vary depending on the model. • Ground wire is only present on some models. Assembling the Left Refrigerator Door CAUTION...

  • Page 19: Connecting The Water Line

    INSTALLATION Assembling the Hinge Cover • Where reverse osmosis water filtration system is connected to a cold water supply: Position the hinge cover in its place. Insert and - 40 - 60 psi minimum to reverse osmosis tighten the cover screws. system (2.8 kgf/cm - 4.2 kgf/cm , or less than...
  • Page 20 20 INSTALLATION fitting with a tube cutter and use a compression fitting. • Shutoff valve to connect to the cold water line. Drill the hole for the valve. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32 in. at the •...
  • Page 21 INSTALLATION Tighten the pipe clamp. • Tighten the clamp screws until the sealing washer begins to swell. NOTE • Do not over tighten the clamp or you may crush the tubing. Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) Pipe Clamp Flush out the tubing.

  • Page 22: Leveling And Door Alignment

    22 INSTALLATION doors do not close easily, adjust the refrigerator’s NOTE tilt using the instructions below: • Insert the end of the copper tubing into the Turn the leveling leg to the left to raise that connection as far as possible. While holding the side of the refrigerator or to the right to lower tubing, tighten the fitting.

  • Page 23: Turning On The Power

    INSTALLATION the height. Turn the nut to the right to raise the • Have a certified electrician check the wall outlet door or to the left to lower it. and wiring for proper grounding. • Do not damage or cut off the ground terminal of the power plug.

  • Page 24: Operation

    24 OPERATION OPERATION Before Use Checklist Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 25: Control Panel

    Grid text illuminates. Wi-Fi The Wi-Fi button, when used with the LG ThinQ app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the application. The Wi-Fi indicator shows the status of the refrigerator's network connection. The indicator illuminates when the refrigerator is connected to the Wi-Fi network.
  • Page 26 26 OPERATION • To lock the control panel buttons, press and hold the Lock button until the indicator appears in the display and the function is activated. • To disable the function, press and hold the Lock button for approximately three seconds. Changing the Craft Ice Mode NOTE •...

  • Page 27: Sabbath Mode

    OPERATION Dispenser Control Panel Ice Plus This function increases both ice making and freezing capabilities. Press the Ice Plus button to illuminate the icon and activate the function for 24 hours. The function automatically shuts off after 24 hours. Stop the function manually by pressing the button once more. Water &...
  • Page 28 60 seconds OFF. This is also necessary if the refrigerator has not been used for a long time. • If ice or water dispenses unexpectedly, turn off the water supply and contact an LG Electronics Customer Information Center. • Never use a glass that is exceptionally narrow or deep.

  • Page 29: Ice Compartment

    Dispensing cubed ice can also help prevent frost buildup. Detaching the In-Door Ice Bin CAUTION • Only qualified service personnel from an LG Electronics service center should disassemble or repair the icemaker. Ice Compartment...

  • Page 30: Automatic Icemaker

    30 OPERATION Before Using the In-Door Icemaker NOTE • Ice is made in the automatic in-door icemaker and sent to the dispenser. The icemaker produces 70 - 182 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.
  • Page 31 OPERATION • The amount and shape of ice may vary according CAUTION to the environment (ambient temperature around the appliance, frequency of the door • Do not insert round ice into the in-door ice bin, being opened, amount of food stored in the as it can damage the ice and water dispenser.

  • Page 32: Storing Food

    32 OPERATION • The icemaker water valve buzzes as the CAUTION icemaker fills with water. If the icemaker power button is in the ON position, it will buzz even if it • Do not overfill or pack items too tightly into door has not yet been hooked up to water.

  • Page 33: Humidity Controlled Crispers

    OPERATION could come into direct contact with the cold air • Specified freezer-grade self-sealing plastic bags and freeze. Follow package or container instructions for proper freezing methods. • Wash food before storing it in the refrigerator. Vegetables should be washed, and food Do not use packaging should be wiped down to prevent •...

  • Page 34: Glide'n'serve

    34 OPERATION Line up the tabs on the Door-in-Door case with the slots on the door and push down until it snaps into place. NOTE • The Door-in-Door feature is only available on some models. Pull out the crisper to full extension, lift the front up, and pull straight out.

  • Page 35: Refrigerator Shelves

    OPERATION Detaching/Assembling the • Do not clean glass shelves with warm water while they are cold. Shelves may break if Glide‘N’Serve exposed to sudden temperature changes or impact. To remove the Glide'N'Serve, pull out the drawer until it stops, lift the front up, and pull straight out.

  • Page 36: Instaview

    36 OPERATION InstaView Door-in-Door This feature is only available on some models. This feature is only available on some models. The Door-in-Door compartment allows for easy InstaView Door-in-Door access to commonly used food items. Knock twice on the glass to turn the LED light Using the EasyLift Bin inside the InstaView on or off.

  • Page 37: Door Bins

    OPERATION Door-in-Door Case To remove the bin, simply lift the bin up and pull straight out. To open the Door-in-Door case, press on the area marked Pull to open. The case is removable for easy cleaning and adjustment. To assemble the bin, slide it in above the desired support and push down until it snaps into place.

  • Page 38: Smart Functions

    • Settings wireless router manual. - Allows you to set various options on the • LG ThinQ is not responsible for any network refrigerator and in the application. connection problems or any faults, malfunctions, or errors caused by network connection.
  • Page 39 Connecting to Wi-Fi • Reorient or relocate the receiving antenna. • Increase the separation between the equipment The Wi-Fi button, when used with the LG ThinQ and the receiver. application, allows the appliance to connect to a • Connect the equipment into an outlet on a home Wi-Fi network.

  • Page 40: Smart Diagnosis™ Feature

    LG ThinQ application. environment. • Launch the LG ThinQ application and select the This equipment should be installed and operated Smart Diagnosis feature in the menu. Follow with a minimum distance of 20 cm (7.8 inches) the instructions provided in the LG ThinQ between the antenna and your body.

  • Page 41: Smart Grid Function

    SMART FUNCTIONS Smart Grid Application Features • Smart Saving_Demand Response - You can lower energy usage based on Demand Response (DR) signals from the utility company. If the refrigerator is operating in Smart Saving mode according to the DR signal, you can see a pop up.
  • Page 42 Demand Response signal is sent. You can also override the Smart Grid function using the smart phone app. LG Open API You can manage Smart Grid features for the LG Smart Refrigerator. Please check the detailed specifications on the notice page on us.smartthinq.com.

  • Page 43: Maintenance

    MAINTENANCE MAINTENANCE Cleaning To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 WARNING quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does •...

  • Page 44: Water Filter

    44 MAINTENANCE Water Filter Before Replacing the Water Filter WARNING • To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. Remove the filter from the inside of the cover by pressing the side of the filter in and pulling •...
  • Page 45 - Use replacement cartridge: LT1000P, OFF. LT1000PC, LT1000PCS or ADQ747935** Remove the door bin. CAUTION • LG strongly recommends that you use LG- authorized water filters to prevent water quality issues, water leakage and appliance malfunction. For further assistance, call: Remove the disposable water filter.
  • Page 46 46 MAINTENANCE Performance Data Sheet Model: LT1000P, LT1000PC, LT1000PCS NSF System Trade Name Code: MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ ANSI Standard 42, Standard 53 and Standard 401.
  • Page 47 NOTE • While the testing was performed under standard laboratory conditions, actual performance may vary. For replacement filters, visit your local dealer or distributor or search under "water filters" on the lg.com website. For further assistance, contact the LG Electronics Customer Information Center.

  • Page 48: Troubleshooting

    48 TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions What are the best temperature settings for my refrigerator and freezer? The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures.
  • Page 49 TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause & Solution Refrigerator is not A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is cooling or has no connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit power.
  • Page 50 50 TROUBLESHOOTING Problem Possible Cause & Solution Cooling system runs Refrigerator is replacing an older model. too much. • Modern refrigerators require more operating time but use less energy due to more efficient technology. Refrigerator was recently plugged in or power restored. •...
  • Page 51 TROUBLESHOOTING Problem Possible Cause & Solution Refrigerator or Incorrect temperature control settings. Freezer section is too • If the temperature is too cold, adjust the control one increment at a time and wait for the cold. temperature to stabilize. Refer to the Control Panel for more information. Frost or ice crystals Condensation from food with a high water content has frozen inside of the food form on frozen food...
  • Page 52 52 TROUBLESHOOTING Craft Ice Problem Possible Cause & Solution Icemaker is not Refrigerator was recently installed or icemaker recently connected. making ice. • The icemaker begins producing ice approximately 48 hours after the appliance is initially installed. The first batches of ice may not be round and clear. Icemaker is not In 3 ICE mode, the Craft Ice icemaker produces 1 batch of round ice about every 24 making enough ice.
  • Page 53 TROUBLESHOOTING Problem Possible Cause & Solution Icemaker is not Refrigerator was recently installed or icemaker recently connected. making ice • It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Icemaker is not turned on.
  • Page 54 54 TROUBLESHOOTING Problem Possible Cause & Solution Ice is not dispensing. Unable to hear the sound of ice coming out? • In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice. Doors are not closed completely. •...
  • Page 55 TROUBLESHOOTING Problem Possible Cause & Solution Water is not New installation or water line recently connected. dispensing. • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
  • Page 56 56 TROUBLESHOOTING Problem Possible Cause & Solution Water has bad taste Water supply contains minerals such as sulfur. or odor. • A water filter may need to be installed to eliminate taste and odor problems. Water filter has been exhausted. •...
  • Page 57 TROUBLESHOOTING Problem Possible Cause & Solution The interior of the The refrigerator is located near a fire source, such as a fireplace, chimney, or candle. refrigerator is • Make sure that the refrigerator is not located near a fire source, such as a fireplace, covered with dust or chimney or candle.
  • Page 58 58 TROUBLESHOOTING Wi-Fi Problem Possible Cause & Solution Trouble connecting The password for the Wi-Fi network was entered incorrectly. appliance and • Delete your home Wi-Fi network and begin the registration process again. smartphone to Wi- Fi • If you are connecting to an iPhone, the password to connect to the module in the network refrigerator is the last 4 characters of the network name, repeated twice.
  • Page 59 Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States...
  • Page 60 Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION.
  • Page 61 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
  • Page 62 Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by...
  • Page 63 ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. (“LGECI”) will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase.
  • Page 64 (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.
  • Page 65 If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein.
  • Page 66 Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by...
  • Page 67 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: 1-800-243-0000 U.S.A. 1-888-542-2623 CANADA Register your product Online! www.lg.com...
