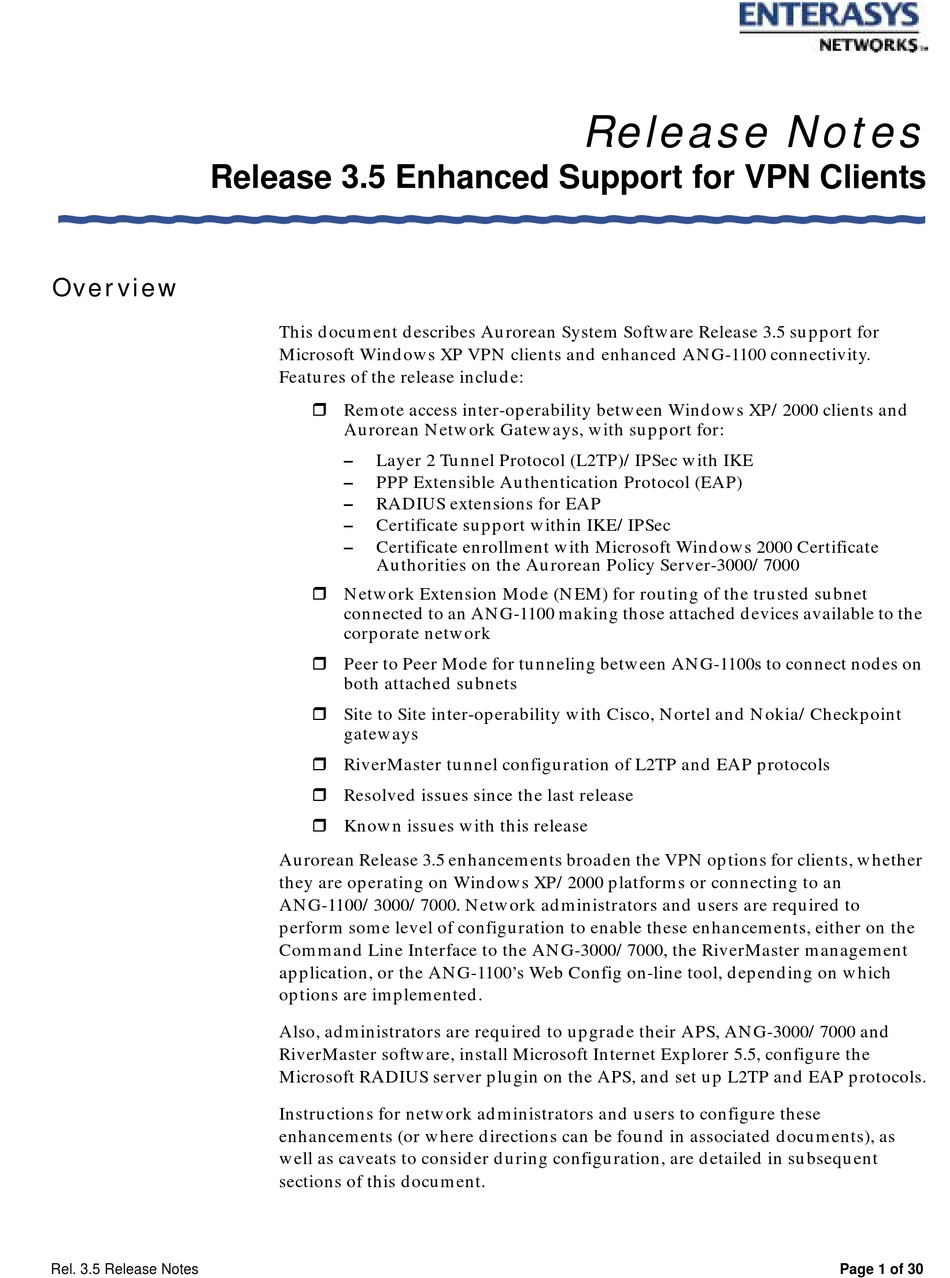

Release 3.5 Enhanced Support for VPN Clients
Overview
Rel. 3.5 Release Notes
This document describes Aurorean System Software Release 3.5 support for
Microsoft Windows XP VPN clients and enhanced ANG-1100 connectivity.
Features of the release include:
! Remote access inter-operability between Windows XP/2000 clients and
Aurorean Network Gateways, with support for:
–
Layer 2 Tunnel Protocol (L2TP)/IPSec with IKE
–
PPP Extensible Authentication Protocol (EAP)
–
RADIUS extensions for EAP
–
Certificate support within IKE/IPSec
–
Certificate enrollment with Microsoft Windows 2000 Certificate
Authorities on the Aurorean Policy Server-3000/7000
! Network Extension Mode (NEM) for routing of the trusted subnet
connected to an ANG-1100 making those attached devices available to the
corporate network
! Peer to Peer Mode for tunneling between ANG-1100s to connect nodes on
both attached subnets
! Site to Site inter-operability with Cisco, Nortel and Nokia/Checkpoint
gateways
! RiverMaster tunnel configuration of L2TP and EAP protocols
! Resolved issues since the last release
! Known issues with this release
Aurorean Release 3.5 enhancements broaden the VPN options for clients, whether
they are operating on Windows XP/2000 platforms or connecting to an
ANG-1100/3000/7000. Network administrators and users are required to
perform some level of configuration to enable these enhancements, either on the
Command Line Interface to the ANG-3000/7000, the RiverMaster management
application, or the ANG-1100's Web Config on-line tool, depending on which
options are implemented.
Also, administrators are required to upgrade their APS, ANG-3000/7000 and
RiverMaster software, install Microsoft Internet Explorer 5.5, configure the
Microsoft RADIUS server plugin on the APS, and set up L2TP and EAP protocols.
Instructions for network administrators and users to configure these
enhancements (or where directions can be found in associated documents), as
well as caveats to consider during configuration, are detailed in subsequent
sections of this document.

Release Notes

Page 1 of 30
