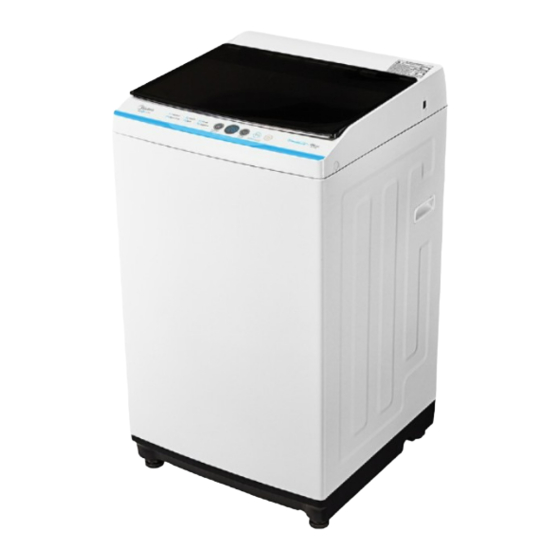

Washing Machine
FULLY AUTOMATIC
Read This Manual
Use all instructions and explanations on delete installation before use.
Follow the instructions carefully. Keep the operation instructions
handy for later use. If the product is sold or passed on then ensure
that the new owner always receives this manual.
Washing Machine
OWNER'S MANUAL
MODEL:
MA100W75
MA100W75/WK/E
MA100W85
MA100W85/WK/E
MA100W95
MA100W95/WK/E
Advertisement
Table of Contents
Related Manuals for Midea MA100W75
Summary of Contents for Midea MA100W75
- Page 1 Washing Machine Washing Machine FULLY AUTOMATIC OWNER’S MANUAL MODEL: MA100W75 MA100W75/WK/E MA100W85 MA100W85/WK/E MA100W95 MA100W95/WK/E Read This Manual Use all instructions and explanations on delete installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ............ INSTALLATION Product description ........... Installation area ............Unpacking the washing machine ....Levelling the washing machine ......Selection of tap .............. . Connection of inlet hose, tap and washing machine... OPERATIONS Preparation before washing........ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of... - Page 4 SAFETY INSTRUCTIONS Model Washing Capacity Standard Water Pressure MA100W75 7.5kg 0.03MPa~0.8MPa MA100W75/WK/E MA100W85 8.5kg 0.03MPa~0.8MPa MA100W85/WK/E MA100W95 9.5kg 0.03MPa~0.8MPa MA100W95/WK/E Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired.
- Page 6 SAFETY INSTRUCTIONS Risk to children! • EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS • Please do not close the door with excessive forces. • It is forbidden to wash carpets. Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
-
Page 9: Installation
INSTALLATION Product description Water inlet valve Top lid Frame Power case and plug Control panel Handle Cabinet Adjustable foot knob Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Inlet hose ass cabinet baseboard manual... -
Page 10: Installation Area
INSTALLATION Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 11: Levelling The Washing Machine
INSTALLATION Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. - Page 12 INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten show 5mm thread...
-
Page 13: Operations
OPERATIONS Preparation before washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Load and Close door Add detergent... -
Page 14: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Control Panel
OPERATIONS Control panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Product is switched on or off. Press the button to start or pause the washing cycle. Program Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 16 OPERATIONS Option Only for washers having these function Water level select water level according to clothing categories, degree of soiling and washing habits of customers Delay 1. Select a program 2.Press the Delay button to choose the time Start/Pause 3.Press [ ] to commence the delay operation Delay Setting time...
-
Page 17: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program Customers can select washing program according to actual demand, and set water volume and appointment time Program Start Water Level Delay Operations of washing process One Touch Smart Wash Start Spin only Program keep pressing Program key until Start... -
Page 18: Washing Program Table
OPERATIONS Washing program table Program are available according to the laundry type. Only for washers having these function Program Quick Suitable to wash light stained clothes and clothes in summer. the tempo is soft, slow washing and spinning speed, to make the lightest Soft: wear and deformation. -
Page 19: Maintenance
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 20: Cleaning Drain Pump Filter
MAINTENANCE Cleaning drain pump filter Only for washers having these function Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 21: Troubleshooting
MAINTENANCE Trouble shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. - Page 22 MAINTENANCE Technical Information Standard Water Pressure 0.03MPa~0.8MPa Power Washing Dimension Rated Model Weight Supply Capacity (W*D*Hmm) Power MA100W75 7.5kg 29kg 400W 230-240V~,50Hz 515x525x890 MA100W75/WK/E MA100W85 8.5kg 30kg 230-240V~,50Hz 515x525x900 400W MA100W85/WK/E MA100W95 9.5kg 33kg 450W 230-240V~,50Hz 550x565x900 MA100W95/WK/E 24 10...
-
Page 23: Energy Efficiency Test Program
MAINTENANCE Energy efficiency test program: Entry mode of energy efficiency program in Malaysia Press the “ON/OFF” button 2:Press the “program” button, to select the” Normal ”program (display P1), and press the water level key to set the level 8 (display L8) 3:Press the “start “button to start the operation Entry mode of water consumption procedure in Singapore Press the “ON/OFF”... - Page 24 QUESTIONS OR COMMENTS Country Contact Center Web Site Thailand +6621077799 http://www.midea.com/th Myanmar +09260367229 https://www.gbs.com.mm/en/about/vsk/ Cambodia +85523212435 http://bluemidea.com http;//vn.midea.com Vietnam +1800588863 Philippines +63288635522 http://www.mideaph.com http://id.midea.com Indonesian +628001888523 Malaysia https://www.midea.com/my/ +60392211033 Singapore +62222536 https://www.midea.com/sg/ This product is RoHS compliant.
- Page 25 V1.0 16138000A38905...
