Soundstream VIR-7830 Owner's Manual

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radio built-in tv tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

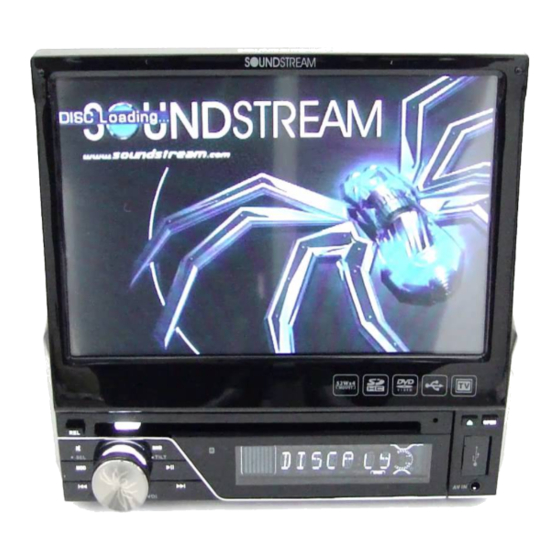

VIR-7830/ VIR-7830T
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
Built-in TV tuner
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading

Related Manuals for Soundstream VIR-7830

Summary of Contents for Soundstream VIR-7830

  • Page 1 VIR-7830/ VIR-7830T In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Built-in TV tuner Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 Accessories ........................ 4 INSTALLATION / UN-INSTALLATION ................ 5 WIRING CONNECTIONS ................... 6 Front panel ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................13 MAIN MENU ......................14 ◆ RADIO PLAYER ....................14 ◆...

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw 4*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 1x AV-IN Cable Remote Control Warranty card User Manual...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).

  • Page 8: Front Panel

    Front panel 1. Release Button Press to detach and release the front panel. When the unit was released, it will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel. To attach it, insert the right side first and then press the left side until hear a click sound.
  • Page 9 3. MODE Button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), TV (For VIR-7830T) and AV Button In RADIO mode, press to start automatic searching, press and hold for two seconds to start manual searching, then press to tune each frequency step downward.

  • Page 10: Remote Control

    18. SD/MMC CARD slot SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and the unit will automatically start reading and playback the card. * Supported Music File Format: MP3, WMA Files REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM...
  • Page 11 8. P.SCN/ RPT In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off. In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
  • Page 12 / seek + buttons In DVD mode, Press button to skip to the next track. Press and hold button for two seconds to activate fast forward (FF) search in a track. In RADIO mode, press button to start searching automatic, press and hold for two seconds to start manual searching.

  • Page 13: Remove Battery

    REMOVE BATTERY Note:  The distance may vary according to the brightness of ambient light.  If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. ...

  • Page 14: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 15: Dvd Player

    Touch this button to select stereo or mono sound reception. Touch this button to select reception of local station or DX for distance station. ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played.

  • Page 16: Disc/Usb/Sd/Mmc Interface

    In VCD mode touch it can choose PBC ON or OFF In DVD mode touch it to enter TITLE MENU (Enable only if the DVD disc with title menu). Touch it to select previous or next track. Select the viewing angle of the touch-screen. ◆DISC/USB/SD/MMC interface When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound.

  • Page 17: Tv Mode

    ◆TV Mode rt TV Mode, tap on TV button from main menu screen. To sta ◆AV-IN Mode To start AV-IN Mode, tap on AV-IN button from main menu screen. Connect the external audio/video signal source to this unit. Select AV-IN mode in the main menu or by pressing repeat Mode button on the front panel.

  • Page 18: Display Control

    button to show SOUND 2 menu. BEEP Keypad sound setting LOUDNESS Set LOUD ON/OFF SUBWOOFER Set SUBWOOFER ON or DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. SCREEN Screen setting 16:9, 4:3,FULL Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button to show RADIO menu.

  • Page 19: Dvd Set Up Menu

    DUAL Set DUAL ON/OFF Key CURRENT TILT MODE Set TILT MODE auto or manual TILT ANGLE adjust monitor tilt angle CLOCK Set CLOCK display time DISPLAY ON or OFF button to show GENERAL 2 menu. CLOCK HOUR Set 24 Hour format or 12Hour format CLOCK Set CLOCK ADJUST time...

  • Page 20: System Information

    [3]. DVD Menu Lang setting: With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed. [4] Password: The password for this unit is initially set to factory default 0000.

  • Page 21: Calibration

    CALIBRATION The calibration of the screen is useful when some malfunction occur with the touch screen and it needs adjustment. CALIBRATION procedure of the touch screen is described as below: When the target moves to another position, tap and hold at the center of the new target.

  • Page 22: Tv Section (For Vir-7830T Only)

    TV SECTION (For VIR-7830T only) To enter TV mode, you can tap TV icon on main menu screen or press mode on front panel or remote. 1. Connect TV antenna to the TV ANT wire in rear unit, and then press MODE button on front panel or remote to select TV mode or Tap TV icon on main menu screen to enter TV mode.
  • Page 23  System Select this menu item is to set TV system: SECAM => NTSC =>PAL ，press NTER button on the remote or tap the screen to select.  Audio Select this menu item is to set the TV sound system: when system setting PAL, press ENTER on remote or tap the screen button to select TV sound system: D/K=>M/N=>...

  • Page 24: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 26: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 27: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
