INSTALLATION
(Continued)

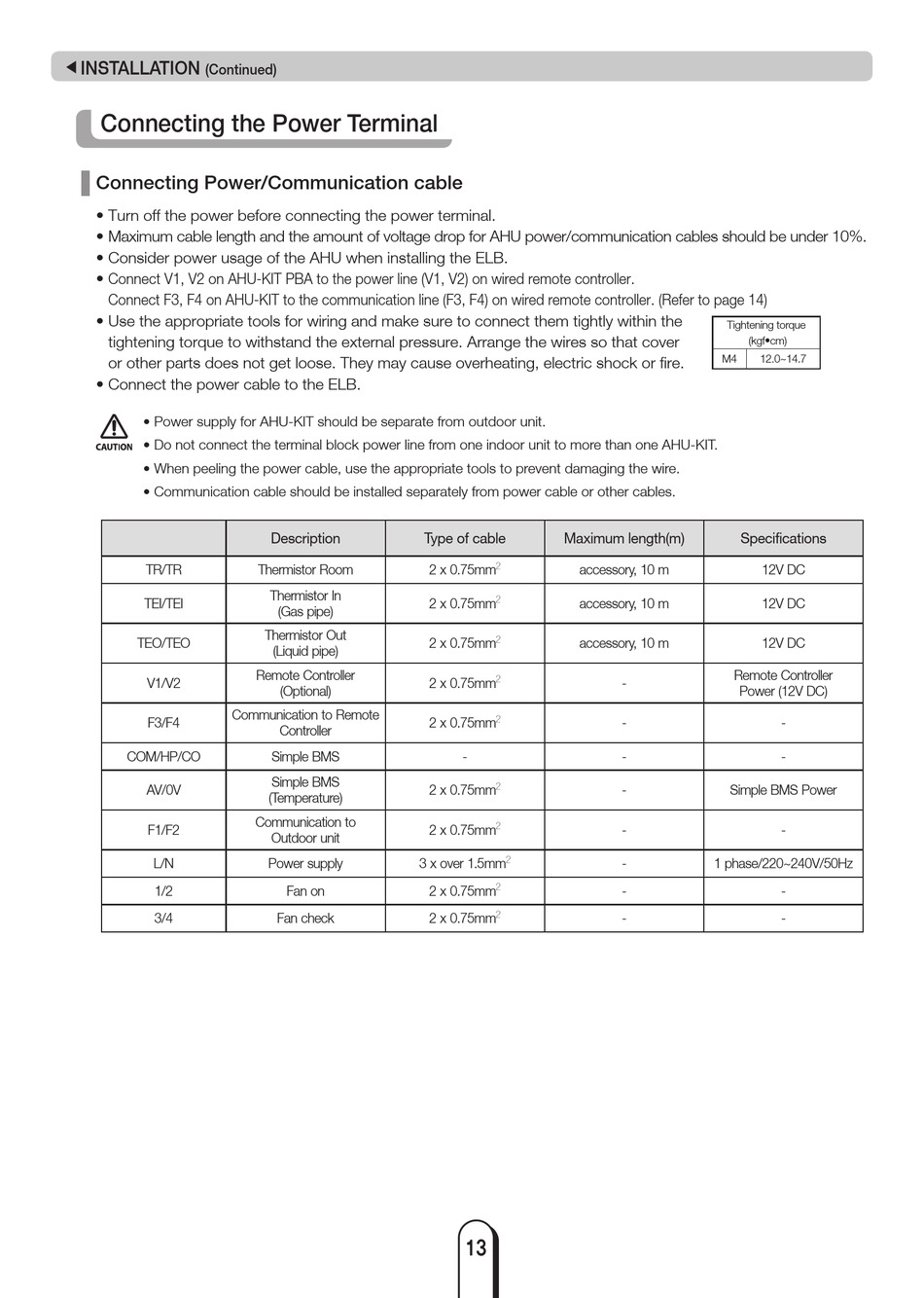

Connecting the Power Terminal
Connecting Power/Communication cable
• Turn off the power before connecting the power terminal.
• Maximum cable length and the amount of voltage drop for AHU power/communication cables should be under 10%.
• Consider power usage of the AHU when installing the ELB.
• Connect V1, V2 on AHU-KIT PBA to the power line (V1, V2) on wired remote controller.
Connect F3, F4 on AHU-KIT to the communication line (F3, F4) on wired remote controller. (Refer to page 14)
• Use the appropriate tools for wiring and make sure to connect them tightly within the
tightening torque to withstand the external pressure. Arrange the wires so that cover
or other parts does not get loose. They may cause overheating, electric shock or fire.
• Connect the power cable to the ELB.
• Power supply for AHU-KIT should be separate from outdoor unit.
• Do not connect the terminal block power line from one indoor unit to more than one AHU-KIT.
• When peeling the power cable, use the appropriate tools to prevent damaging the wire.
• Communication cable should be installed separately from power cable or other cables.
TR/TR
TEI/TEI
TEO/TEO
V1/V2
Communication to Remote
F3/F4
COM/HP/CO
AV/0V
F1/F2
L/N
1/2
3/4
Description
Type of cable
Thermistor Room
2 x 0.75mm
Thermistor In
2 x 0.75mm
(Gas pipe)
Thermistor Out
2 x 0.75mm
(Liquid pipe)
Remote Controller
2 x 0.75mm
(Optional)
2 x 0.75mm
Controller
Simple BMS
Simple BMS
2 x 0.75mm
(Temperature)
Communication to
2 x 0.75mm
Outdoor unit
Power supply
3 x over 1.5mm
Fan on
2 x 0.75mm
Fan check
2 x 0.75mm
Maximum length(m)
2
accessory, 10 m
2
accessory, 10 m
2
accessory, 10 m
2
-
2
-
-
-
2
-
2
-
2
-
2
-
2
-
13
Tightening torque
(kgf•cm)
M4
12.0~14.7
Specifications
12V DC
12V DC
12V DC
Remote Controller
Power (12V DC)
-
-
Simple BMS Power
-
1 phase/220~240V/50Hz
-
-
