3. Installation
3.1 Unpacking
The UCC1 package includes the following parts:
1 UCC1 USB-CAN CONVERTER
1 Front panel 19", 1HU
2 CAN-TERM 120 Ω CAN-bus terminator-plug
4 Rubber feet
1 USB cable
1 Owner's manual
Upon receiving your UCC1, please inspect the contents of the package for loss or damage. If any of
the here listed parts are missing or damaged, please immediately contact your distributor or a TELEX /
EVI Audio service center.
3.2 Rack-Mounting
The compact UCC1 adapter is mainly aimed for connection to a laptop or notebook computer.
However, the supplied 19" front panel allows trouble-free integration in a rack shelf system. For
mounting the 19" front panel, please proceed as follows:
1. Loosen the two center screws on the UCC1's panel (1).
2. Loosen the four corner screws on the UCC1's panel (2).
3. Remove the original UCC1 panel (3).
4. Fix the 19" front panel on the UCC1. In doing so, make sure not to damage, bend or stress the
STATUS indicator and the ISOLATED / GROUNDED switch. (4).
5. Reinsert and tighten the two center screws of the UCC1 19" panel (5).
6. Reinsert and tighten the four corner screws of the UCC1 enclosure (6).
Now you are able to install the UCC1 in a rack shelf system securing it with the four rack-screws on
the sides.

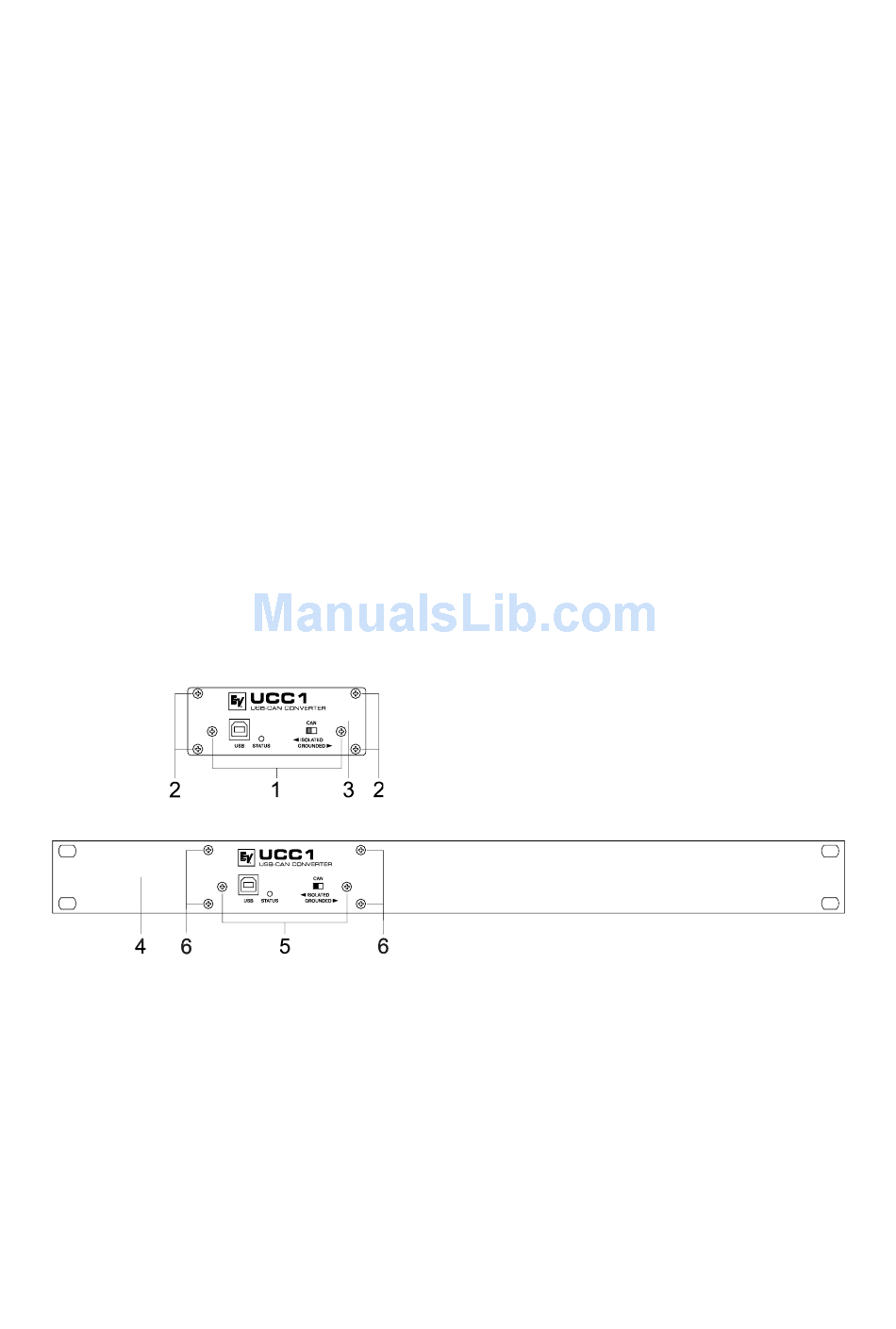

Fig. 3: Exchanging UCC1 front panels
19
