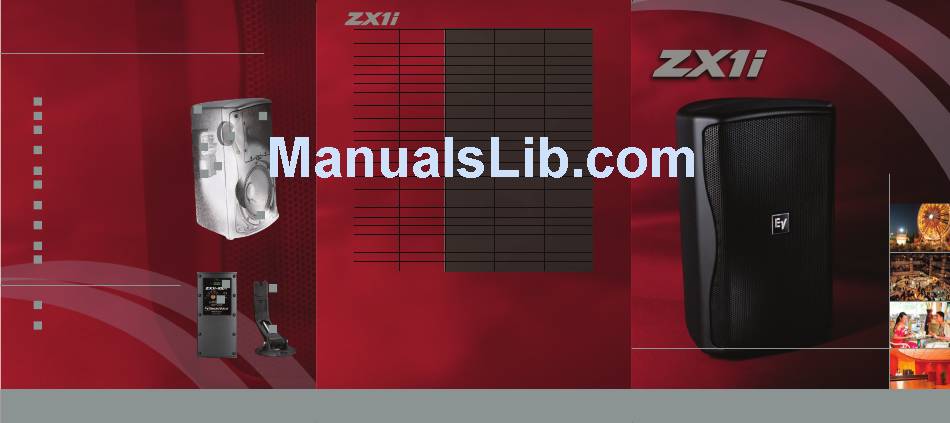

H i g h P e r f o r m a n c e S y s t e m C o m p o n e n t s
With True Compression High Frequency Driver
The ZX1i's long excursion, high output EV8L 8" woofer with a weatherized treated
cone delivers smooth low frequency performance with exceptional reliability. A
sophisticated crossover network integrates it with the DH2005, a 1-inch voice coil
true compression driver with extended frequency response. The system also features
full overload protection for reliable, long term operation.
1 EV8L high performance weatherized 8" woofer
2 DH2005 1" true compression driver
3 Rotatable waveguide allows for speaker orientation in
either direction
4 Weatherized multi layer grille gives protection
indoors or out
Low loss crossover network for high efficiency
5
Full system overload protection circuitry ensures
6
reliable operation
Easy to access "keyed" adjustment points for
7
horizontal and vertical settings
"Click n' Mount" QuickSAM™ mounting system provides
8
wide range of motion for flexibility in placement
9 One piece lightweight enclosure is extremely durable
10 High capacity 100w transformer with ASC™ eliminates
distortion and saturation at high volume levels
11 4 pin detachable Phoenix-style connector provides pass
thru terminals for easy system wiring
Easy to access wattage tap selector switch on "t" models
12
provides a wide range of power settings
Frequency Response
(-3 dB)
Frequency Range
(-10 dB)
Axial Sensitivity
Maximum Calculated SPL
Horizontal Coverage
Vertical Coverage
System Power Handling
9
LF Transducer
4
HF Transducer
2
Nominal Impedance
Pole Mount
5
3
Transformer Taps
10
Connectors
6
Overload Protection
Mounting System
Built-In Monitor Angle
1
Available Colors
Included Accessories
Dimensions (H x W x D)
Net Weight
Shipping Weight
(1) Half-space measurements
11
A v a i l a b l e A c c e s s o r i e s
8
TC-ZX1 – The TC-ZX1 terminal cover with Glan nut attaches to the rear input panel and seals the rear connectors against
12
moisture and contamination.
AB-ZX1 – The AB-ZX array bracket system provides a flexible array mounting solution for 2 or 4 ZX1i speaker systems.
7
Americas
Telex Communications Inc.
12000 Portland Ave South,
Burnsville, MN 55337, USA
USA—Phone: 1-800-392-3497, Fax: 1-800-955-6831
Canada—Phone: 1-866-505-5551, Fax: 1-866-336-8467
Latin America—Phone: 1-952-887-5532, Fax: 1-952-736-4212
Europe, Africa & Middle-East
EVI Audio GmbH.
Hirschberger Ring 45, D 94315,
Straubing, Germany
Phone: +49 9421 706-0, Fax: +49 9421 706-265
ZX1-90 ZX1i-90 ZX1i-100 ZX1i-100t
Portable Version Fixed Install Version Fixed Install Version 70v/100v Version
(1)
60 Hz - 20 kHz 60 Hz - 20 kHz 60 Hz - 20 kHz 60 Hz - 20 kHz
(1)
48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz
94 dB (1W/1m) 94 dB (1W/1m) 92 dB (1W/1m) 92 dB (1W/1m)
(1)
125 dB 125 dB 121 dB
90° or 50° 90° or 50° 100°
50° or 90° 50° or 90° 100°
200W Continuous, 200W Continuous, 200W Continuous, 200W Continuous,
400W Program 400W Program 400W Program 400W Program
EV8L, 8 in (203mm) EV8L, 8 in (203mm) EV8L, 8 in (203mm) EV8L, 8 in (203mm)
Driver Driver Driver
DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm)
Exit Compression Driver Exit Compression Driver Exit Compression Driver Exit Compression Driver
8 Ohms 8 Ohms 8 Ohms
Included N/A N/A
6.5, 12.5, 25, 50, 100
N/A N/A N/A
watts 70/100v
4-Pin detachable 4-Pin detachable 4-Pin detachable
Two NL4 Connectors
Phoenix style Phoenix style Phoenix style
Full protection Full protection Full protection Full protection
– all modes – all modes – all modes – all modes
QuickSAM™ Heavy-Duty QuickSAM™ Heavy-Duty QuickSAM™ Heavy-Duty
Four M8 studs on
Strong-Arm Mounting Strong-Arm Mounting Strong-Arm Mounting
bottom of speaker
Bracket Bracket
Yes No No
Black Black/White Black/White Black/White
None QuickSAM™ Mount QuickSAM™ Mount QuickSAM™ Mount
17.75" x 11.12" x 10.35" 17.75" x 11.12" x 10.35" 17.75" x 11.12" x 10.35" 17.75" x 11.12" x 10.35"
451mm x 282mm x 451mm x 282mm x 451mm x 282mm x 451mm x 282mm x
263mm 263mm 263mm
8.4 kg (18.5 lbs) 8.4 kg (18.5 lbs) 8.4 kg (18.5 lbs) 10.4 kg (23.0 lbs)
10.2 kg (22.5 lbs) 10.2 kg (22.5 lbs) 10.2 kg (22.5 lbs) 12.3 kg (27.0 lbs)
UK: Telex Communications (U.K.), Ltd., Australia: APAC Audio Pty Ltd. Hong Kong: EVI Audio Ltd.
Unit 26 Fiddlebridge Industrial Center, James Ruse Business Park Unit 5,1/F,Topsail Plaza
Lemsford Road Unit 2C 6 Boundary Road 11 On Shum Street
Hatfield, Hertfordshire AL10 0DE, UK Northmead NSW 2152 Shek Mun,Shatin
Phone: +44 1707 280 960 Phone: +61 2 9683 4752 Hong Kong
Fax: +44 1707 265 083 Fax: +61 29890 5928 Phone: +852 2351-3628, Fax: +852 2351-3329
Asia & Pacific Rim China: EVI Audio Ltd. Singapore: Telex Pte. Ltd.
Room 2210-2215, Tower B, Far East International 3015A Ubi Road 1, 05-10
Japan: EVI Audio Japan Ltd.
Plaza, No. 317, Xianxia Road, Kampong Ubi Industrial Estate, Singapore 408705
5-3-8 Funabashi, Setagaya-Ku,
Shanghai, China, Post Code: 200051 Phone: +65 6746-8760, Fax: +65 6746-1206
Tokyo, Japan 156-0055
Phone: +86 (21) 6235-1677
Phone: +81 3-5316-5020,
Fax: +86 (21) 6235-1676
Fax: +81 3-5316-5031
121 dB
100°
Indoor/Outdoor Surface Mount Speaker System
100°
Driver
8 Ohms
N/A
Bracket
No
263mm
Compact | High Performance | Versatile
