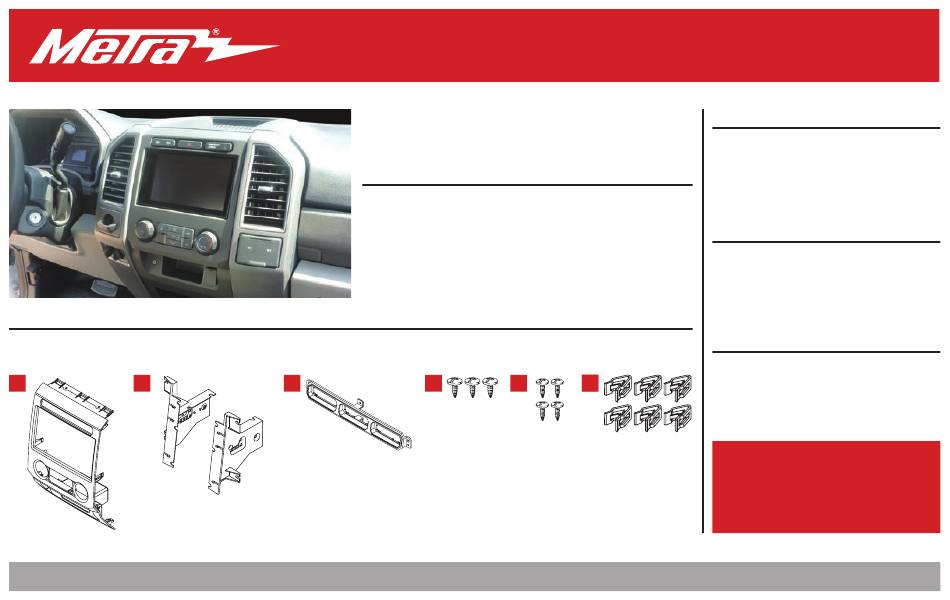

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Switch housing • D) #8 x 3/8" Phillips screws (3) • E) #6 x 3/8" Phillips screws (4) • F) Panel clips (6)
A
B
Metra. The World's Best Kits.
®
Ford F-250/350/450/550 XL
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted scratch-resistant matte black to match the
factory color and finish
C
D
MetraOnline.com
2017-up*
(w/o color screen)
E
E F
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
108-FD7B
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: XSVI-5524-NAV
Antenna Adapter: 40-EU10
Steering wheel control interface: ASWC-1
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • Torx screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 11/1/19 INST108-FD7B
Advertisement
Related Manuals for Metra Electronics 108-FD7B
Summary of Contents for Metra Electronics 108-FD7B
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/1/19 INST108-FD7B...
- Page 2 (Figure B) 4. Unclip and remove the power port assembly. 3. Unclip, unplug, and remove the climate- (Figure A) control/radio trim panel. To the 108-FD7B climate-control/radio trim panel: 5. Secure the climate control panel to the panel using Continue to Kit Preparation (Figure A) (Figure A) (4) #6 x 3/8”...
- Page 3 KIT ASSEMBLY Note: For steps 1 and 2, reference the Slightly unclip the middle ac vent panels installation manual provided with the radio in preparation for the next step. for which hardware to use. The display 5. Remove (4) screws in the dash cavity, screen and radio chassis use two different then secure the completed assembly types of screws.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/1/19 INST108-FD7B...
