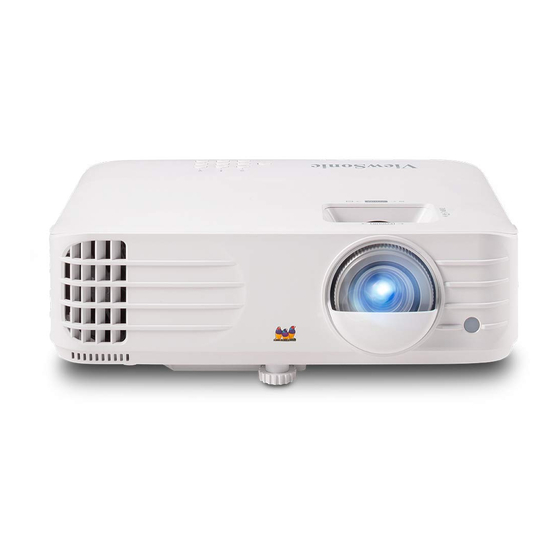

ViewSonic PX727HD User Manual
  1. Manuals
  2. Brands
  3. ViewSonic Manuals
  4. Projector
  5. PX727HD
  6. User manual

ViewSonic PX727HD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PX727HD
Projector
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product
in a safe manner, as well as registering your product for future service. Warranty information contained in this
User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"
Model
No.
VS17694
Model Name: PX727HD

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic PX727HD

Summary of Contents for ViewSonic PX727HD

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
  • Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well. Once again, thank you for choosing ViewSonic®!

  • Page 3: Safety Precautions - General

    Safety Precautions - General Please read the following Safety Precautions before you start using the projector. • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instructions. • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
  • Page 4 (UPS). • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. • Use only attachments/accessories specified by the manufacturer.
  • Page 5 Safety Precautions - Ceiling Mounting Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

  • Page 6: Table Of Contents

    Contents Safety Precautions - General ........3 Features ........................10 Package Contents ....................10 Product Overview ....................11 Projector ........................ 11 Controls and Functions ....................11 Connection Ports ......................12 Remote Control ..................... 13 Controls and Functions ....................13 Remote Control Effective Range ................. 14 Replacing the Remote Control Batteries ..............
  • Page 7 Making Connections ..........24 Connecting to Power ....................24 Connecting to Video Sources ................25 HDMI Connection ....................25 Connecting to Computer Sources .................26 VGA Connection ....................26 VGA Out Connection ..................... 26 Connecting to Audio .....................27 Operation ..............28 Turning the Projector On/Off ................28 Starting Up the Projector ..................
  • Page 8 Appendix ..............61 Specifications ......................61 Projector Dimensions .................... 62 Timing Chart ......................62 Analog RGB ......................62 HDMI (PC) ......................64 HDMI (Video) ......................65 IR Control Table ....................66 Address Code ......................67 RS-232 Command Table ..................68 Pin Assignment ...................... 68 Interface ........................ 68 Command Table ....................
  • Page 9 Regulatory and Service Information ......83 Compliance Information ..................83 FCC Compliance Statement ................... 83 Industry Canada Statement ................... 83 CE Conformity for European Countries ..............83 Declaration of RoHS2 Compliance................. 84 Indian Restriction of Hazardous Substances ............85 Product Disposal at End of Product Life ..............85 Copyright Information ..................86 Customer Service ....................

  • Page 10: Features

    Introduction PX727HD is a practical Home Cinema Projector, featuring 2000 ANSI lumens and 1080p Full HD resolution to produce the finest of details in any medium sized space. Also includes ViewSonic’s exclusive Cinema SuperColor ™ technology which provides users with a stunning color performance.

  • Page 11: Product Overview

    Product Overview Projector Controls and Functions Temperature Indicator Light Power Indicator Lamp Indicator Light Light MENU BLANK EXIT COLOR SOURCE MODE Vent (heated air Focus Ring exhaust) Zoom Ring Projection Lens Remote IR sensor Description Toggles the projector between standby mode and Power On. Power Manually corrects distorted images resulting from an angled / / ] Keystone...

  • Page 12: Connection Ports

    Connection Ports Security Slot AC Power Cord Inlet Security Bar Ceiling Mount Holes Adjuster Foot Port Description [1] AUDIO OUT Audio signal output socket. [2] AUDIO IN Audio signal input socket. [3] HDMI 1 HDMI port. [4] HDMI 2 HDMI port. [5] USB 5V/1.5A OUT USB Type A port for power supply.

  • Page 13: Remote Control

    Remote Control Button Description Enter Enacts the selected OSD Menu item. Controls and Functions Displays the Corner Adj. (Corner menu. Adjustment) Selects the desired Left/ Right menu items and makes Down adjustments. COMP HDMI 1 HDMI 2 Menu Turns on/off the On-Screen Auto Source Sync...

  • Page 14: Remote Control Effective Range

    Remote Control Tffective Range To ensure proper function of the remote control follow the steps below: The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s). The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.) NOTT: Refer to the illustration for the location of...

  • Page 15: Initial Setup

    Initial Setup This section provides detailed instructions for setting up your projector. Choosing a Location Personal preference and room layout will decide the installation location. Consider the following: • Size and Position of your screen. • Location of a suitable power outlet. •...

  • Page 16: Projection Dimensions

    Projection Dimensions NOTT: See “Specifications” on page 61 for the native display resolution of this projector. • 16:9 Image on a 16:9 Screen • 16:9 Image on a 4:3 Screen NOTT: (e) = Screen / (f) = Center of Lens 16:9 Image on a 16:9 Screen (a) Screen (b) Projection Distance...

  • Page 17: 16:9 Image On A 4:3 Screen

    16:9 Image on a 4:3 Screen (a) Screen (b) Projection Distance (c) Image (d) Vertical Offset Size minimum maximum Height minimum maximum 1524 1368 1779 1778 1596 2075 2032 1824 2371 2286 2052 2668 1029 2540 2280 2964 1143 2794 2508 3261 1257...

  • Page 18: Mounting The Projector

    If you buy a third-party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount. 2. Ensure the screws used to attach a mount to the projector meet the following specifications: •...

  • Page 19: Preventing Unauthorized Use

    Preventing Unauthorized Use The projector has several built-in security features to prevent theft, access, or accidental setting changes. Using the Security Slot To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object. Below is an example of setting up a security slot locking device: NOTT: The security slot can also be used as a safety anchor if the projector is...

  • Page 20: Using The Password Function

    Using the Password Function To help prevent unauthorized access or use, the projector offers a password security option. The password can be set through the On-Screen Display (OSD) Menu. NOTT: Make note of your password, and keep it in a safe place. Setting a Password Press Menu to open the OSD Menu and go to: SYSTTM...

  • Page 21: Changing The Password

    Changing the Password Press Menu to open the OSD Menu and go to: SYSTTM > Security Settings > Change Password. 2. Press Tnter, the message, ‘INPUT CURRENT PASSWORD’ will appear. 3. Enter the old password. ͫ If the password is correct, the message, ‘INPUT NEW PASSWORD’ will appear.

  • Page 22: Forgetting The Password

    Forgetting the Password If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message, as pictured to the right, will appear for 5 seconds, and the message ‘INPUT PASSWORD’...

  • Page 23: Locking The Control Keys

    Locking the Control Keys With the control keys on the projector locked, you can prevent your settings from being changed accidentally (by children, for example). NOTT: When the Panel Key Lock is On, no control keys on the projector will operate except Power.

  • Page 24: Making Connections

    Making Connections This section guides you on how to connect the projector with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the projector. 2. Plug the power cord into a power outlet. NOTT: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible...

  • Page 25: Connecting To Video Sources

    Connecting to Video Sources HDMI Connection Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector.

  • Page 26: Connecting To Computer Sources

    Connecting to Computer Sources VGA Connection Connect one end of a VGA cable to the VGA port of your computer. Then connect the other end of the cable to the COMPUTTR IN port of your projector. NOTT: Some notebooks do not turn on their external displays automatically when connected to a projector.

  • Page 27: Connecting To Audio

    Connecting to Audio The projector is equipped with speakers, however, you can also connect external speakers to the AUDIO OUT port of the projector. NOTT: The audio output is controlled by the projector’s Volume and Mute settings.

  • Page 28: Operation

    Operation Turning the Projector On/Off Starting Up the Projector 1. Press the Power button to turn on the projector. 2. The lamp will light up, and a “Power On/Off Ring Tone” will play. 3. The Power Indicator Light stays green when the projector is On.

  • Page 29: Shutting Down The Projector

    Shutting Down the Projector 1. Press the Power or Off button and a confirmation message will appear to prompt you to press the Power or Off button a second time. Additionally you can press any other button to cancel. NOTT: If you do not respond in a few seconds after the first press, the message will disappear.

  • Page 30: Selecting An Input Source

    Selecting an Input Source The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. If you want the projector to automatically search for the input source, ensure the Quick Auto Search function in the SYSTTM menu is On.

  • Page 31: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Projector's Height and Projection Angle The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector’s height and the vertical projection angle. Carefully adjust the feet to fine tune the projected image’s position. Auto-Adjusting the Image Sometimes, you may need to improve the picture quality.

  • Page 32: Correcting Keystone

    Correcting Keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct this, besides adjusting the height of the projector, you may also: 1. Use the keystone keys on the projector or remote control to display the keystone page.

  • Page 33: Adjusting 4 Corners

    Adjusting 4 corners You can manually adjusts the shape and size of an image that is unevenly rectangular on all sides. 1. To display the Corner Adj. page, you can do one of the followings: • Press • Open the OSD menu and go to the DISPLAY >...

  • Page 34: Menu Functions

    Menu Functions This section will introduce the On-Screen Display (OSD) Menu and its options. General On-Screen Display (OSD) Menu Operation NOTT: The OSD screenshots in this manual are for reference only and may differ from the actual design. Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

  • Page 35: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option DISPLAY Aspect Ratio Auto 16:9 16:10 Native Keystone Vertical -40~40 Horizontal -40~40 Corner Adj. Top-Right 45°/90° Top-Left 45°/90° Bottom-Right 45°/90° Bottom-Left 45°/90° Position X: -5 ~ 5, Y: - 5 ~ 5 Phase 0~31 H.
  • Page 36 Main Menu Sub-menu Menu Option IMAGT Color Mode Brightest Sports Standard Gaming Movie (Rec.709) ISF Day ISF Night User 1 User 2 Brightness 0~100 Contrast -50~50 Color Temp. 8000K/6500K/5500K Red Gain 0~100 Green Gain 0~100 Blue Gain 0~100 Red Offset -50~+50 Green Offset -50~+50...
  • Page 37 Main Menu Sub-menu Menu Option Auto Power On Signal Disable/VGA/HDMI/ Disable/Enable Direct Power On Disable/Enable Smart Energy Auto Power Off Disable/10 min/20 min/30 min Sleep Timer Disable/30 min/1 hr/2hr/3 hr/4 hr/ 8 hr/12 hr Power Saving Disable/Enable Standby Settings VGA Loop Through Off/On Audio Pass Through Off/On...
  • Page 38 1~240 m Timer Display Always/1 min/2 min/ 3 min/Never Timer Position Top-Left/Bottom-Left/ Top-Right/Bottom-Right Timer Counting Direction Count Down/Count Up Sound Reminder Off/On Start Counting/Off Pattern Test Card Blank Timer Disable/5 min/10 min/15 min/20 min/25 min/30 Message Splash Screen Black Blue ViewSonic...
  • Page 39 Main Menu Sub-menu Menu Option ADVANCTD 3D Settings 3D Sync Auto Frame Sequential Frame Packing Top-Bottom Side-by-Side 3D Sync Invert Disable/Invert Save 3D Settings Yes/No HDMI Settings HDMI Format Auto/RGB/YUV HDMI Range Auto/Enhanced/Normal Lamp Settings Lamp Mode Normal/Eco/ Dynamic Eco/ SuperEco+ Reset Lamp Hours Reset/Cancel...
  • Page 40 Main Menu Sub-menu Menu Option SYSTTM High Altitude Mode Quick Auto Search Security Settings Change Password Power On Lock Off/On Panel Key Lock Remote Control Code 1/2/3/4/5/6/7/8 Control Method RS-232 Baud Rate 2400/4800/9600/14400/19200/ 38400/57600/115200 INFORMATION Source Color Mode Resolution Color System Firmware Version 3X Fast Input...

  • Page 41: Display Menu

    DISPLAY Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the DISPLAY menu. Then press Tnter or use to access the DISPLAY menu. 3. Press to select the menu option. Then press Tnter to display its sub-menu, or press...
  • Page 42 Menu Option Description Aspect Ratio Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image’s aspect ratio.
  • Page 43 Menu Option Description H. Size Adjusts the horizontal width of the image. NOTT: This function is only available when a PC input signal is selected. Zoom Magnifies the projected image and allows you to navigate the image. OverScan Adjusts the overscan rate from 0% to 5%. NOTT: This function is only available when a Composite Video or HDMI input signal is selected.

  • Page 44: Image Menu

    IMAGT Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the IMAGT menu. Then press Tnter or use to access the IMAGT menu. 3. Press to select the menu option. Then press to display its sub-menu, Tnter or press...
  • Page 45 Menu Option Description Color Mode Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms. Sports Designed for viewing sports in well-lit environments. Standard Designed for normal circumstances in a daylight environment.
  • Page 46 Menu Option Description Color Temp. 8000K Images appear bluish white. 6500K Images maintain a normal white appearance. 5500K Images appear reddish white. To set a custom color temperature, you can further adjust the following items: Red Gain/Green Gain/Blue Gain Adjusts the Contrast levels of Red, Green, and Blue. Red Offset/Green Offset/Blue Offset Adjusts the Brightness levels of Red, Green, and Blue.
  • Page 47 Menu Option Description Advanced Noise Reduction This function reduces electrical image noise caused by different media players. The higher the setting, the less the noise. (Not available when input signal is HDMI.) Color Management Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered.

  • Page 48: Power Management Menu

    POWTR MANAGTMTNT Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the POWTR MANAGTMTNT menu. Then press Tnter or use to access the POWTR MANAGTMTNT menu. 3. Press to select the menu option. Then press Tnter to display its sub-menu, or press...
  • Page 49 Menu Option Description Auto Power On Signal Selecting VGA/HDMI allows the projector to turn on automatically once the VGA/HDMI signal is fed through the VGA/HDMI cable. You can also select All and the projector will turn on automatically upon receiving either a VGA or HDMI signal.
  • Page 50 Menu Option Description Standby Settings The functions below are available in standby mode (plugged in, but not turned on). VGA Loop Through When selecting On, the projector outputs the signal received only from COMPUTER IN. Audio Pass Through When selecting On, the projector outputs an audio signal when the Audio In and Audio Out sockets are correctly connected to a proper device.

  • Page 51: Basic Menu

    BASIC Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the BASIC menu. Then press Tnter or use to access the BASIC menu. 3. Press to select the menu option. Then press Tnter to display its sub-menu, or press...
  • Page 52 Menu Option Description Audio Settings Mute Select to temporarily turn off the projector’s internal speaker or the volume being output from the audio output jack. Audio Volume Adjusts the volume level of the projector’s internal speaker or the volume being output from the audio output jack. Power On/Off Ring Tone Turns on/off the ring tone during the starting up and shutting down process.
  • Page 53 Menu Option Description Pattern Helps adjust the image size and focus, and checks for distortion in the projected image. Blank Timer Allows the projector to return the image automatically after a period of time when there is no action taken on the blank screen.

  • Page 54: Advanced Menu

    ADVANCTD Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the ADVANCTD menu. Then press Tnter or use access the ADVANCTD menu. 3. Press to select the menu option. Then press to display its sub-menu, Tnter or press to adjust/select the setting.
  • Page 55 Menu Option Description 3D Settings This projector features a 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images. 3D Sync The default setting is Auto and the projector automatically chooses an appropriate 3D format when detecting 3D...
  • Page 56 Menu Option Description Lamp Settings Lamp Mode ͫ Normal: Provides full lamp brightness. ͫ Eco: Reduces lamp power consumption by 30% and lowers brightness to extend the lamp life and decreases the fan noise. ͫ Dynamic Eco: Reduces lamp power consumption by up to 65% depending on the content brightness level.

  • Page 57: System Menu

    SYSTTM Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the SYSTTM menu. Then press Tnter or use to access the SYSTTM menu. 3. Press to select the menu option. Then press to display its sub-menu, Tnter or press...
  • Page 58 Menu Option Description Language Sets the language for the On-Screen Display (OSD) Menu. Projector Position Selects a proper position for the projector. Menu Settings Menu Display Time Sets the length of time the OSD Menu will remain active after your last interaction. Menu Position Sets the OSD Menu’s position.
  • Page 59 Menu Option Description Baud Rate Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable and control the projector with RS-232 commands...

  • Page 60: Information Menu

    INFORMATION Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the INFORMATION menu and display its contents. Menu Option Description Source Shows the current input source. Color Mode Shows the selected mode in the IMAGE menu. Resolution Shows the native resolution of the input source.

  • Page 61: Appendix

    (W x H x D) (12.3” x 4.3” x 8.7”) Weight Physical 3.91 kg (8.62 lbs) Power Saving 310W (Typical) Modes < 0.5W (Standby) Please use the power adapter from ViewSonic® or an authorized source only. The test condition follows EEI standards.

  • Page 62: Projector Dimensions

    Projector Dimensions 312 mm (W) x 108 mm (H) x 222 mm (D) 312 mm 108 mm MENU BLANK EXIT 62.72 mm 91.81 mm COLOR SOURCE MODE Timing Chart Analog RGB Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz)
  • Page 63 Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 1280 x 800 WXGA_60 59.81 49.702 83.5 Supported Supported Supported WXGA_75 74.934 62.795 106.5 WXGA_85 84.88 71.554 122.5 WXGA_120 (Reduce 119.909 101.563 146.25 Supported Blanking) 1280 x 1024 SXGA_60 60.02...

  • Page 64: Hdmi (Pc)

    HDMI (PC) Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 640 x 480 VGA_60 59.94 31.469 25.175 Supported Supported Supported VGA_72 72.809 37.861 31.5 VGA_75 37.5 31.5 VGA_85 85.008 43.269 720 x 400 720 x 400_70 70.087 31.469...

  • Page 65: Hdmi (Video)

    Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 1680 x 1050 1680x1050_60 59.954 65.29 146.25 Supported Supported 640 x 480@67Hz MAC13 66.667 30.24 832 x 624@75Hz MAC16 74.546 49.722 57.28 1024 x 768@75Hz MAC19 75.020 60.241...

  • Page 66: Ir Control Table

    IR Control Table Format Byte 1 Byte 2 Byte 3 Byte 4 NEC-F2 NEC-F2 COMP NEC-F2 HDMI/HDMI 1 NEC-F2 HDMI 2 NEC-F2 Auto Sync NEC-F2 Source NEC-F2 NEC-F2 NEC-F2 Left/ NEC-F2 Enter/ (Corner Adjustment) NEC-F2 Right/ NEC-F2 Down/ Menu NEC-F2 NEC-F2 (INFORMATION) Exit...

  • Page 67: Address Code

    Address Code Code 1 83F4 Code 2 93F4 Code 3 A3F4 Code 4 B3F4 Code 5 C3F4 Code 6 D3F4 Code 7 E3F4 Code 8 F3F4...

  • Page 68: Rs-232 Command Table

    Write Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67 Splash Screen Write Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68 Splash Screen Write ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69...
  • Page 69 Function Type Action Command Splash Screen Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68 Quick Power Off Write 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68 Quick Power Off Write 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69 Quick Power Off Read Status...
  • Page 70 Function Type Action Command Aspect ratio Write 16:9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65 Aspect ratio Write 16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66 Aspect ratio Write Native 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x09 0x6B Aspect ratio Write Cycle...
  • Page 71 Function Type Action Command Color temperature- Write Decrease 0x06 0x14 0x00 0x05 0x00 0x34 0x12 0x3E 0x01 0x00 0x9E Green offset Color temperature- Write Increase 0x06 0x14 0x00 0x05 0x00 0x34 0x12 0x3E 0x01 0x01 0x9F Green gain Color temperature- Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x40 0x9F...
  • Page 72 Function Type Action Command Saturation Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71 Saturation Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71 Gain Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71 Gain Write Increase...
  • Page 73 Function Type Action Command Language Write Czech 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E Language Write Portuguese 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F Language Write Thai 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70 Language Write Polish...
  • Page 74 Function Type Action Command Remote Control Write code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1 Code Remote Control Write code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2 Code Remote Control Write code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3 Code Remote Control...

  • Page 75: Glossary

    Glossary This section describes the standard glossary of terms used in projector models. All terms are listed in alphabetical order. NOTT: Some terms may not be applicable to your projector. Aspect Ratio Refers to the ratio of the image width to the image height. Auto Sync Built-in intelligent auto adjustment function that will re-adjust the frequency and clock values to provide the best picture quality.
  • Page 76 Activating it will improve projector cooling and performance. INFORMATION Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL. Input Select Toggles between the various input options that are available for the projector.
  • Page 77 Lamp Settings The projector’s lamp information and settings can be viewed and adjusted by viewing the “Lamp Hours Information” or adjusting the “Lamp Mode”. Movie Mode A Color Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

  • Page 78: Troubleshooting

    Troubleshooting Common Problems This section describes some common problems that you may experience when using the projector. Problem Possible Solutions The projector does not turn on • Ensure the power cord is properly attached to the projector and to the power outlet. •...

  • Page 79: Led Indicators

    LTD Indicators Light Status and Description Power Green Stand-by mode Flashing Green Powering up Green Normal operation Green Normal power-down cooling Flashing Downloading Green Green Green Burn in off Lamp Green First light source-lit error cooling Flashing Light source error in normal operation Green Color wheel start has failed Heating/Cooling...

  • Page 80: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 81: Lamp Information

    Lamp Information This section will provided a better understanding of your projector’s lamp. Lamp Hour When the projector is being used, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. To obtain the lamp hour information: 1.

  • Page 82: Lamp Replacement Timing

    Lamp Replacement Timing When the Lamp Indicator Light lights up, please install a new lamp or consult your dealer. CAUTION: An old lamp may cause a malfunction in the projector and in some instances the lamp may explode. Replacing the Lamp It is recommended to turn the power off and disconnect the projector from the power outlet, and contact a qualified service personnel for lamp replacement.

  • Page 83: Regulatory And Service Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 84: Declaration Of Rohs2 Compliance

    The following information is only for TU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

  • Page 85: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at Tnd of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...

  • Page 86: Copyright Information

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.

  • Page 87: Customer Service

    For technical support or product service, see the table below or contact your reseller. NOTT: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) 香港 (繁體中文) www.viewsonic.com.cn www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/ Indonesia www.viewsonic.com/id/...

  • Page 88: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
  • Page 89 (e) the serial number of the product. 3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic. 4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic. Limitation of implied warranties:...
  • Page 90 Txclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

  • Page 91: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 92 Txclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
  • Page 93 Tel: (52) 999-925-1916 Tel: 01(52)95-15-15-22-22 E-Mail: rrrb@sureste.com Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com Tijuana: FOR USA SUPPORT: ViewSonic Corporation Av Ferrocarril Sonora #3780 L-C 14035 Pipeline Ave. Chino, CA 91710, USA Col 20 de Noviembre Tel: 800-688-6688 Tijuana, Mexico E-Mail: http://www.viewsonic.com Projector Mexico Warranty Term Template In UG...
  • Page 94 C0 M91 Y72 K24 Process Color Process Color C0 M0 Y0 K100 C0 M91 Y72 K24 Process Color Spot Color Pantone Black C Pantone 187 C Spot Color...
