Summary of Contents for AOC CQ32G3SU

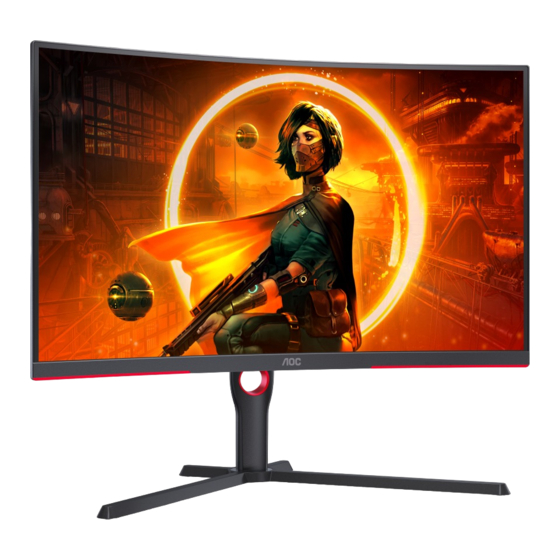

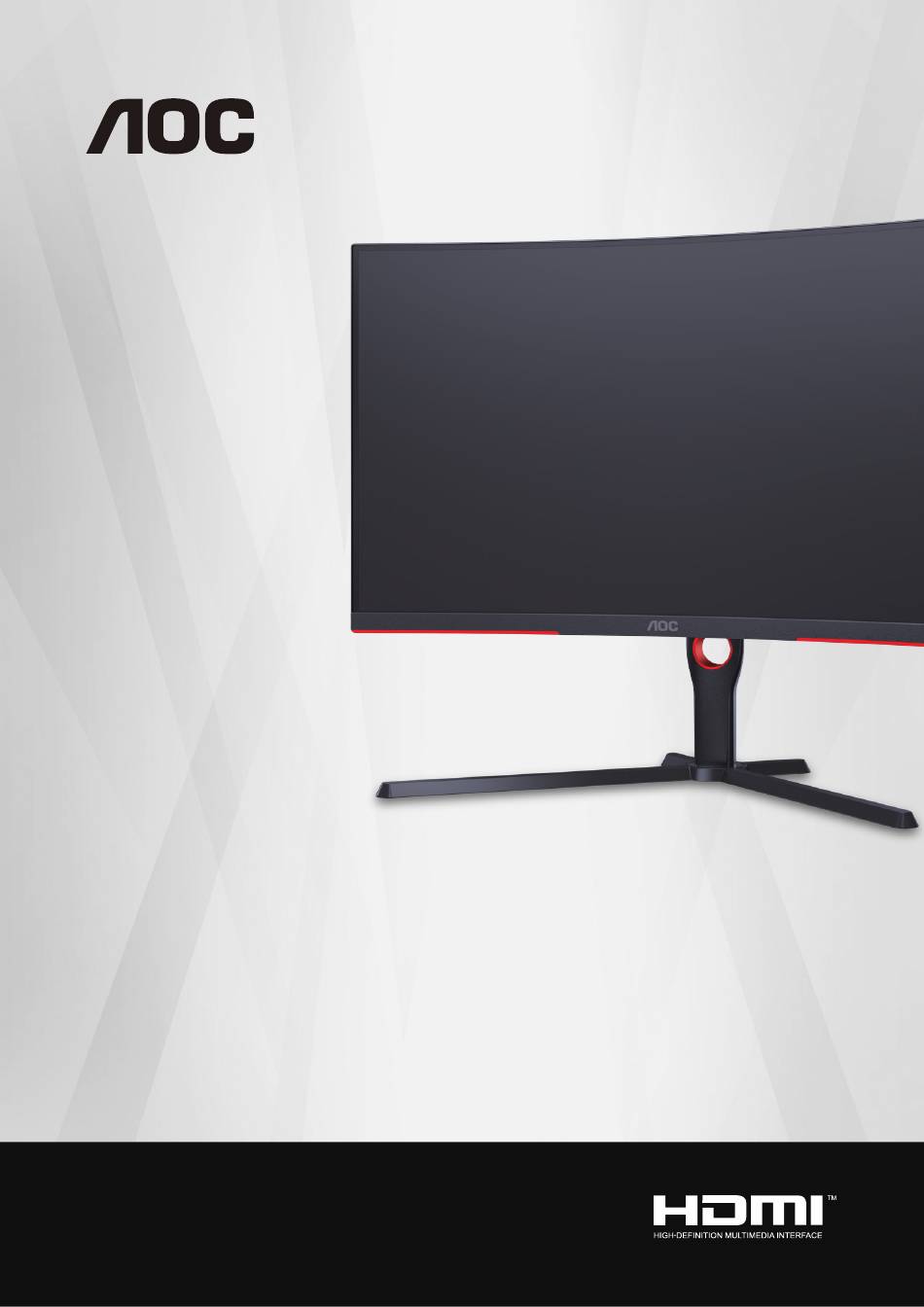

- Page 1 LCD Monitor User Manual CQ32G3SU www.aoc.com ©2021 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Setup Contents in Box CD Manual Warranty card Stand Base Power Cable HDMI Cable DP Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 130mm NOTE:... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. USB 3.2 Gen1 downstream x 2 2. USB 3.2 Gen1 downstream + fast charging 3. USB 3.2 Gen1 downstream 4. USB upstream 5. HDMI x 2 6. DP 7. -
Page 12: Wall Mounting
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. * Display design may differ from those illustrated. WARNING: 1. -
Page 13: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series • Radeon™ RX 400 series •... -
Page 14: Adjusting
Adjusting Hotkeys Source/Exit Game Mode Dial Point Menu/Enter Power Menu/Enter Press to display the OSD or confirm the selection. Power Press the Power button to turn on the monitor. Dial Point When there is no OSD, press Dial Point button to show / hide Dial Point. Game Mode When there is no OSD, press “... -
Page 15: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco mode Standard DisplayHDR 1). Press the MENU-button to activate the OSD window. 2). Press Left or Right to navigate through the functions. -
Page 16: Luminance
Luminance Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco mode Standard DisplayHDR Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment. Standard Standard Mode. Text Text Mode. Internet Internet Mode. Eco mode Game Game Mode. -
Page 17: Color Setup
Color Setup Color Setup Luminance Picture Boost OSD Setup Game Setting Extra Exit Color Temp. Warm DCB Mode Green DCB Demo Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM. -
Page 18: Picture Boost
Picture Boost Luminance Picture Boost Game Setting Extra Exit Color Setup OSD Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame On or Off Disable or Enable Bright Frame. Frame Size 14-100 Adjust Frame Size. Brightness 0-100 Adjust Frame Brightness. -
Page 19: Osd Setup
OSD Setup Game Setting Extra Exit Luminance Color Setup Picture Boost OSD Setup Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability 1.2/1.4 Volume Language Select the OSD language. Timeout 5-120 Adjust the OSD Timeout. If the DP video content supports DP1.2/1.4, please select DP1.2/1.4 for DP Capability;... -
Page 20: Game Setting
Game Setting Extra Exit Luminance Game Setting Color Setup Picture Boost OSD Setup Adaptive-Sync Game Mode Game Color Shadow Control LowBlue Mode Frame Counter Low Input Lag Overdrive No optimization by Smart image game For playing FPS (first Person Shooters) games. Improves dark theme black level details. -
Page 21: Extra
Extra Extra Exit Luminance Picture Boost OSD Setup Color Setup Game Setting Input Select Auto DDC/CI Resolution : 2560x1440 Off Timer Reset H. Frequency : 88 KHz Image Ratio Wide V. Frequency : 60 Hz Input Select Auto/HDMI1/HDMI2/DP Select Input Signal Source. Off timer 0-24hrs Select DC off time. -
Page 22: Exit
Exit Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Exit Exit the main OSD... -
Page 23: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 24: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 25: Specification
Specification General Specification Model name CQ32G3SU Driving system TFT Color LCD Viewable Image Size 80 cm diagonal Panel Pixel pitch 0.2724mm(H) x 0.2724mm(V) Video HDMI lnterface & DP Interface Separate Sync. H/V TTL Display Color 16.7M Colors Horizontal scan range 30k-250kHz Horizontal scan Size(Maximum) 697.344mm... -
Page 26: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(KHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.02 SXGA 1280x1024@75Hz... -
Page 27: Pin Assignments
Pin Assignments Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield... -
Page 28: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
