Art PDS8u Operation Manual

We congratulate you on choosing the ART PDS8u Power Distribution System. You will find that this unit has been designed
for easy use. The latest advances in power technology have been utilized in the design of this unit. Please read all instructions
before operating.
Features:

Front-Mounted Circuit Breaker Reset Switch

Surge & Overload Protection

Protection Indicator LED

EMI & RFI Filtering, noise free power (Transverse mode: Greater than (26db, 200kHz to 10Mhz))

Energy Dissipation 1700 Joules

Peak Impulse Current 12000A

8 AC Outlets

2 USB Outlets USB1 5V/1A, USB2 5V/2.1A

2 AC Outputs Have Extra Wide Spacing Suitable for Large Size 'Wall Warts'

Total Power Capacity of 1800 watts

Extremely Tough Metal Casing

20' Cord for Reaching Far Away Outlets
The PDS8u protects your delicate electronic equipment with a high voltage varistor (MOV) surge and transient suppressor.
The fast-acting suppression circuit responds in less than a nanosecond, clamping transient voltages to safe levels.
OPERATION
MAXIMUM LOAD
The eight-circuit breaker protected outlets are rated at 15 amps, which is equivalent to 1800 watts at 120 volts. If the total load
on the PDS8u Unit's outlets exceed 15 amps, the circuit breaker will trip, cutting off power to your connected products. If this
happens, reduce the load by unplugging one or more units from the PDS8u DISTRIBUTION SYSTEM. Then rock the circuit
breaker switch back to reset it.
USB Charger
USB charging 2Port 5v/3.1/ (over voltage & over current protection). The charging port is only active when the main power
switch for the PDS8u is in the on position.
POWER SWITCH
The PDS8u DISTRIBUTION SYSTEM has a master POWER switch. This switch glows when the unit is on.
DIMENSIONS
1.61in(H) 3.39in(D) 11.02in(W) / 41mm(H) 86mm(D) 280mm(W)
WEIGHT
2.65lb / 1.2kg

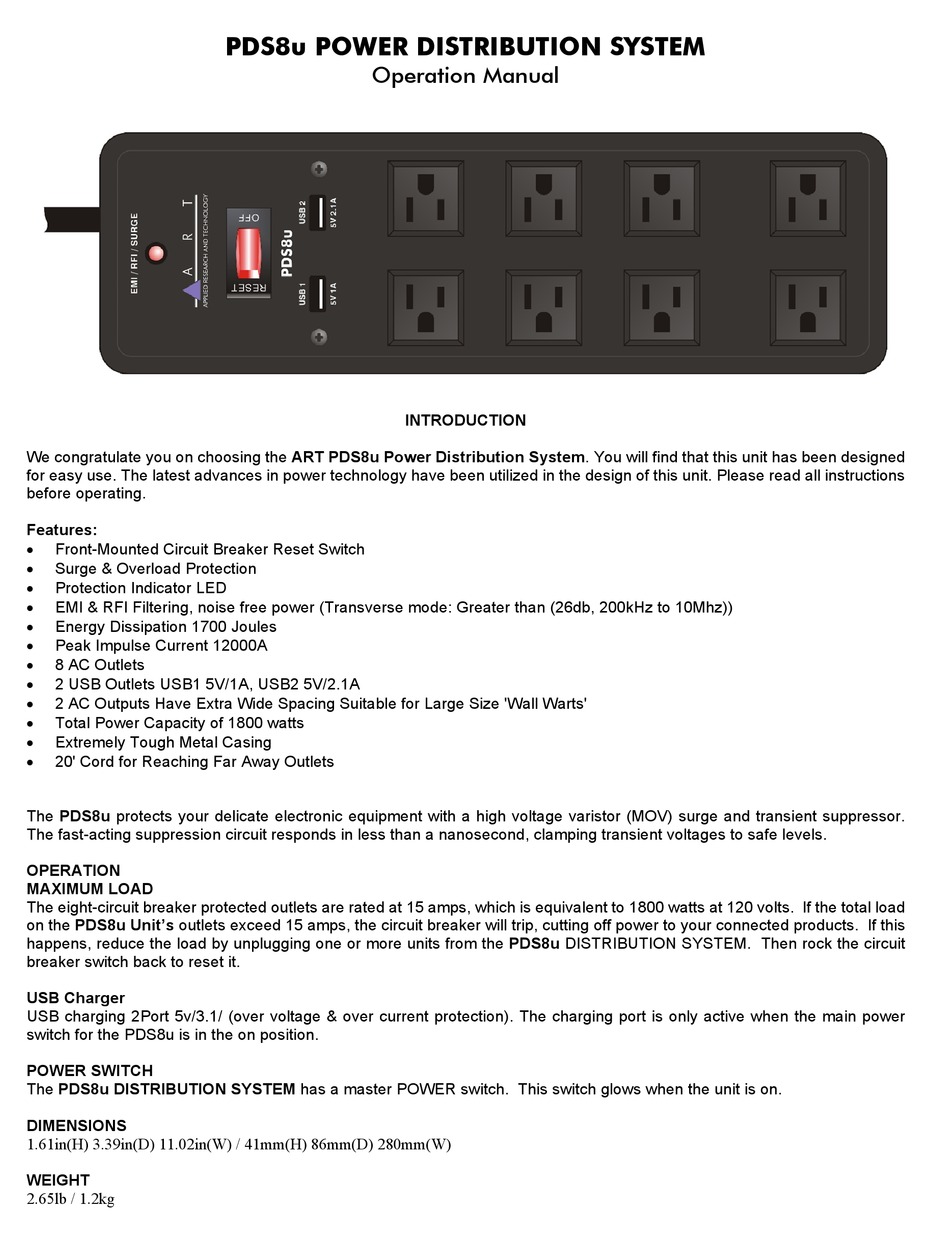

PDS8u POWER DISTRIBUTION SYSTEM
Operation Manual
INTRODUCTION
