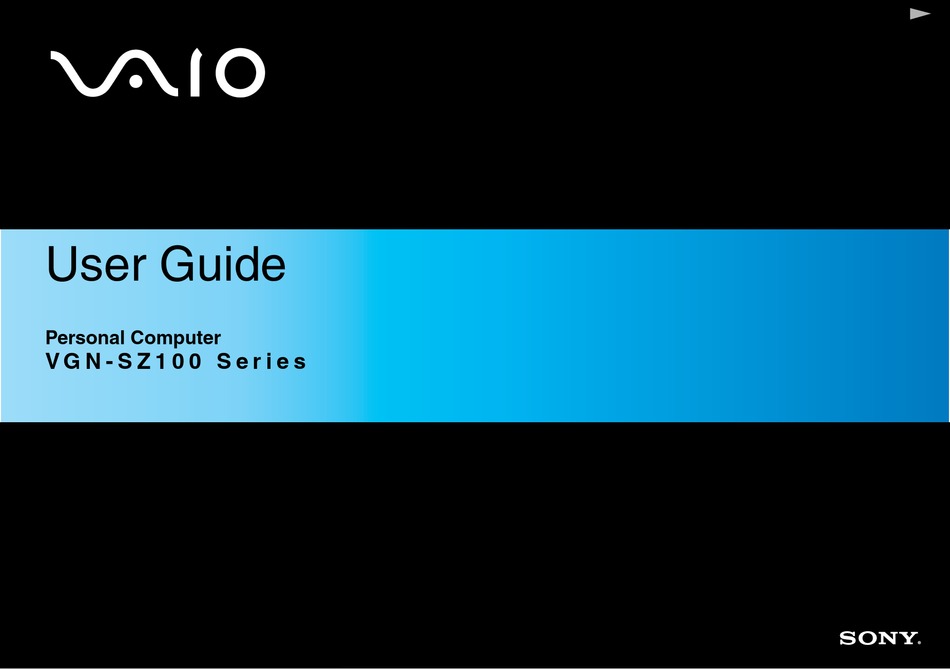

Page 1: User Guide
User Guide Personal Computer V G N - S Z 1 0 0 S e r i e s...
Page 2: Table Of Contents
Contents Before Use ...6 Documentation ...6 Ergonomic Considerations ...8 Getting Started ...10 Locating Controls and Ports...11 About the Indicator Lights ...17 Connecting a Power Source ...19 Using the Battery Pack ...20 Shutting Down Your Computer Safely ...25 Using Your VAIO Computer ...26 Using the Keyboard ...27 Using the Touch Pad ...29 Using Special-function Buttons ...30...
Page 3 Using Peripheral Devices ...75 Connecting a Docking Station...76 Connecting External Speakers ...85 Connecting an External Display ...86 Selecting Display Modes...90 Using the Multiple Monitors Function ...91 Connecting an External Microphone ...93 Connecting a Universal Serial Bus (USB) Device...94 Connecting a Printer ...97 Connecting an i.LINK Device ...98 Connecting to a Network (LAN) ...100 Customizing Your VAIO Computer ...102...
Page 4 Precautions ...151 On Handling the LCD Screen ...152 On Using the Power Source ...153 On Handling Your Computer...154 On Using the Built-in MOTION EYE Camera...156 On Handling Floppy Disks ...156 On Handling Discs ...157 On Using the Battery Pack...158 On Using Headphones...159 On Handling Memory Stick Media...159 On Handling the Hard Disk ...160 On Handling the Memory Card Adapter...161...
Page 5 Mouse ...198 Speakers ...199 Touch Pad...200 Keyboard...201 Floppy Disks ...202 PC Cards ...203 Audio/Video...204 Memory Stick Media ...205 Peripherals ...206 Docking Station ...207 Support Options ...208 Sony Support Information ...208 Program Support Information...211...
Page 6: Before Use
Your documentation includes printed information and user guides to read on your VAIO computer. Printed Documentation Welcome mat — Contains an overview of connections, setting up information, etc. Safety information — Contains safety guidelines and owner information. ® computer, and welcome to the on-screen User Guide. Sony has Before Use...
Page 7 Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at http://www.sony.ca/support American countries or areas. VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings.
Page 8: Ergonomic Considerations
Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
Page 9 Before Use Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
Page 10: Getting Started
Getting Started This section describes how to get started with using your VAIO computer. Before the first computer startup, do not connect any new hardware that did not normally come with your computer. Make sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, external hard disk drive, scanner, and so on) at a time, following the manufacturer's instructions.
Page 11: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Please note that the illustrations in this manual may not necessarily apply to your model. Front Built-in MOTION EYE camera (page 31) Built-in MOTION EYE camera indicator Built-in microphone (monaural) LCD screen...
Page 12 Power indicator (page 17) Battery indicator (page 17) Hard disk drive indicator (page 17) WLAN (Wireless LAN) indicator (page 17) WWAN (Wireless WAN) indicator (page 17) Bluetooth indicator (page 17) S1/S2 buttons (page 30) STAMINA mode indicator (page 17) Performance selector switch (page 103) SPEED mode indicator (page 17)
Page 13 Back DC IN port (page 19) SIM card slot See the SmartWi Connection Utility Guide for more information. Battery connector (page 20) Air vents On selected models only. Getting Started...
Page 14 Right Optical disc drive (page 32) Optical disc drive indicator (page 17) Manual eject hole (page 189) Drive eject button (page 32) ™ ExpressCard /34 slot (page 45) Hi-Speed USB (USB 2.0) ports (page 94) Network (Ethernet) port (page 100) Modem port (page 57) WWAN antenna...
Page 15 Left Microphone jack (page 93) Headphones jack (page 85) Air vents ® i.LINK (IEEE1394) S400 port (page 98) Monitor (VGA) port (page 87) PC Card slot (page 42) PC Card eject button (page 44) Memory Stick Duo/PRO Duo media indicator Memory Stick Duo/PRO Duo media slot Your computer supports Memory Stick Duo media and Memory Stick PRO Duo high speed and high capacity capabilities.
Page 16 Bottom Docking station connector (page 77) Air vents Getting Started...
Page 17: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks in Standby mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and double-blinks when the battery is charging.
Page 18 Indicator Functions Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled. Bluetooth WIRELESS LAN Illuminates when the wireless LAN function is running. Illuminates when the wireless WAN function is enabled. WIRELESS WAN On selected models only. Getting Started...
Page 19: Connecting A Power Source
Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter Use the computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 20: Using The Battery Pack
Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the lock switch (1) to the UNLOCK position. Slide the battery into the battery compartment until it clicks into place.
Page 21 Slide the lock switch (1) to the LOCK position to secure the battery on the computer. When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. This computer is designed to operate only with genuine Sony batteries.
Page 22: Charging The Battery Pack
Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges).
Page 23 Getting Started When the battery is running out of power, both the battery and power indicator lights blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer. If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.
Page 24: Removing The Battery Pack
Removing the Battery Pack You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode. To remove the battery pack Turn off the computer and close the LCD screen lid.
Page 25: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and then Turn Off Computer. The Turn off computer window appears.
Page 26: Using Your Vaio Computer
Using Your VAIO Computer This section describes how to get the most out of using your computer. Using the Keyboard (page 27) Using the Touch Pad (page 29) Using Special-function Buttons Using the Built-in MOTION EYE Camera Using the Optical Disc Drive (page 32) Using PC Cards (page 42)
Page 27: Using The Keyboard
Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. Combinations and Functions with the Fn Key Some functions are not available until Windows is launched. Combinations/Feature Fn + F1: wireless switching Fn + % (F2): speaker switch Fn + 2 (F3/F4): speaker volume Fn + 8 (F5/F6): brightness control...
Page 28 Combinations/Feature Fn + (F10): zoom Fn + (F12): Hibernate On selected models only. Functions Changes the screen resolution to magnify/restore the screen view. The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the LCD screen with a higher resolution.
Page 29: Using The Touch Pad
Using the Touch Pad The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide one finger on the touch pad to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 30: Using Special-Function Buttons
Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button S1/S2 button Functions By default, the S1 button turns the volume on and off and the S2 button lowers the CPU speed to reduce the fan noise.
Page 31: Using The Built-In Motion Eye Camera
Using the Built-in MOTION EYE Camera Your computer may be equipped with a built-in MOTION EYE camera. See the online Specifications to find whether your model is equipped with the built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software, for example Windows Messenger and Windows MovieMaker.
Page 32: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive. The tray slides out. Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place. Using Your VAIO Computer...
Page 33 Using Your VAIO Computer Close the tray by pushing it in gently. Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction. If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
Page 34 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that not compliant with the official "CD"...
Page 35 Using Your VAIO Computer Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2. Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1. Supports 8cm disc reading, but does not support 8cm disc writing. Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording. The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge.
Page 36 Using Your VAIO Computer Notes on writing data onto a disc To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete this process, follow the instructions included with your software. Only use circular discs.
Page 37 Notes on playing DVDs To achieve optimum performance when playing DVDs, you should follow these recommendations. You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the help file on such software for details. Close all open applications before playing a DVD movie.
Page 38 Using Your VAIO Computer When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers, make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause a malfunction.
Page 39: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a CD program, such as the SonicStage software. If the Audio CD window appears, click to select an option.
Page 40: Copying Files To Cds
Copying Files to CDs See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs (page 34) to find about the supported disc media. To copy files to a disc Do not strike or shake the computer while writing data onto a disc.
Page 41: Playing Dvds
Playing DVDs To play a DVD Close all open programs. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a DVD program to play the DVD.
Page 42: Using Pc Cards
Using PC Cards PC Cards allow you to connect portable external devices to your computer. Inserting a PC Card Some PC Cards or their functions may not be compatible with the computer. You do not need to shut down the computer before inserting or removing a PC Card. To insert a PC Card Push the PC Card release button so that the release button pops out.
Page 43 Using Your VAIO Computer Insert the PC Card slot protector to protect against debris entering the slot when not using a PC Card. Before carrying the computer, make sure to insert the PC Card slot protector into the slot. Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not recognized.
Page 44: Removing A Pc Card
Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. To remove a PC Card To remove a PC Card when the computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.
Page 45: Using The Expresscard/34 Media
Using the ExpressCard/34 Media Your computer is equipped with an ExpressCard You can use this slot to transfer data between digital cameras, camcorders, music players, and other audio/video devices. Hereinafter, referred to as the ExpressCard/34 slot and ExpressCard/34 media. The ExpressCard/34 slot can also accommodate other memory cards, including standard-size Memory Stick media, via the memory card adapter.
Page 46 Using Your VAIO Computer Carefully slide the ExpressCard/34 media (1) into the slot until it clicks in place. Do not force it into the slot. If the media or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction. Make sure you use the most recent software driver provided by the ExpressCard/34 media manufacturer.
Page 47 Removing an ExpressCard/34 Media Follow the steps below to remove the ExpressCard/34 media while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard/34 media To remove an ExpressCard/34 media when the computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.
Page 48: Using The Memory Stick Media
Latin American countries or areas. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB. Sony assumes no liability for compatibility with any other Memory Stick media.
Page 49: Inserting A Memory Stick Media
Inserting a Memory Stick Media There are some ways you can insert a Memory Stick media into your computer. Using the Memory Stick Duo/PRO Duo media slot The Memory Stick media slot accommodates a small-size Memory Stick media: Memory Stick Duo or Memory Stick PRO Duo media.
Page 50 To insert a Memory Stick media using the Memory Stick Duo/PRO Duo media slot Hold the Memory Stick media with the arrow facing up and toward the Memory Stick media slot. Carefully slide the Memory Stick media into the slot until it clicks in place. The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).
Page 51 To view the contents of the Memory Stick media Click Start and then My Computer to open the My Computer window. Double-click the Memory Stick media icon To format a Memory Stick media Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details. to view the list of data files saved in the Memory Stick media.
Page 52: Removing A Memory Stick Media
Removing a Memory Stick Media To remove a Memory Stick media from the Memory Stick Duo/PRO Duo media slot Check that the Memory Stick media indicator is off. Push the Memory Stick media in toward the computer. The Memory Stick media ejects. Pull the Memory Stick media out of the slot.
Page 53: Using Other Memory Cards
The copyright protection and high-speed data transfer features of the SD memory card are not supported. As for the Memory Stick PRO media, only Sony branded media is recommended to use with the adapter. Memory card adapter for the PC Card slot Standard-size Memory Stick and Memory Stick PRO, Secure Digital (SD), Multi Media Card (MMC), SmartMedia The MagicGate and high-speed data transfer features of the Memory Stick media and the Memory Stick Pro media are not supported.
Page 54: Inserting A Memory Card
Inserting a Memory Card To insert a memory card to the memory card adapter for the ExpressCard/34 slot Insert any one of the memory cards (2) to the memory card adapter (1). Make sure to insert a memory card into the memory card adapter in the correct direction to avoid possible damage to the memory card adapter. See Inserting an ExpressCard/34 Media (page 45) to insert the memory card adapter into the ExpressCard/34 slot.
Page 55 To insert a memory card to the memory card adapter for the PC Card slot Insert any one of the memory cards (2) to the memory card adapter (1). Make sure to insert a memory card into the memory card adapter in the correct direction to avoid possible damage to the memory card adapter. The memory card adapter has two slots designed for the designated types of the memory card.
Page 56: Removing A Memory Card
Using Your VAIO Computer Removing a Memory Card To remove a memory card from the memory card adapter for the ExpressCard/34 slot See Removing an ExpressCard/34 Media (page 47) to remove the memory card adapter from the ExpressCard/34 slot. Then, firmly grasp the extended part of the memory card and carefully pull it out of the memory card adapter. To remove a memory card from the memory card adapter for the PC Card slot See Removing a PC Card (page 44)
Page 57: Using The Internet
Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (may not supplied). Once you set up your telephone cable, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).
Page 58: Using Wireless Lan (Wlan)
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 59 Using Your VAIO Computer WLAN uses the IEEE802.11a/b/g standard, which specifies the used technology. The standard includes the encryption method: Wired Equivalent Privacy (WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a specification of standards based, interoperable security enhancements that increase the level of data protection and access control for existing WiFi networks.
Page 60: Communicating Without An Access Point (Ad-Hoc)
Using Your VAIO Computer Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 61 To communicate without an Access Point (ad-hoc) Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. Except in Peru and Venezuela, you cannot select the 5 GHz bandwidth, which is used for the IEEE802.11a standard, on ad-hoc networks.
Page 62 12 Enter the Network key The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal whatever you want. 13 Enter exactly the same Network key again, for confirmation. 14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the bottom of the screen.
Page 63 To disconnect from a computer-to-computer (ad-hoc) network Click Start and then Control Panel. Click Network and Internet Connections. Click Network Connections. The Network Connections window appears. In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection. Click Properties. The Wireless Network Connection Properties window appears.
Page 64: Communicating With An Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN.
Page 65 To connect to a wireless network Make sure an access point is set up. See the instructions that accompanied the access point for more information. Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. On models with the Bluetooth functionality Switch window.
Page 66 To connect to a wireless network (Models with the Wireless Setup Utility software only) Use the Wireless Setup Utility software to guide you through the set up process and provide you with more detailed information about wireless connections. Make sure an access point is set up. See the instructions that accompanied the access point for more information.
Page 67 Wireless LAN Channel Selection In an 802.11a/b/g configuration, channel 1 to 11 can be used. (a) With an Access Point ("Infrastructure") The channel used will be the channel selected by the Access Point. For details on how to select the channel that will be used by the Access Point, see the access point manual. (b) Without an Access Point ("ad-hoc") If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
Page 68: Using The Bluetooth Functionality
Using the Bluetooth Functionality The Bluetooth functionality is available on selected models only. See the online Specifications to see whether your model supports the Bluetooth functionality. You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone.
Page 69 Notes on using the Bluetooth functionality The data transfer rate varies, depending on the following conditions: Obstacles, such as walls, located between devices Distance between devices Material used in walls Proximity to microwaves and cordless telephones Radio frequency interference and other environmental conditions Device configuration Type of software application Type of operating system...
Page 70 The 2.4 GHz band with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth devices use the technology to minimize the interference from other devices that use the same wave length. Communication speed and distances can be inferior to the standard values. Interference from other devices may also stop communications.
Page 71: Communicating With Another Bluetooth Device
Using Your VAIO Computer Communicating with Another Bluetooth Device You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.
Page 72: Stopping The Bluetooth Connection
Using Your VAIO Computer To communicate with another Bluetooth device To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, see the help file on the Bluetooth utility software. To see the help file Right-click the Bluetooth icon on the taskbar, and select Help from the menu.
Page 73: Using The Bluetooth Headset
Using the Bluetooth Headset The Bluetooth headset is available as an optional accessory. It will come in handy during a video conference over the Internet using instant messaging software, for example Windows Messenger. For details on using the Bluetooth headset, see the manual that came with the Bluetooth headset.
Page 74 To disconnect the headset from the computer Right-click the Bluetooth icon The Bluetooth Settings window appears. Select Disconnect from the Bluetooth menu. Click Yes. on the taskbar and select Bluetooth Settings from the menu. Using Your VAIO Computer...
Page 75: Using Peripheral Devices
Using Peripheral Devices You can add functionality to your computer by using the various ports on the computer. Connecting a Docking Station Connecting External Speakers Connecting an External Display Selecting Display Modes (page 90) Using the Multiple Monitors Function Connecting an External Microphone Connecting a Universal Serial Bus (USB) Device Connecting a Printer (page 97)
Page 76: Connecting A Docking Station
Connecting a Docking Station Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external display. A docking station is not supplied with your computer and is available as an optional accessory. Locating Ports on the Docking Station Back The docking station can be powered only through the AC adapter supplied with the docking station.
Page 77: Attaching Your Computer To The Docking Station
Attaching Your Computer to the Docking Station When the computer has no battery inserted, do not attach the computer to the docking station. To attach your computer to the docking station To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the docking station. Disconnect all peripherals from the computer.
Page 78 Using Peripheral Devices Slide open the docking station connector cover on the bottom of the computer.
Page 79 Using Peripheral Devices Align the rear bottom corners and the left side of the computer with the guides on the docking station.
Page 80 Gently push down the computer until it clicks into place. Turn on the computer. Use the AC adapter supplied with the docking station. Do not move the computer while attached to the docking station; this may detach the docking station and cause damage to the docking station and the computer.
Page 81: Disconnecting Your Computer From The Docking Station
Using Peripheral Devices Disconnecting Your Computer from the Docking Station To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the docking station. Be sure that no devices connected to the docking station are in use before disconnecting the computer. Do not disconnect the computer from the docking station when the IN USE indicator is lit.
Page 82 To disconnect your computer from the docking station Press the UNDOCK button and wait until the IN USE indicator (2) turns off. If the IN USE indicator is unlit, you do not have to press the UNDOCK button. Pressing the UNDOCK button while the computer is in a power saving mode returns the computer to Normal mode first, and then initiates the disconnection process.
Page 83 Lift the computer away from the docking station. Close the docking station connector cover on the bottom of the computer. Using Peripheral Devices...
Page 84 Alternatively, you can disconnect the computer from the docking station as follows: Click Start and then Undock Computer. Make sure that a message balloon appears and the IN USE indicator turns off; and then lift the computer away from the docking station.
Page 85: Connecting External Speakers
Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.
Page 86: Connecting An External Display
Connecting an External Display You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector. Connecting a Computer Display Connecting a Multimedia Computer Display Connecting a Projector (page 89) Connect the power cord after connecting all other cables.
Page 87: To Connect A Computer Display
Connecting a Computer Display You can connect a computer display (monitor) either directly to your computer or via the optional docking station. To connect a computer display If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet. If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.
Page 88: Connecting A Multimedia Computer Display
Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the optional docking station. To connect a multimedia computer display Plug the power cord of the multimedia computer display (1) into an AC outlet. Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.
Page 89: Connecting A Projector
Connecting a Projector You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the optional docking station. To connect a projector Connect the power cord (1) of the projector into an AC outlet.
Page 90: Selecting Display Modes
Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. If you want to work on the computer's LCD and the external display at the same time, see Using the Multiple Monitors Function (page 91) for more information.
Page 91: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer's LCD and the external display can function as a single desktop.
Page 92 To select the Multiple Monitors mode When using the Intel Graphics Media Accelerator (STAMINA mode) Right-click on the desktop to display the context menu. Click the menu item for graphic properties. Follow the on-screen instructions to change the settings. When using the NVIDIA video controller (SPEED mode) Right-click on the desktop and select NVIDIA Control Panel from the menu.
Page 93: Connecting An External Microphone
Using Peripheral Devices Connecting an External Microphone If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone. To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. Make sure your microphone is designed for computer use.
Page 94: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: When moving the computer with USB devices connected, avoid any shock or force to the USB ports. Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)
Page 95: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port you prefer to use. Plug the USB floppy disk drive cable into the USB port. Your USB floppy disk drive is now ready for use.
Page 96: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.
Page 97: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the printer power cord into an AC outlet (1).
Page 98: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital video camcorder or to connect two VAIO computers in order to copy, delete or edit files. The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.
Page 99: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 100: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 1000BASE-T*/100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the Network (Ethernet) port on the computer or the optional docking station and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.
Page 101 Telephone lines cannot be connected to the Network (LAN) connector on your computer. If the Network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage, overheating or fire. - Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone) - Public telephone subscriber line - PBX (private branch exchange) Do not plug a telephone cable into the network port.
Page 102: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Selecting Performance Modes...
Page 103: Selecting Performance Modes
Selecting Performance Modes Your computer is equipped with the performance selector switch (1) to select a performance mode for lower power consumption or faster performance. Once you have changed the performance mode with the performance selector switch, you must restart your computer to place it into the selected mode. A window appears to prompt you for computer restart.
Page 104: Setting The Password
Setting the Password You can use BIOS functions to set two types of passwords to protect your computer: power-on password and hard disk password. Once you have set the power-on password, you will have to enter the password after the VAIO logo appears to start your computer.
Page 105 Adding the Power-on Password Once you have set the power-on password, you cannot start the computer without entering the password. Make sure not to forget the password. Write down your password and keep it safe and private from other people. If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for depot service for password reset.
Page 106 Customizing Your VAIO Computer If you have set the power-on password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint authentication for password entry when turning on the computer. For more information, see Using Fingerprint Authentication (page 114).
Page 107: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 108: Adding The Hard Disk Password
Adding the Hard Disk Password The hard disk password provides additional security for the data stored on your hard disk. If you enable the hard disk password, this adds an extra level of security. When adding the hard disk password, you must set both the master and user passwords. The master password is provided for users with administrator rights on the computer to reset the user password on the BIOS setup screen.
Page 109 To add the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 110 Changing the Hard Disk Password To change the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 111 Removing the Hard Disk Password To remove the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 112: Adding The Windows Password
Adding the Windows Password To add the Windows password Click Start and then Control Panel. Click the User Accounts icon. Click your user account under or pick an account to change. Click Create a password. In the Type a new password and Type the new password again to confirm fields, enter the password for your account. Click Create Password.
Page 113: Changing/Removing The Windows Password
Changing/Removing the Windows Password To change the Windows password Click Start and then Control Panel. Click the User Accounts icon. Click your user account under or pick an account to change. Click Change my password. Enter the current password under Type your current password. Enter a new password under Type a new password and the same password under Type the new password again to confirm.
Page 114: Using Fingerprint Authentication
Using Fingerprint Authentication Your computer may be equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar located between the left and right touch-pad buttons is the sensor of the fingerprint reader and will be referred to as the fingerprint sensor hereinafter.
Page 115: Precautions On Using Fingerprint Authentication
Precautions on Using Fingerprint Authentication The fingerprint authentication technology does not assure 100% verification. Sony Corporation assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint sensor. The fingerprint authentication technology does not assure complete protection of your data and hardware.
Page 116 When swiping your finger across the fingerprint sensor, keep the following in mind: Place your fingertip flat in the center of the fingerprint sensor. Scan your fingerprint from the top joint of the finger to the fingertip. Swipe your finger perpendicularly across the fingerprint sensor. Keep your finger in contact with the fingerprint sensor while swiping.
Page 117: Enrolling A Fingerprint
Enrolling a Fingerprint To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer. Launch Windows to display the Welcome window and follow the instructions described below. Set the Windows password on your computer before enrollment. See Adding the Windows Password To enroll a fingerprint Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using the Boot Security functionality.
Page 118 Swipe your finger across the fingerprint sensor four times to perform a swipe test, and then click Next. The Enrollment window appears. See To scan a fingerprint (page 119) for the scan procedure. Click on the finger of which fingerprint you want to enroll. Swipe the finger across the fingerprint sensor three times.
Page 119 To scan a fingerprint Place the top joint of your finger on the fingerprint sensor (1). Place your fingertip flat in the center of the fingerprint sensor. Swipe your finger perpendicularly across the fingerprint sensor. Keep your finger in contact with the fingerprint sensor while swiping. Fingerprint enrollment may fail if you move your finger too fast or too slow.
Page 120 Logging Onto Your System To use the fingerprint authentication functionality in place of password entry to log onto your system, you need to set the power-on, hard disk, and Windows passwords and configure your computer for fingerprint authentication. For setting the power-on and hard disk passwords, see Setting the Password To log onto Windows If your fingerprints are enrolled for your user account, you will be able to substitute fingerprint recognition for password entry when logging on to Windows.
Page 121 With the Automatically log onto system after power-on authentication check box selected, you can start your system and launch Windows by swiping your finger only once. If only the Enable boot security check box has been selected, you will be prompted to swipe your finger or enter the password before Windows is launched.
Page 122: Using The Password Bank
Using the Password Bank Once you have registered your user information (user accounts, passwords, etc.) for web sites in the password bank, you can substitute fingerprint authentication for entering required information and access the password-protected web sites. Adding an Entry to the Password Bank To access a password-protected web site using the fingerprint authentication functionality, you need to add a password bank entry for the web site.
Page 123 Using a Password Bank Entry to Access a Web Site Once you have added an entry to the password bank, you can use it to access the respective password-protected web site. To access a password-protected web site Visit the desired password-protected web site to display the user account and password entry window. A message balloon appears to indicate that you have a password bank entry for the site.
Page 124 Importing/Exporting Password Bank Entries You can export/import entries to/from the password bank for a backup or recovery purpose. To export an entry Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the menu. Select Settings. The Protector Suite QL window appears. Click the Registrations tab.
Page 125 Using the My Safe Folder The encrypted My Safe folder is provided to protect your data against unauthorized access. With the fingerprint authentication functionality, you can decrypt (unlock) this folder to access your data. When you use the My Safe folder for the first time, you need to initialize and create the folder. To initialize the My Safe folder Double-click the My Safe icon on the desktop.
Page 126 To lock the My Safe folder Right-click the My Safe icon on the desktop and select Lock My Safe from the menu. The My Safe folder is locked against unauthorized access. To unlock the My Safe folder Right-click the My Safe icon on the desktop and select Unlock My Safe from the menu. Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
Page 127: Using Trusted Platform Module (Tpm)
Customizing Your VAIO Computer Using Trusted Platform Module (TPM) The embedded Trusted Platform Module (TPM) on selected models provides your computer with basic security functions. In combination with the TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access.
Page 128 Although your computer is provided with the latest TPM security functions, these functions do not assure complete protection of your data and hardware. Sony Corporation assumes no liabilities for any problems and damages arising out of your use of the functions.
Page 129: Important Notice
Important Notice Do not encrypt the Documents and Settings folder. Encrypting the files in the folders containing basic user keys and others, which are listed later in this section, using the Encrypting File System (EFS) will disable you to launch your TPM software successfully and decrypt the encrypted data if: The TPM software has been installed.
Page 130 Do not encrypt the following folders and files. There will be no way to restore the following folders and files or the archive, backup, token, password reset token and secret files of your TPM software if you carelessly encrypt them. Sony Corporation assumes no liability for any troubles and damages arising out of your careless encryption of such folders and files.
Page 131 Configuring the TPM To use the embedded TPM, you need to: Enable the TPM on the BIOS setup screen. Install the Infineon TPM Professional Package. Initialize and configure the TPM. Enabling the TPM on the BIOS setup screen To enable the TPM Turn on your computer.
Page 132 Infineon Security Platform Solutions, and click Help on Security Platform. The maintenance and management of TPM-protected data must be carried out at your own risk. Sony Corporation assumes no liabilities for any defects arising out of your data maintenance and management.
Page 133: Setting Up Your Computer With Vaio Central
Setting Up Your Computer with VAIO Central The VAIO Central utility allows you to consult system information and specify preferences for system behavior. To use VAIO Central Click Start, point to All Programs, and click VAIO Central. The VAIO Central window appears. Select the desired control item and change the settings.
Page 134: Using The Power Saving Modes
Using the Power Saving Modes When you use a battery as the power source for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
Page 135: Using Standby Mode
Using Standby Mode Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode. To activate Standby mode Click Start and then Turn Off Computer. Click Stand By.
Page 136 To change the Standby mode settings Click Start and then Control Panel. Click Performance and Maintenance. Click Power Options. The Power Options Properties window appears. Select the Power Schemes tab. Change the System Standby settings. Customizing Your VAIO Computer...
Page 137: Using Hibernate Mode
Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. To activate Hibernate mode Press the Fn+F12 keys.
Page 138 Customizing Your VAIO Computer If you do not use the computer for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting down or resuming. When the computer is in Hibernate mode, you cannot insert a disc. Hibernate mode requires more time than Standby mode to be activated.
Page 139: Managing Power With Vaio Power Management
Managing Power with VAIO Power Management Power management helps you to set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operations of your computer and for longer battery life.
Page 140 Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management goals, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Click Start and then Control Panel.
Page 141: Vaio Power Management Viewer
Customizing Your VAIO Computer VAIO Power Management Viewer To start VAIO Power Management Viewer Click on the VAIO Power Management tab. Alternatively, you can use VAIO Central to start VAIO Power Management Viewer. Double-click the Power Management folder on the System Information tab in the VAIO Central window, and then double-click the VAIO Power Management Viewer icon.
Page 142: Protecting The Hard Disk
Protecting the Hard Disk Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection level.
Page 143: Upgrading Your Vaio Computer
For the type of module and amount of memory installed on your model, refer to the online Specifications. For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 144: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
Page 145 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 146: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screws (indicated by the arrows below) on the bottom of the computer and remove the memory module compartment cover.
Page 147 Upgrading Your VAIO Computer Grasp the insulation sheet (1) tab and flip open the sheet. The inflation sheet is equipped for module protection. Do not pull it too hard to damage the sheet.
Page 148 Remove the memory module: Pull the latches in the direction of the arrows (1). The memory module is released. Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging. Upgrading Your VAIO Computer...
Page 149 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Do not damage the inner film cover equipped for module protection. 10 Replace the memory module compartment cover. 11 Tighten the screws on the bottom of the computer.
Page 150: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, point to All Programs, and click VAIO Central. Click the System Information tab in the VAIO Central window. Double-click the System Information folder. Double-click the System Information icon.
Page 151: Precautions
Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 153) On Handling Your Computer (page 154) On Using the Built-in MOTION EYE Camera On Handling Floppy Disks (page 156) On Handling Discs...
Page 152: On Handling The Lcd Screen
Precautions On Handling the LCD Screen Do not leave the LCD facing the sun. This could damage the LCD. Be careful when using the computer near a window. Do not scratch the LCD or exert pressure on it. This could cause a malfunction. Using the computer in low temperature conditions may produce a residual image on the screen.
Page 153: On Using The Power Source
Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with the computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 154: On Handling Your Computer
On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of the computer. If you drop a solid object or any liquid onto the computer, shut down the computer and then unplug it.
Page 155 If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site. Make sure you disconnect the power cord before cleaning the computer.
Page 156: On Using The Built-In Motion Eye Camera
On Using the Built-in MOTION EYE Camera Do not touch the front mirror plate over the lens of the built-in MOTION EYE camera, as it may make scratches on the plate and such scratches will appear on the captured images. Do not let the direct sunlight get into the scope of the built-in MOTION EYE camera regardless of the computer's power state, as it may cause a malfunction of the camera.
Page 157: On Handling Discs
Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.
Page 158: On Using The Battery Pack
Charge the batteries at temperatures between 18°F to 86°F (10°C to 30°C). Lower temperatures require a longer charging time. This computer is designed to operate only with genuine Sony batteries. While the battery is in use or being charged, the battery pack heats up. This is normal and is not cause for concern.
Page 159: On Using Headphones
On Using Headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 160: On Handling The Hard Disk
On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling the computer.
Page 161: On Handling The Memory Card Adapter
On Handling the Memory Card Adapter Do not touch the memory card adapter connector with your finger or metallic objects. Use only the label exclusively designed for the memory card adapter as a label. Do not bend, drop, or apply strong shock to the memory card adapter. Do not disassemble or modify the memory card adapter.
Page 162: Troubleshooting
Troubleshooting This section describes how to solve common problems you might encounter when using your computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support Web site at for customers in USA, at http://www.sony.ca/support in Latin American countries or areas.
Page 163 Troubleshooting PC Cards (page 203) Audio/Video (page 204) Memory Stick Media (page 205) Peripherals (page 206) Docking Station (page 207)
Page 164: Computer
Remove any extra memory modules you may have inserted since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery packs and AC adapters, which are supplied by Sony for your VAIO computer.
Page 165 The message Save configuration changes and exit now? appears. Select Yes, and press the Enter key. The computer restarts. If this occurs on a regular basis, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site. Troubleshooting...
Page 166 What should I do if the power indicator (Green) lights but my screen does not display anything when I turn on my computer? If nothing still appears on your screen after a while Press the power button for more than four seconds to check that the power indicator goes out. Then turn on the computer again.
Page 167: What Should I Do If My Computer Or Software Stops Responding
Troubleshooting What should I do if my computer or software stops responding? It is best to turn off the computer using the Turn Off Computer option on the Microsoft Windows Start menu, located on the taskbar. Using other methods, including those listed below, may result in loss of unsaved data. Click Start, point to Turn Off Computer, and then click Turn Off.
Page 168 If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 169 If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 170: What Should I Do If I Cannot Remember The Bios Password
What should I do if I cannot remember the BIOS password? If you have forgotten the BIOS password, contact an authorized Sony Service Center to reset it. A reset fee will be charged. To find the nearest center or agent, visit the Sony online support Web site.
Page 171: How Can I Change The Boot Device Order
Why does it take time before my computer starts? If Norton Internet Security's Personal Firewall is active, it may take some time before the Desktop screen appears due to network security checkups. If the TPM is enabled, it will take longer before the VAIO logo appears due to security checks at computer startup. Why doesn't the LCD turn off when the time selected for the automatic turn-off action has passed? The originally selected VAIO's screen saver disables the timer setting, which you can select using the Windows power...
Page 172: How Can I Change The Volume Of The Startup Sound
What should I do if I can't boot my computer from the USB device connected to the computer? To boot your computer from the USB device, for example a USB floppy disk drive or a USB optical disc drive, you need to change the boot device.
Page 173: System Security
System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on the computer. The best way to protect the computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.
Page 174: How Do I Keep My Antivirus Software Updated
To visit the Windows Updates web site Connect to the Internet. Type http://windowsupdate.microsoft.com/ in the address bar of your browser. The Microsoft Windows Update and Security Warning windows appear. In the Security Warning window, start installation and run Windows Update. In the Microsoft Windows Update window, select an installation type, and follow the on-screen instructions.
Page 175: Battery
Battery How do I know when the battery is charged? To determine the remaining battery charge, see Charging the Battery Pack When is the computer using AC power? When the computer is directly connected to the AC adapter, it uses AC power, even if a battery is installed. When should I recharge the battery? When the battery level falls below 10 percent.
Page 176: Can My Computer Enter Hibernate Mode While Using Battery Power
Can my computer enter Hibernate mode while using battery power? The computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering Hibernate mode, save your data frequently to avoid losing data.
Page 177: Built-In Motion Eye Camera
Built-in MOTION EYE Camera Why does the viewer window show no images or poor-quality images? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. The video memory of the computer may have become insufficient for displaying images from the built-in MOTION EYE camera.
Page 178 Why does Movie playback show dropped frames when my computer is running on the battery? The battery is running out of power. Connect the computer to an AC power source. Why do the images captured by the built-in MOTION EYE camera flicker? This problem occurs when you use the camera under fluorescent lights due to the mismatch between lighting output frequency and shutter speed.
Page 179: Why Can't I Use The Built-In Motion Eye Camera
Click Device Manager on the Hardware tab. Double-click Imaging devices. Right-click Sony Visual Communication Camera VGP-VCC2 and click Update Driver. Why does my computer become unstable when I place it into Standby or Hibernate mode while using the built-in MOTION EYE camera? Do not place your computer into Standby or Hibernate mode while you are using the built-in MOTION EYE camera.
Page 180: Internet
Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure the telephone number the program is dialing is correct. Make sure the software you are using is compatible with the computer's modem. (All preinstalled Sony programs are compatible.) Make sure that the modem is the only device connected to your phone line.
Page 181: Why Is My Modem Connection Slow
Why is my modem connection slow? The computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), follow these steps: Ask your telephone company to verify your telephone line is free of any line noise.
Page 182: Networking
Networking Why can't my computer connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move the computer away from obstructions or closer to any access point you may be using. Make sure the WIRELESS or WIRELESS LAN switch is on and the WIRELESS LAN indicator is lit on the computer.
Page 183: Why Is The Data Transfer Speed Slow
Why is the data transfer speed slow? The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move the computer away from obstructions or closer to any access point you may be using.
Page 184 Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in your access point instructions.
Page 185: Bluetooth Technology
Bluetooth Technology Why can't other Bluetooth devices discover my computer? Make sure both devices have the Bluetooth feature enabled. If the Bluetooth indicator is off, turn on the WIRELESS switch. You cannot use the Bluetooth functionality when the computer is in a power saving mode. Return to normal mode, then turn on the WIRELESS switch.
Page 186 Why can't other Bluetooth devices connect to my computer? Make sure the other device is authenticated. The computer may not allow connections from other devices. To enable Bluetooth device connections, follow these steps: Right-click the Bluetooth icon Select Options from the menu. The Options window appears.
Page 187: Why Is My Bluetooth Connection Slow
Why is my Bluetooth connection slow? The data transfer speed depends on the obstacles and/or the distance between the two devices, but also on the radio wave quality, on the operating system or the software used. Try to move the computer or try to place the two devices closer.
Page 188: Can I Use A Device With Bluetooth Technology On Airplanes
Troubleshooting Can I use a device with Bluetooth technology on airplanes? With Bluetooth technology, the computer transmits a radio frequency of 2.4 GHz. Sensitive locations, such as hospitals and airplanes, may have restrictions on the use of Bluetooth devices, due to radio interference. Check with facility staff to verify that use of the Bluetooth feature on the computer is permitted.
Page 189: Cds And Dvds
CDs and DVDs Why does my computer freeze when I try to read a disc? The disc the computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, Turn Off Computer, and Restart. Eject the disc from the optical disc drive.
Page 190 What should I do if the optical disc drive isn't playing my CD or DVD properly? Make sure the disc was inserted into the optical disc drive with the label facing up. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If the CD or DVD is dirty or damaged, the computer will stop responding.
Page 191 Double-click the optical disc drive device to open the submenu. Double-click the listed drive, and select the Properties tab. Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window.
Page 192 What should I do if I cannot write to CD? Do not launch any software application or allow any to launch automatically, not even a screen saver. Do not use the keyboard. Do not use a CD-R/RW disc that has a label affixed to it. This could cause a write error or other damage. What should I do if I cannot write to DVD? Are you using the correct DVD recordable media? Check which DVD recordable format is compatible with the computer's built-in DVD recorder.
Page 193 What should I do if I cannot write to DVD-RAM using Windows functions? This Q & A entry applies to selected models only. See the online Specifications to see whether your model is equipped with the DVD±RW/RAM drive. Follow these steps to change the settings: Click Start and then My Computer.
Page 194: Display
Display Why did the computer screen (LCD) go blank? The computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby or Hibernate). If the computer is in LCD (Video) Standby mode, press any key to activate the computer screen. See Using the Power Saving Modes (page 134) Make sure the computer is plugged into a power source and is on.
Page 195 What should I do if the brightness of the screen changes? The brightness of your screen when adjusted with the Fn+F5/F6 keys is temporary and this adjustment is overridden by the setting on the VAIO Power Management tab when another power scheme is selected. To save this preference for the brightness To do the following procedure, you must have administrator rights on the computer.
Page 196: Printing
Printing Why can't I print a document? Make sure the printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure the printer is compatible with the Windows operating system installed on the computer. You may need to install the printer driver software before you use the printer.
Page 197: Microphone
Troubleshooting Microphone Why doesn't my microphone work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the Microphone jack on the computer.
Page 198: Mouse
Mouse What should I do if the computer doesn't recognize the mouse? Make sure the mouse is securely plugged into the port. Restart the computer with the mouse connected to the computer. What should I do if the pointer doesn't move when I use the mouse? Make sure another mouse is not installed.
Page 199: Speakers
Speakers Why won't my speakers work? Make sure the speakers are properly connected and the volume is turned up loud enough to hear sound. Your speakers may not be designed for computer use. If the speakers have a muting button, set the button to off. If the speakers have a volume control, make sure the volume is turned up loud enough to hear sound.
Page 200: Touch Pad
Touch Pad What should I do if the touch pad does not work? Try restarting the computer. Press the Ctrl+Alt+Delete keys simultaneously. In the Windows Task Manager window, select Restart from the Shut Down menu to restart the computer. If the pointer does not move while playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and restart the computer.
Page 201: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of the computer's keyboard is specified on the sticker on the box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and then Control Panel Click Date, Time, Language and Regional Options, and click Regional and Language Options.
Page 202: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? The computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive.
Page 203: Pc Cards
Make sure the PC Card is compatible with the Microsoft Windows operating system installed on the computer. See the instructions that accompanied your PC Card. You may need to install driver software if you are not using a Sony PC Card.
Page 204: Audio/Video
Sony used only to designate that a product contains an IEEE1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.
Page 205: Memory Stick Media
Using recorded music requires permission of the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 206: Peripherals
Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is switched on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.
Page 207: Docking Station
Docking Station Why can't I use the TFT/DVI monitor connected to the DVI-D port? The DVI-D port on the docking station is disabled when the computer is in STAMINA mode. Change the performance mode to SPEED mode and restart your computer. See Selecting Performance Modes Why does an error message appear when I press the UNDOCK button or select Undock Computer from the Start menu? When any device inserted or connected to the docking station is in use, you cannot disconnect the computer form the...
Page 208: Support Options
Sony Computing Support This service provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online. You can visit the Sony online support Web site at http://esupport.sony.com/EN/VAIO/...
Page 209 For users in Latin American countries or areas Customer Information Center If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and most efficient services, please have the following information readily available:...
Page 210 In order to contact a Sony technical support representative, please call the following numbers: In Argentina: (011) 6770-SONY (7669) In Mexico: In Mexico City: 5002-9819 In the Mexican Republic: 01-800-759-7669 In Colombia: 01-800-550-7000 In Peru: 0-801-1-7000 or 595-0200 In Chile:...
Page 211: Program Support Information
Program Support Information Depending on the computer model and particular configuration you purchased, your computer may not include all of the software programs listed below. Contacts for Sony software products are listed below: For users in USA Web Site http://esupport.sony.com/EN/VAIO/...
Page 212 ® America Online (Dial-Up) America Online, Inc. For users in USA and Canada Web Site http://www.aol.com ® Explorer America Online, Inc. For users in USA and Canada Web Site http://www.aol.com ® Instant Messenger™ America Online, Inc. For users in USA and Canada Web Site http://www.aim.com Support Options...
Page 213 Click to DVD software Sony Electronics Inc. At the touch of a button, Click to DVD software allows you to automatically burn DVDs from a digital video (DV) device. Create DVDs by capturing video content straight from a DV device or by importing video from stored files — and you can also edit the video.
Page 214 ™ Google Toolbar Google, Inc. For users in USA and Canada Web Site http://toolbar.google.com/help.html ® Intel PROSet Intel Corporation For users in USA and Canada Web Site http://www.intel.com/network/connectivity/products/wireless/proset/proset_software.htm ® Microsoft Office Basic Edition, Office Professional Edition, Office Small Business Edition Microsoft Corp.
Page 215 60-Day Trial Version of Microsoft The Microsoft Office 2003 60-Day Trial software included with this computer system is intended for evaluation purposes only. The software has been installed and you must activate the software before you can use it. Product activation procedures will be detailed during initial launch of the software; activation requires Internet access.
Page 216 SonicStage software Sony Electronics Inc. The SonicStage jukebox software program gives you all the tools you need to manage music on your computer. SonicStage software sports high-quality digital audio storage, a sleek player skin design, and audio CD burning capability.
Page 217 ® SonicStage Mastering Studio software Sony Electronics Inc. ® Use SonicStage Mastering Studio software to record songs from analog records or cassette tapes into your computer and output them to CD-R or CD-RW discs or audio files in WAV format.
Page 218 For contacts about the software, see Program Support Information ® VAIO Security Center Sony Electronics Inc. Sony cares about your VAIO personal computer. The VAIO Security Center highlights some of the security features your machine includes. For contacts about the software, see Program Support Information (page 211).
Page 219 TV programs and burn them to DVD. For contacts about the software, see Program Support Information (page 211). ® computer up to date by regularly checking the Sony Online Support (page 211). (page 211).
Page 220 Telephone 510-651-0888 Wireless Setup Utility Sony Electronics Inc. The Wireless Setup Utility walks you through setting up your wireless network connection and offers useful diagnostic tests to help keep your wireless network running smoothly. For contacts about the software, see Program Support Information ™...
