Summary of Contents for King Canada 9136

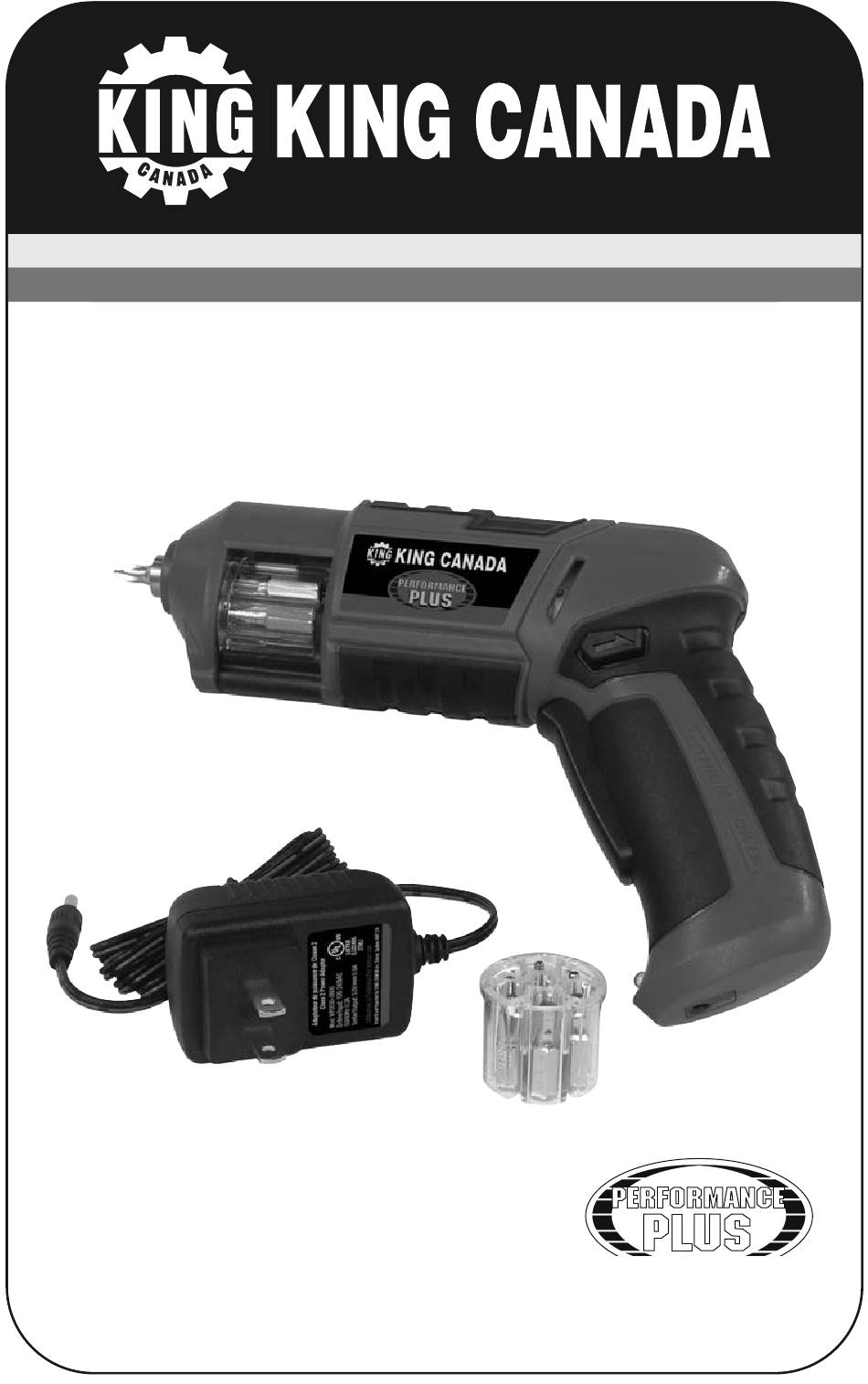

- Page 1 3.6V LI-ION QUICK SELECT SCREWDRIVER KIT MODEL: 9136 INSTRUCTION MANUAL COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS General Safety Instructions 1. KNOW YOUR TOOL Read and understand the instruction manual and labels affixed to the tool. Learn its application and limitations as well as its specific potential hazards. 2. Don’t use power tools in damp or wet locations or expose them to rain. Keep work area well lit and provide adequate surrounding work space.
- Page 4 LITHIUM-ION BATTERY & CHARGER INFORMATION WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
-
Page 5: Getting To Know Your Tool
8. Charger input jack 4. LED battery level indicators 9. Second 6 bit cartridge 5. Forward/lock/reverse switch 10. 3.6V Lithium-ion battery charger SPECIFICATIONS Model ..........................9136 Voltage ........................3.6V Battery type ....................1500m/Ah (li-ion) Chuck ........................1/4” Hex. Speed ........................230 RPM Torque ......................35.48 in/lbs... -
Page 6: Operation
OPERATION Using your 3.6V Li-ion screwdriver WARNING: Read all safety rules and operation instructions before attempting to use this 3.6V screwdriver. Charging the battery To charge the Li-ion battery inside the screwdriver, plug charger (A) Fig.2 into a 120V AC receptacle (do not use extension cord), plug the other end of the charger into the input jack (B) under the tool handle. - Page 7 OPERATION Selecting a bit/changing the bit cartridge This 3.6V screwdriver comes with 2 bit cartridges (A) Fig.5 which contain six 1/4” hexagonal screw- driver bits each, these bits can be change as needed. To change the bit, hold the handle of the screwdriver in one hand and pull the bit selecting slide (B) of the screwdriver forward with the other hand as shown in Fig.5.
-
Page 8: Maintenance
MAINTENANCE MAINTENANCE Cleaning and maintenance 1. Air vents of the tool should be cleaned regularly to avoid overheating of the motor which is caused by the blocking of the air vents. 2. DON’T clean this tool with water, as no liquid is allowed in the tool body. Clean the tool with a dry clean cloth only.
