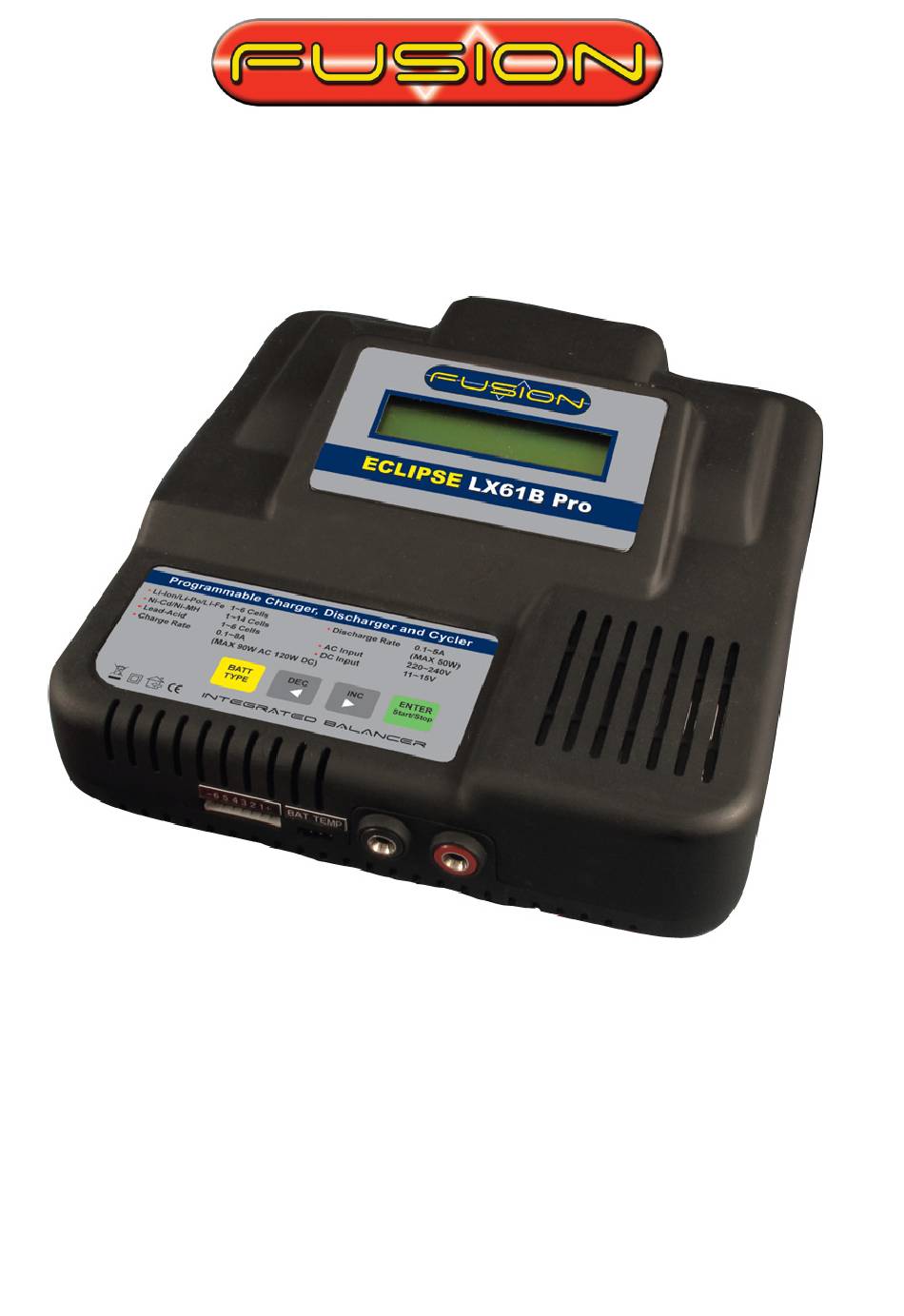

ECLIPSE
LX61B Pro
opErAting instructions
Please keep for future reference
Thank you for purchasing this Eclipse LX61B Pro charger. We are sure you will be pleased
with its performance and features. In order to ensure that you obtain the maximum benefit
from its operation, please read these instructions carefully.

Advertisement

Table of Contents
loading

Related Manuals for Fusion ECLIPSE LX61B Pro

Summary of Contents for Fusion ECLIPSE LX61B Pro

  • Page 1 Please keep for future reference Thank you for purchasing this Eclipse LX61B Pro charger. We are sure you will be pleased with its performance and features. In order to ensure that you obtain the maximum benefit from its operation, please read these instructions carefully.

  • Page 3: Specifications

    SpEciFicAtions Input Voltage 11~15V DC 100~240V AC (50~60Hz) Battery Type & Cells 1~6 Lithium-Ion cells (3.6V/cell) 1~6 Lithium-Polymer cells (3.7V/cell) 1~6 LiFePO4 cells (3.3V/cell) 1~14 Nickel-Cadmium cells (1.2V/cell) 1~14 Nickel-Metal Hydride cells (1.2V/cell) 1 - 6 Lead-Acid cells (2V/cell) Battery Capacity 100mAh ~ 9900mAh adjustable ONLY for Lithium-Ion, Lithium-Polymer and LiFePO4 Charge Rate...

  • Page 4: Safety Precautions

    SAFEty prEcAutions • DO NOT attempt to charge incompatible types of rechargeable batteries. This charger is designed to only charge and discharge Nickel-Cadmium, Nickel-Metal Hydride, Lithium-Ion, Lithium-Polymer, LiFePO4 and Lead- Acid batteries. • Make sure you place the charger on a firm level surface for charging. • DO NOT attempt to charge batteries at excessive fast charge currents. Check with your battery manufacturer for the maximum charge rate applicable to your battery.

  • Page 5: Lithium Ion/Polymer Battery Safety Warnings

    Lithium Ion/polymEr BAttEry SAFEty WArnings Ensure that the charger and battery are placed on a non-flammable surface whilst charging and ideally charge outdoors wherever possible. NEVER charge a Lithium ION/Polymer/Fe battery inside a vehicle whatever the circumstances. ALWAYS ensure that the charger is correctly set for the battery being charged, checking both voltage and capacity.
  • Page 6 Lithium Ion/polymEr/FE BAttEriEs Lithium Ion/Polymer battery packs must NEVER be discharged below 3 volts per cell (Li-Fe 2.0V) as this will result in damage to the cells. If the voltage is allowed to drop below 3 volts per cell the battery voltage may seem to recover following a charge, but the battery may not then give its full nominal capacity and a reduction in performance is likely –...

  • Page 7: Input Power

    15V. If this happens, please recheck the input power supply to make sure correct power is present. 100~240V AC (allows 90W maximum charging rate) Connect the mains lead to the Fusion Eclipse LX61B Pro, then connect the AC plug to a regular AC100~240V wall socket. NOTE:...
  • Page 8 OpErAtion • When the charger is connected to the power supply the charger will show the battery mode that was last used. • If the button is briefly pressed, the present battery type (NiCd, NiMH, BATT TYPE Lithium, or Pb ) will flash. While the existing battery type is flashing, every time button is pressed, the following modes are shown in order: BATT TYPE BATT TYPE...
  • Page 9 • If the other buttons are pressed, or nothing is pressed, the present battery type stops flashing. • If the button is pressed and briefly held, the recent & previous data will BATT TYPE be shown until the button is pressed. BATT TYPE • If the ENTER...
  • Page 10 Lithium Modes (Li-Ion/Li-Po/Li-Fe) BATT TYPE Lilo CHARGE 3.0A Lilo DISCHARGE Lithium Type BATT Ri Measure BATT TEMP SENSOR D=0.50A 10.8Vp C=3000mAh 10.8Vp Lilo NO VALUE SET TEMP = 25°C ENTER ENTER ENTER ENTER START to Pb charge Lilo CHARGE 3.0A Lilo DISCHARGE Lithium Type BATT Ri Measure...
  • Page 11 Setting Battery Voltages For Li-Po Battery Pack LiPo CHARGE 3.0A Select the correct total battery voltage to be charged or C=3000mAh 11.1Vp discharged with the INC & DEC buttons – 3.7V, 7.4V, 11.1V, 14.8V, 18.5V and 22.2V [Vpack]. Setting Battery Voltages For Li-Fe Battery Pack LiFe CHARGE 3.0A Select the correct total battery voltage to be charged or C=3000mAh 11.1Vp...
  • Page 12 Pb Mode BATT TYPE PB CHARGE PB DISCHARGE BATT TEMP SENSOR BATT Ri Measure C=3.0A 12Vpack D=0.5A 12Vpack SET TEMP = 25°C NO VALUE ENTER ENTER ENTER START PB CHARGE PB DISCHARGE BATT Ri Measure BATT TEMP SENSOR C=3.0A 12Vpack D=0.5A 12Vpack SET TEMP = 25°C BATT Ri= 0mΩ...

  • Page 13: Screen Displays

    ScrEEn DisplAys Displays During Charge, Discharge and Cycle “BLC” will be shown if the balancer cable of the battery is connected to the balancing port of the charger. CHG: Charge CHG 0.30:25 00000 DCH 0.30:25 00000 D > C 0:00 00000 DCH: Discharge NC + 3.00A 5.200V NC - 0.50A 5.200V...

  • Page 14: Error Messages

    Error mEssAgEs Input voltage is below 11.0V or exceeds 15V. INPUT BATTERY VOLTAGE ERROR Battery is not connected to the charger’s output banana NO BATTERY sockets. Battery is connected to the output banana sockets in OUTPUT BATTERY reverse. REVERSE POLARITY The circuit of the charger has a problem.
  • Page 16 www. ogic .com Logic RC Limited 14 Hartham Lane Herford SG14 1QN United Kingdom...
