Summary of Contents for BBV BBV-Matrix-IF

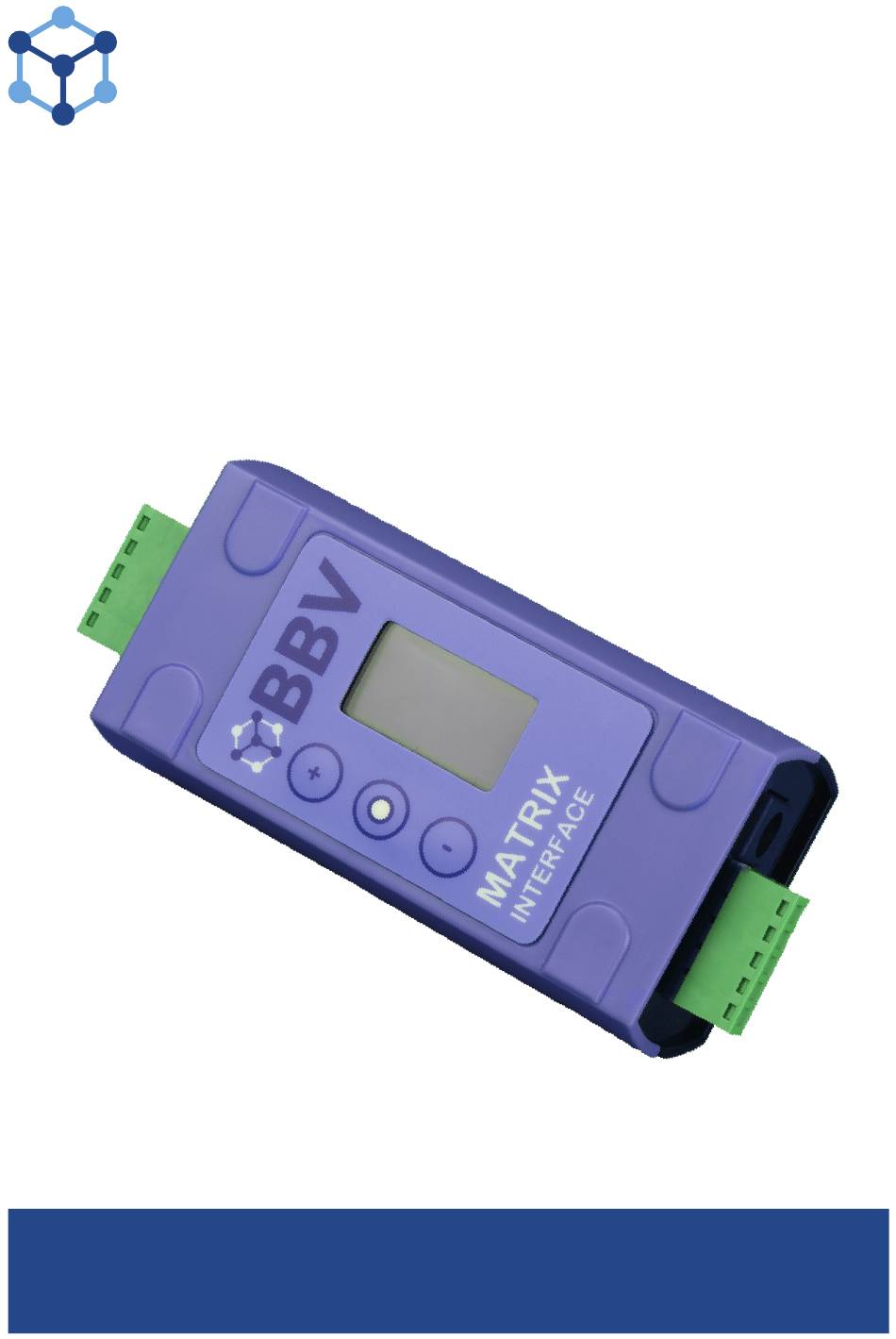

- Page 1 Matrix Interface Installation Guide...
- Page 3 Please contact our customer support department if you have any questions/issues: Tel: ++ 44 (0) 1323 842727 Email: support@bbvcctv.com DISCLAIMER: BBV are not liable for any errors within this manual. If you find an error, please let us know immediately.
- Page 4 Scan for a quick tour of the BBV website: www.bbvcctv.com...
-
Page 5: Table Of Contents
Contents Pre-Installation checks and procedures Introduction Technical Specification Items Included Protocols compatible with Matrix Interface Menu Information Data connection information KBD300A Data connection information when using 2 x KBD300A Remote Keyboard Mode Matrix Interface DVR Control Mode Tx1500 Control Protocol 14 - 15... -
Page 6: Pre-Installation Checks And Procedures
Pre-Installation checks and procedures Unpacking Check packaging – Upon delivery of the unit, inspect the packaging for signs of damage. If damage has occurred, inform the carrier and or the suppliers immediately. Check Contents – After unpacking, check that all items are present. If any items are missing or damaged, contact the equipment supplier. -
Page 7: Introduction
• 1 x 5-way screw terminal Input protocols • Tx1500 control protocol • Pelco D • Pelco P • Pelco ASCII • BBV 422 Features: Visible OLED display for easy configuration Dimensions 92mm (w) x 42mm (d) x 32mm (h) Weight: Temperature range: 0°C - +40°C... -
Page 8: Protocols Compatible With Matrix Interface
Protocols compatible with Matrix Interface: Inbound In bound data connection Outbound BBV ASCII 9600,N,8,1 Full Duplex BBV ASCII 9600,N,8,1 Pelco ASCII 9600,O,8,1 Full Duplex BBV BBUS 9600,N,8,1 Pelco D 2400, 4800 Simplex 9600,N,8,1 Pelco P 2400, 4800 Simplex 9600,N,8,1 BBV 422... -
Page 9: Menu Information
Menu Information V2.1 BBUS Interface Pelco A to BBV 15K Kbd address 1 Input Data received Input Data OK Tx1500 Data received Tx1500 Data OK Right & Select in menu Down & Open in menu Left Indicates that the converter is powered but dormant Indicates that the converter is transmitting V2.1... -
Page 12: Remote Keyboard Mode
Data to the Tx1500 Keypad Data from the Tx1500 Keypad... -
Page 14: Tx1500 Control Protocol
Tx1500 Control Protocol This is the Tx1500 control protocol when using the Matrix Interface & this simple serial protocol the Tx1500 matrix & FBM can be controlled. The protocol is described on the following pages. Baud settings: 9600,N,8,1. Timing is not critical. String Notes Function... - Page 15 58, Wash Wipe & Lights, Patrol 1 & 2 and AutoPan. The table below shows the preset number needed to achieve the desired Function. Pelco ASCII Pelco D BBV Matrix Commands Enter matrix menu then Password 999999, then Select while in Menu...
- Page 16 Notes...
- Page 17 Notes...
- Page 18 BBV Product List All of the BBV products are available to view and purchase online: www.bbvcctv.com Tx1000 MK2 Tx1500 Starcard Starcard Converter...
- Page 19 BBV Product List All of the BBV products are available to view and purchase online: www.bbvcctv.com Coax Converter 1 ASGARD HD Decoder Rx25X Rx45X/WBX Rx55X/WBX...
