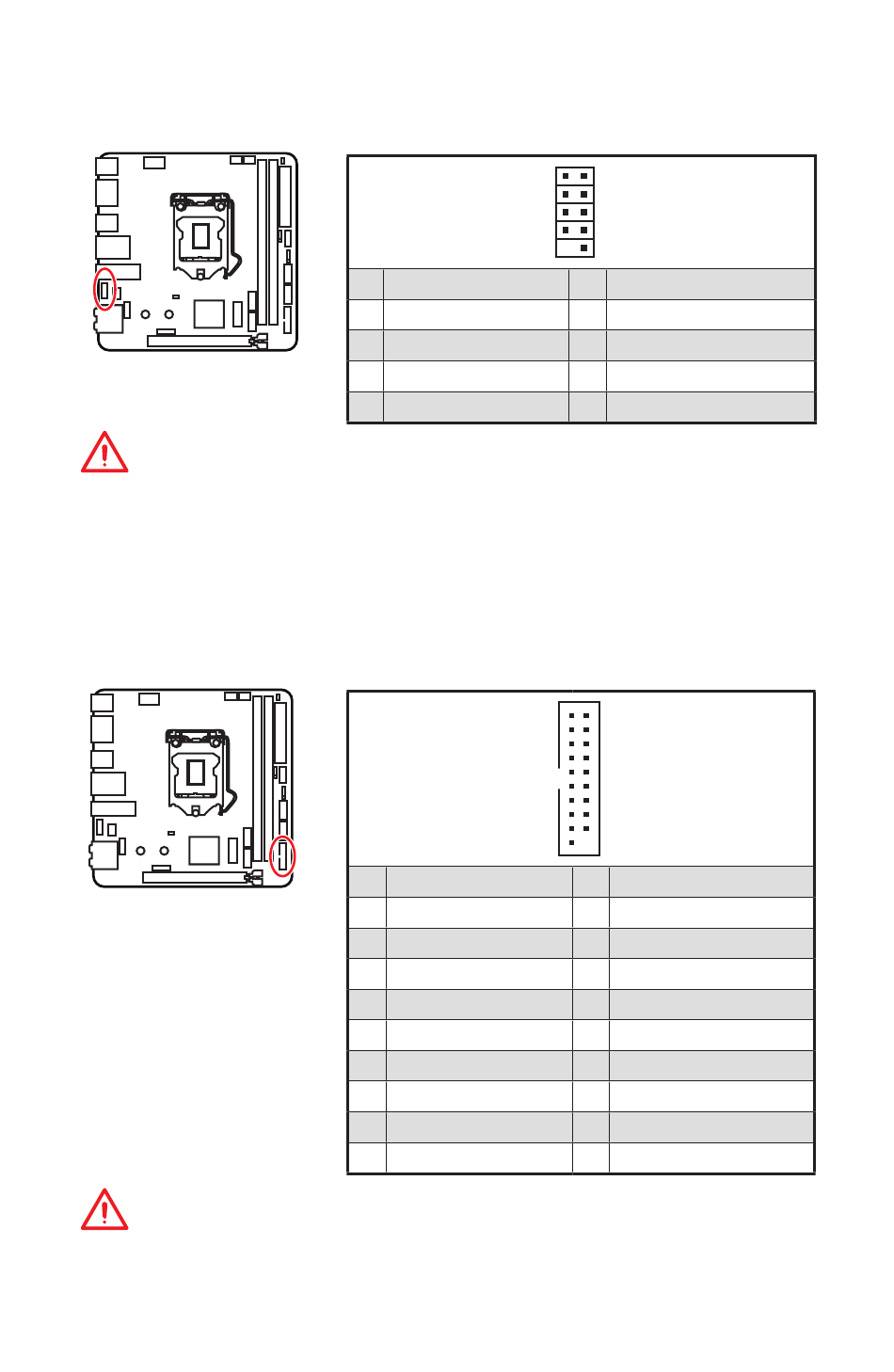

JUSB1: USB 2.0 Connector

This connector allows you to connect USB 2.0 ports on the front panel.
Important
y
Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
y
In order to recharge your iPad,iPhone and iPod through USB ports, please install MSI
Dragon Center utility.

JUSB2: USB 3.1 Gen1 Connector

This connector allows you to connect USB 3.1 Gen1 ports on the front panel.
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
1 VCC
3 USB0-
5 USB0+
7 Ground
9 No Pin
1 Power
2 USB3_RX_DN
3 USB3_RX_DP
4 Ground
5 USB3_TX_C_DN
6 USB3_TX_C_DP
7 Ground
8 USB2.0-
9 USB2.0+
10 NC
1 2
9 10
2 VCC
4 USB1-
6 USB1+
8 Ground
10 NC
10 11
1 20
11 USB2.0+
12 USB2.0-
13 Ground
14 USB3_TX_C_DP
15 USB3_TX_C_DN
16 Ground
17 USB3_RX_DP
18 USB3_RX_DN
19 Power
20 No Pin
