- Page 1 IMB-199 User Manual Version 1.0 Published March 2017 Copyright©2017 ASRock INC. All rights reserved.
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 3 The terms HDMI™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
-
Page 4: Table Of Contents
Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............ -
Page 5: Introduction
In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. -
Page 6: Specifications
1.2 Specifications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® BGA1356 for Intel Core i3 (Skylake-U) Core (By CPU, Max 4) Number Processor Max Speed (By CPU) System L2 Cache (By CPU) Chipset BIOS UEFI PCIe 1 (half/full size, supports PCIe x1 and USB Mini PCIe Expansion device) - Page 7 HDMI DisplayPort 1 (Optional) Rear I/O Ethernet 4 x USB 3.0 Audio 2 (Mic-in. Line-out) Serial PS/2 4 x USB 2.0 (2 x 2.54 pitch header) LVDS/ inverter 1 (Optional) 6 x COM (COM1 and COM2 with Serial RS-232/422/485) SATA Internal mPCIe Connector...
-

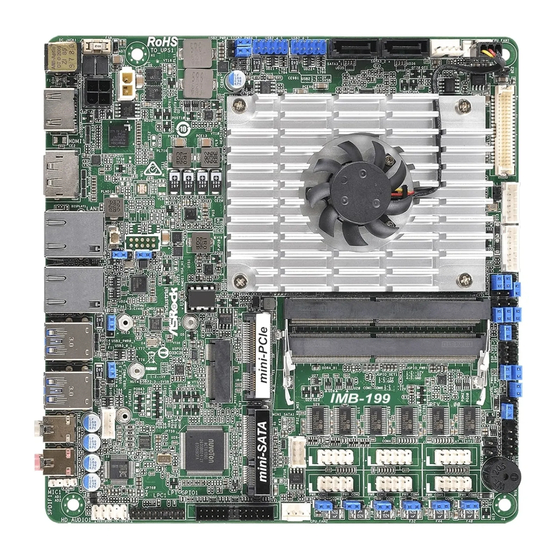

Page 8: Motherboard Layout
FROM_UPS1 LAN1 CLRMOS2 PWR_BAT1 Industrial LAN2 BIOS DDR4_A1 USB3_PWR0_1 USB 3.0 T: USB0 DDR4_B1 B: USB1 USB3_PWR2_3 USB 3.0 T: USB2 IMB-199 B: USB3 PANEL1 Line Out SPEAKER1 BUZZ2 Mic In COM4 COM6 COM2 AUDIO PS2_KB_MS1 CODEC BUZZ1 SPDIF1 COM3... - Page 9 1 : ATX Power Connector (Input 12V or 19-24V) 2 : 2-pin UPS Module Power Input Connector 3 : USB Power Setting Jumpers (USB2_PWR4_5 (For USB2_4_5)) (USB2_PWR6_7 (For USB2_6_7)) 4 : USB2.0 Headers (USB2_4_5, USB2_6_7) 5 : SATA3 Connectors (SATA3_1, SATA3_2) 6 : SATA Power Output Connector 7 : 4-Pin CPU FAN Connector (+12V) 8 : BL2...
-
Page 10: I/O Panel
1.4 I/O Panel DC Jack (DC_JACK1) USB 3.0 Ports (USB3_0_1) HDMI Port (HDMI1) USB 3.0 Ports (USB3_2_3) DisplayPort (DISPLAY1) Line out (Lime) LAN RJ-45 Port* Microphone (Pink) LAN RJ-45 Port* * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. -
Page 11: Installation
Chapter 2: Installation This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. -
Page 12: Installation Of Memory Modules (So-Dimm)
2.3 Installation of Memory Modules (SO-DIMM) IMB-199 provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. 1. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation. -
Page 13: Expansion Slots
2.4 Expansion Slots (mini-PCIe, mini-SATA and M.2 Slots) There is 1 mini-PCIe slot and 1 mini-SATA slot on this motherboard. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards. mini-SATA slot: MINI_SATA1 (mini-SATA slot; full size) is used for mSATA cards. M.2 slot: M.2 Slot (Key E) supports type 2230 for WiFi + BT Module. -
Page 14: Jumpers Setup
2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... - Page 15 Digital Input / Output Default Value Setting 1-2 : Pull-High 2-3 : Pull-Low (3-pin JGPIO_SET1) (see p.8, No. 20) Backlight Control Level (CON_LBKLT_CTL) 1-2 : +3V 2-3 : +5V (3-pin BLT_PWM1) (see p.8, No. 13) Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V 2-3 : LCD_VCC : +5V (5-pin PNL_PWR1) 4-5 : LCD_VCC : +12V...
- Page 16 EDP_LVDS_J1~J4 Jumpers 1-2 : LVDS 2-3 : eDP (3-pin EDP_LVDS_J1~J4) (see p.8, No. 15) PWR_BAT1 Jumper Open : Normal Short : When Using Rechargeable (2-pin PWR_BAT1) Battery (see p.8, No. 36)
-
Page 17: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! CPU Fan Connector Please connect the CPU fan cable to the connector and (4-pin CPU_FAN1) - Page 18 COM Port Headers (10-pin COM1~6: see p.8, No. 23) Signal Signal Signal Signal Signal Name Name Name Name Name RRXD DDTR# DDSR# CCTS# DDCD# TTXD RRTS# This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for the pin definition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup utility >...
- Page 19 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
- Page 20 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system. 2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A.
- Page 21 LVDS Connector Signal Name Signal Name LCD_VCC LCD_VCC (40-pin LVDS1) LDDC_CLK +3.3V (see p.8 No. 9) LVDS_A_DATA0# LDDC_DATA LVDS_A_DATA0 LVDS_A_DATA1 LVDS_A_DATA1# LVDS_A_DATA2# LVDS_A_DATA2 LVDS_A_DATA3 LVDS_A_DATA3# LVDS_A_CLK# LVDS_A_CLK LVDS_B_DATA0 LVDS_B_DATA0# LVDS_B_DATA1# LVDS_B_DATA1 LVDS_B_DATA2 LVDS_B_DATA2# LVDS_B_DATA3# DPLVDD_EN LVDS_B_DATA3 LVDS_B_CLK LVDS_B_CLK# CON_LBKLT_EN LCD_BLT_VCC CON_LBKLT_CTL LCD_BLT_VCC LCD_BLT_VCC...
- Page 22 SATA Power Connector Please connect a SATA power cable to this connector. (SATA_PWR1) (see p.8 No. 6) +12V HDMI_SPDIF Header HDMI_SPDIF header, providing SPDIF audio output to HDMI (3-pin HDMI_SPDIF1) VGA card, allows the system to (see p.8, No. 30) connect HDMI Digital TV/ projector/LCD devices.
- Page 23 VGA Connector (Optional) Signal PIN Signal Name Name (10-pin VGA_H1) DDC_CLK 10 DDC_DATA (see p.8 No. 34) HSYNC VSYNC BLUE GREEN * VGA Connector is shared with DisplayPort. If you enable one, the other one will not function. UPS Module Power Input Connector Pin1 : GND Pin2 : DC Input (2-pin TO_UPS1)
-
Page 24: Uefi Setup Utility
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 25: Navigation Keys
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 26: Advanced Screen
3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, AMT Configuration, Super IO Configuration, ACPI Configuration and USB Configuration. Setting wrong values in this section may cause the system to malfunction. -
Page 27: Cpu Configuration
3.3.1 CPU Configuration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that includes ® ® optimization for this technology, such as Microsoft Windows 7 / 8 / 8.1 / ®... - Page 28 ® [Enabled] and [Disabled]. If you install Windows 7 / 8 / 8.1 / 10 and want to enable this function, please set this item to [Enabled]. This item will be hidden if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issues with some power supplies.
-
Page 29: Chipset Configuration
3.3.2 Chipset Configuration Top of Lower usable DRAM Set the maximum value of TOLUD. Set this item to Dynamic to allow TOLUD to adjust automatically based on the largest MMIO length of the installed graphic controller. VT-d ® ® Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for Directed I/O). - Page 30 Deep Sleep Mobile platforms support Deep S4/S5 in DC only and desktop platforms support Deep S4/S5 in AC only. The default value is [Disabled]. WAN Radio Enable/disable the M.2 WiFi connectivity. BlueTooth Radio Enable/disable the M.2 BT connectivity. Active LVDS Use this to enable or disable the LVDS.
-
Page 31: Storage Configuration
3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages. -
Page 32: Amt Configuration
3.3.4 AMT Technology Intel AMT Use this to enable or disable Intel(R) Active Management Technology BIOS Extension. The default is [Enabled]. BIOS Hotkey Pressed Use this to enable or disable BIOS hotkey press. The default is [Disabled]. MEBx Selection Screen Use this to enable or disable MEBx Selection Screen. - Page 33 PET Progress User can enable or disable PET Events progress to receive PET events or not. The default is [Enabled].
-
Page 34: Super Io Configuration
3.3.5 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Configuration Use this to set parameters of COM2. Select COM2 port type: [RS232], [RS422] or [RS485]. COM3 Configuration Use this to set parameters of COM3. -
Page 35: Acpi Configuration
3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. -
Page 36: Usb Configuration
3.3.7 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are four configuration options: [Enabled], [Auto] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: [Enabled] - Enables support for legacy USB. -
Page 37: Hardware Health Event Monitoring Screen
3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU fan 1’s speed. -
Page 38: Security Screen
3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 39: Boot Screen
3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. - Page 40 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8.1 / 8 64- bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
-
Page 41: Exit Screen
3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”... -
Page 42: Software Support
Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
