EnGenius FreeStyl SIP User Manual

Long-range sip cordless phone
Hide thumbs Also See for FreeStyl SIP:
Table of Contents

Advertisement

Quick Links

Download this manual

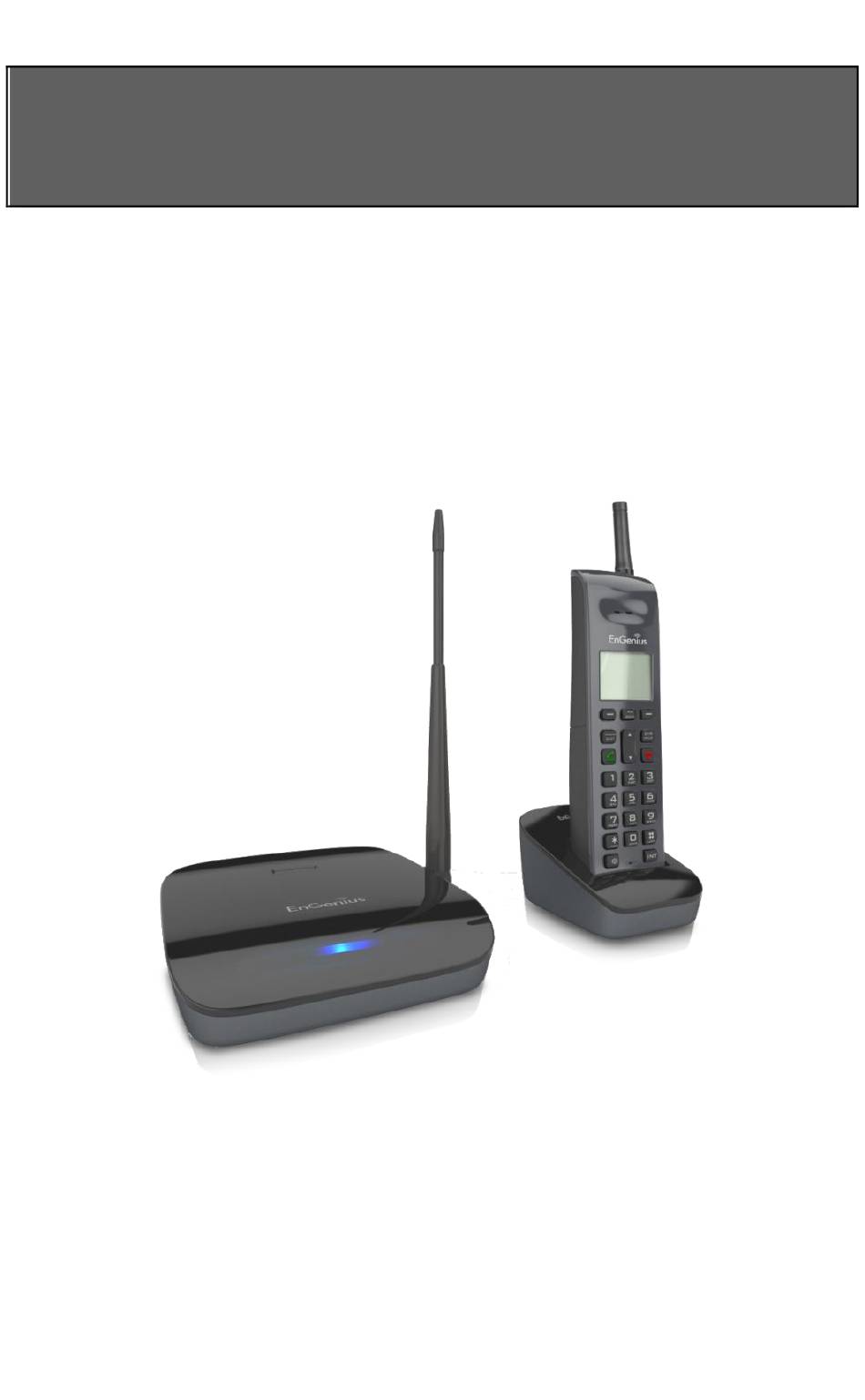

User Manual
FreeStyl SIP
Long-Range SIP Cordless Phone
EnGenius Customer Service
http://www.engeniustech.com/

Advertisement

Table of Contents
loading

Related Manuals for EnGenius FreeStyl SIP

Summary of Contents for EnGenius FreeStyl SIP

  • Page 1 User Manual FreeStyl SIP Long-Range SIP Cordless Phone EnGenius Customer Service http://www.engeniustech.com/...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions ................5 General Safety Instructions.............5 Product Safety Instructions.............5 Battery Safety Instructions .............7 Regulatory Information...............8 Equipment Checklist .................11 Handset Illustration................12 Handset Features ................14 Basic Handset Features ..............14 Additional Handset Features ............16 Base Illustration ................22 Base Features ..................22 Basic Base Station Features ............23 Charger Illustration ................24 Charger Features ................25...
  • Page 3 Key Guard ..................35 Battery Recharge and Replacement ..........36 Advanced Operations................37 Handset Registration..............37 Handset Group Subscription ............38 Call Transfer ..................39 Transfer to EnGenius handset........39 Transfer to PBX extension..........40 Phonebook Operations ..............41 Programmable Feature Call ............45 Caller ID ..................47 Call Manager .................48 Incoming..................49...
  • Page 4 Tools ....................61 Admin ..................61 Time...................62 Ping Test ..................62 Firmware ...................63 Back-up..................63 Reset/Reboot/Registration ............63 Menu Operations ................65 Technical Specifications ..............70 Base Station..................72 Index....................75...

  • Page 5: Safety Instructions

    Safety Instructions Caution: Your wireless telephone gives you freedom and flexibility to stay in touch while you move around. However, when using your phone equipment, safety instructions should be followed to avoid the risks of fire, electric shock, injury to person, and damage to property. General Safety Instructions 1.
  • Page 6 Changes or modifications to this product not expre ssly approved by the manufacturer will void the warranty and the FCC authorization to operate the equipment. Use only manufacturer provided accessories. Do not use the telephone near water. Never spill liquid of any kind on this product.

  • Page 7: Battery Safety Instructions

    16. Do not use the product to report a gas leak while in the vicinity of the leak. 17. Do not install the base station or the handset charger near microwave ovens, radios, TV sets, speakers, or other electrical equipment. These appliances may cause interference to the product or experience interference from the product.

  • Page 8: Regulatory Information

    Regulatory Information FreeStyl SIP FCC ID: A8J-FREESTYLSIP IC: 10103A-FREESTYLSIP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference , and 2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 9 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set for th for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 10 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

  • Page 11: Equipment Checklist

    Equipment Checklist In a Base + two Handset package, please find the following components: Base Station x 1 (antenna installed) Base AC/DC Adaptor x 1 Handset x 2 (antenna installed) Desktop Charger x 2 Charger AC/DC Adaptor x 2 1100mA Li-ion Battery Pack x 2 RJ-45 cable x 1 Quick Guide Belt clip x 2...

  • Page 12: Handset Illustration

    Handset Illustration Antenna Receiver (Earpiece) Phonebook Display Soft key Soft key Broadcast Caller ID / Hold Talk / Flash End / Power Off Up / Down Dialing key Speakerphone Intercom Microphone ~12~...
  • Page 13 Speaker (2.5mm) Headset Jack Battery Cover ~13~...

  • Page 14: Handset Features

    Handset Features Basic Handset Features 4-Line LCD (Liquid Crystal Display) The LCD display has LED (Light Emitting Diode) for backlighting. b. The 1 line of LCD consists of icons. Icons explanation from left to right RSSI level (Receive Signal Strength Indicator) During a call, the number of bars is proportional to the radio signal strength received.
  • Page 15 e. The last line displays the left and right soft keys. Ringer Rings to an incoming call and intercom call. b. Distinctive alert sounds indicating various events: Single beep: successful key entry. Double beep: indicates power on/off. Triple beep: failed operation. Periodic 1-Long 2-Short beeps (every 1 minute): low battery warning;...

  • Page 16: Additional Handset Features

    b. Adjust receiver voice volume when in the Talk mode. Press to enter received call log when in the Standby mode. d. Press to enter phonebook when in the Standby mode. END; On/Off Key ( Ends a call. b. Leaves current menu operation, up one level. Press for 3-seconds to turn off the power.
  • Page 17 DND (Do Not Disturb, i.e., Silent Ring) Call Logs Redial: Stores 10 phone numbers (up to 26-digits each) dialed most recently. Can perform last-number redial on all 10 numbers. Received and New Call Log: Total 50-entries (16-digit phone number, 16- character names, and Date/Time stamp), needs Caller ID service from local telephone company.
  • Page 18 b-2. Manual: A handset will be prompted to select from a list of available lines before making an outgoing call. (1 for telephone line, 2 for SIP call) b-3. Off: Disable the capability to make an outgoing call. Call Barring c-1.
  • Page 19 17. Programmable Feature Call Allows user to pre-program the most frequently used Feature code s into the FreeStyl SIP, which is adjunct to the PBX system. Up to 10-entries can be saved. Once the feature code has been programmed, you can quickly perform...
  • Page 20 21. Custom Name Change the “FreeStyl SIP” screen to the desired wording or info, such as the handset user’s name. Re: Up to 32-characters can be entered. 22. Change Pwd Change the handset password, which requires entering the Call Barring (MENU-4-3) and Menu Display (MENU-8).
  • Page 21 Change the handset microphone gain based on the handset’s use in different environments – Quiet, Normal and Noisy environment. This requires entering the “Phone Settings” (MENU-5-1). 30. Headset Ring Change the ringer emitting either from the handset speaker or the headset receiver.

  • Page 22: Base Illustration

    Base Illustration Page (handset locator only) / Registration Power LED: blue color In use LED: white color Reset Button DC Jack LAN Jack ~22~...

  • Page 23: Base Features

    Base Features Basic Base Station Features Antenna The antenna port has a reversed thread connector; to remove antenna or cable, turn clockwise; to install, turn counterclockwise. Improper installation may damage the connector. When using an outdoor antenna, locate the antenna (not the base station itself) as high as possible for a clear transmission path.

  • Page 24: Charger Illustration

    Charger Illustration Handset charging slot DC in ~24~...

  • Page 25: Charger Features

    Charger Features DC In Connects to Charger AC Adapter. Handset Charging Slot Charges handset battery when handset is placed in the cradle. b. Refer to the handset LCD for charging status. (1) Charging: battery status bar is running and the LCD screen shows: “Charging.”...

  • Page 26: Getting Started

    Getting Started Base Station Installation Plug the transformer end of the base station AC/DC adapter into a standard AC electrical power outlet, plug the other end into the “DC In” jack on the back of the base station. Plug the Ethernet cord into the LAN jack. PS: For SIP configuration, please see page 54.

  • Page 27: Handset And Charger Installation

    Handset and Charger Installation Plug the transformer end of the Charger AC/DC adapter into a standard AC electric power outlet, plug the other end into the “DC In” jack on the back of the Charger. Install the battery pack onto the handset. Make sure handset antenna well installed.

  • Page 28: Basic Operations

    Basic Operations Operation Modes Both the base station and handset have feature levels that can only be accessed when in certain modes. A. Base Operation Modes STANDBY mode- this is the default mode. The page key is active in standby mode only.
  • Page 29 3. Menu Tree Menu 1.KeyGuard 2.PhoneBook 3.Sounds 1.Ring Volume 2.Ring Tone 3.Key Voulme 4.Key Tone 1.PA On/Off 4.Call Settings 1.Dial Prefix 2.Group Setting 2.Line On/Off 3.Call Manager Incoming 3.Int. On/Off 4.Feature Call Outgoing 1.Auto 2.Manual 3.Off Call Barring 5.Phone Settings 1.

  • Page 30: Making A Telephone Call

    A call duration timer will start displaying the length of the call after a link is established. Making a 2-Way/ Intercom Call The FreeStyl SIP Cordless Phone System offers private, Intercom/ 2-Way Radio calls independent of the base station. Intercom/ 2-Way communication can be placed between handsets.

  • Page 31: Making A Broadcast

    1. Press key followed by a two-digit handset ID or Group ID. Enter Ext #: 2. Press key to end the call. BASE PHBOOK 3. Speed dial by accessing the entries(2-digit ID) in the phone book. (Menu→2) a. Press scrolling key to enter the phone book.

  • Page 32: Redial

    PA to Group #91 REDIAL MENU b. Start speaking the broadcast message once you hear the key tone; the speakerphone of destination handsets will open when it receives the voice. Re: the initiating handset needs to press and hold key while speaking or broadcasting.

  • Page 33: Receiving A Telephone Call

    Dialed #1: key to scroll through the last 10 phone 033289289 numbers dialed. Select and press key to dial the OPTION BACK selected number. Note: Intercom numbers (Handset ID) are not stored in the last 10 numbers dialed log. Receiving a Telephone Call 1.

  • Page 34: Ending A Call

    “Vibrate”), lift the handset and press key to start a conversation. 3. If the handset is not on the cradle and MENU-5-2 “Any Key Talk” setting is “On,” press any key (except and the SILENT soft key) to answer. Notes: The LCD displays the caller’s Handset ID.

  • Page 35: Placing A Call On Hold

    Placing a Call On Hold 1. When a call is in progress, it can be put on hold by pressing You have a ＊ OPTION (Right ) soft key and the key. call on hold UNHOLD OPTION 2. To return to the conversation, press UNHOLD (Left) soft key.

  • Page 36: Battery Recharge And Replacement

    1. To prevent accidental dialing, you can press MENU (Right) soft key, then press “1” to select Key Guard option. The Locked No new calls handset keypad is now locked. No key entry is accepted. UNLOCK 2. To unlock the keypad, press UNLOCK (Left) soft key, then, Press * to...

  • Page 37: Advanced Operations

    Advanced Operations Handset Registration If your handset(s) is purchased as part of a system, it has been pre -registered with the base station at the factory. If the Handset ID is “00,” this means it is a new handset or the ID has been erased.

  • Page 38: Handset Group Subscription

    e. Press the handset number key , this completes the de-registration process. Upon successful de- registration, the handset display will show “Please register.” Notes: The base station has a 30-second registration timeout starting when you press the REG button. The handset has a 6-second registration timeout starting when the registration or de-registration option has been selected.

  • Page 39: Call Transfer

    The first handset to answer will establish a link with the caller. Afterward, it is a one-to-one call, not a one-to-many call. Call Transfer ➢ Transfer to EnGenius Handset While a telephone call is in progress, you can transfer it between different handsets. Direct Transfer (Unannounced Transfer ) ＊...

  • Page 40: Transfer To Pbx Extension

    ➢ Transfer to PBX Extension While a telephone call is in progress, you want to transfer it to another extension (not an EnGenius handset). This kind of operation is similar to use ATA device. Call Transfer ~40~...

  • Page 41: Phonebook Operations

    While on the call, press the , the first call will be on hold. Then you can hear a dial tone from PBX. You can enter the PBX extension number you want to transfer the caller party. When the transfer party answers the call, you can press the to transfer it to the first caller.
  • Page 42 c. You will then be prompted to enter a number for the name just entered. Re: Up to 26-digits can be entered as the number. d. After entering the number, press the SAVE (Left) soft key to save this entry into phone book. e.
  • Page 43 Phone Book mode. Press a key that corresponds to the first character of the name you are looking for. For example, you are looking for “EnGenius,” then press the number twice. scrolling key to locate the exact record you are looking for.
  • Page 44 b. Press OPTION (Right) soft key to enter the option menu. c. Press to erase the desinated phone entry. Delete entry? d. LCD shown “Delete entry?” Press (Left) soft key to 12345678 confirm your change. 8. To edit phone book: a.

  • Page 45: Programmable Feature Call

    50-entries. Programmable Feature Call 1. If FreeStyl SIP base station is installed behind a PBX system, it is feasible to pre - program some call features along with the PBX’s feature code into the system. 2. Up to 10 most frequently used feature call codes can be pre -programmed.
  • Page 46 e. Key in the feature call code of the correspondening PBX feature, i.e. F＊70. Press SAVE (Left) soft key to confirm. Re: “F” represent the Flash signal. f. The 1 feature call and corresponding feature call code Number? you entered will appear on the LCD screen. SAVE DELETE g.

  • Page 47: Caller Id

    Notes: This feature call would be useful if the FreeStyl SIP base station is adjunct to a PBX system or If you have not pre-programmed any feature call into the system, only “#.Phonebook” in the OPTION menu. The FreeStyl SIP’s programmable feature call may not function with all PBX or Key phone systems due to the diversity of various proprietary systems.

  • Page 48: Call Manager

    (2) Use Number? key to scroll the number, and 4231234_ press DELETE to edit the number. Then press SAVE (Left) soft key to save the number. DELETE SAVE (3) After the above process, the call log is saved into the phone book.

  • Page 49: Incoming

    Incoming Press MENU (Right) soft key followed by to enter the Call Settings mode. Press to select Call Manager, then enter handset’s password (4-digits). a. Press to enable receiving PA On/Off. Re: Default setting is “ON.” b. Press to enable receiving Line On/Off which includes FXO line only.

  • Page 50: Call Barring

    b. Press to “Manual.” When pressing key in standby mode, the handset LCD will show the available line. Press to scroll the options: 1. SIP, 2. Line. Press 1, you can select the SIP line 1 to make a call. c Press to “Off.”...

  • Page 51: Visual Message Waiting Indicator (Vmwi)

    b. Press OPTION (Right) soft key to delete or edit the Call Call Barring Barring codes. 1212 Up to 5 sets of Call Barring codes can be programmed. OPTION “＊ ＊ ＊ c. If you want to block all outgoing calls, enter ＊＊”...

  • Page 52: Adjust Headset Ring

    Adjust Headset Ring When using the headset, you can change the ringer to emit from either the handset speaker or receiver of headset to avoid missing calls. a. Press MENU (Right) soft key while the handset is in the standby mode. b.

  • Page 53: Sip Configuration

    The FreeStyl SIP is a long-range cordless telephone system with built-in LAN. It provides users the ability to make VoIP calls based SIP protocol. Below describes how to setup the SIP configuration of the FreeStyl SIP base from the web. VoIP Features - Support 4 VoIP calls.

  • Page 54: Web Configuration

    When you want to change the LAN IP to Static IP setting including IP address, subnet mask, gateway, proxy and VLAN, once you click Apply, the change will take effect. You will now know the new IP of the FreeStyl SIP in advance of accessing the web configuration next time.

  • Page 55: Base Settings

    Phone Book You can store up to 50-entries in the phone book on the FreeStyl SIP base. - Click the Add phone book button to add entries. Click the Export phone book button to export this phone book to a specific file in .csv format.

  • Page 56: Sip Configuration

    - In Name field, you can enter ASCII code from decimal code 32~126 (digits from keyboard). In Number field, you can enter 0~9, F,E,T,P, *,#. Maximum length in Name, Number field: 16, 26. - If you have this contact list file in advance, you can click the Browse button to select it, and click the Import phone book button to import the contact list.

  • Page 57: Sip Account

    Note: Basic Primary Codec When you use G.729 Codec, the FreeStyl SIP will not Secondary Codec support 3-way conference. SIP Transport Default: Automatic. According to the requirement of SIP server, you can select UDP or TCP or TLS. STUN When the FreeStyl SIP is located behind a NAT, you can set STUN server to discover its public IP.

  • Page 58: Individual Account

    When the SIP account of handset is active, it shows green light. Individual Account - Note: You should register every handset on the FreeStyl SIP base before you start setting the SIP configuration. The default SIP number is set according to handset ID, which means SIP number 10 is set for handset ID 10, and accordingly.

  • Page 59: Group Account

    Group Account When you want to assign one SIP account to ring many handsets at the same time, you can use the “Group Acc” setting. FreeStyl SIP supports 8 SIP accounts for group(s), which are used for incoming/outgoing calls. - Note: Handsets should “subscribe” from the handset menu to group(s), before performing a group SIP call except using GroupALL group.

  • Page 60: Auto-Provision

    - Note: The auto-provision configuration file is generated by editing the template excel file, and save it as a txt file. And for example, if the FreeStyl SIP’s MAC Address is AA:BB:CC:DD:EE:FF, the configuration file name must be ‘voip_settings_aabbccddeeff.txt’.

  • Page 61: Tools

    Auto-Provision Auto-Provision Default: Disable. When you enable it, FreeStyl SIP can automatically download the configuration file from TFTP server, FTP server, or HTTP server, and apply the setting from the configuration file. Protocol When Server Options is Manual, you can select the URL protocol from TFTP, FTP, and HTTP.

  • Page 62: Time

    Click Apply to apply the changes or Cancel to return to previous settings. Ping Test This page allows you to analyze the connection quality of FreeStyl SIP and trace the routing table to a target in the network. Ping Test...

  • Page 63: Firmware

    “Restore Settings” from A File section. If extreme problems occur or if you have set up the FreeStyl SIP wrong, you can use the “Reset” button in the “Restore to factory default” section to restore all the configurations of the FreeStyl SIP to the original default settings.
  • Page 64 These features (Reset, Reboot, and Registration) can be performed from this web setting: ~64~...

  • Page 65: Menu Operations

    Menu Operations ~65~...
  • Page 66 Press MENU (Right) soft key to enter menu mode while the phone is in standby mode. Re: You can either press , followed by SELECT (Left) soft key to confirm the selected menu. Or press the digit directly to confirm the selected menu.
  • Page 67 Press to turn on or off the dial prefix feature. Default = Off. If “On” is selected, the handset is prompted to enter the prefix number, up to 14-digits can be entered. Delete (Left) soft key to edit prefix number. Press SAVE (Left) soft key to confirm the selection.
  • Page 68 (Left) soft key to confirm setting. Re: Once entering the custom name, the greeting of the LCD in standby mode will be changed as entered. Default greeting is “FreeStyl SIP” Press to Change Password: Enter original (4-digits) of handset then press (Left) soft key when entering this menu.
  • Page 69 Enter 2-digit handset ID, then press (Left) soft key. The base will erase the handset ID from the system. Press to Change PIN: Enter the new Base PIN followed by (Left) soft key. Re: Default Base PIN is “0000.” Press to register, de-register handset : see Handset Registration operation on Page 36.

  • Page 70: Technical Specifications

    Technical Specifications Electrical Specifications Base Station Portable Handset Frequency 902-928 MHz 902-928 MHz RF Power Peak: 708 mW Peak: 708 mW Average: 354 mW Average: 88.5 mW Channel Spacing 200 kHz 200 kHz Number of Channels 128 Modulation MSK Multiple Access Frequency Hopping Frequency Hopping TDMA TDMA...
  • Page 71 Humidity 20 – 75 % 20 – 75 % Dimension without 128(L)x 118(W)x 32(H) 158(L)×46(W)×33(H) mm antenna Weight TBC 175g ~71~...

  • Page 72: Base Station

    Base Station Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 73 Access to the telephone network shall occur only if the code transmitted by the handset matches the code set in the base unit. Similarly, ringing of the handset shall occur only if the code transmitted by the base unit matches the code set in the handset.
  • Page 74 Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device has been designed to operate with an antenna having a maximum gain of 2dBi.

  • Page 75: Index

    Index 2-WAY INTERCOM, 17 Adjust Handset Microphone Gain, 53 Adjust Headset, 54 Adjusting Handset Receiver (Earpiece) Voice Volume, 36 Adjusting Handset Speakerphone Voice Volume, 36 Auto Hang Up, 22 Base Illustration, 24 Base Operation, 30 Base PIN, 70, 71 Base Station, 16, 25, 28, 29, 33 Battery Recharge a nd Replacement, 38 Battery Strength, 16 Broadcast, 33...
  • Page 76 Feature Call, 21, 47, 69 Flash, 17, 48 FCC, 9, 72 Group ID, 18, 32, 33 Group Selections, 40 Group Setting, 21 Handset and Charger Installation, 29 Handset Charging Slot, 27 Handset Features, 16, 18, 24 Handset Group Subscription, 33, 40, 69 Handset ID, 16, 18, 34, 35, 36, 39, 46 Handset Registration, 29, 39, 71 Handset to Handset Calls, 33...
  • Page 77 Placing a Call On Hold, 37 Programmable Feature Call, 47 Programmable Flash, 22 Receiving a Telephone Call, 35 Receiving an Intercom Call, 35 Redial, 19, 34 REG, 30 registration mode, 39, 40, 66 Ring Volume, 68 Ringer, 16, 17, 18 RSSI, 16 Regulatory Information, 9 SILENT, 20, 35, 36, 37, 69...
